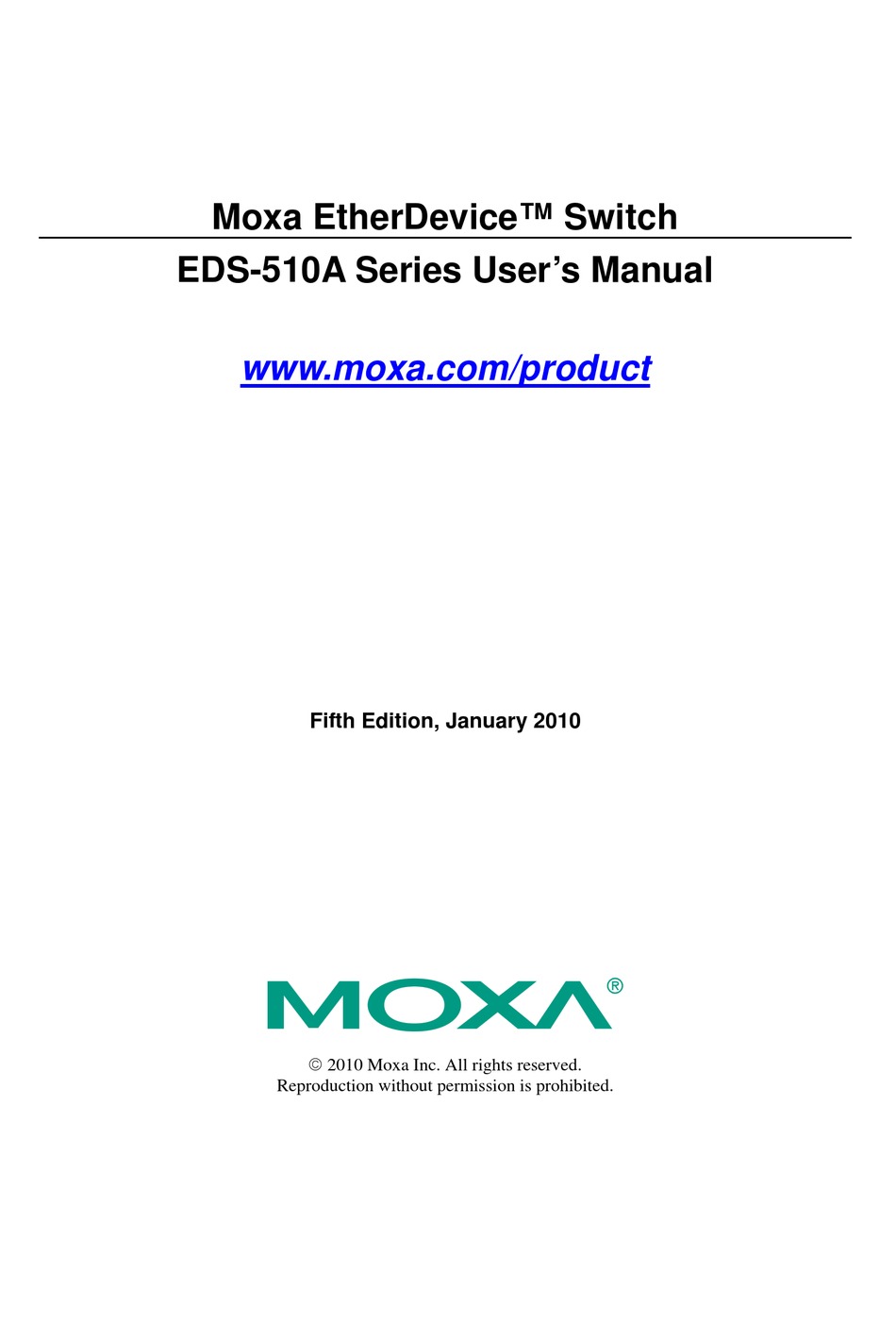

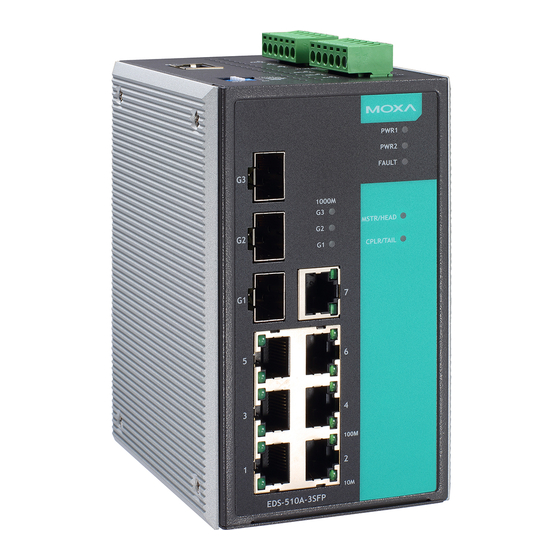

Moxa EtherDevice™ Switch
EDS-510A Series User's Manual
www.moxa.com/product
Fifth Edition, January 2010
 2010 Moxa Inc. All rights reserved.
Reproduction without permission is prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EtherDevice EDS-510A Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moxa Technologies EtherDevice EDS-510A Series

Summary of Contents for Moxa Technologies EtherDevice EDS-510A Series

  • Page 1 Moxa EtherDevice™ Switch EDS-510A Series User’s Manual www.moxa.com/product Fifth Edition, January 2010  2010 Moxa Inc. All rights reserved. Reproduction without permission is prohibited.

  • Page 2: Copyright Notice

    Information in this document is subject to change without notice and does not represent a commitment on the part of Moxa. Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Introduction ....................1-1 Overview ..........................1-2 Package Checklist......................... 1-2 Features ..........................1-2 Industrial Networking Capability ................1-2 Designed for Industrial Applications................. 1-3 Useful Utility and Remote Configuration ..............1-3 Recommended Software and Accessories..............1-3 Chapter 2 Getting Started ..................2-1 RS-232 Console Configuration (115200, None, 8, 1, VT100) ..........
  • Page 4 Sample Applications of VLANs using Moxa EDS-510A ........3-58 Configuring Virtual LAN..................3-59 Using Multicast Filtering....................3-62 The Concept of Multicast Filtering ................. 3-62 Configuring IGMP Snooping .................. 3-65 Add Static Multicast MAC..................3-67 Configuring GMRP ....................3-68 GMRP Table ......................3-69 Using Bandwidth Management ..................

  • Page 5: Chapter 1 Introduction

    Introduction Chapter 1 Welcome to the Moxa EDS-510A Series of EtherDevice Switches, the Gigabit Managed Redundant Ethernet Switches designed specially for connecting Ethernet-enabled devices in industrial field applications. The following topics are covered in this chapter:  Overview  Package Checklist...

  • Page 6: Overview

    EDS-510A Series User’s Manual Introduction Overview As the world’s network and information technology becomes more mature, the trend is to use Ethernet as the major communications interface in many industrial communications and automation applications. In fact, a whole new industry has sprung up to provide Ethernet products that comply with the requirements of demanding industrial applications.

  • Page 7: Designed For Industrial Applications

    EDS-510A Series User’s Manual Introduction Designed for Industrial Applications  Bandwidth management prevents unpredictable network status  Support ABC-01 (Automatic Backup Configurator) for system configuration backup  Long-haul transmission distance of 40 km or 80 km (with optional mini-GBIC) ...

  • Page 8: Chapter 2 Getting Started

    Getting Started Chapter 2 This chapter explains how to access the EDS-510A for the first time. There are three ways to access the switch: serial console, Telnet console, and web browser. The serial console connection method, which requires using a short serial cable to connect the EDS-510A to a PC’s COM port, can be used if you do not know the EDS-510A’s IP address.

  • Page 9: Console Configuration (115200, None, 8, 1, Vt100)

    Following this advice will allow you to maintain better control over the configuration of your EDS-510A. NOTE We recommend using Moxa PComm Terminal Emulator, which can be downloaded free of charge from Moxa’s website. Before running PComm Terminal Emulator, use an RJ45 to DB9-F (or RJ45 to DB25-F) cable to connect the EDS-510A’s RS-232 console port to your PC’s COM port (generally COM1 or COM2,...
  • Page 10 EDS-510A Series User’s Manual Getting Started 3. The Communication Parameter page of the Property window opens. Select the appropriate COM port for Console Connection, 115200 for Baud Rate, 8 for Data Bits, None for Parity, and 1 for Stop Bits.
  • Page 11 EDS-510A Series User’s Manual Getting Started 6. The Console login screen will appear. Press Enter to open the Account pop-up selector and then select either admin or user. Use the keyboard’s down arrow to move the cursor to the Password field, enter the Console Password (this is the same as the Web Browser password;...

  • Page 12: Configuration Using A Telnet Console

    EDS-510A Series User’s Manual Getting Started Configuration using a Telnet Console You may use Telnet to access the EDS-510A’s console utility over a network. To be able to access the EDS’s functions over the network (by Telnet or web browser) from a PC host that is connected to the same LAN as the EDS-510A, you need to make sure that the PC host and the EDS-510A are on the same logical subnet.

  • Page 13: Configuration Using A Web Browser

    EDS-510A Series User’s Manual Getting Started The Console login screen will appear. Press Enter to open the Account pop-up selector and then select either admin or user. Use the keyboard’s down arrow to move the cursor to the Password field, enter the Console Password (this is the same as the Web Browser password;...
  • Page 14 EDS-510A Series User’s Manual Getting Started NOTE Before accessing the EDS-510A’s web browser interface, first connect one of the switch’s RJ45 Ethernet ports to your Ethernet LAN, or connect directly to your PC’s Ethernet card (NIC). You can establish a connection using either a straight-through or cross-over Ethernet cable.

  • Page 15: Disabling Telnet And Browser Access

    EDS-510A Series User’s Manual Getting Started You may need to wait a few moments for the web page to be downloaded to your computer. Use the menu tree on the left side of the window to open the function pages to access each of the switch’s functions.

  • Page 16: Chapter 3 Featured Functions

    Featured Functions Chapter 3 In this chapter, we explain how to access the EDS-510A’s configuration options, perform monitoring, and use administration functions. There are three ways to access these functions: RS-232 console, Telnet console, and web browser. The serial console connection method, which requires using a short serial cable to connect the EDS-510A to a PC’s COM port, can be used if you do not know the EDS-510A’s IP address.

  • Page 17: Configuring Basic Settings

    EDS-510A Series User’s Manual Featured Functions Configuring Basic Settings The Basic Settings group includes the most commonly used settings required by administrators to maintain and control EDS-510A. System Identification The system identification items are displayed at the top of the web page, and will be included in alarm emails.

  • Page 18: Password

    Factory Default The length of time that a MAC address entry 15 ~ 3825 (seconds) can remain in the Moxa switch. When an entry reaches its aging time, it “ages out” and is purged from the switch, effectively cancelling frame forwarding to that specific port.

  • Page 19: Accessible Ip

    EDS-510A Series User’s Manual Featured Functions Password Setting Description Factory Default Old Password Type current password when changing the None (Max. 16 Characters) password New Password Type new password when changing the password None (Max. 16 Characters) Retype Password If you type a new password in the Password field, None (Max.

  • Page 20: Port

    EDS-510A Series User’s Manual Featured Functions The following table shows additional configuration examples: Allowable Hosts Input format Any host Disable 192.168.1.120 192.168.1.120 / 255.255.255.255 192.168.1.1 to 192.168.1.254 192.168.1.0 / 255.255.255.0 192.168.0.1 to 192.168.255.254 192.168.0.0 / 255.255.0.0 192.168.1.1 to 192.168.1.126 192.168.1.0 / 255.255.255.128 192.168.1.129 to 192.168.1.254...
  • Page 21 EDS-510A Series User’s Manual Featured Functions Description Setting Description Factory Default Media type Displays the media type for each module’s port Name Setting Description Factory Default Max. 63 Characters Specify an alias for each port, and assist the None administrator in remembering important information about the port.

  • Page 22: Network

    Featured Functions Network The Network configuration allows users to configure both IPv4 and IPv6 parameters for management access over the network. The EDS-510A series supports both IPv4 and IPv6, and can be managed through either of these address types. IPv4 The IPv4 settings include the switch’s IP address and subnet mask, as well as the IP address of the...
  • Page 23 EDS-510A Series User’s Manual Featured Functions Switch Subnet Mask Setting Description Factory Default Subnet mask of the Identifies the type of network to which the 255.255.255.0 EDS-510A EDS-510A is connected (e.g., 255.255.0.0 for a Class B network, or 255.255.255.0 for a Class C network).

  • Page 24: Time

    EDS-510A Series User’s Manual Featured Functions Link-Local Address Setting Description Factory Default None The network portion of the Link-Local address FE80: (EUI-64 is FE80 and the host portion of Link-Local form of the MAC address is automatically generated using the...

  • Page 25: Daylight Saving Time

    EDS-510A Series User’s Manual Featured Functions NOTE The EDS-510A does not have a real time clock. The user must update the Current Time and Current Date to set the initial time for the EDS-510A after each reboot, especially when the network does not have an Internet connection for an NTP server or there is no NTP server on the LAN.

  • Page 26: Ieee 1588 Ptp

    EDS-510A Series User’s Manual Featured Functions NOTE Changing the time zone will automatically correct the current time. You should configure the time zone before setting the time. Time Server IP/Name Setting Description Factory Default 1st Time Server IP/Name IP or Domain address (e.g., 192.168.1.1 or time.stdtime.gov.tw or time.nist.gov).
  • Page 27 EDS-510A Series User’s Manual Featured Functions Can Ethernet switches be designed to avoid the effects of these fluctuations? A switch may be designed to support IEEE 1588 while avoiding the effects of queuing. In this case two modifications to the usual design of an Ethernet switch are necessary: ...

  • Page 28: Ptp Setting

    EDS-510A Series User’s Manual Featured Functions PTP Setting Operation IEEE 1588/PTP Setting Description Factory Default Operation Disable or enable IEEE 1588(PTP) operation Disable Configuration IEEE 1588/PTP Setting Description Factory Default Clock Mode Support software-based IEEE 1588(PTP) mode Disable Sync Interval...

  • Page 29: Turbo Ring Dip Switch

    NOTE The proprietary “Turbo Ring” protocol (recovery time < 300 ms) was developed by Moxa in 2003 to provide better network reliability and faster recovery time for redundant ring topologies. The “Turbo Ring V2” protocol (recovery time < 20 ms), which was released in 2007, supports additional redundant ring architectures.
  • Page 30 EDS-510A Series User’s Manual Featured Functions Set DIP switch as Turbo Ring / Set DIP switch as Turbo Ring V2 Setting Description Factory Default This is the default if you do NOT reset the switch to Select this option to enable the Turbo Ring DIP...
  • Page 31 EDS-510A Series User’s Manual Featured Functions “Turbo Ring” DIP Switch Settings DIP 1 DIP 2 DIP 3 DIP 4 ON: Enables this EDS ON: Enables the ON: Activates DIP as the Ring Master. default “Ring switches 1, 2, 3 to Coupling”...

  • Page 32: System File Update-By Remote Tftp

    EDS-510A Series User’s Manual Featured Functions NOTE If you use the browser interface to enable the DIP switches (by un-checking the “Disable the Turbo Ring DIP switch” checkbox), and then flip DIP switch 4 from ON to OFF, the Ring Ports and Coupling Ports that were added to all VLANs will be restored to their previous software settings.

  • Page 33: System File Update-By Local Import/Export

    EDS-510A Series User’s Manual Featured Functions System File Update—By Local Import/Export Configuration File To export the configuration file of this EDS-510A, click Export to save it to the local host. Log File To export the Log file of this EDS-510A, click Export and save it to the local host.

  • Page 34: Restart

    To import the configuration file of the EDS-510A, click on Load to load it to the Switch. Restart This function is used to restart the MOXA EtherDevice Switch. Factory Default The Factory Default function is included to give users a quick way of restoring EDS-510A’s configuration settings to their factory default values.

  • Page 35: Using Port Trunking

    800 Mbps. The Port Trunking Concept Moxa has developed a proprietary Port Trunking protocol that provides the following benefits:  Gives you more flexibility in setting up your network connections, since the bandwidth of a link can be doubled, tripled, or quadrupled.

  • Page 36: Configuring Port Trunking

    EDS-510A Series User’s Manual Featured Functions  Set Device IP will be set to the factory default  Mirror Port will be set to the factory default You can setup these features again on your Trunking Port. Configuring Port Trunking The Port Trunking Settings page is used to assign ports to a Trunk Group.
  • Page 37 EDS-510A Series User’s Manual Featured Functions Available Ports/Member Port Setting Description Factory Default Member/Available Use Up/Down buttons to add/remove specific ports Ports from available ports to/from trunk group. Check box Check to designate which ports to add or remove. Unchecked...

  • Page 38: Configuring Snmp

    EDS-510A Series User’s Manual Featured Functions Configuring SNMP The EDS-510A supports SNMP V1/V2c/V3. SNMP V1, and SNMP V2c use a community string match for authentication, which means that SNMP servers access all objects with read-only or read/write permissions using the community string public/private (default value). SNMP V3, which requires you to select an authentication level of MD5 or SHA, is the most secure protocol.

  • Page 39: Snmp Read/Write Settings

    EDS-510A Series User’s Manual Featured Functions SNMP Read/Write Settings SNMP Versions Setting Description Factory Default V1, V2c, V3, or Select the SNMP protocol version used to V1, V2c, or V3 V1, V2c manage the switch. only V1, V2c Read Community...

  • Page 40: Trap Settings

    EDS-510A Series User’s Manual Featured Functions User Auth. Type (for SNMP V1, V2c, V3 and V3 only) Setting Description Factory Default Use admin account or user account to No-Auth access objects. No authentication. Provides authentication based on the HMAC-MD5 algorithms. 8-character...

  • Page 41: Private Mib Information

    EDS-510A Series User’s Manual Featured Functions Trap Server IP/Name Setting Description Factory Default Enter the IP address or name of the 1 IP or Name None Trap Server used by your network. Trap Community Setting Description Factory Default Use a community string match for...

  • Page 42: Gigabit Ethernet Redundant Ring Capability (< 50 Ms)

    (2) “Turbo Ring V2” refers to the new generation Turbo Ring, which has a recovery time of under 20 ms. (3) “Turbo Chain” is a new Moxa proprietary protocol with unlimited flexibly to allow you to construct any type of redundant network topology. The recovery time is under 20 ms.

  • Page 43: The Turbo Ring Concept

    Featured Functions The Turbo Ring Concept Moxa developed the proprietary Turbo Ring protocol to optimize communication redundancy and achieve a faster recovery time on the network. The Turbo Ring and Turbo Ring V2 protocols identify one switch as the master of the network, and then automatically block packets from traveling through any of the network’s redundant loops.
  • Page 44 EDS-510A Series User’s Manual Featured Functions When the number of EDS-510A units in the Turbo Ring is even. Master If there are 2N EDS units (an even number) in the “Turbo Ring” ring, then the backup segment is one of the two segments connected to the (N+1)st EDS (i.e., the EDS unit directly opposite...
  • Page 45 EDS-510A Series User’s Manual Featured Functions Determining the Redundant Path of a “Turbo Ring V2” Ring Master For a “Turbo Ring V2” ring, the backup segment is the segment connected to the 2nd redundant port on the master. See Configuring “Turbo Ring V2” in the Configuring “Turbo Ring”...
  • Page 46 EDS-510A Series User’s Manual Featured Functions To configure the Ring Coupling function for a “Turbo Ring” ring, select two EDS units (e.g., Switch A and B in the above figure) in the ring, and another two EDS units in the adjacent ring (e.g., Switch C and D).
  • Page 47 EDS-510A Series User’s Manual Featured Functions Dual-Ring Configuration (applies only to “Turbo Ring V2”) The “dual-ring” option provides another ring coupling configuration, in which two adjacent rings share one switch. This type of configuration is ideal for applications that have inherent cabling difficulties.

  • Page 48: Configuring "Turbo Ring" And "Turbo Ring V2

    EDS-510A Series User’s Manual Featured Functions Configuring “Turbo Ring” and “Turbo Ring V2” Use the Communication Redundancy page to configure select “Turbo Ring” or “Turbo Ring V2” Note that configuration pages for these two protocols are different. Configuring “Turbo Ring”...
  • Page 49 EDS-510A Series User’s Manual Featured Functions Redundant Ports Status (1st Port, 2nd Port) Ring Coupling Ports Status (Coupling Port, Coupling Control Port) The “Ports Status” indicators show Forwarding for normal transmission, Blocking if this port is connected to a backup path and the path is blocked, and Link down if there is no connection.
  • Page 50 EDS-510A Series User’s Manual Featured Functions Configuring “Turbo Ring V2” NOTE When using the Dual-Ring architecture, users must configure settings for both Ring 1 and Ring 2. In this case, the status of both rings will appear under “Current Status.”...
  • Page 51 EDS-510A Series User’s Manual Featured Functions Ring 1/2—1st Ring Port Status Ring 1/2—2nd Ring Port Status The “Ports Status” indicators show Forwarding for normal transmission, Blocking if this port is connected to a backup path and the path is blocked, and Link down if there is no connection.
  • Page 52 EDS-510A Series User’s Manual Featured Functions Enable Ring Coupling Setting Description Factory Default Enable Select this EDS as Coupler Not checked Disable Do not select this EDS as Coupler Coupling Mode Setting Description Factory Default Select this item to change to the...

  • Page 53: The Turbo Chain Concept

    Featured Functions The Turbo Chain Concept Moxa’s Turbo Chain is an advanced software-technology that gives network administrators the flexibility of constructing any type of redundant network topology. When using the “chain” concept, you first connect the Ethernet switches in a chain and then simply link the two ends of the chain to an Ethernet network, as illustrated in the following figure.

  • Page 54: Configuring "Turbo Chain

    EDS-510A Series User’s Manual Featured Functions Configuring “Turbo Chain” Head Switch Configuration Member Switch Configuration 3-39...

  • Page 55: Tail Switch Configuration

    EDS-510A Series User’s Manual Featured Functions Tail Switch Configuration Explanation of “Current Status” Items Now Active Shows which communication protocol is in use: Turbo Ring, Turbo Ring V2, RSTP, Turbo Chain or None. The “Ports Status” indicators show Forwarding for normal transmission, Blocked if this port is connected to the Tail port as a backup path and the path is blocked, and Link down if there is no connection.

  • Page 56: The Stp/Rstp Concept

    Networks that have a complicated architecture are prone to broadcast storms caused by unintended loops in the network. Moxa EDS-510A’s STP feature is disabled by default. To be completely effective, you must enable RSTP/STP on every EDS-510A connected to your network.

  • Page 57: What Is Stp

    EDS-510A Series User’s Manual Featured Functions What is STP? STP (802.1D) is a bridge-based system that is used to implement parallel paths for network traffic. STP uses a loop-detection process to:  Locate and then disable less efficient paths (i.e., paths that have a lower bandwidth).

  • Page 58: How Stp Works

    EDS-510A Series User’s Manual Featured Functions What happens if a link failure is detected? As shown in next figure, the STP process reconfigures the network so that traffic from LAN segment 2 flows through Bridge B. STP will determine which path between each bridged segment is most efficient, and then assigns a specific reference point on the network.
  • Page 59 EDS-510A Series User’s Manual Featured Functions STP Calculation The first step of the STP process is to perform calculations. During this stage, each bridge on the network transmits BPDUs. The following items will be calculated:  Which bridge should be the Root Bridge. The Root Bridge is the central reference point from which the network is configured.

  • Page 60: Stp Example

    EDS-510A Series User’s Manual Featured Functions STP Example The LAN shown in the following figure has three segments, with adjacent segments connected using two possible links. The various STP factors, such as Cost, Root Port, Designated Bridge Port, and Blocked Port are shown in the figure.

  • Page 61: Using Stp On A Network With Multiple Vlans

    EDS-510A Series User’s Manual Featured Functions Using STP on a Network with Multiple VLANs IEEE Std 802.1D, 1998 Edition, does not take into account VLANs when calculating STP information—the calculations only depend on the physical connections. Consequently, some network configurations will result in VLANs being subdivided into a number of isolated sections by the STP system.

  • Page 62: Configuring Stp/Rstp

    EDS-510A Series User’s Manual Featured Functions Configuring STP/RSTP The following figures indicate which Spanning Tree Protocol parameters can be configured. A more detailed explanation of each parameter follows. At the top of this page, the user can check the “Current Status” of this function. For RSTP, you...
  • Page 63 EDS-510A Series User’s Manual Featured Functions Forwarding Delay Setting Description Factory Default Numerical value input by The amount of time this device waits before 15 (sec.) user checking to see if it should change to a different state. Hello time (sec.)

  • Page 64: Using Traffic Prioritization

    Quality of Service for your network. The rules define different types of traffic and specify how each type should be treated as it passes through the switch. Moxa EDS-510A can inspect both IEEE 802.1p/1Q layer 2 CoS tags, and even layer 3 TOS information to provide consistent classification of the entire network.

  • Page 65: The Traffic Prioritization Concept

    EDS-510A Series User’s Manual Featured Functions The Traffic Prioritization Concept What is Traffic Prioritization? Traffic prioritization allows you to prioritize data so that time-sensitive and system-critical data can be transferred smoothly and with minimal delay over a network. The benefits of using traffic prioritization are: ...
  • Page 66 EDS-510A Series User’s Manual Featured Functions Even though the IEEE 802.1D standard is the most widely used prioritization scheme in the LAN environment, it still has some restrictions:  It requires an additional 4-byte tag in the frame, which is normally optional in Ethernet networks.

  • Page 67: Configuring Traffic Prioritization

    3 TOS information, to provide a consistent classification of the entire network. EDS-510A Series’ QoS capability improves your industrial network’s performance and determinism for mission critical applications. QoS Classification Moxa EDS-510A supports inspection of layer 3 TOS and/or layer 2 CoS tag information to determine how to classify traffic packets. 3-52...
  • Page 68 EDS-510A Series User’s Manual Featured Functions Queuing Mechanism Setting Description Factory Default Weighted Fair EDS-510A has 4 priority queues. In the weighted fair scheme, an 8, 4, 2, 1 weighting is applied to the four priorities. This approach prevents the lower priority...

  • Page 69: Cos Mapping

    EDS-510A Series User’s Manual Featured Functions CoS Mapping Setting Description Factory Low/Normal/ Set the mapping table of different CoS values to 4 0: Low Medium/High different egress queues. 1: Low 2: Normal 3: Normal 4: Medium 5: Medium 6: High...

  • Page 70: Using Virtual Lan

    EDS-510A Series User’s Manual Featured Functions Using Virtual LAN Setting up Virtual LANs (VLANs) on your EDS-510A increases the efficiency of your network by dividing the LAN into logical segments, as opposed to physical segments. In general, VLANs are easier to manage.

  • Page 71: Benefits Of Vlans

    EDS-510A Series User’s Manual Featured Functions Benefits of VLANs The main benefit of VLANs is that they provide a network segmentation system that is far more flexible than traditional networks. Using VLANs also provides you with three other benefits: ...
  • Page 72 EDS-510A Series User’s Manual Featured Functions VLANs: Tagged and Untagged Membership The EDS-510A supports 802.1Q VLAN tagging, a system that allows traffic for multiple VLANs to be carried on a single physical (backbone, trunk) link. When setting up VLANs you need to understand when to use untagged and tagged membership of VLANs.

  • Page 73: Sample Applications Of Vlans Using Moxa Eds-510A

    EDS-510A Series User’s Manual Featured Functions Sample Applications of VLANs using Moxa EDS-510A Device I Port 7 (Access Port Device A Switch A Switch B PVID 4) VLAN 4 Untagged VLAN 5 Untagged Device Device Port 3 (Trunk Port, PVID 1)

  • Page 74: Configuring Virtual Lan

    EDS-510A Series User’s Manual Featured Functions recognize its VLAN and pass it to port 2, but will not remove tags received successfully by device D.  Packets from device E will travel through “Trunk Port 3” with tagged VID 4. Switch B will recognize its VLAN, pass it to port 7, and then remove tags received successfully by device I.
  • Page 75 EDS-510A Series User’s Manual Featured Functions Port Type Setting Description Factory Default Access This port type is used to connect single devices without tags. Trunk Select “Trunk” port type to connect another 802.1Q Access VLAN aware switch or another LAN that combines tagged and/or untagged devices and/or other switches/hubs.

  • Page 76: Vlan Table

    EDS-510A Series User’s Manual Featured Functions To configure the EDS-510A’s Port-based VLAN, use the VLAN Setting page to configure the ports. VLAN Mode Setting Description Factory Default 802.1Q VLAN Set VLAN mode to 802.1Q VLAN 802.1Q VLAN Port-based VLAN Set VLAN mode to Port-based VLAN...

  • Page 77: Using Multicast Filtering

    EDS-510A Series User’s Manual Featured Functions NOTE The physical network can have a maximum of 64 VLAN settings. Using Multicast Filtering Multicast filtering improves the performance of networks that carry multicast traffic. This section explains multicasts, multicast filtering, and how multicast filtering can be implemented on your EDS-510A.

  • Page 78: Multicast Filtering

    EDS-510A Series User’s Manual Featured Functions Multicast Filtering Multicast filtering ensures that only end-stations that have joined certain groups receive multicast traffic. With multicast filtering, network devices only forward multicast traffic to the ports that are connected to registered end-stations. The following two figures illustrate how a network behaves without multicast filtering, and with multicast filtering.

  • Page 79: Igmp Multicast Filtering

    EDS-510A Series User’s Manual Featured Functions Multicast Filtering and Moxa EtherDevice Switch The EDS-510A has three ways to achieve multicast filtering: IGMP (Internet Group Management Protocol) Snooping, GMRP (GARP Multicast Registration Protocol), and adding a static multicast MAC manually to filter multicast traffic automatically.

  • Page 80: Configuring Igmp Snooping

    EDS-510A Series User’s Manual Featured Functions GMRP (GARP Multicast Registration Protocol) The EDS-510A supports IEEE 802.1D-1998 GMRP (GARP Multicast Registration Protocol), which differs from IGMP (Internet Group Management Protocol). GMRP is a MAC-based multicast management protocol, whereas IGMP is IP-based. GMRP provides a mechanism that allows bridges and end stations to register or de-register Group membership information dynamically.
  • Page 81 When the network is mixed with third party switches, such as Cisco:  ‧ 　 IGMP Snooping Enable- ‧ IGMP Snooping Enhanced Mode- □  When the network consists entirely of Moxa switches:  ‧ IGMP Snooping Enable-  ‧ IGMP Snooping Enhanced Mode- Querier...

  • Page 82: Add Static Multicast Mac

    EDS-510A Series User’s Manual Featured Functions Static Multicast Router Port Setting Description Factory Default Select/Deselect Select the option to select which ports will connect Disabled to the multicast routers. It’s active only when IGMP Snooping is enabled. NOTE At least one switch must be designated the Querier or enable IGMP snooping and GMRP when enabling Turbo Ring and IGMP snooping simultaneously.

  • Page 83: Configuring Gmrp

    EDS-510A Series User’s Manual Featured Functions Add New Static Multicast Address to the List Setting Description Factory Default MAC Address Input the multicast MAC address of this host. None MAC Address Setting Description Factory Default integer Input the number of the VLAN to which the host with None this MAC Address belongs.

  • Page 84: Gmrp Table

    For example, so-called “broadcast storms” could be caused by an incorrectly configured topology, or a malfunctioning device. The EDS-510A series not only prevents broadcast storms, but can also be configured to a different ingress rate for all packets, giving administrators full control of their limited bandwidth to prevent undesirable effects caused by unpredictable faults.

  • Page 85: Using Port Access Control

    EDS-510A Series User’s Manual Featured Functions Using Port Access Control The EDS-510A provides two kinds of Port-Based Access Controls. One is Static Port Lock and the other is IEEE 802.1X. Static Port Lock The EDS-510A can also be configured to protect static MAC addresses for a specific port. With the Port Lock function, these locked ports will not learn any additional addresses, but only allow traffic from preset static MAC addresses, helping to block crackers and careless usage.
  • Page 86 EDS-510A Series User’s Manual Featured Functions Message Exchange Authentication server Client (RADIUS) EAPOL-Start EAP-Request/Identity EAP-Response/Identity RADIUS Access-Request RADIUS Access-Challenge EAP-Request/OTP RADIUS Access-Request EAP-Response/OTP EAP-Success RADIUS Access-Accept Port Authorized EAPOL-Logoff Port Unauthorized 1. When the supplicant receives an “EAP Request/Identity” frame, it sends an “EAP Response/Identity”...

  • Page 87: Configuring Static Port Lock

    EDS-510A Series User’s Manual Featured Functions Configuring Static Port Lock The EDS-510A supports adding unicast groups manually if required. Setting Description Factory Default MAC Address Add the static unicast MAC address into the address None table. Port Fix the static address with a dedicated port.
  • Page 88 EDS-510A Series User’s Manual Featured Functions Radius Server Setting Description Factory Default IP address or The IP address or domain name of the RADIUS server localhost domain name Server Port Setting Description Factory Default Numerical The UDP port of the RADIUS Server...
  • Page 89 EDS-510A Series User’s Manual Featured Functions 802.1X Re-Authentication The EDS-510A can force connected devices to be re-authorized manually. 802.1X Re-Authentication Setting Description Factory Default Enable/Disable Select the option to enable 802.1X Re-Authentication Disable Local User Database Setup When setting the Local User Database as the authentication database, set the database first.

  • Page 90: Using Auto Warning

    EDS-510A Series User’s Manual Featured Functions Local User Database Setup Setting Description Factory Default User Name User Name for Local User Database None (Max. 30 characters) Password Password for Local User Database None (Max. 16 characters) Description Description for Local User Database None (Max.

  • Page 91: Configuring Email Warning

    EDS-510A Series User’s Manual Featured Functions Configuring Email Warning The Auto Email Warning function uses e-mail to alert the user when certain user-configured events take place. Three basic steps are required to set up the Auto Warning function: 1. Configuring Email Event Types Select the desired Event types from the Console or Web Browser Event type page (a description of each event type is given later in the Email Alarm Events setting subsection).
  • Page 92 EDS-510A Series User’s Manual Featured Functions System Events Warning e-mail is sent when… Switch Cold Start Power is cut off and then reconnected. Switch Warm Start The EDS-510A is rebooted, such as when network parameters are changed (IP address, subnet mask, etc.).

  • Page 93: Email Setup

    EDS-510A Series User’s Manual Featured Functions Email Setup Mail Server IP/Name Setting Description Factory Default IP address The IP Address of your email server. None Account Name Setting Description Factory Default Max. 45 Your email account name (typically your user name)

  • Page 94: Configuring Relay Warning

    EDS-510A Series User’s Manual Featured Functions NOTE Auto warning e-mail messages will be sent through an authentication protected SMTP server that supports the CRAM-MD5, LOGIN, and PLAIN methods of SASL (Simple Authentication and Security Layer) authentication mechanism. We strongly recommend not entering your Account Name and Account Password if auto warning e-mail messages can be delivered without using an authentication mechanism.

  • Page 95: Warning List

    EDS-510A Series User’s Manual Featured Functions System Events Warning Relay output is triggered when… Power Transition (OnOff) The EDS-510A is powered on. Power Transition (OffOn) The EDS-510A is powered down. DI1 (OnOff) Digital Input 1 is triggered by on to off transition DI1 (OffOn)

  • Page 96: Using Line-Swap-Fast-Recovery

    Enable Line-Swap-Fast-Recovery function Using Set Device IP To reduce the effort required to set up IP addresses, the EDS-510A series comes equipped with DHCP/BOOTP server and RARP protocol to set up IP addresses of Ethernet-enabled devices automatically. When enabled, the Set device IP function allows the EDS-510A to assign specific IP addresses automatically to connected devices that are equIPped with DHCP Client or RARP protocol.
  • Page 97 EDS-510A Series User’s Manual Featured Functions STEP 1—set up the connected devices Set up those Ethernet-enabled devices connected to the EDS-510A for which you would like IP addresses to be assigned automatically. The devices must be configured to obtain their IP address automatically.

  • Page 98: Configuring Set Device Ip

    EDS-510A Series User’s Manual Featured Functions Configuring Set Device IP Desired IP Address Setting Description Factory Default IP Address Set the desired IP of connected devices. None The DHCP Relay Agent makes it possible for DHCP broadcast messages to be sent over routers.
  • Page 99 EDS-510A Series User’s Manual Featured Functions The “Remote ID” is to identify the relay agent itself and it can be one of the following: 1. The IP address of the relay agent. 2. The MAC address of the relay agent.

  • Page 100: Dhcp Option 82

    EDS-510A Series User’s Manual Featured Functions DHCP Option 82 Enable Option82 Setting Description Factory Default Enable or Disable Enable or disable DHCP Option 82 function. Disable Type Setting Description Factory Default Use switch IP address as the remote ID sub-option.

  • Page 101: Using Diagnosis

    EDS-510A Series User’s Manual Featured Functions Using Diagnosis The EDS-510A provides two important tools for administrators to diagnose network systems. Mirror Port The Mirror port function can be used to monitor data being transmitted through a specific port. This is done by setting up another port (the mirror port) to receive the same data being transmitted from, or both to and from, the port under observation.

  • Page 102: Ping

    Defined by IEEE 802.11AB, LLDP is an OSI Layer 2 Protocol that standardizes the methodology of self-identity advertisement. It allows each networking device, e.g. a Moxa managed switch, to periodically inform its neighbors about its self-information and configurations. As a result, all of the devices would have knowledge about each other;...

  • Page 103: Lldp Web Interface

    Most importantly, enabling the LLDP function allows Moxa’s MXview to automatically display the network’s topology as well as system setup details such asVLAN, and Trunking for the entire network.

  • Page 104: Using Monitor

    EDS-510A Series User’s Manual Featured Functions Using Monitor You can monitor statistics in real time from the EDS-510A’s web console and serial console. Monitor by Switch Access the Monitor by selecting “System” from the left selection bar. Monitor by System allows the user to view a graph that shows the combined data transmission activity of all the EDS-510A’s...

  • Page 105: Monitor By Port

    EDS-510A Series User’s Manual Featured Functions Monitor by Port Access the Monitor by Port function by selecting ALL 10/100M or 1G Ports or Port i, in which i= 1, 2, …, G2, from the left pull-down list. The Port i options are identical to the Monitor by System function discussed above, in that users can view graphs that show All Packets, TX Packets, RX Packets, or Error Packets activity, but in this case, only for an individual port.

  • Page 106: Using Event Log

    EDS-510A Series User’s Manual Featured Functions The table will display the following information: This field shows the MAC address Type This field shows the type of this MAC address Port This field shows the port that this MAC address belongs to...

  • Page 107: Using Syslog

    EDS-510A Series User’s Manual Featured Functions Using Syslog This function provides the event logs for the syslog server. The function supports 3 configurable syslog servers and syslog server UDP port numbers. When an event occurs, the event will be sent as a syslog UDP packet to the specified syslog servers.

  • Page 108: Using Https/Ssl

    EDS-510A Series User’s Manual Featured Functions NOTE The following events will be recorded into the EDS-510A’s Event Log table, and will then be sent to the specified Syslog Server: 1. Cold start 2. Warm start 3. Configuration change activated 4. Power 1/2 transition (Off  On), Power 1/2 transition (On  Off) 5.
  • Page 109 HTTPS/SSL. NOTE Moxa provides a Root CA certificate .After installing this certificate into your PC or notebook, you can access the web browser interface directly and will not see any warning messages again. You may download the certificate from the EDS-510A’s CD-ROM.

  • Page 110: Eds Configurator Gui

    EDS-510A switches. EDS Configurator is designed to provide you with instantaneous control of all of your EDS-510A switches, regardless of location. You may download the EDS Configurator software from Moxa’s website free of charge. This chapter includes the following sections: ...

  • Page 111: Starting Eds Configurator

    Use the Broadcast Search utility to search the LAN for all EDS-510A switches that are connected to the LAN. Note that since the search is done by MAC address, Broadcast Search will not be able to locate Moxa EtherDevice Servers connected outside the PC host’s LAN. Start by clicking the Broadcast Search icon , or by selecting Broadcast Search under the List Server menu.

  • Page 112: Search By Ip Address

    EDS-510A Series User’s Manual EDS Configurator GUI Once the search is complete, the Configurator window will display a list of all switches that were located. Search by IP address This utility is used to search for EDS-510A switches one at a time. Note that the search is conducted by IP address, so you should be able to locate any EDS-510A that is properly connected to your LAN, WAN, or even the Internet.

  • Page 113: Upgrade Firmware

    EDS-510A Series User’s Manual EDS Configurator GUI Upgrade Firmware Keep your EDS-510A up to date with the latest firmware from Moxa. Perform the following steps to upgrade the firmware: 1. Download the updated firmware (*.rom) file from the Moxa website (www.moxa.com).

  • Page 114: Modify Ip Address

    EDS-510A Series User’s Manual EDS Configurator GUI Modify IP Address You may use the Modify IP Address function to reconfigure EDS-510A’s network settings. Start by clicking the Modify IP address icon , or by selecting Modify IP address under the Configuration menu.
  • Page 115 EDS-510A Series User’s Manual EDS Configurator GUI 2. Click OK when the Export configuration to file OK message appears. 3. You may use a standard text editor, such as Notepad under Windows, to view and modify the newly created configuration file.

  • Page 116: Import Configuration

    Import Configuration function. Perform the following steps to import a configuration: 1. Highlight the server (from the Moxa EtherDevice Switch list in the Configurator window’s left pane), and then click the Import toolbar icon , or select Import Configuration from the Configuration menu.

  • Page 117: Unlock Server

    There are six possible responses under the Status column. The Status of an EDS-510A indicates how the switch was located (by Moxa EtherDevice Switch Configurator), and what type of password protection it has.
  • Page 118 EDS-510A Series User’s Manual EDS Configurator GUI 2. When the Unlock status window reports Progress as OK, click the Close button in the upper right corner of the window. 3. The status of the switch will now read Unlocked.

  • Page 119: Mib Groups

    The EDS-510A comes with built-in SNMP (Simple Network Management Protocol) agent software that supports cold/warm start trap, line up/down trap, and RFC 1213 MIB-II. The standard MIB groups that the EDS-510A series support are: MIB II.1 – System Group sysORTable MIB II.2 –...
  • Page 120 EDS-510A Series User’s Manual MIB Groups MIB II.10 – Transmission Group dot3 dot3StatsTable MIB II.11 – SNMP Group SnmpBasicGroup SnmpInputStats SnmpOutputStats MIB II.17 – dot1dBridge Group dot1dBase dot1dBasePortTable dot1dStp dot1dStpPortTable dot1dTp dot1dTpFdbTable dot1dTpPortTable dot1dTpHCPortTable dot1dTpPortOverflowTable pBridgeMIB dot1dExtBase dot1dPriority dot1dGarp qBridgeMIB...
  • Page 121 EDS-510A Series User’s Manual MIB Groups The EDS-510A also provides a private MIB file, located in the file “Moxa-EDS510A-MIB.my” on the EDS-510A Series utility CD-ROM. Public Traps: 1. Cold Start 2. Link Up 3. Link Down 4. Authentication Failure 5. dot1dBridge New Root 6.

  • Page 122: Appendix B Modbus/Tcp Map

    0x0002 1 word Product Code = 0x0006 0x0010 20 word Vendor Name = "Moxa" Word 0 Hi byte = ‘M’ Word 0 Lo byte = ‘o’ Word 1 Hi byte = ‘x’ Word 1 Lo byte = ‘a’ Word 2 Hi byte = ‘\0’...

  • Page 123: Port Information

    EDS-510A Series User’s Manual Specifications 0x0055 3 word Ethernet MAC Address Ex: MAC = 00-01-02-03-04-05 Word 0 Hi byte = 0x00 Word 0 Lo byte = 0x01 Word 1 Hi byte = 0x02 Word 1 Lo byte = 0x03 Word 2 Hi byte = 0x04...
  • Page 124 EDS-510A Series User’s Manual Specifications 0x1400~0x1413(Port 1) 20 word Port 1~10 Description 0x1414~0x1427(Port 2) Port Description = "100TX,RJ45." Word 0 Hi byte = ‘1’ Word 0 Lo byte = ‘0’ Word 1 Hi byte = ‘0’ Word 1 Lo byte = ‘T’...
  • Page 125 EDS-510A Series User’s Manual Specifications 0x3301 1 word TR 1st Port status 0x0000:Port Disabled 0x0001:Not Redundant 0x0002:Link Down 0x0003:Blocked 0x0004:Learning 0x0005:Forwarding 0x3302 1 word TR 2nd Port status 0x0000:Port Disabled 0x0001:Not Redundant 0x0002:Link Down 0x0003:Blocked 0x0004:Learning 0x0005:Forwarding 0x3303 1 word...
  • Page 126 EDS-510A Series User’s Manual Specifications 0x3502 1 word TR2 Coupling Port Backup status (Only using in Dual Homing) 0x0000:Port Disabled 0x0001:Not Coupling Port 0x0002:Link Down 0x0003:Blocked 0x0004:Learning 0x0005:Forwarding 0xFFFF:Turbo Ring V2 Not Enable 0x3600 1 word TR2 Ring 1 status...
  • Page 127 EDS-510A Series User’s Manual Specifications 0x3683 1 word TR2 Ring 2 2nd Port status 0x0000:Port Disabled 0x0001:Not Redundant 0x0002:Link Down 0x0003:Blocked 0x0004:Learning 0x0005:Forwarding 0xFFFF:Turbo Ring V2 Ring 2 Not Enable 0x3700 1 word Turbo Chain Switch Role 0x0000:Head 0x0001:Member 0x0002:Tail...

Table of Contents

Save PDF
