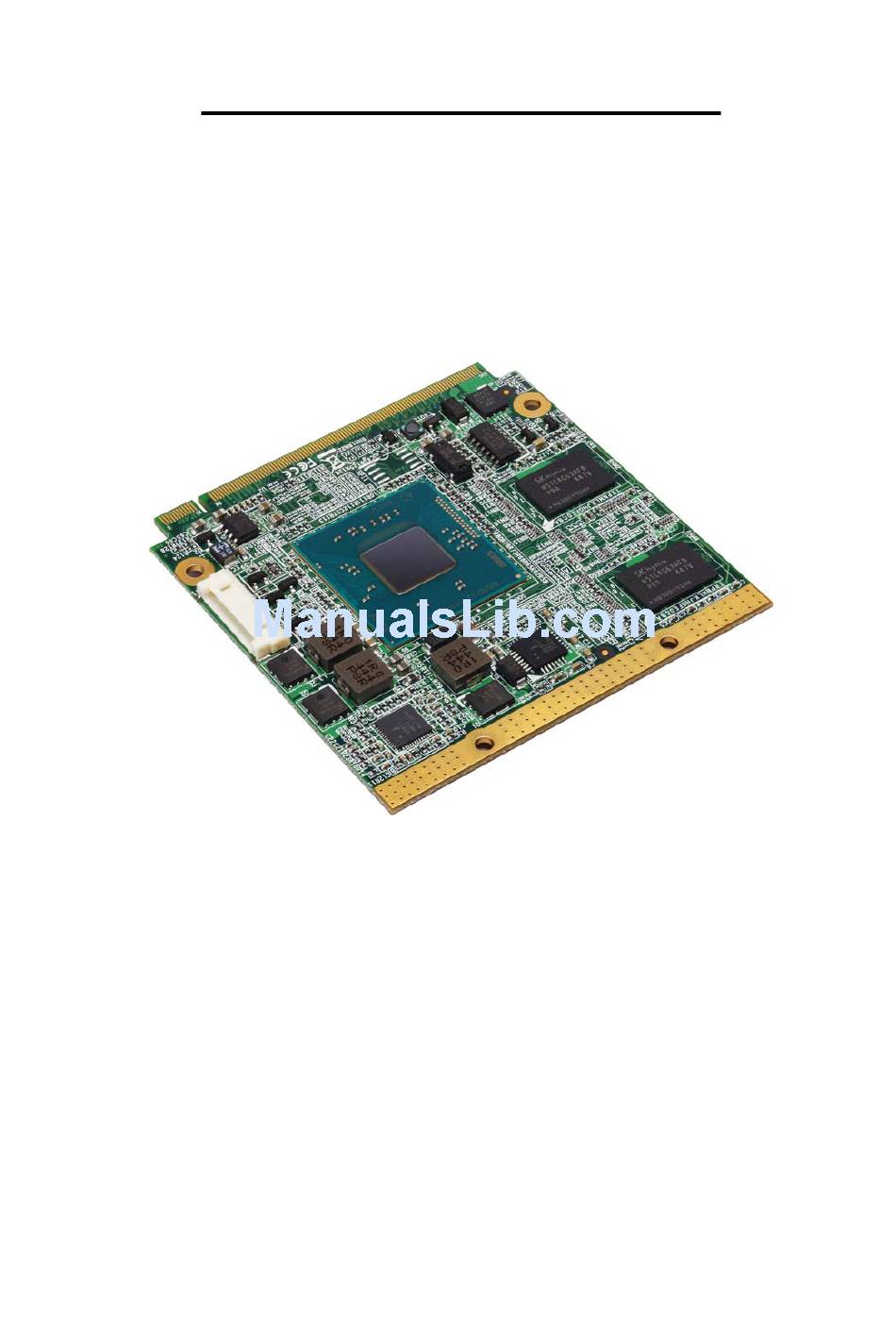

- Page 1 QE-E70 Qseven CPU Module User’s Manual Edition 1.0 2015/06/16...
-
Page 2: Packing List
Trademark All trademarks are the property of their respective holders. Any questions please visit our website at h ttp://www.commell.com.tw Packing List: Please check the package content before you starting using the board. Hardware:... -
Page 3: Table Of Contents
LN-D70 User’s Manual Printed Matters: C Power Cable x 1 Driver CD (Including User’s Manual) x 1 ALDC-A / (1040433) Cooler: Heat Sink: (OHS-7) / (2181010020) (OHS-9) / (2181110011) QE-E70J, QE-E70E QE-E70N Index Chapter 1 <Introduction> ................5 1.1 <Product Overview>..................5 1.2 <Product Specification>................ - Page 4 LN-D70 User’s Manual 2.3.5<High Definition Audio Signals/AC'97> ........... 16 2.3.6<LVDS Flat Panel Signals>............. 17 2.3.7<DisplayPort Interface Signals>............18 2.3.7<DVI Interface Signals> ..............18 2.3.8<LPC Interface Signals> ..............19 2.3.9<SPI Interface Signals> ..............19 2.3.10<Input Power Pins> ..............20 2.3.11<Power Control Signals> .............. 20 2.3.12<Power Management Signals>.............
-
Page 5: Chapter 1

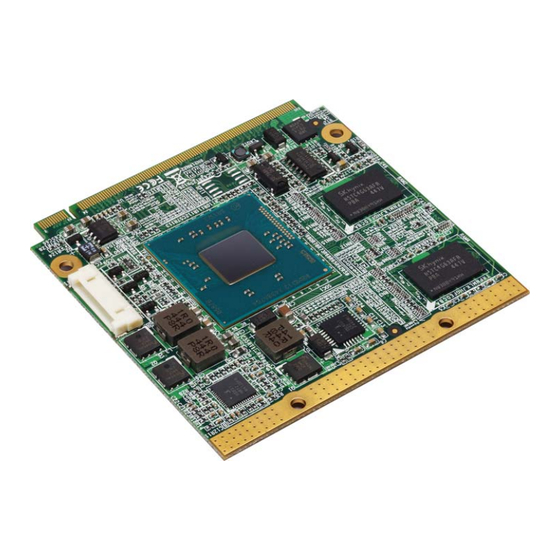

LN-D70 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> QE-E70 is the system-on-chip (SoC) designed for intelligent systems, delivering outstanding compute, graphical, and media performance while operating in an extended range of thermal conditions. These SoCs are based on the Silvermont microarchitecture, utilizing Intel’s industry-leading 22nm process technology with 3-D Tri-Gate transistors, which deliver significant improvements in computational performance and energy efficiency. -
Page 6: Product Specification
LN-D70 User’s Manual 1.2 <Product Specification> General Specification Form Factor Qseven CPU Module Bay Trail Intel® Celeron™ J1900 / N2930 and Atom™ E3845 Mobile Processor Package Type: FCBGA1170 Support DDR3L 1600 MHz 2GB or 4GB on board memory Memory Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s Graphic Intel®... - Page 7 QE-E70NE2-2GB(4GB) Intel Celeron Processor N2930 (2M Cache, 2.16GHz), two eDP, VGA, HD Audio interface, two Serial ATAII, one USB3.0 , four USB 2.0, four PCIe x1, 2G(4G) Memory The specifications may be different as the actual production. For further product information please visit the website at http://www.commell.com.tw...
-
Page 8: Mechanical Drawing
LN-D70 User’s Manual 1.3 <Mechanical Drawing>... -
Page 9: Block Diagram
LN-D70 User’s Manual 1.4 <Block Diagram>... -
Page 10: Chapter 2
LN-D70 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location>... -
Page 11: Interface Reference
LN-D70 User’s Manual 2.2 <Interface Reference> 2.2.1 <Internal interface> Interface Function Remark FCBGA1170 CPU CN_CRT 10-pin VGA connector 2.2.2 <External Interface> interface Function Remark PCIe2.0 Four PCIe2.0 x1 LPC for super I/O SDIO for super I/O SDIO SPI for System BIOS SATAII Two SATAII(3Gb/s), Four USB 2.0 &... - Page 12 LN-D70 User’s Manual BATLOW# RSTBTN# SATA0_TX+ SATA1_TX+ SATA0_TX- SATA1_TX- SATA_ACT# SATA0_RX+ SATA1_RX+ SATA0_RX- SATA1_RX- BIOS_DISABLE# / BOOT_ALT# SDIO_CLK# SDIO_CD# SDIO_LED SDIO_CMD SDIO_WP SDIO_PWR# SDIO_DAT1 SDIO_DAT0 SDIO_DAT3 SDIO_DAT2 SDIO_DAT5 SDIO_DAT4 SDIO_DAT7 SDIO_DAT6 RSVD HDA_SYNC/ I2S_WS SMB_CLK/ GP1_I2C_CLK HDA_RST#/ I2S_RST# SMB_DAT/ GP1_I2C_DAT HDA_BITCLK/ I2S_CLK SMB_ALERT# HDA_SDI/ I2S_SDI...
- Page 13 LN-D70 User’s Manual LVDS_PPEN LVDS_BLEN eDP0_TX3+/ LVDS_A3+ eDP1_TX3+/ LVDS_B3+ eDP0_TX3-/ LVDS_A3- eDP1_TX3-/ LVDS_B3- eDP0_AUX+/ LVDS_A_CLK+ eDP1_AUX+/ LVDS_B_CLK+ eDP0_AUX-/ LVDS_A_CLK- eDP1_AUX-/ LVDS_B_CLK- LVDS_BLT_CTRL GP_1-Wire_Bus /GP_PWM_OUT0 GP2_I2C_DAT/ eDP0_HPD# / LVDS_DID_DAT LVDS_BLC_DAT GP2_I2C_CLK / eDP1_HPD# / LVDS_DID_CLK LVDS_BLC_CLK CAN0_TX CAN0_RX DP_LANE3+/ TMDS_CLK+ RSVD (Differential Pair) DP_LANE3-/ TMDS_CLK- RSVD (Differential Pair) DP_LANE1+/ TMDS_LANE1+...
-
Page 14: Pci Express Interface Signals
LN-D70 User’s Manual SERIRQ / GPIO6 LPC_LDRQ# / GPIO7 VCC_RTC SPKR / GP_PWM_OUT2 FAN_TACHOIN / FAN_PWMOUT / GP_TIMER_IN GP_PWM_OUT1 SPI_MOSI SPI_CS0# SPI_MISO SPI_CS1# SPI_SCK MFG_NC4 VCC_5V_SB VCC_5V_SB MFG_NC0 MFG_NC2 MFG_NC1 MFG_NC3 2.3.1 <PCI Express Interface Signals> Signal Description PCIE0_RX+ PCI Express channel 0, Receive Input differential pair. PCIE0_RX- PCIE0_TX+ PCI Express channel 0, Transmit Output differential pair. -
Page 15: 2
LN-D70 User’s Manual PCIE3_TX- PCIE_CLK_REF+ PCI Express Reference Clock for Lanes 0 to 3. PCIE_CLK_REF- PCIE_WAKE# PCI Express Wake Event: Sideband wake signal asserted by components requesting wakeup. PCIE_RST# Reset Signal for external devices. 2.3.2<Serial ATA Interface Signals> Signal Description SATA0_RX+ Serial ATA channel 0, Receive Input differential pair. -
Page 16: 4
LN-D70 User’s Manual USB_SSTX0+ Multiplexed with transmit signal differential pairs for the USB_SSTX0- Superspeed USB data path. USB_0_1_OC# Over current detect input 1. This pin is used to monitor the USB power over current of the USB Ports 0 and 1. USB_2_3_OC# Over current detect input 2. -
Page 17: 6
LN-D70 User’s Manual 2.3.6<LVDS Flat Panel Signals> Signal Description LVDS_PPEN Controls panel power enable. LVDS_BLEN Controls panel backlight enable. LVDS_BLT_CTRL Primary functionality is to control the panel backlight brightness via pulse width modulation (PWM). eDP0_TX0+ Display Port primary channel differential pair 0. eDP0_TX0- eDP0_TX1+ Display Port primary channel differential pair 1. -
Page 18: 7
LN-D70 User’s Manual 2.3.7<DisplayPort Interface Signals> Signal Shared With Description DP_LANE3- TMDS_CLK- DisplayPort differential pair lines lane 3. DP_LANE3+ TMDS_CLK+ DisplayPort differential pair lines lane 2. DP_LANE2- TMDS_LANE0- DP_LANE2+ TMDS_LANE0+ DisplayPort differential pair lines lane 1. DP_LANE1- TMDS_LANE1- DP_LANE1+ TMDS_LANE1+ DP_LANE0- TMDS_LANE2- DisplayPort differential pair lines lane 0. -
Page 19: 8
LN-D70 User’s Manual Note: Level shifters must be implemented on the carrier board for this signal in order to be compliant with the DVI Specification. DVI_CTRL_DAT DDC based control signal (data) for DVI device. Note: Level shifters must be implemented on the carrier board for this signal in order to be compliant with the DVI Specification. -
Page 20: 10
LN-D70 User’s Manual 2.3.10<Input Power Pins> Signal Description Power Supply +5VDC ±5%. Standby Power Supply +5VDC ±5%. VCC_5V_SB VCC_RTC 3 V backup cell input. VCC_RTC should be connected to a 3V backup cell for RTC operation and storage register non-volatility in the absence of system power. -
Page 21: 13
LN-D70 User’s Manual S3 cold power state. SUS_S5# S5 State: This signal indicates S4 or S5 (Soft Off) state. SLP_BTN# Sleep button. Low active signal used by the ACPI operating system to transition the system into sleep state or to wake it up again. -
Page 22: Vga Interface
LN-D70 User’s Manual 2.4 < VGA Interface > Connector: CN_CRT Type: onboard 10-pin connector for CN_CRT connector pitch 2.00mm Signal Signal 5VCDA 5VCLK CRTGND 5HSYNC 5VSYNC CRTGND CRTGND... -
Page 23: Chapter 3
LN-D70 User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates REALTEK® ALC262 code. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. Lunch the control panel and Sound Effect Manager. Select Speaker Configuration 3.2 <Display Properties Setting>... - Page 24 LN-D70 User’s Manual 1. Click right button on the desktop to lunch Screen resolution > Advanced settings 2. Click … button for more specificity setup. Graphics Properties Click Graphics Properties... for advanced setup 3. This setup options can let you define each device settings.
-
Page 25: Sata Configuration
LN-D70 User’s Manual 3.3 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE or AHCI. -
Page 26: Usb3.0 Configuration
LN-D70 User’s Manual 3.4 <USB3.0 configuration> The USB3.0 port need to Install USB 3.0 eXtensible Host Controller Driver enable xHCI Mode. 3.4.1 < > USB 3.0 eXtensible Host Controller Driver install Step1. Copy the USB 3.0 driver from “Driver CD” to the local hard driver directory. ( Do not run this driver from a USB storage device) Step2. -
Page 27: Chapter 4
LN-D70 User’s Manual Step4. If you enable xHCI Mode , USB 2.0 and USB 3.0 ports can’t use without drive. We recommend that you connect PS/2 mouse / keyboard installing USB 3.0 driver. Step5. Double click the “Setup.exe” from the directory. Click “Next” to continue. Step6. - Page 28 LN-D70 User’s Manual architecture based processors and computers. The BIOS provides critical low-level support for the system central processing, memory and I/O sub-systems. The BIOS setup program of the single board computer let the customers modify the basic configuration setting. The settings are stored in a dedicated battery-backed memory, NVRAM, retains the information when the power is turned off.
-
Page 29: Appendix A
The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online from below link http://www.commell.com/Support/Product%20Technical%20Support/LN-D70. A.2 <Flash BIOS Procedure> 1.Extract the zip file(re-flash tool and BIOS file) to root of the USB flash drive. -
Page 30: Appendix B
5. When it finished all update processes, restart the system. Any question about the BIOS re-flash please contact your distributors or visit the web-site at below: http://www.commell.com.tw/support/support.htm Appendix B <Programming GPIO’s> The GPIO’ can be programmed with the MSDOS debug program using simple IN/OUT commands. -
Page 31: Appendix C
LN-D70 User’s Manual -o 4E F1 -o 4F xx ;if set GPIO’s as output,in this register its value can be set Optional : -o 4E F2 -o 4F xx ; Data inversion register ; ‘1’ inverts the current valus of the bits ,’0’ leaves them as they are -o 4E 30 -o 4F 01 ;... -
Page 32: Contact Information
19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw i nfo@commell.com.tw (General Information) E-Mail t ech@commell.com.tw (Technical Support) Facebook https://www.facebook.com/pages/Taiwan-Commate-Computer-Inc/547993955271899 Twitter https://twitter.com/Taiwan_Commate Commell is a brand name of Taiwan commate computer Inc.
