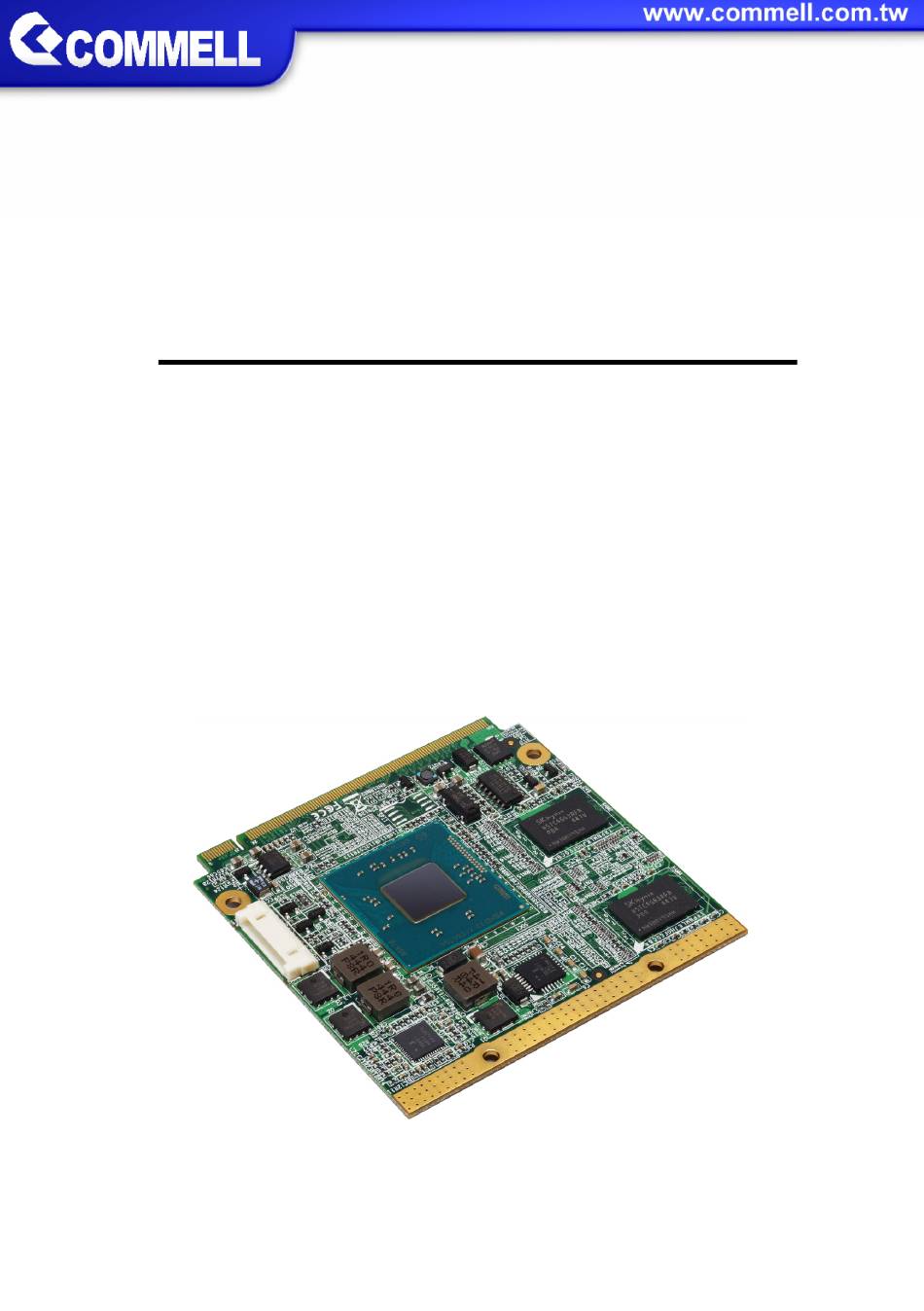

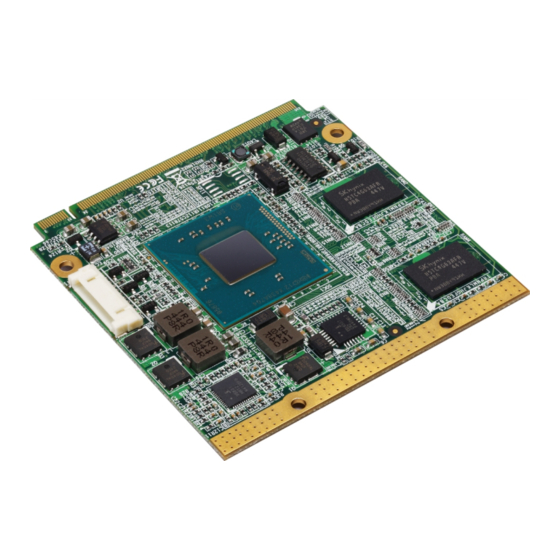

- Page 1 QE-E70 Qseven CPU Module User’s Manual Edition 1.3 2020/05/27...
- Page 2 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at http://www.commell.com.tw...
- Page 3 QE-E70 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: QE-E70 Qseven CPU Module x 1 Cable Kit: CRT cable without bracket x 1 (OALVGA-DF14NB)/ (1040596) Printed Matters: Driver CD (Including User’s Manual) x 1 Cooler: Heat Sink: (OHSF-7) / (2181010020)
-
Page 4: Table Of Contents
QE-E70 User’s Manual Index Chapter 1 <Introduction> ............5 1.1 <Product Overview> ............. 5 1.2 <Product Specification> ..........6 1.3 <Mechanical Drawing> ..........8 1.4 <Block Diagram> ............9 Chapter 2 <Hardware Setup> ..........10 2.1 <Connector Location>..........10 2.2 <Interface Reference> ..........11 2.2.1 <Internal interface>... -
Page 5: Chapter 1
QE-E70 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> QE-E70 is the system-on-chip (SoC) designed for intelligent systems, delivering outstanding compute, graphical, and media performance while operating in an extended range of thermal conditions. These SoCs are based on the Silvermont microarchitecture, utilizing Intel’s industry-leading 22nm process technology with 3-D Tri-Gate transistors, which deliver significant improvements in computational performance and energy efficiency. -
Page 6: Product Specification
QE-E70 User’s Manual 1.2 <Product Specification> General Specification Form Factor Qseven CPU Module Bay Trail Intel® Celeron™ J1900 / N2930 and Atom™ E3845 Mobile Processor Package Type: FCBGA1170 Support DDR3L 1600 MHz 2GB or 4GB on board memory Memory Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s Graphic Intel®... - Page 7 QE-E70NE2-2GB(4GB) Intel Celeron Processor N2930 (2M Cache, 2.16GHz), two eDP, VGA, HD Audio interface, two Serial ATAII, one USB3.0 , four USB 2.0, four PCIe x1, 2G(4G) Memory The specifications may be different as the actual production. For further product information please visit the website at http://www.commell.com.tw...
-
Page 8: Mechanical Drawing
QE-E70 User’s Manual 1.3 <Mechanical Drawing>... -
Page 9: Block Diagram
QE-E70 User’s Manual 1.4 <Block Diagram>... -
Page 10: Chapter 2
QE-E70 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location>... -
Page 11: Interface Reference
QE-E70 User’s Manual 2.2 <Interface Reference> 2.2.1 <Internal interface> Interface Function Remark FCBGA1170 CPU CN_CRT 10-pin VGA connector 2.2.2 <External Interface> interface Function Remark PCIe2.0 Four PCIe2.0 x1 LPC for super I/O SDIO SDIO for super I/O SPI for System BIOS SATAII Two SATAII(3Gb/s), Four USB 2.0 &... -
Page 12: Connector Pin Assignments
QE-E70 User’s Manual 2.3 < Connector Pin Assignments> There are 115 edge fingers on the top and bottom side of the QsevenR module that mate with the MXM connector. Table 2.3 lists the pin assignments for all 230 edge fingers. Table 2.3 Connector Pinout Description Signal Signal... - Page 13 QE-E70 User’s Manual HDA_SYNC/ I2S_WS SMB_CLK/ GP1_I2C_CLK HDA_RST#/ I2S_RST# SMB_DAT/ GP1_I2C_DAT HDA_BITCLK/ I2S_CLK SMB_ALERT# HDA_SDI/ I2S_SDI HDA_SDO/ I2S_SDO THRM# WDTRIG# WDOUT USB_SSTX0- USB_SSRX0- USB_SSTX0+ USB_SSRX0+ USB_2_3_OC# USB_0_1_OC# USB_P3- USB_P2- USB_P3+ USB_P2+ USB_P1- USB_P0- USB_P1+ USB_P0+ eDP0_TX0+ eDP1_TX0+ (Note1) eDP0_TX0- eDP1_TX0- (Note1) eDP0_TX1+ eDP1_TX1+...
- Page 14 QE-E70 User’s Manual DP_LANE2+ (Note2) DP_LANE2- (Note2) DP_LANE0+ (Note2) HDMI_CTRL_DAT DP_LANE0- (Note2) HDMI_CTRL_CLK DP_HDMI_HPD# PCIE_CLK_REF+ PCIE_WAKE# PCIE_CLK_REF- PCIE_RST# PCIE3_TX+ PCIE3_RX+ PCIE3_TX- PCIE3_RX- PCIE2_TX+ PCIE2_RX+ PCIE2_TX- PCIE2_RX- PCIE1_TX+ PCIE1_RX+ PCIE1_TX- PCIE1_RX- PCIE0_TX+ PCIE0_RX+ PCIE0_TX- PCIE0_RX- LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3 LPC_CLK LPC_FRAME# SERIRQ VCC_RTC SPKR...
-
Page 15: Pci Express Interface Signals
QE-E70 User’s Manual VCC_5V VCC_5V VCC_5V VCC_5V Note1: The pin assignment is defined for QE-E70JE2, QE-E70EE2, QE-E70NE2, and the others are NC Note2: The pin assignment is defined for QE-E70JED, QE-E70ED, QE-E70NED, and the others are NC 2.3.1 <PCI Express Interface Signals> Signal Description PCIE0_RX+... -
Page 16: 2
QE-E70 User’s Manual 2.3.2<Serial ATA Interface Signals> Signal Description SATA0_RX+ Serial ATA channel 0, Receive Input differential pair. SATA0_RX- SATA0_TX+ Serial ATA channel 0, Transmit Output differential pair. SATA0_TX- SATA0_RX+ Serial ATA channel 1, Receive Input differential pair. SATA0_RX- SATA0_TX+ Serial ATA channel 1, Transmit Output differential pair. -
Page 17: 3
QE-E70 User’s Manual 2.3.3<Serial ATA Interface Signals> Signal Description USB_P0+ Universal Serial Bus Port 0 differential pair. USB_P0- USB_P1+ Universal Serial Bus Port 1 differential pair. USB_P1- This port may be optionally used as USB client port. USB_P2+ Universal Serial Bus Port 2 differential pair. USB_P2- USB_P3+ Universal Serial Bus Port 3 differential pair. -
Page 18: 5
QE-E70 User’s Manual 2.3.5<High Definition Audio Signals/AC'97> Signal Description HDA_RST# HD Audio/AC'97 Codec Reset. HDA_SYNC Serial Bus Synchronization. HDA_BCLK HD Audio/AC'97 24 MHz Serial Bit Clock from Codec. HDA_SDO HD Audio/AC'97 Serial Data Output to Codec. HDA_SDI HD Audio/AC'97 Serial Data Input from Codec. 2.3.6<LVDS Flat Panel Signals>... -
Page 19: 7
QE-E70 User’s Manual 2.3.7<DisplayPort Interface Signals> Signal Description DP_LANE3- DisplayPort differential pair lines lane 3. DP_LANE3+ DP_LANE2- DisplayPort differential pair lines lane 2. DP_LANE2+ DP_LANE1- DisplayPort differential pair lines lane 1. DP_LANE1+ DP_LANE0- DisplayPort differential pair lines lane 0. DP_LANE0+ DP_AUX Auxiliary channel used for link management and device control. -
Page 20: 9
QE-E70 User’s Manual 2.3.9<SPI Interface Signals> Signal Description SPI_MOSI Master serial output/Slave serial input signal. SPI serial output data from QsevenR module to the SPI device. SPI_MISO Master serial input/Slave serial output signal. SPI serial input data from the SPI device to QsevenR module. SPI_SCK SPI clock output. -
Page 21: 12
QE-E70 User’s Manual 2.3.12<Power Management Signals> Signal Description RSTBTN# Reset button input. This input may be driven active low by an external circuitry to reset the QsevenR module. BATLOW# Battery low input. This signal may be driven active low by external circuitry to signal that the system battery is low or may be used to signal some other external battery management event. -
Page 22: 13
QE-E70 User’s Manual 2.3.13<Miscellaneous Signals> Signal Description WDOUT Watchdog event indicator. High active output used for signaling a missing watchdog trigger. Will be deasserted by software, system reset or a system power down. SMB_CLK Clock line of System Management Bus. SMB_DAT Data line of System Management Bus. -
Page 23: Vga Interface
QE-E70 User’s Manual 2.4 < VGA Interface > Connector: CN_CRT Type: onboard 10-pin connector for CN_CRT connector pitch 2.00mm Signal Signal 5VCDA 5VCLK CRTGND 5HSYNC 5VSYNC CRTGND CRTGND... -
Page 24: Chapter 3
QE-E70 User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates REALTEK® ALC262 code. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. Lunch the control panel and Sound Effect Manager. Select Speaker Configuration... -
Page 25: Display Properties Setting
QE-E70 User’s Manual 3.2 <Display Properties Setting> Based on Intel J1900/N2930/E3845 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. 1. - Page 26 QE-E70 User’s Manual 3. This setup options can let you define each device settings.
-
Page 27: Sata Configuration
QE-E70 User’s Manual 3.3 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE or AHCI. 3.4 <USB3.0 configuration> The USB3.0 port need to Install USB 3.0 eXtensible Host Controller Driver enable xHCI Mode. - Page 28 QE-E70 User’s Manual Step3. Enable “xHCI Mode” and push “F10” to save configuration. Restart your computer. Step4. If you enable xHCI Mode , USB 2.0 and USB 3.0 ports can’t use without drive. We recommend that you connect PS/2 mouse / keyboard installing USB 3.0 driver.
- Page 29 QE-E70 User’s Manual Step6. Lastly, the “Setup Complete” screen appears so click “Finish” to restart your computer.
-
Page 30: Chapter 4
QE-E70 User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. -
Page 31: Appendix A
The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online from below link http://www.commell.com/Support/Product%20Technical%20Support/LN-D70. A.2 <Flash BIOS Procedure> 1. Extract the zip file(re-flash tool and BIOS file) to root of the USB flash drive. - Page 32 4. Type the ” fpt64.efi -y -f xxx.bin” command to start flash BIOS processes. ( xxx.bin means the BIOS file that you want to update) 5. When it finished all update processes, restart the system. Any question about the BIOS re-flash please contact your distributors or visit the web-site at below: http://www.commell.com.tw/support/support.htm...
-
Page 33: Appendix B
QE-E70 User’s Manual Appendix B <Programming GPIO’s> The GPIO’ can be programmed with the MSDOS debug program using simple IN/OUT commands. The following lines show an example how to do this. (The GPIO is open drain) GPIO0…..GPIO7 bit0……bit7 -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07... -
Page 34: Appendix C
QE-E70 User’s Manual Appendix C <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range - 1 to 255 - Second or Minute Program Sample... -
Page 35: Contact Information
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 Website www.commell.com.tw info@commell.com.tw (General information) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc.
