ST-292 User's manual

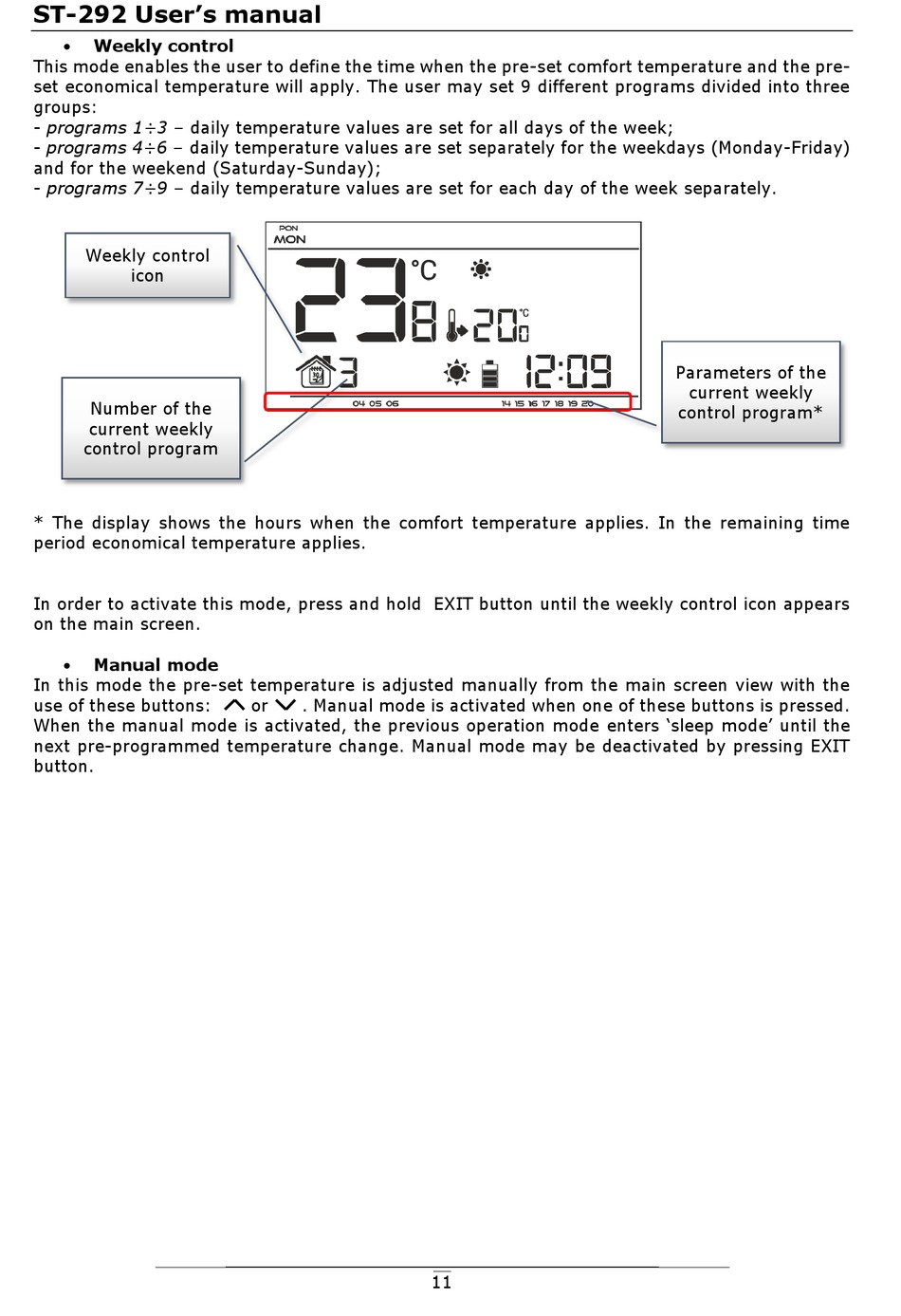

 Weekly control
This mode enables the user to define the time when the pre-set comfort temperature and the pre-
set economical temperature will apply. The user may set 9 different programs divided into three
groups:
- programs 1÷3 – daily temperature values are set for all days of the week;
- programs 4÷6 – daily temperature values are set separately for the weekdays (Monday-Friday)
and for the weekend (Saturday-Sunday);
- programs 7÷9 – daily temperature values are set for each day of the week separately.
Weekly control
icon
Number of the
current weekly
control program
* The display shows the hours when the comfort temperature applies. In the remaining time
period economical temperature applies.
In order to activate this mode, press and hold EXIT button until the weekly control icon appears
on the main screen.
 Manual mode
In this mode the pre-set temperature is adjusted manually from the main screen view with the
use of these buttons:
When the manual mode is activated, the previous operation mode enters 'sleep mode' until the
next pre-programmed temperature change. Manual mode may be deactivated by pressing EXIT
button.
or . Manual mode is activated when one of these buttons is pressed.
11
Parameters of the
current weekly
control program*
