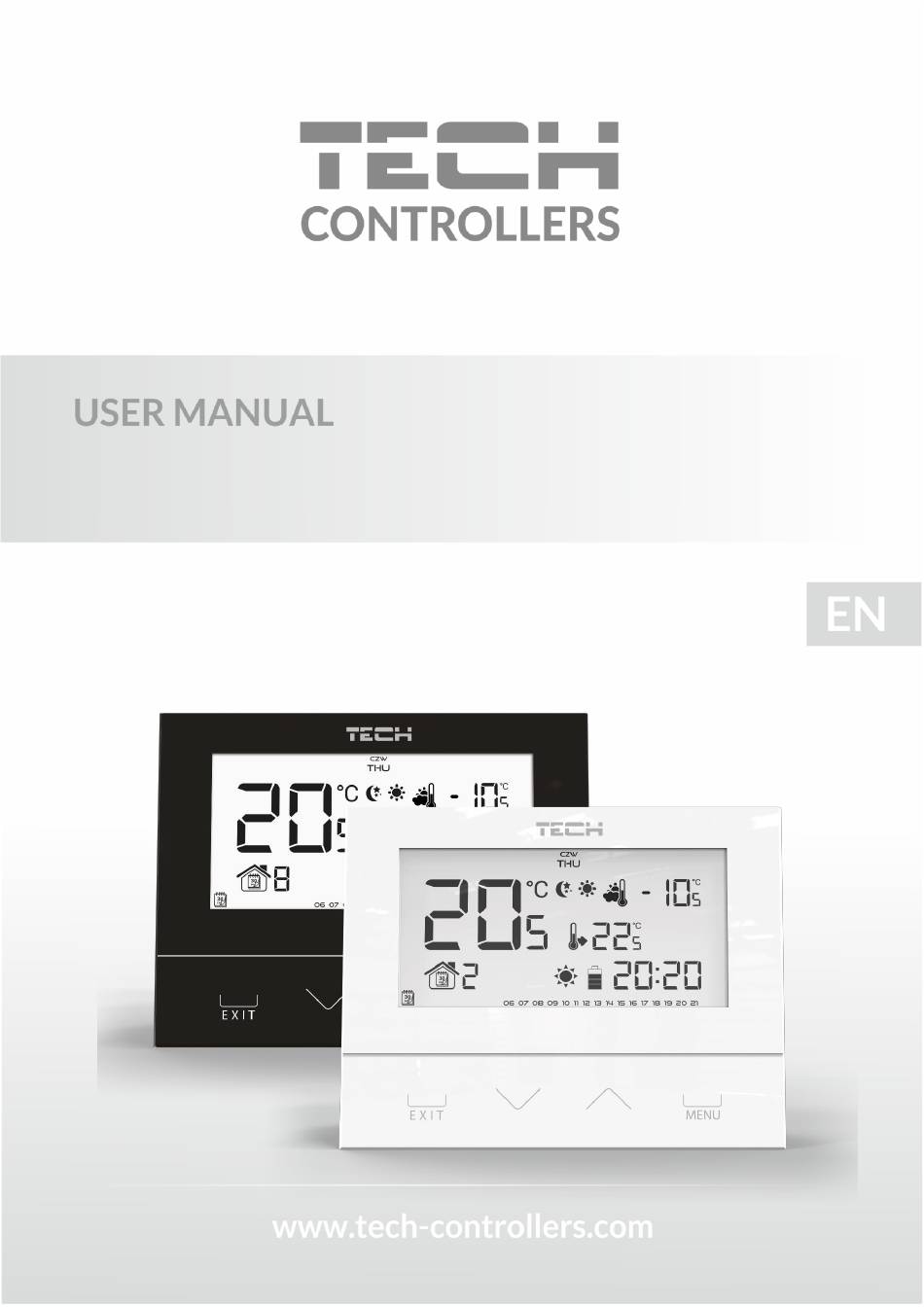

- Page 1 EU-292 User’s manual EU-292 v2, v3...
- Page 2 TECH...
-
Page 3: Table Of Contents
EU-292 User’s manual Table of contents Safety ........................4 Description of the device ..................5 III. Installation ......................6 III.a) Connection diagrams (3 versions) ................7 Receiver for wireless controller ................9 External temperature sensor ..................10 First start-up ....................... 11 VII. -
Page 4: Safety
TECH Safety Before using the device for the first time the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries or controller damage. The user’s manual should be stored in a safe place for further reference. In order to avoid accidents and errors it should be ensured that every person using the device has familiarized themselves with the principle of operation as well as security functions of the controller. -
Page 5: Description Of The Device

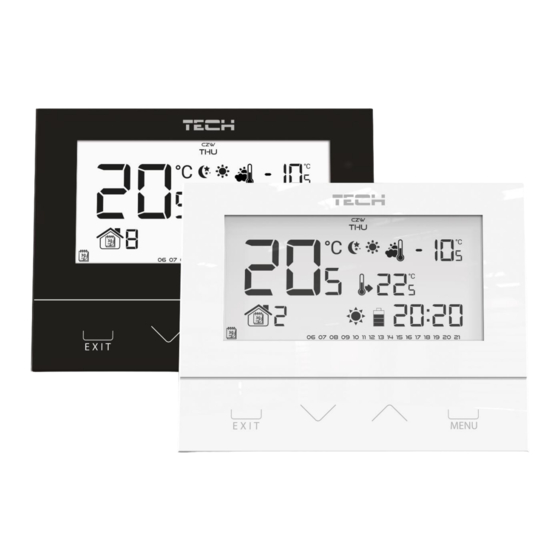

EU-292 User’s manual Description of the device EU-292 room regulator is intended for controlling the heating or cooling device (e.g. gas, oil or electric furnace or the CH boiler controller). Its main task is to maintain the pre-set temperature in the flat by sending a signal to the heating/cooling device (contact opening) when the desired temperature is reached. -
Page 6: Installation
TECH III. Installation The controller should be installed by a qualified person. The diagrams below show an example of connecting the regulator to the controller and heating device. -
Page 7: Iii.a) Connection Diagrams (3 Versions)
EU-292 User’s manual EU-292 controller may be installed as a panel mountable on the wall. You can use the stand and place the regulator anywhere. III.a) Connection diagrams (3 versions) The room regulator should be connected to the heating device via a two-core cable. When connecting devices with over 1A load, it is necessary to use a contactor. - Page 8 TECH In the case of wireless connection, use the diagram below – the two-core communication cable must be connected to appropriate sockets in the receiver. Heating device Connection diagrams EU-292v2 In the case of wireless connection, use the diagram below – the two-core communication cable must be connected to appropriate sockets in the receiver Heating device...
-
Page 9: Receiver For Wireless Controller
EU-292 User’s manual Receiver for wireless controller Heating device EU-292v2 regulator communicates with the heating device (or the CH boiler controller) via radio signal sent to the receiver. The receiver is connected to the heating device (or CH boiler controller) via a two-core cable whereas the communication with the room regulator is performed wirelessly via radio signal. -
Page 10: External Temperature Sensor
TECH External temperature sensor EU-292v2 room regulator may optionally be equipped with an external temperature sensor. The sensor should be mounted in a shaded place so that it is not affected by the weather conditions. The current temperature value will be sent to the room regulator every few minutes and it will be displayed on the main screen. -
Page 11: First Start-Up
EU-292 User’s manual First start-up EU-292 v2: In order for the controller to operate correctly, the user must follow these steps when starting the device for the first time: 1. Remove the front cover of the controller and insert the batteries. - Page 12 TECH In order to activate this mode, press EXIT button until day/night mode icon appears on the main screen. Day/night mode icon Weekly control This mode enables the user to define the time when the pre-set comfort temperature and the pre- set economical temperature will apply.
- Page 13 EU-292 User’s manual Example 1 – manual mode activation in Day/night mode When Day/night mode is active, the user changes the pre-set temperature by pressing which automatically activates manual mode. The controller returns to Day/night mode when daytime changes into nighttime (or the other way round) or when the user presses EXIT button.
-
Page 14: Vii.b) Main Screen View And Description
TECH VII.b) Main screen view and description The user operates the device using buttons. While one parameter is being edited, the remaining icons are not displayed. 1. Display 2. EXIT - pressing this button in the main screen view activates weekly control mode or day/night mode. - Page 15 EU-292 User’s manual 1. Current operation mode: a. weekly b. manual c. day/night 2. Current temperature of the room 3. Parameters icons (see: table below) 4. Day of the week 5. Icon indicating economical temperature (according to weekly control or day/night settings) 6.
-
Page 16: Vii.c) Controller Functions
Day of the week Time settings Day from... Night from... Optimum start Heating / cooling mode Service menu Channel selection (EU-292 v2) Weekly control Floor sensor Maximum floor temperature* Floor sensor hysteresis* Minimum floor temperature* Pre-set comfort temperature Pre-set economical temperature... -
Page 17: Vii.c.2) Day Of The Week
EU-292 User’s manual *Functions available in the menu after the floor sensor has been activated by connecting the additional sensor to the floor sensor contact and selecting ON in Floor sensor submenu. VII.c.2) Day of the week After entering the main menu, all icons which are not connected with the parameter which is being edited are not displayed. -
Page 18: Vii.c.6) Optimum Start
TECH VII.c.6) Optimum start Optimum start is an intelligent system controlling the heating/cooling process. It involves constant monitoring of the heating/cooling system efficiency and using the information to activate the heating/cooling process in advance in order to reach the pre-set temperatures. The system requires no user intervention. -
Page 19: Vii.c.8) Weekly Control
EU-292 User’s manual Heating/cooling mode This function enables the user to select the room regulator operation mode: - controlling the cooling system - controlling the heating system Press to select desired type of system. Press MENU to confirm and move on to edit another parameter in the service menu or press EXIT to confirm to return to the main screen view. - Page 20 TECH How to configure particular weekly programs Weekly program allows the user to define the time when comfort temperature and economical temperature will apply. Depending on the program number, the user may set daily temperature values for all days of the week (programs 1÷3), for weekdays and the weekend separately (programs 4÷6) and for each day of the week separately (programs 7÷9).
-
Page 21: Vii.c.9) Floor Sensor
EU-292 User’s manual Step 3 – assign comfort temperature or economical temperature to particular hours An hour which is being edited is displayed on the controller screen. In order to assign comfort temperature, press . In order to select economical temperature, press . -
Page 22: Vii.c.10) Maximum Floor Temperature
TECH Press MENU to confirm and move on to edit the next parameter or press MENU to confirm and return to the main screen view. NOTE Selecting ON is necessary for the following functions to appear in the menu: maximum floor temperature, floor sensor hysteresis and... -
Page 23: Vii.c.12) Minimum Floor Temperature
EU-292 User’s manual In order to set the floor temperature hysteresis, press menu until hysteresis panel appears on the screen (floor sensor must be activated beforehand by selecting ON) to select desired hysteresis value. Press MENU to confirm and move on to edit the next parameter or press MENU to confirm and return to the main screen view. -
Page 24: Vii.c.15) Pre-Set Temperature Hysteresis
Batteries 2xAA, 1,5V Potential-free cont. nom. out. Load (EU-292 v3) 230V AC / 0,5A (AC1) * 24V DC / 0,5A (DC1) ** Measurement error -/+0,5°C Frequency (EU-292 v2) 868MHz Room regulator power supply EU-292v2 Supply voltage 230V+/-10%/50Hz Ambient temperature C ÷ 50... - Page 25 EU-292 User’s manual EU Declaration of conformity Hereby, we declare under our sole responsibility that EU-292v3 manufactured by TECH STEROWNIKI, head-quartered in Wieprz Biała Droga 31, 34-122 Wieprz, is compliant with Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits (EU OJ L 96, of 29.03.2014, p.
- Page 26 TECH EU Declaration of conformity Hereby, we declare under our sole responsibility that EU-292v2 manufactured by TECH STEROWNIKI, head-quartered in Wieprz Biała Droga 31, 34-122 Wieprz, is compliant with Directive 2014/53/EU of the European parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment, Directive 2009/125/EC establishing a framework for the setting of ecodesign requirements for energy-related products as well as the regulation by the MINISTRY OF ENTREPRENEURSHIP AND TECHNOLOGY of 24...
- Page 27 EU-292 User’s manual...
- Page 28 TECH...
