Tech Controllers EU-R-8X User Manual

TECH company ensures to the Buyer proper operation of the device for the period of 24 months from the date of sale. The Guarantor
undertakes to repair the device free of charge if the defects occurred through the manufacturer's fault. The device should be delivered to its manufacturer.
Principles of conduct in the case of a complaint are determined by the Act on specifi c terms and conditions of consumer sale and amendments of the Civil
Code (Journal of Laws of 5 September 2002).
CAUTION! THE TEMPERATURE SENSOR CANNOT BE IMMERSED IN ANY LIQUID (OIL ETC). THIS MAY RESULT IN DAMAGING THE CONTROLLER AND LOSS
OF WARRANTY! THE ACCEPTABLE RELATIVE HUMIDITY OF THE CONTROLLER'S ENVIRONMENT IS 5÷85% REL.H. WITHOUT THE STEAM CONDENSATION
EFFECT.
THE DEVICE IS NOT INTENDED TO BE OPERATED BY CHILDREN.
Activities related to setting and regulation of the controller parameters described in the Instruction Manual and parts wearing out during normal operation,
such as fuses, are not covered by warranty repairs. The warranty does not cover damages arising as a result of improper operation or through the user's
fault, mechanical damage or damage created as a result of fi re, fl ood, atmospheric discharges, overvoltage or short-circuit. The interference of an
unauthorized service, wilful repairs, modifi cations and construction changes cause the loss of Warranty. TECH controllers have protective seals. Removing
a seal results in the loss of Warranty.
The costs of unjustifi able service call to a defect will be borne exclusively by the buyer. The unjustifi able service call is defi ned as a call to remove
damages not resulting from the Guarantor's fault as well as a call considered unjustifi able by the service after diagnosing the device (e.g. damage of the
equipment through the fault of the client or not subject to Warranty), or if the device defect occurred for reasons lying beyond the device.
In order to execute the rights arising from this Warranty, the user is obliged, at his own cost and risk, deliver the device to the Guarantor along with a
correctly fi lled-in warranty card (containing in particular the sale date, the seller's signature and a description of the defect) and sales proof (receipt, VAT
invoice, etc.). The Warranty Card is the only basis for repair free of charge. The complaint repair time is 14 days.
When the Warranty Card is lost or damaged, the manufacturer does not issue a duplicate.
......................................
seller's stamp
SAFETY
Before using the device for the fi rst time the user should read the following
regulations carefully. Not obeying the rules included in this manual may
lead to personal injuries or controller damage. The user's manual should
be stored in a safe place for further reference. In order to avoid accidents
and errors it should be ensured that every person using the device has
familiarized themselves with the principle of operation as well as security
functions of the controller. If the device is to be sold or put in a diff erent
place, make sure that the user's manual is there with the device so that
any potential user has access to essential information about the device.
The manufacturer does not accept responsibility for any injuries or
damage resulting from negligence; therefore, users are obliged to take
the necessary safety measures listed in this manual to protect their lives
and property.
WARNING
• The regulator is not intended to be used by children.
• Any use other than specified by the manufacturer is forbidden.
• The device should be installed by a qualified person.
EU DECLARATION OF CONFORMITY
Hereby, we declare under
manufactured by TECH STEROWNIKI, head-quartered in Wieprz Biała
Droga 31, 34-122 Wieprz, is compliant with Directive 2014/53/EU
of the European parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making
available on the market of radio equipment, Directive 2009/125/EC
establishing a framework for the setting of ecodesign requirements for
energy-related products as well as the regulation by the MINISTRY OF
ENTREPRENEURSHIP AND TECHNOLOGY of 24 June 2019 amending the
regulation concerning the essential requirements as regards the restriction
of the use of certain hazardous substances in electrical and electronic
equipment, implementing provisions of Directive (EU) 2017/2102 of the
European Parliament and of the Council of 15 November 2017 amending
Directive 2011/65/EU on the restriction of the use of certain hazardous
substances in electrical and electronic equipment (OJ L 305, 21.11.2017,
p. 8).
For compliance assessment, harmonized standards were used:
PN-EN IEC 60730-2-9 :2019-06 art. 3.1a Safety of use
PN-EN 62479:2011 art. 3.1 a Safety of use
ETSI EN 301 489-1 V2.2.3
compatibility
ETSI EN 301 489-3 V2.1.1:2019-03 art.3.1 b Electromagnetic compatibility
ETSI EN 300 220-2 V3.2.1 (2018-06) art.3.2 Effective and coherent use
of radio spectrum
ETSI EN 300 220-1 V3.1.1 (2017-02) art.3.2 Effective and coherent use
of radio spectrum
EN IEC 63000:2018 RoHS
Wieprz, 28.03.2023
WARRANTY CARD
our sole responsibility that
(2019-11) art.3.1b Electromagnetic
Power supply
Temperature adjustment range
Humidity measurement range
Operation frequency
Measurement error
EU-R-8X

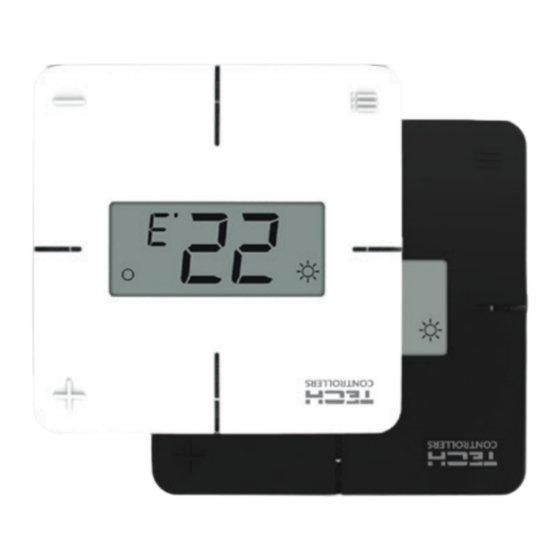

The EU-R-8X room regulator is intended for controlling the heating device.
It cooperates with the zone controllers and communicates with them
wirelessly.
Its main task is to maintain the pre-set room temperature by sending a
signal to the heating device informing that the pre-set temperature has
been reached.
Current temperature is displayed on the screen. The Menu button enables
the user to change the displayed parameter from current temperature to
current humidity.
The regulator enables the user to change the pre-set zone temperature
permanently or for a period of time.
Controller equipment:
• built-in temperature sensor
• air humidity sensor
• floor sensor (optional)
......................................
TECHNICAL DATA
batteries 2xAA 1,5V
We are committed to protecting the environment.
Manufacturing electronic
obligation of providing for environmentally safe
disposal of used electronic components and devices.
Hence, we have been entered into a register kept
by the Inspection For Environmental Protection. The
crossed-out bin symbol on a product means that the
product may not be disposed of to household waste
containers. Recycling of wastes helps to protect the
environment. The user is obliged to transfer their
used equipment to a collection point where all
electric and electronic components.
DESCRIPTION
date of sale
5÷350C
10-95%RH
868MHz
± 0,50C
devices imposes an
