3.3 Power Supply Specifications; 3.4 External Dimensions; 4. Installation; 4.1 Control Panel Inside Dimensions For Mounting Got - Mitsubishi GT1150-QLBD User Manual

Item
GT1155-QSBD
Battery GT11-50BAT lithium battery
Backup target Clock data, alarm history and recipe data
Life Approx. 5 years (Operating ambient temperature of 25°C), Guaranteed: 1 year
Conforming to serial RS422 standard, 1ch
Transmission speed : 115,200/57,600/38,400/19,200/9,600/4,800bps
RS-422
Connector shape : D-sub 9-pin (Female)
Application : PLC communication
Conforming to serial RS232 standard, 1ch
Transmission speed : 115,200/57,600/38,400/19,200/9,600/4,800bps
RS-232 Connector shape : D-sub 9-pin (Male)
Application : PLC communication, bar code reader connection, PC communication
Built-in
(Project data upload/download, OS installation, transparent function)
interface
Conforming to serial USB (Full Speed 12Mbps), device, 1ch
USB
Application: PC communication (Project data upload/download, OS installation, transparent function)
Conforming to PCMCIA, compact flash slot, 1ch
CF card Connector shape : Dedicated for TYPE I
Application : Data transfer, data storage
Option function board For installing option function board, 1ch
Buzzer output Single tone (tone length adjustable)
Environmental protective structure *4 Equivalent to IP67 (JEM1030) (front section) when the USB environmental protective cover is attached
W164(6.46) × H135(5.32) × D56(2.21)[mm](inch)(Excluding USB environmental protective cover)
External dimensions
W153 (6.03) × H121(4.77)[mm] (inch)
Panel cutting dimensions
Weight 0.7kg (Excluding mounting fixtures)
Compatible software package GT Designer2 Version2 or later
*1 Bright dots (always lit) and dark dots (unlit) may appear on a liquid crystal display panel. It is impossible to completely avoid this symptom, as the liquid crystal display
comprises of a great number of display elements. Flickers may be observed depending on the display color.
Please note that these dots appear due to its characteristic and are not caused by product defect.
*2 The GOT screen saving/backlight off function prevents images from becoming permanently etched on the display screen and increases the backlight life.
*3 ROM in which new data can be written without deleting the written data.
*4 Compliant with IP67 when the USB environmental protection cover is attached. Not compliant when a USB cable is connected. Note that this does not guarantee all
users' operation environment.

3.3 Power Supply Specifications

Item
GT1155-QSBD
Input power supply voltage 24VDC (+10% -15%), ripple voltage 200mV or less
Fuse (built-in, not exchangeable) 1.0A
Power consumption 9.84W (410mA/24VDC) or less
At backlight off 4.32W (180mA/24VDC) or less
Inrush current 15A or less (26.4V) 2ms
Per missible instantaneous power
Within 5ms
failure time *1
Noise immunity Noise voltage: 1000Vp-p, Noise width: 1µs (by noise simulator of 30 to 100Hz noise frequency)
Dielectric withstand voltage 500VAC for 1 minute (across power supply terminals and earth)
Insulation resistance 10MΩ or larger by insulation resistance tester (across power supply terminals and earth)
Applicable wire size 0.75 to 2[mm 2 ]
Applicable solderless terminal Solderless terminal for M3 screw RAV1.25-3, V2-N3A, FV2-N3A
Applicable tightening torque
0.5 to 0.8[N • m]
(Terminal block terminal screw)
*1 The GOT continues to operate even upon 5ms or shorter instantaneous power failure.
The GOT stops operating if there is extended power failure or voltage drop, while it automatically resumes operation as soon as the power is restored.
4.3 Mounting Position
When mounting the GOT, the
clearances shown on the right must
80mm (3.15") or more
be left from a structure or the other
device.
Secure 50mm (1.97") or more on
the left, right and bottom sides of
50mm
the GOT to structures or other
(1.97")
devices.
or
Secure 80mm (3.15") or more on more
the top of the GOT from structures
or other devices to allow good
*1 50mm (1.97") or more
ventilation.
If devices (such as a contactor)
generating radiated noise or those
*1 To use the CF card, leave sufficient
distances for removal and installation
generating heat are arranged
of the CF card.
around the GOT, secure 100mm
(3.94") or more on the back panel.
When using the CF card, secure a sufficient distance on the left side to allow
installation and removal of the CF card.
[Securing 100mm (3.94") or more is recommended.]
4.4 Control Panel Inside Temperature and Mounting Angle
When mounting the main unit to a control panel or similar, set the display section
as shown below.
When the temperature inside the control panel is 40 to 55°C or less, the mounting
angle should be in the range 60° to 105° degrees.
• The GOT will be
deteriorated earlier if it is
GOT
used at the mounting angle
back
other than the above.
panel
Therefore, the temperature GOT
display
inside the control panel
section
should be within 40°C.
Control
panel,
etc.

4.5 Installation Procedure

The GOT is designed to be embedded into a panel. Mount the GOT by following
the procedure below. For panel cutting dimensions, refer to Section 4.2. Note that
the panel thickness should be within 5mm.
1) Installing the packing
Packing
I n s t a l l p a c k i n g t o t h e p a c k i n g
installation groove on the back panel
of the GOT.
While referring to the cross sectional
Magnified
view of the packing shown right, push
illustration
the thinner side into the packing
groove.
Packing
Packing
installation groove
Packing cross
sectional view
2) Inserting into the panel face
Insert the GOT from the front side of
the panel.
Mounting hole
Magnified illustration
3) Fixing the GOT
Engage the hook of the mounting
fitting (accessory) to the unit fixing
hole of the GOT and tighten the
screw until the GOT is fixed with the
mounting bolt (accessory).
The GOT will be fixed in 4 upper/
lower parts.
Tighten the mounting screw with the
specified torque. Mounting
screw
(Failure to do so may distor t the
panel and make a surface waviness
on the protective sheet.)
4) A protection film is attached on the display section of GOT prior to shipment.
Remove the film when the installation is completed.
Specifications
GT1150-QLBD
Specifications
GT1150-QLBD
9.36W (390mA/24VDC) or less

5. Wiring

5.1 Power Supply Wiring

Connect the power supply to the power terminals on the back panel of the GOT.
2
Use 0.75mm or thicker cables to avoid voltage drop and tighten the terminal screw
with the specified torque securely.
50mm
(1.97")
or
more
PC and external
device connection
cables
INPUT
24V DC
- +
Power supply terminal
Grounding
(100Ω or less)
• Carry out the independent grounding if possible.
105°
• If the independent grounding is impossible, carry out the shared grounding as
shown in fig.2) below.
60°
• Use the cable of 2mm
2 or more for grounding.
Set the grounding point closer to the GOT to make the grounding cable short as
possible.
Other
GO GO
device
Grounding
Grounding
(100Ω or less)
(100Ω or less)
(1) Independent ground (2) Shared grounding
...... Best condition ...... Good condition
1) Recommended terminal shape
Terminal Solderless
3.2
screw terminal
6.2mm
or less
3.2
6.2mm
or less
When wiring one cable to
Inserting
one terminal
direction
Applicable solderless terminal RAV 1.25-3, V2-N3A and FV2-N3A

6. Maintenance and Inspection

The GOT does not include consumable components that will cause the shorten life.
However, note that battery life is 5 years and LCD life is 50,000 hours. The life of
backlight in GT1155-QSBD is 75,000 hours and that in GT1150-QLBD is 54,000 hours.
It is recommended to replace the battery periodically. (For the replacement of the liquid
crystal screen and backlight, please consult your nearest sales office or FA Center.)

6.1 Daily Inspection

Daily inspection items
Inspection
No. Inspection Item
Method
Check for
1 GOT mounting status loose mounting
screws.
Mounting
Retighten
fitting
Loose terminal
screws with
screws
screwdriver
Proximate
2 Visual check
solderless terminals
Loose connectors Visual check

3.4 External Dimensions

4. Installation

4.1 Control Panel Inside Dimensions for Mounting GOT

Mount the GOT onto the control panel while considering the following control panel
inside dimensions.
30
(1.19")
1)
No
1) PLC connection cable/PC connection cable
Applicable cable
Some cables may need to be longer than the specified dimensions when connecting
to the GOT. Therefore, consider the connector dimensions and bending radius of the
cable as well for installation.
No. Inspection Item
Dirt on protection
sheet
3
Foreign material
attachment
CF CARD
Refer to the following for the model names of the protection sheet or the replacement
procedure.

6.2 Periodic Inspection

Yearly or half-yearly inspection items
The following inspection should also be performed when equipment has been moved
I/F
or modified or the wiring changed.
No. Inspection Item
Ambient
INPUT
temperature
24V DC
- +
Surrounding
1
environment
Ambient
humidity
Atmosphere
+
24VDC
-
power supply
Power supply voltage
2
check
Loose
terminal
screws
Proximate
Connection
3 solderless
Other Other status
GO terminals
device
device
Loose
connectors
(3) Common grounding
...... Not allowed

6.3 Battery Replacement

The battery backs up clock data, alarm history and recipe data.
Terminal Solderless
Screen data is stored in the flash memory and data is retained even if the battery is
screw terminal
dead.
• Battery model name
GT11 is shipped with the following battery.
Product name
Battery
When wiring two cables to
one terminal
• Battery replacement procedure
1) Turn the GOT power off.
2) Open the back cover of the GOT.
3) Remove the old battery from the
holder.
4) Disconnect the old battery connector
and insert the new battery connector
within 30s.
(Clock data, alarm history, and recipe
data is retained by the GOT condenser
for 30 seconds.)
5) Insert the new battery into the holder
and close the back cover.
Criterion Action
Retighten screws
Securely within the
mounted specified torque
range
Retighten
Not loose
terminal screws
Proper
Correct
intervals
Retighten
Not loose connector fixing
screws
164(6.46")
22 120(4.73")
(0.87")
23(0.91")
GOT
GRAPHIC OPERATION TERMINAL 1000
MITSUBISHI
22 120(4.73")
(0.87")
4
(0.16")
152(5.99")

4.2 Panel Cutting Dimensions

Make holes in the panel according to the dimensions list below.
Also, ensure 10mm spaces in upper and lower parts of the panel for mounting
fixtures.
152(5.99")
CF CARD
I/F
INPUT
24V DC
- +
Unit: mm (inch)
Name
• How to confirm production year and month
Inspection
Criterion Action
Method
Not Replace with new
Visual check
outstanding one
No foreign
Visual check Remove clean
matter sticking
→ → → → GT11 User's Manual
Inspection
Criterion Action
Method
• Battery life
Display 0 to
section 50°C
Make
For use in control
measurement Other 0 to
panel,
with
portions 55°C
temperature
thermometer or
inside control
hygrometer
10 to 90%RH
panel is ambient
Measure
temperature
corrosive gas
No corrosive
gas
24VDC
Measure 20.4 to Change supply
voltage across 26.4VDC power
terminals.
Retighten
Retighten
screws with Not loose
terminal screws
screwdriver
Proper
Visual check Correct
intervals
Retighten
Visual check Not loose connector fixing
screws
Model name
GT11-50BAT
Back cover
This manual confers no industrial property rights or any rights of any other kind,
nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be
held responsible for any problems involving industrial property rights which may
occur as a result of using the contents noted in this manual.

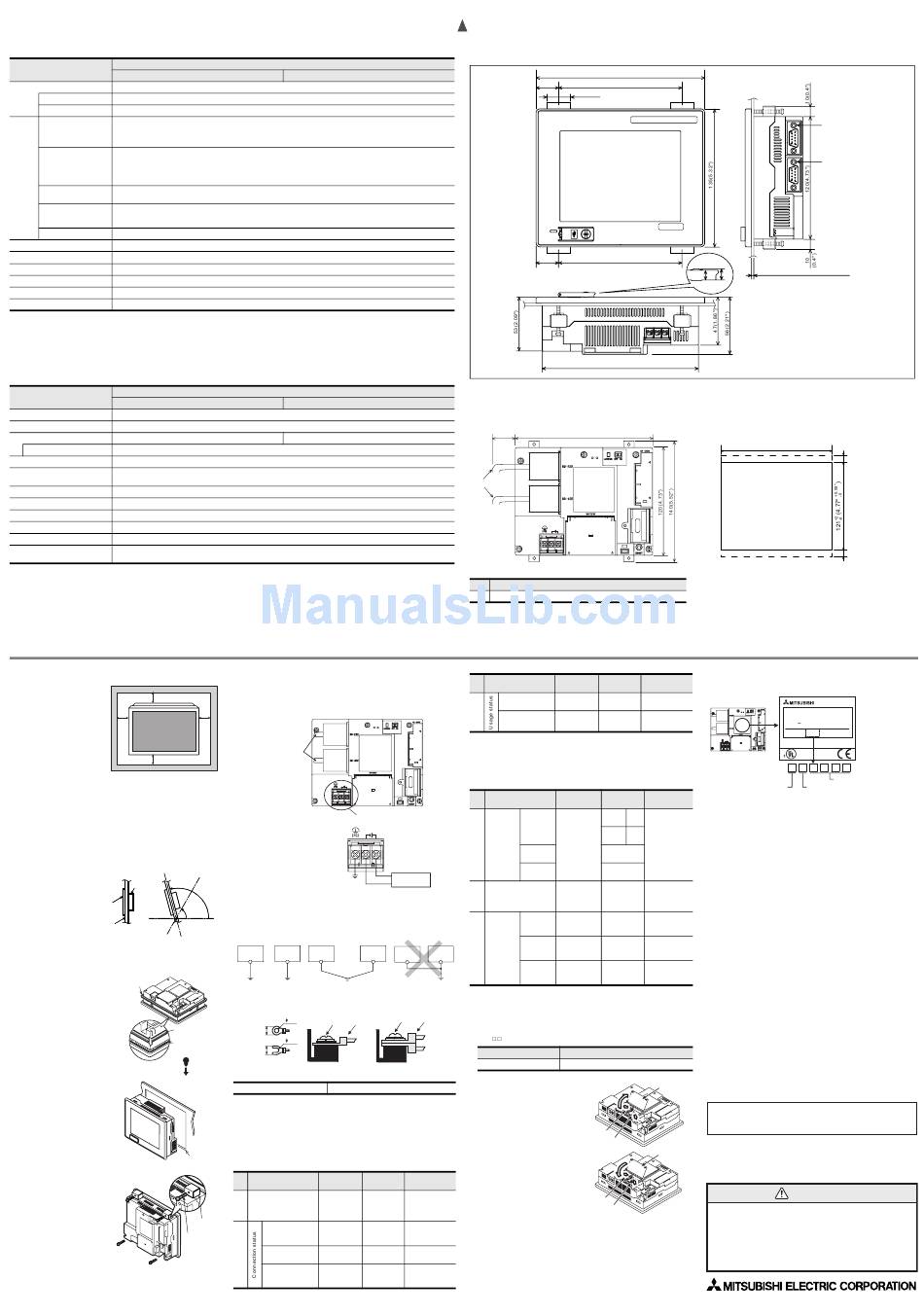

Holder
Connector
Warranty
Mitsubishi will not be held liable for damage caused by factors found not to be
Back cover
the cause of Mitsubishi; machine damage or lost profits caused by faults in the
Mitsubishi products; damage, secondary damage, accident compensation
caused by special factors unpredictable by Mitsubishi; damages to products
other than Mitsubishi products; and to other duties.
Holder
•
Connector
•
•
#4-40UNC
(Inch screw type)
M2.6
(Metric screw type)
Panel thickness: 5mm(0.2") or less
5
(0.2")
Unit: mm (inch)
+2
+0.08"
(6.03" )
153
-0 -0
10(0.4") or more
10(0.4") or more
Unit: mm (inch)
The production year and month of the battery built in the purchased GOT can
be confirmed by the production No. (serial No.) marked on the GOT main unit.
GRAPHIC OPERATION TERMINAL
CF CARD
MODEL GT1155-QSBD
IN 20.4 26.4VDC POWER 9.54W MAX
SERIAL 540001 BC
I/F
INPUT
24V DC MITSUBISHI ELECTRIC CORPORATION
- +
MADE IN JAPAN
JY550D26101A
80M1 IND. CONT. EQ
US LISTED
5 4 0 0 0 1
Control number
Year (example: 2005) Month (example: Jun.). 1 to 9: Jan. to Sep.,
last digit X: Oct., Y: Nov., Z: Dec.
Approximate battery life:
5 years (ambient temperature: 25°C) [Guaranteed for 1 year]
Battery replacement: In 4 to 5 years
Approximate life is 5 years, but life may be shorter depending on the ambient
temperature, therefore, note that the battery must be replaced in 4 to 5 years.
Make sure to purchase a new battery as needed as it self-discharges.
Battery status can be confirmed on a GOT utility screen.
For details of battery status or how to output alarm, refer to the following:
→ → → → GT11 User's Manual
For safe use
This product has been manufactured as a general-purpose part for general
industries, and has not been designed or manufactured to be incorporated in
a device or system used in purposes related to human life.
Before using the product for special purposes such as nuclear power, electric
power, aerospace, medicine or passenger movement vehicles, consult with
Mitsubishi.
This product has been manufactured under strict quality control. However
when installing the product where major accidents or losses could occur if the
product fails, install appropriate backup or failsafe functions in the system.
HEAD OFFICE : MITSUBISHI DENKI BLDG MARUNOUTI TOKYO 100-8310
HIMEJI WORKS : 840, CHIYODA CHO, HIMEJI, JAPAN
