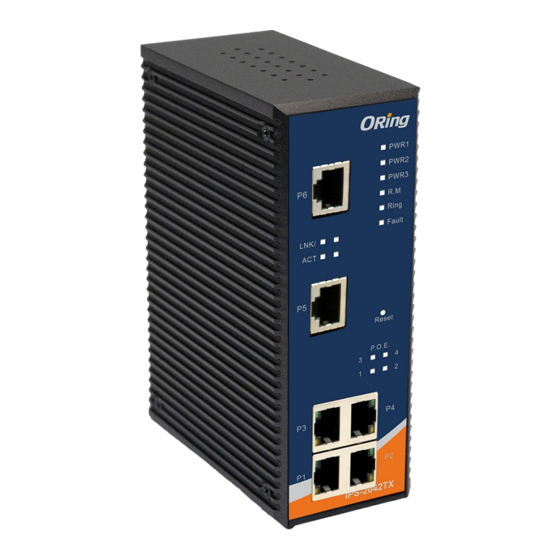

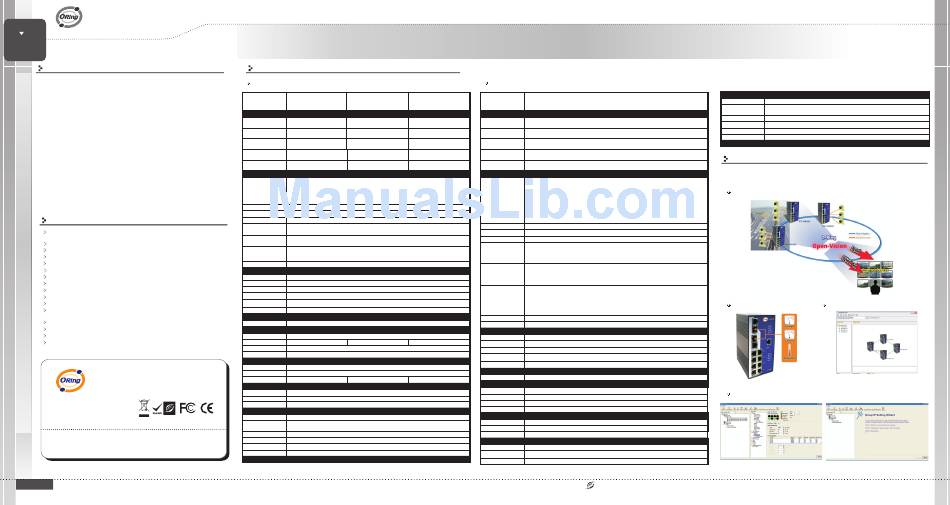

ORiNG IPS-2042TX Quick Installation Manual

ORing Industrial Networking Corp.
PoE
SWITCH
Q I
uick nstallation
I N D U S T R I A L
Introduction
IPS Series is designed for rugged environment, especially in the applications of
facility management, sewage treatment, power utility, telecommunication,
transportation and all other mission-critical applications that require reliable Ethernet
connectivity. IPS Series are with manageable Redundant Ring. It contains the
interface of 10/100TX, or 100Base-FX, or 1000TX, or 1000BaseX ports, or 1000
Combo ports. All these switches can protect your mission-critical applications from
network interruptions or temporary malfunctions with its maximum 10mS ultra fast
recovery time. These models also support functions of network management, such
as SNMP, RMON and Port/Tag-based VLAN security.
Network Management and Remotely Configuring
IPS Series can be configured smartly by web browser, Telnet, CLI, and windows
utility. Network administrators can determine to send event notifications through
email, SNMP trap, or relay output. To enhance the security, port access can be
limited to pre-defined IP address table, as well as segment ports into different
VLANs, or filtering multicast traffic by IGMP Snooping.
IPS Series support Power over Ethernet, a system to transmit electrical power
and data to remote device over standard twisted-pair cable in an Ethernet network.
Each switch has 4X10/100TX or 8X10/100TX PSE (Power Sourcing Equipment)
ports. PSE is a device (switch or hub for instance) that will provide power in a PoE
setup. IPS Series can be managed centralized and convenient by powerful
windows utility-Open-Vision. The wide operating temperature range
can satisfy most of operating environment. Therefore, IPS Series
most reliable choice for highly-managed and Fiber Ethernet application.
Features
World's fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over 250
units of connection)
Open-Ring support the other vendor's ring technology in open architecture
O-RSTP support applications with complex topology
STP/RSTP/MSTP supported
IGMP snooping for filtering multicast traffic
Port Trunking for easy of bandwidth management
SNMP v1/v2c/v3 support for secured network management
RMON for traffic monitoring
Supports DDM (Digital Diagnostic Monitoring) function
Event notification through Syslog, Email, SNMP trap, and Relay Output
Port lock to prevent access from unauthorized MAC address
Windows utility (Open-Vision) support centralized management and configurable
by Web-based, Telnet, Console, CLI
Very wide operating temperature range from -40 to 70 C o
Rigid IP-30 housing design
DIN-Rail and panel mounting enabled
Support PTP Client (Precision Time Protocol) clock synchronization
ORing Industrial Networking Corp.
Copyright© 2008 ORing
All rights reserved.
TEL: +886-2-2918-3036 Website: www.oring-networking.com
FAX: +886-2-2918-3084 E-mail: support@oring-networking.com
Q I G
IPS Series
IPS Series
G
uide
Specifications
IPS-2000 Series
ORing Switch Model IPS-2042TX IPS-2042FX-MM
Physical Ports
10/100 Base-T(X) Ports in RJ45
4
Auto MDI/MDIX with PSE
10/100 Base-T(X) Ports in RJ45
2
Auto MDI/MDIX without PSE
100 Base-F(X) Multimode Port
-
(2KM,1310nm,SC connector)
100 Base-F(X) Singlemode Port
-
(30KM,13100nm,SC connector)
Gigabit combo in RJ-45 and SFP
-
Technology
IEEE 802.3 for 10Base-T,
IEEE 802.3u for 100Base-T(X) and 100Base-FX,
IEEE 802.3x for Flow control,
Ethernet Standards
IEEE 802.1D for STP (Spanning Tree Protocol),
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
o o
-40 C to 70 C
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol),
IEEE 802.3af PoE specification (up to 25 Watts per port for PSE)
are one of the
MAC Table 2048 MAC addresses
4
Priority Queues
Processing Store-and-Forward
Switch bandwidth: 1.0Gbps
Switch Properties
VLANs: Port Based
Enable/disable ports,
Security Features
VLAN to segregate and secure network traffic
STP/RSTP/MSTP (IEEE 802.1D/w/s)
Software Features Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units
Port configuration, status, statistics, monitoring, security
Network Redundancy O-Ring, STP, RSTP
LED indicators
Power/PoE Indicator Green: Power LED x3, Green: PoE LED x4
R.M. Indicator Green: Flashing to indicate system operated in O-Ring Master mode
O-Ring indicator Green: Indicate system operated in O-Ring mode
Fault Indicator unexpected
Amber: Indicate event occurred
10/100 Base-T(X) RJ45 Port
Green for port Link/Act. Amber for Link
Indicator
Fiber Port Indicator Green for port Link/Act. Amber for Link
Fault contact
Relay Relay output to carry capacity of 1A at 24 VDC
Power
Redundant Input power Triple DC inputs. Dual 48VDC on 7-pin terminal block, 48VDC on power jack
Power consumption(Typ.) 5 Watts
Overload current protection Present
Reverse polarity protection Present on terminal block
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 52(W)x106(D)x144(H) mm (2.05x4.17x5.67 inch.)
Weight (g) 696 g
Environmental
o o
Storage Temperature -40 to 85 C (-40 to 185 F)
Operating Temperature -40 to 70 C (-40 to 158 F) o o
Operating Humidity 5% to 95% Non-condensing
Regulatory approvals
EMI FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS),
EMS
EN61000-4-8, EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950
Warranty 5 years
IPS-3082GC
IPS-2042FX-SS ORing Switch Model
Physical Ports
10/100 Base-T(X) Ports in RJ45
4 4
Auto MDI/MDIX with PSE
10/100 Base-T(X) Ports in RJ45
- -
Auto MDI/MDIX without PSE
100 Base-F(X) Multimode Port
2 -
(2KM,1310nm,SC connector)
100 Base-F(X) Singlemode Port
- 2
(30KM,13100nm,SC connector)
Gigabit combo in RJ-45 and SFP
- -
Technology
IEEE 802.3 for 10Base-T,
IEEE 802.3u for 100Base-T(X) and 100Base-FX,
IEEE 802.3ad for LACP (Link Aggregation Control Protocol),
IEEE 802.3x for Flow control,
IEEE 802.1D for STP (Spanning Tree Protocol),
IEEE 802.1p for COS (Class of service),
Ethernet Standards
IEEE 802.1Q for VLAN Tagging,
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol),
IEEE 802.1x for Authentication,
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
IEEE 802.3af PoE specification (up to 15.4 Watts per port for PSE)
MAC Table 8192 MAC addresses
4
Priority Queues
Processing Store-and-Forward
Switch latency: 7 us
Switch bandwidth: 5.6Gbps
Switch Properties Max. Number of Available VLANs: 4096
IGMP multicast groups: 1024
Port rate limiting: User Define
Enable/disable ports, MAC based port security
Port based network access control (802.1x)
Security Features VLAN (802.1q) to segregate and secure network traffic
Radius centralized password management
SNMPv3 encrypted authentication and access security
STP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
Software Features
VLAN (802.1Q) with VLAN tagging and GVRP supported
PTP Client ( Precision Time Protocol) clock synchronizing function
IGMP Snooping for multicast filtering
Port configuration, status, statistics, monitoring, security
O-Ring, Open-Ring, O-RSTP, STP, RSTP, MSTP
Network Redundancy
RS-232in RJ45 connector with console cable. Baud rate setting: 9600bps, 8, N, 1
RS-232 Serial Console Port
LED indicators
Power/PoE Indicator Green: Power LED x3, Green: PoE LED x8
7 Watts 7 Watts
R.M. Indicator Green: Indicate system operated in O-Ring mode
Fault Indicator Amber: Indicate unexpected
10/100 Base-T(X) RJ45 Port
Green for port Link/Act. Amber for Duplex/Collision
Indicator
1000Base-X SFP Port Indicator Green for port Link/Act.
Fault contact
Relay Relay output to carry capacity of 1A at 24 VDC
709 g 709 g
Power
Redundant Input power Dual DC input 48VDC on 6-pin terminal block
Power consumption(Typ.) 9 Watts (power consumption of PSE not included)
Overload current protection Present
Reverse polarity protection NOT Present
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 74.3(W)x109.2(D)x153.6(H) mm (2.93x4.3x6.05 inch.)
Weight (g) 1100 g
Environmental
Storage Temperature -40 to 85 C (-40 to 185 F) o
Operating Temperature o
-40 to 70 C (-40 to 158 F)
Operating Humidity 5% to 95% Non-condensing
www.oring-networking.com
Industrial PoE Ethernet Switch
Regulatory approvals
IPS-3082GC EMI
EMS
Shock
8
Free Fall
Vibration
-
Safety
Warranty
-
-
O-Ring Ethernet Redundant Technology
2
ORing's switches are intelligent switches. Different from other traditional redundant switches,
ORing provides a set of Windows utility (Open-Vision) for user to manage for user to monitor all
of industrial Ethernet switches on the industrial network.
Redundant Ring (<10mS): O-Ring
DDM function (IPS-3082GC Only)
event occurred
Monitoring and Configuration interface
o
o
PRINTED ON RECYCLED PAPER
Version 1.2
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS),
EN61000-4-8, EN61000-4-11
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6
EN60950-1
5 years
Topology View
Quick Installation Guide
