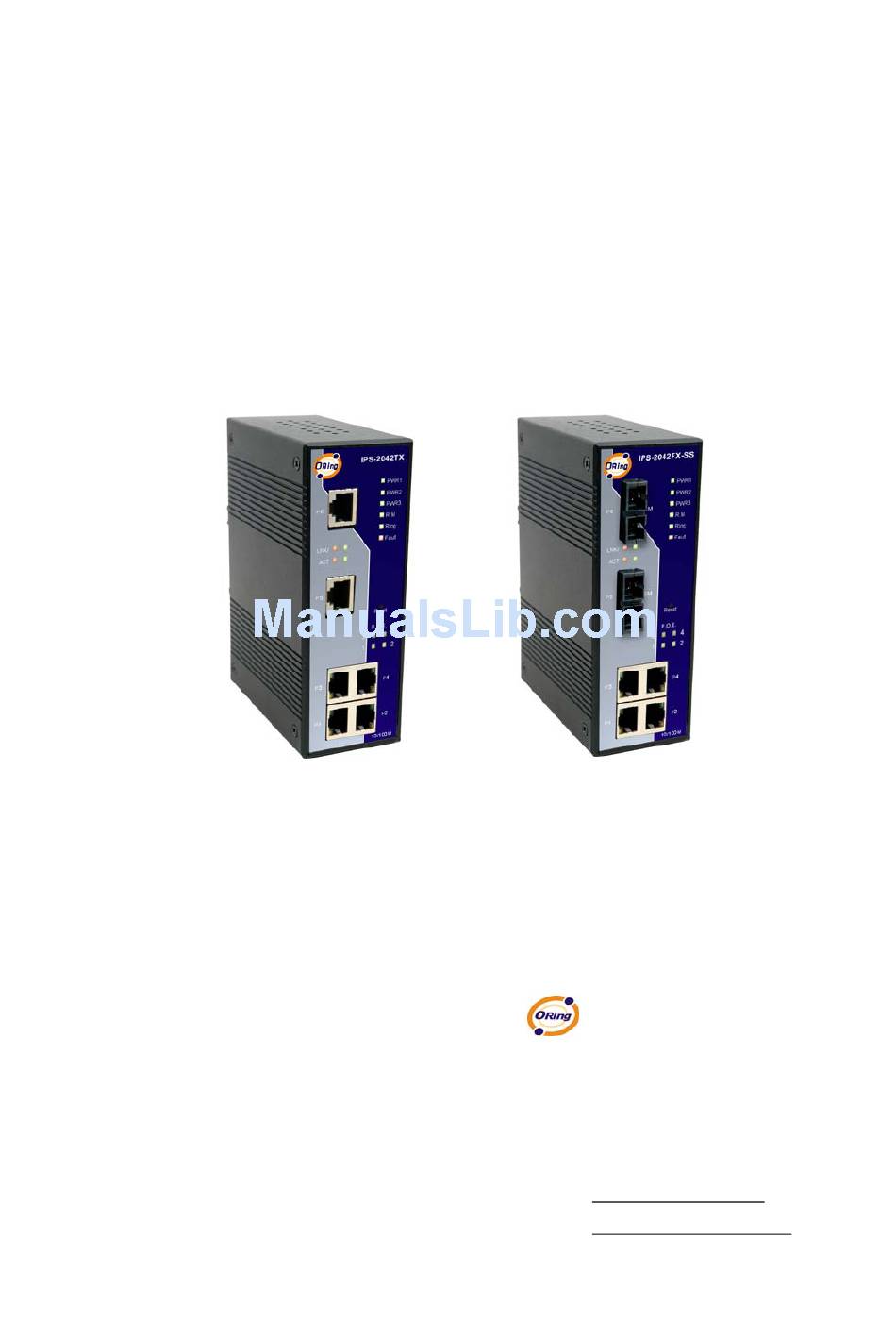

  • Page 1 Lite-Managed Ethernet Switch IPS-2042TX / 2042FX Series User’s Manual Version 1.0 May, 2008. ORing Industrial Networking Corp. 4F., NO.3, Lane235, Baociao Rd.Sindian City, Taipei County 23145 Taiwan, R.O.C. Tel: + 886 2 2918 3036 Fax: + 886 2 2918 3084 Website: www.oring-networking.com...

  • Page 2: Table Of Contents

    Software Features ....................3 Hardware Features....................3 Hardware Installation..................4 Installing Switch on DIN-Rail ..................4 2.1.1 Mount IPS-2042TX & IPS-2042FX Series on DIN-Rail ........4 Wall Mounting Installation ..................5 2.2.1 Mount IPS-2042TX & IPS-2042FX Series on wall..........5 Hardware Overview..................7 Front Panel.......................
  • Page 3 VLAN Configuration – Port Based............. 31 5.1.7 Warning......................31 5.1.7.1 Fault Alarm ....................32 5.1.8 Front Panel ......................35 5.1.9 Save Configuration .................... 36 5.1.10 LLDP......................36 5.1.11 Power over Ethernet (P.O.E.) ................ 37 Technical Specifications ................39 ORing Industrial Networking Corp.

  • Page 4: Getting To Know Your Switch

    Hardware Features Wide Operating Temperature: -40 to 70 Storage Temperature: -40 to 85 Operating Humidity: 5% to 95%, non-condensing 4 10/100Base-T(X) Ethernet port with PSE provides up to 25 watts 10/100Base-T(X) Ethernet port 100Base-FX Fiber port ORing Industrial Networking Corp.

  • Page 5: Hardware Installation

    Each switch has a DIN-Rail kit on rear panel. The DIN-Rail kit helps switch to fix on the DIN-Rail. It is easy to install the switch on the DIN-Rail: 2.1.1 Mount IPS-2042TX & IPS-2042FX Series on DIN-Rail Step 1: Slant the switch and mount the metal spring to DIN-Rail.

  • Page 6: Wall Mounting Installation

    The following steps show how to mount the switch on the wall: 2.2.1 Mount IPS-2042TX & IPS-2042FX Series on wall Step 1: Remove DIN-Rail kit. Step 2: Use 6 screws that can be found in the package to combine the wall mount panel.
  • Page 7 The screws specification shows in the following two pictures. In order to prevent switches from any damage, the screws should not larger than the size that used in IPS-2042TX / 2042FX. Pozidrive Step 3: Mount the combined switch on the wall. ORing Industrial Networking Corp.

  • Page 8: Hardware Overview

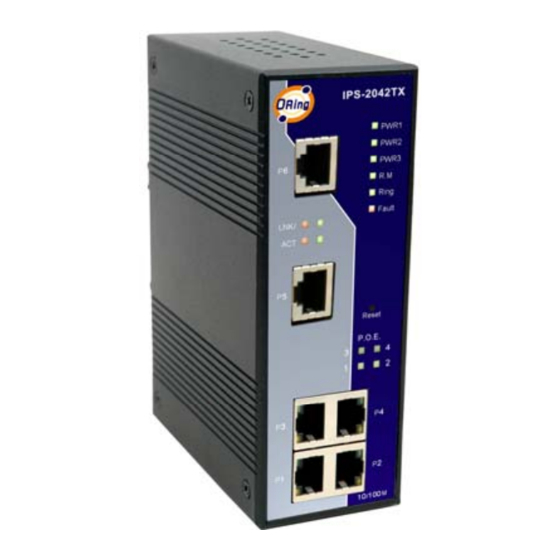

    Port 1 ~ 4 contain PSE function compliant with IEEE802.3af P.O.E. Port P.O.E. specifications. Push reset button 2 to 3 seconds to reset the switch. Reset Push reset button 5 second to reset the switch into Factory Default. ORing Industrial Networking Corp.
  • Page 9 7. Reset button. Push the button 3 seconds for reset; 5 seconds for factory default. 8. 10/100Base-T(X) Ethernet ports.. 9. LED for Ethernet ports status. 10. Model name 11. 10/100Base-T(X) Ethernet ports.. 12. LED for Ethernet ports status. 13. LED for P.O.E. power supplied. ORing Industrial Networking Corp.
  • Page 10 7. Reset button. Push the button 3 seconds for reset; 5 seconds for factory default. 8. 10/100Base-T(X) Ethernet ports. 9. LED for Ethernet ports status. 10. Model name 11. 100BaseFX fiber port. 12. LNK/ACT LED for fiber port. 13. LED for P.O.E. power supplied. ORing Industrial Networking Corp.

  • Page 11: Front Panel Leds

    Bottom Panel The bottom panel components of IPS-2042TX & IPS-2042FX are showed as below: 1. Terminal block includes: PWR1, PWR2 (+48V DC) and Relay output (1A@24VDC). 2. Power jack for PWR3 (+48VDC). IPS-2042TX / IPS-2042FX power connection ORing Industrial Networking Corp.

  • Page 12: Rear Panel

    IPS-2042TX / 2042FX User’s Manual Rear Panel The rear panel components of IPS-2042TX / IPS-2042FX are showed as below: 1. Screw holes for wall mount kit. 2. Din-Rail kit ORing Industrial Networking Corp.

  • Page 13: Cables

    P.O.E. power input - The IPS-2042TX / 2042FX switches support auto MDI/MDI-X operation. You can use a straight-through cable to connect PC and switch. The following table below shows the 10BASE-T/ 100BASE-TX MDI and MDI-X port pin outs. ORing Industrial Networking Corp.

  • Page 14: Fibers

    (0 to 2 km, 1310 nm in 50/125 µm, 62.5/125 µm) and single-mode (9/125 µm) with SC connector. Please remember that the TX port of Switch A should be connected to the RX port of Switch B. Switch A TX RX Fiber cord Switch B ORing Industrial Networking Corp.

  • Page 15: Web Management

    2. Type http:// and the IP address of the switch. Press “Enter”. 3. The login screen appears. 4. Key in the username and password. The default username and password is “admin”. 5. Click “Enter” or “OK” button, then the main interface of the Web-based management appears. ORing Industrial Networking Corp.

  • Page 16: Basic Setting

    IPS-2042TX / 2042FX User’s Manual Login screen Main Interface Main interface 5.1.2 Basic Setting 5.1.2.1 Switch setting Switch setting interface ORing Industrial Networking Corp.

  • Page 17: Admin Password

    Description Key in the new username (The default is “admin”) User name Key in the new password (The default is “admin”) New Password Re-type the new password. Confirm password Click “Apply” to activate the configurations. Apply ORing Industrial Networking Corp.

  • Page 18: Ip Configuration

    Assign the network gateway for the switch. The default gateway Gateway is 192.168.10.254 Assign the primary DNS IP address DNS1 Assign the secondary DNS IP address DNS2 Click “Apply” to activate the configurations. Apply ORing Industrial Networking Corp.

  • Page 19: Sntp Configuration

    Set the switch location time zone. The following table lists the UTC Time zone different location time zone for your reference. Local Time Zone Conversion from UTC Time at 12:00 UTC November Time Zone - 1 hour 11 am Oscar Time Zone -2 hours 10 am ORing Industrial Networking Corp.
  • Page 20 WAST - West Australian Standard +7 hours 7 pm CCT - China Coast, USSR Zone 7 +8 hours 8 pm JST - Japan Standard, USSR Zone 8 +9 hours 9 pm EAST - East Australian Standard +10 hours 10 pm ORing Industrial Networking Corp.
  • Page 21 Click “Apply” to activate the configurations. Apply 5.1.2.5 Auto-Ping Check you can control the POE function by using the ping command , in order to turn on or off other POE device which connect with port assign. ORing Industrial Networking Corp.

  • Page 22: Backup & Restore

    Fill in the TFTP server IP TFTP Server IP Address Fill the file name. Restore File Name Click “restore” to restore the configurations. Restore Fill the file name. Restore File Name Click “restore” to restore the configurations. Restore ORing Industrial Networking Corp.

  • Page 23: Upgrade Firmware

    Reset switch to default configuration. Click Reset to reset all configurations to the default value. You can select “Keep current IP address setting” and “Keep current username & password” to prevent IP and username & password from default. 5.1.2.9 System Reboot ORing Industrial Networking Corp.

  • Page 24: Port Configuration

    You can set Auto-negotiation, 100 full,100 half,10 full,10 half Speed/Duplex mode. Support symmetric and asymmetric mode to avoid packet loss Flow Control when congestion occurred. Click “Apply” to activate the configurations. Apply 5.1.3.2 Port Status The following information provides the current port status. ORing Industrial Networking Corp.

  • Page 25: Redundancy

    Fast Recovery mode supports 4 priorities, only the first priority will be the act port, the other ports configured with other priority will be the backup ports. Fast Recovery Mode interface The following table describes the labels in this screen. Label Description ORing Industrial Networking Corp.

  • Page 26: O-Ring

    O-Ring technology supports three Ring topologies for network redundancy: O-Ring, Coupling Ring and Dual Homing. O-Ring interface The following table describes the labels in this screen. Label Description ORing Industrial Networking Corp.

  • Page 27: Rstp

    It provides faster spanning tree convergence after a topology change. The system also supports STP and the system will auto detect the connected device that is running STP or RSTP protocol. RSTP setting You can enable/disable the RSTP function, and set the parameters for each port. ORing Industrial Networking Corp.
  • Page 28 The time that controls switch sends out the BPDU packet to check Hello Time (1-10) RSTP current status. Enter a value between 1 through 10. The number of seconds a port waits before changing from its Forwarding Delay ORing Industrial Networking Corp.
  • Page 29 NOTE: Follow the rule to configure the MAX Age, Hello Time, and Forward Delay Time: 2 x (Forward Delay Time value –1) ≥ Max Age value ≥ 2 x (Hello Time value +1) RSTP Information Show RSTP algorithm result at this table. ORing Industrial Networking Corp.

  • Page 30: Snmp Configuration

    Network management systems learn of problems by receiving traps or change notices from network devices implementing SNMP. 5.1.5.1 SNMP – Agent Setting You can set SNMP agent related information by Agent Setting Function. SNMP – Agent Setting interface ORing Industrial Networking Corp.

  • Page 31: Snmp -Trap Setting

    Label Description The server IP address to receive Trap Server IP Community for authentication Community Trap Version supports V1 and V2c. Trap Version Add trap server profile. Remove trap server profile. Remove Show help file. Help ORing Industrial Networking Corp.

  • Page 32: Vlan

    Warning function is very important for managing switch. You can manage switch by SYSLOG, E-MAIL, and Fault Relay. It helps you to monitor the switch status on remote site. When events occurred, the warn ing message will send to your appointed server, ORing Industrial Networking Corp.

  • Page 33: Fault Alarm

    Label Description Disable: disable SYSLOG. SYSLOG Mode Client Only: log to local system. Server Only: log to a remote SYSLOG server. Both: log to both of local and remote server. ORing Industrial Networking Corp.
  • Page 34 Show help file. Help System Warning – SMTP Setting The SMTP is Short for Simple Mail Transfer Protocol. It is a protocol for e-mail transmissi on across the Internet. Please refer to RFC 821 - Simple Mail Transfer ORing Industrial Networking Corp.
  • Page 35 SYSLOG and SMTP are the two warning methods that supported by the system. Check the corresponding box to enable system event warning method you wish to choose. Please note that the checkbox can not be checked when SYSLOG or SMTP is disabled. ORing Industrial Networking Corp.

  • Page 36: Front Panel

    Disable Link Up Link Down Link Up & Link Down Click “Apply” to activate the configurations. Apply Show help file. Help 5.1.8 Front Panel Show IPS-2042TX / 2042FX panel. Click “Close” to close panel on web. ORing Industrial Networking Corp.

  • Page 37: Save Configuration

    Description Save all configurations. Save Show help file. Help 5.1.10 LLDP LLDP (Link Layer Discovery Protocol) function allows the switch to advertise its information to other nodes on the network and store the information it discovers. ORing Industrial Networking Corp.

  • Page 38: Power Over Ethernet (P.o.e.)

    PSE (Power Supply Equipment) ports. The following table describes the labels in this screen. Label Description Display the maximum power available. Maximum Power Available Set the system power limit. System Power Limit Display the actual power consumption. Actual Power Consumption ORing Industrial Networking Corp.
  • Page 39 Display current value Current(mA) Display voltage value Voltage(V) Display watt value Power(mW) Display power class. When the Bypass classification enable, the Determined Class class value will not show in here Click “Apply” to set the configurations. Apply ORing Industrial Networking Corp.

  • Page 40: Technical Specifications

    Per Unit : Power x 3(Green) RJ45 Ports: Per Port : Link/Activity(Green/Blinking Green), Full duplex(Amber) P.O.E. LED: P.O.E. power supplied(Green) Fiber Ports: Per Port : Activity(Green), Link (Amber) Power Requirements Power Input Voltage PWR1/2: +48V DC in 7 pin Terminal block ORing Industrial Networking Corp.
  • Page 41 IP-30 protection Regulatory Approvals Regulatory Approvals FCC Part 15, CISPER (EN55022) class A EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS) Shock IEC 60068-2-27 Free Fall IEC 60068-2-32 Vibration IEC 60068-2-6 5 years Warranty ORing Industrial Networking Corp.
