ORiNG IPS-1080A Quick Installation Manual

ORing Industrial Networking Corp.
PoE
SWITCH
Q I
I N D U S T R I A L uick nstallation
Introduction
IPS-1080A is slim type unmanaged PoE Ethernet switch with P.S.E. function.
IPS-1080A supports Power over Ethernet, a system to transmit electrical power,
along with data, to remote devices over standard twisted-pair cable in an Ethernet
network. IPS-1080A switch has 8X10/100Base-T(X) P.S.E. (Power Sourcing
Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide
power in a PoE setup. The wide operating temperature range from -40 C to 70 C
can satisfy most of operating environment. Therefore, the switch is one of the most
reliable choices for PoE Ethernet application.
Features
Provide 8x10/100Base-T(X) PoE (P.S.E.) ports
Supports IEEE 802.3at compliant PoE and total power budget is 120Watts with
maximum 30Watts per port
Support auto-negotiation and auto-MDI/MDI-X
Support store and forward transmission
Support flow control
Support surge protection technology
Warning system by relay output
Slim type rigid IP-30 housing design
DIN-Rail and wall mounting enabled
Power Connection Guide
PWR-2 1A@24V PWR-1 DC 50-57V
V2- V2+ V1- V1+
V- V+
Power Power
Supply V+ V- Supply
50 VDC 50 VDC
Warning
Device
+24V GND
Power
Supply
DIP Switch Function
DIP-1 DIP-2 Description
OFF OFF Power failure relay alarm disabled
ON OFF PWR-1 failure, relay alarm enabled
OFF ON
PWR-2 failure, relay alarm enabled
PWR-1 or PWR-2 failure,
ON ON
relay alarm enabled
Q I G
IPS-1080A
IPS-1080A
G
uide
Specifications
ORing Switch Model
Physical Ports
o o
10/100 Base-T(X) Ports in RJ45
Auto MDI/MDIX with P.S.E.
Technology
Ethernet Standards
MAC Table
Processing
LED Indicators
Power indicator
Fault indicator
10/100Base-T(X)RJ45 Port
Indicator
Fault Contact
Relay
Power
Redundant Input power
Power consumption(Typ.)
Overload current protection
Reverse polarity protection
Physical Characteristic
Enclosure
Dimension (W x D x H)
Weight (g)
G
Frame Ground
Environmental
Storage Temperature
Operating Temperature
DIP Switch Select for
Power Alarm Relay Output Operating Humidity
Regulatory Approvals
EMI
EMS
Shock
Free Fall
Vibration
Safety
Warranty
1907-2-29-IPS1080A-0
IPS-1080A
8
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
2048 MAC addresses
Store-and-Forward
Green: Power LED x2
Amber: Indicate PWR1 or PWR2 failure
Green for port Link/Act.
Green for PoE power injected.
Relay output to carry capacity of 1A at 24 VDC
Dual DC inputs 50-57VDC on 6-pin terminal block
4.5 Watts (power consumption of P.S.E. is not included)
Present
Not Present
IP-30
26.1 (W) x 94.9 (D) x 144.3 (H) mm (1.03 x 3.74 x 5.68 inches)
395g
o o
-40 to 85 C (-40 to 185 F)
-40 to 70 C (-40 to 158 F) o o
5% to 95% Non-condensing
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),
EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6
EN60950-1
5 years
PRINTED ON RECYCLED PAPER
Industrial Unmanaged PoE Switch
Practical Operation
IPS-1080A can be used in connecting several Ethernet devices like Ethernet I/O, IP-
Camera or other Ethernet switches. In addition, there are two r
inputs at terminal block to avoid interruption caused by power down.
primary DC power input fails, the backup power input will take over immediately to
guarantee a non-stop operation.
Connections of Ethernet devices

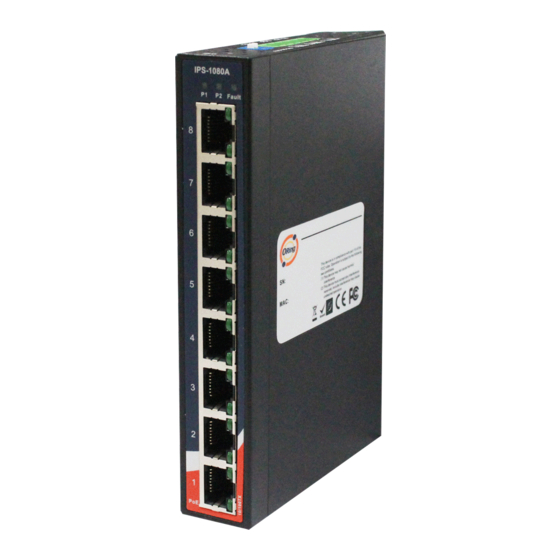

Front Panel
Power 2 LED
IPS-1080A
Power 1 LED Power Fault LED
P1 P2 Fault
8
7
6
5
4
Green: Link/Act
LAN Port
3
Green: PoE power injected
2
1
A
Quick Installation Guide
Version 1.0
edundant power
When the
