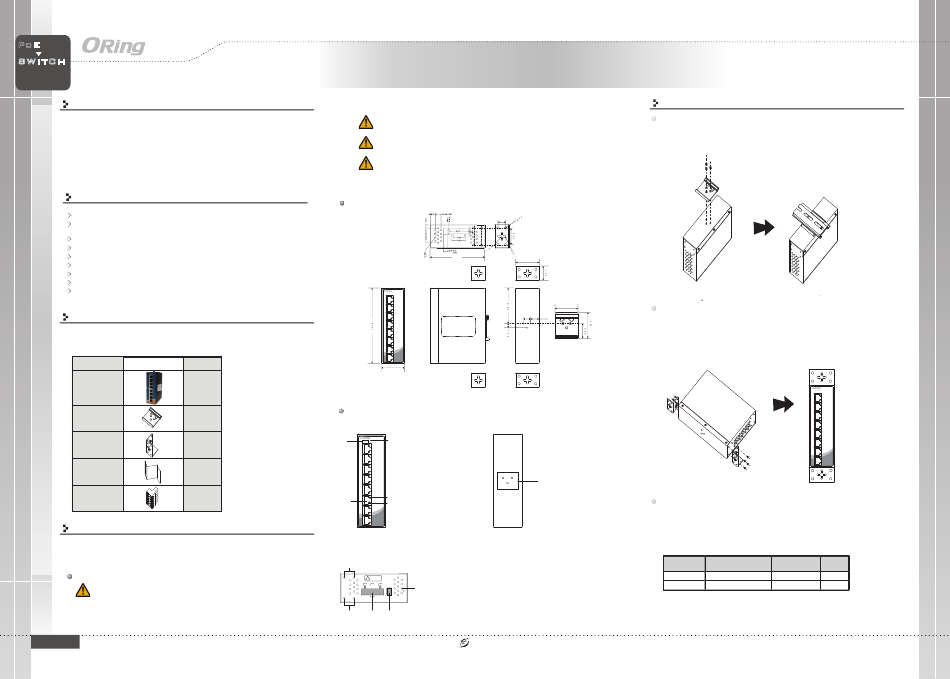

ORiNG IPS-1080-24V Quick Installation Manual

PoE
SWITCH
Q I
I N D U S T R I A L uick nstallation

Introduction

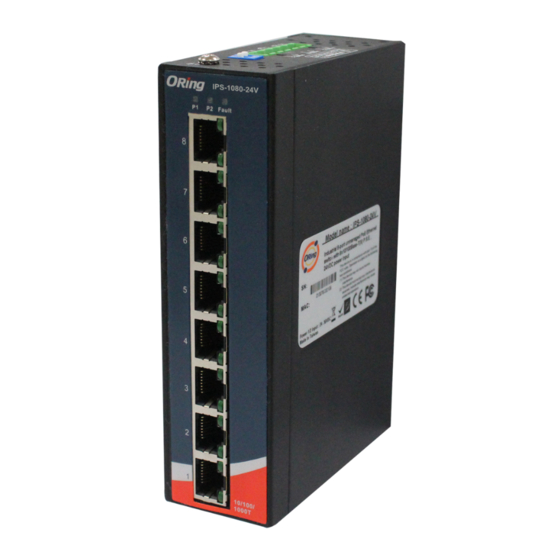

IPS-1080-24V is unmanaged PoE Ethernet switch with P.S.E. function.
24V supports Power over Ethernet, a system to transmit electrical power, along with
data, to remote devices over standard twisted-pair cable in an network.
switch h s 8X10/100Base-T(X) P.S.E. (Power Sourcing Equipment) ports.
a
device (switch or hub for instance that will provide power in a PoE setup.
wide operating temperature range from -40 C to 75 C can satisfy most of operating
environment. Therefore, the switch is one of the most reliable choices for PoE Ethernet
application.
Features
Provide 8x10/100Base-T(X) PoE (P.S.E.) ports
Supports IEEE 802.3at compliant PoE and total power budget is 120Watts with
maximum 30Watts per port
Advanced PoE power boost technology to support dual 24VDC power inputs
Support auto-negotiation and auto-MDI/MDI-X
Support store and forward transmission
Support flow control
Warning system by relay output
Slim type rigid IP-30 housing design
DIN-Rail and wall mounting enabled

Package Contents

The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative for
assistance.
Contents Pictures Number
IPS-1080-24V
DIN-rail Kit
Wall-mount Kit
QIG
6-pin terminal block

Preparation

Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Q I G
IPS-1080-24V
IPS-1080-24V
G
uide
IPS-1080-
IPS-1080-24V
P.S.E. is a
The
o o

Dimension

X 1

Panel Layouts

X 1
Front View
IPS-1080-24V
1
P1 P2 Fault
X 2
8
7
6
X 1
5
4
X 1
5 3
2
1
10/100TX
Top Panel
1
Warning !!!
！
Check Polarity First.
PWR-2 1A@24V
V2- V2+ V1- V1+
1 2
1907-200-XX
Reduced Air Flow: Installation of the equipment in a rack should be such that the
amount of air flow required for safe operation of the equipment is not compromised.
Mechanical Loading: Mounting of the equipment in the rack should be such that a
hazardous condition is not achieved due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the equipment to
the supply circuit and the effect that overloading of the circuits might have on overcurrent
protection and supply wiring. Appropriate consideration of equipment nameplate ratings
should be used when addressing this concern.
Unit =mm (Tolerance ±0.5mm)
13.1
94.9
41
IPS-1080-24V
P1 P2 Fault
8
7
14.0 13.5
6
5
4
3
2
1
10/100TX
41
Rear View
1. Din-rail screw holes
1. PWR indicators
2
2. Faulty relay indicator
3. Link/Act LED for LAN ports
4. PoE LED for LAN ports
5. PoE LAN ports
1
3
4
1. Wall-mount screw holes
2. Terminal blocks: PWR1, PWR2
, Relay
PWR-1
3. DIP Switch
4
4. Ground wire.
3
PRINTED ON RECYCLED PAPER
Industrial Unmanaged PoE Switch

Installation

DIN-rail Installation

Step 1: Slant the switch and screw the Din-rail kit onto the back of the switch, right in
the middle of the back panel.
Step 2: Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch
clicks into the rail firmly.
40.0

Wall-mounting

Step 1: Screw the wall-mount kit onto the rear panel of the switch. A total of six
screws are required, as shown below.
Step 2: Use the switch, with wall mount plates attached, as a guide to mark the
correct locations of the four screws.
Step 3: Insert a screw head through the large parts of the keyhole-shaped apertures,
and then slide the switch downwards. Tighten the screws for added stability.

Network Connection

The switch provides standard Ethernet ports. According to the link type, the switch uses
CAT 3,4,5,5e UTP cables to connect to any other network devices (PCs, servers,
switches, routers, or hubs). Please refer to the following table for cable
Specifications.
Cable Types and Specifications:
Cable Type
10BASE-T Cat. 3, 4, 5 100-ohm
100BASE-TX Cat. 5 100-ohm UTP
Version 1.5
IPS-1080-24V
P1 P2 Fault
8
7
6
5
4
3
2
1
10/100TX
Max. Length Connector
UTP 100 m (328 ft) RJ-45
UTP 100 m (328 ft) RJ-45
Quick Installation Guide
