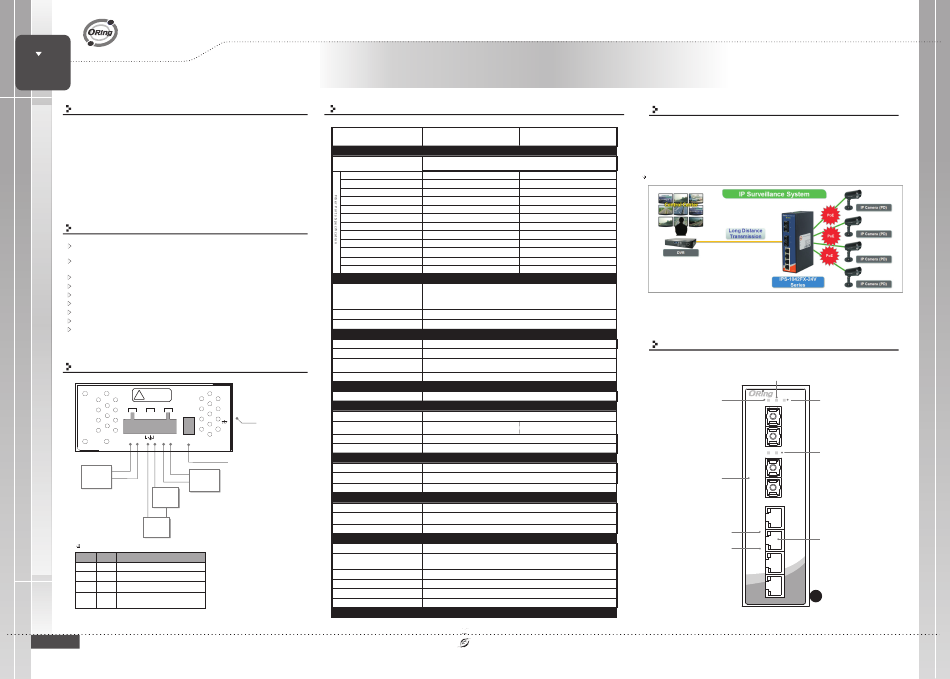

ORiNG IPS-1042FX-24V Series Quick Installation Manual

ORing Industrial Networking Corp.
PoE
SWITCH
Q I
I N D U S T R I A L uick nstallation
Introduction
IPS-1042FX-24V series are unmanaged PoE Ethernet switches with
4x10/100Base-T(X) P.S.E. and 2x100Base-FX ports.
supports Power over Ethernet, a system to transmit electrical power, along with
data, to remote devices over standard twisted-pair cable in an Ethernet network.
IPS-1042FX-24V series has 4x10/100Base-T(X) P.S.E.Power Sourcing
Equipment) ports. P.S.E. is a device (switch or hub for instance) that will
provide power in a PoE setup. IPS-1042FX-24V series
power inputs, configurable relay output alarm and rigid IP-30 housing.
the wide operating temperature range from -40 to 70 C can satisfy most of
operating environment.
Features
IPS-1042FX-24V series provide 4x10/100Base-T(X) PoE (P.S.E.) and 2x100Base-
FX single/multi-mode fiber ports
Supports IEEE 802.3at compliant PoE and total power budget is 120Watts with
maximum 30Watts per port
Support auto-negotiation and auto-MDI/MDI-X
Support store and forward transmission
Support flow control
Support surge protection technology
Warning system by relay output
Slim type rigid IP-30 housing design
DIN-Rail and wall mounting enabled
Power Connection Guide
Warning !!!
！
24-36Vdc Input only
Check Polarity First.
PWR-2 1A@24V PWR-1
V2- V2+ V1- V1+
V-
Power
V+
Power
Supply V+
V-
Supply
24-36 VDC
24-36VDC
Warning
Device
+24V GND
Power
Supply
DIP Switch Function
DIP-1 DIP-2 Description
OFF OFF Power failure relay alarm disabled
ON OFF PWR-1 failure, relay alarm enabled
OFF ON
PWR-2 failure, relay alarm enabled
PWR-1 or PWR-2 failure,
ON ON
relay alarm enabled
Q I G
IPS-1042FX-24V Series
IPS-1042FX-24V Series
G
uide
Specifications
ORing Switch Model
IPS-1042FX-24V series
Physical Ports
10/100 Base-T(X) Ports in RJ45
Auto MDI/MDIX with P.S.E.
support redundant Fiber Ports Number
In addition, Fiber Ports standard
o
Fiber Mode
Fiber Diameter (µm)
Fiber Optical Connector
Typical Distance (Km)
Wavelength (nm)
Max. Output Optical Power (dbm)
Min. Output Optical Power (dbm)
Max. Input Optical Power (Saturation)
Min. Input Optical Power (Sensitivity)
Link Budget (db)
Technology
Ethernet Standards
MAC Table
Processing
LED Indicators
Power indicator
Fault indicator
10/100Base-T(X)RJ45 Port
Indicator
100Base-FX Fiber Port Indicator
Fault Contact
Relay
Power
Redundant Input power
G
Frame Ground
Power consumption(Typ.)
Overload current protection
Reverse polarity protection
Physical Characteristic
DIP Switch Select for
Power Alarm Relay Output
Enclosure
Dimension (W x D x H)
Weight (g)
Environmental
Storage Temperature
Operating Temperature
Operating Humidity
Regulatory Approvals
EMI
EMS
Shock
Free Fall
Vibration
Safety
Warranty
1907-2-29-IPS1042FX-0
IPS-1042FX-MM-SC-24V IPS-1042FX-MM-SC-24V
4
2 2
100Base-FX 100Base-FX
Multi-mode Single-mode
62.5/125 µ m & 50/125 µ m 9/125 µ m
SC SC
2 Km 30 Km
1310 nm 1310 nm
-14 dbm -8 dbm
-23.5 dbm -15 dbm
0 dbm 0 dbm
-31 dbm -34 dbm
7.5 db 19 db
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3x for Flow control
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
2048 MAC addresses
Store-and-Forward
Green: Power LED x2
Amber: Indicate PWR1 or PWR2 failure
Green for port Link/Act.
Green for PoE power injected.
Green for port Link/Act.
Relay output to carry capacity of 1A at 24 VDC
Dual DC inputs 24~36VDC on 6-pin terminal block
6.48 Watts 5.4 Watts
(power consumption of P.S.E. is not included) (power consumption of P.S.E. is not included)
Present
Not Present
IP-30
41.0 (W) x 94.9 (D) x 144.3 (H) mm (1.61 x 3.74 x 5.68 inches)
395g
-40 to 85 C (-40 to 185 F) o o
o o
-40 to 70 C (-40 to 158 F)
5% to 95% Non-condensing
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),
EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6
EN60950-1
5 years
PRINTED ON RECYCLED PAPER
Industrial Unmanaged PoE Switch
Practical Operation
IPS-1042FX-24V series can be used in connecting several Ethernet devices like
Ethernet I/O, IP-Camera or other Ethernet switches. In addition, there are two
r edundant power inputs at terminal block to avoid interruption caused by power
down. When the primary DC power input fails, the backup power input will take over
immediately to guarantee a non-stop operation.
Connections of Ethernet devices

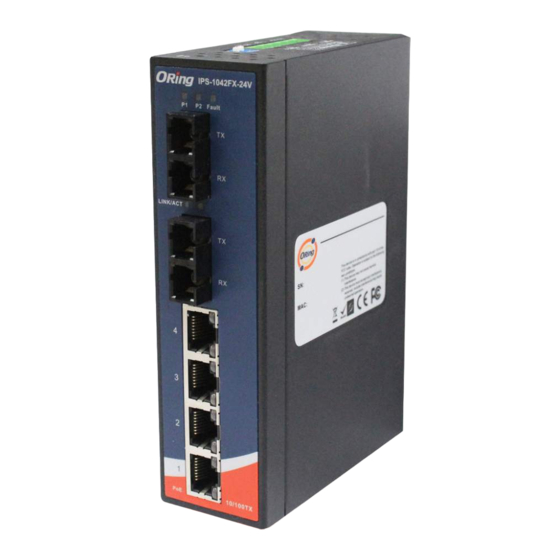

Front Panel
Power 2 LED
IPS-1042FX-24V
Power 1 LED
P1 P2 Fault
TX
6
RX
LINK/ACT
TX
5
Fiber Port
RX
4
Green: Link/Act
3
Green: PoE power injected
2
1
A
10/100TX
Quick Installation Guide
Version 1.0
Power Fault LED
Fiber Link/Act LED
LAN Port
