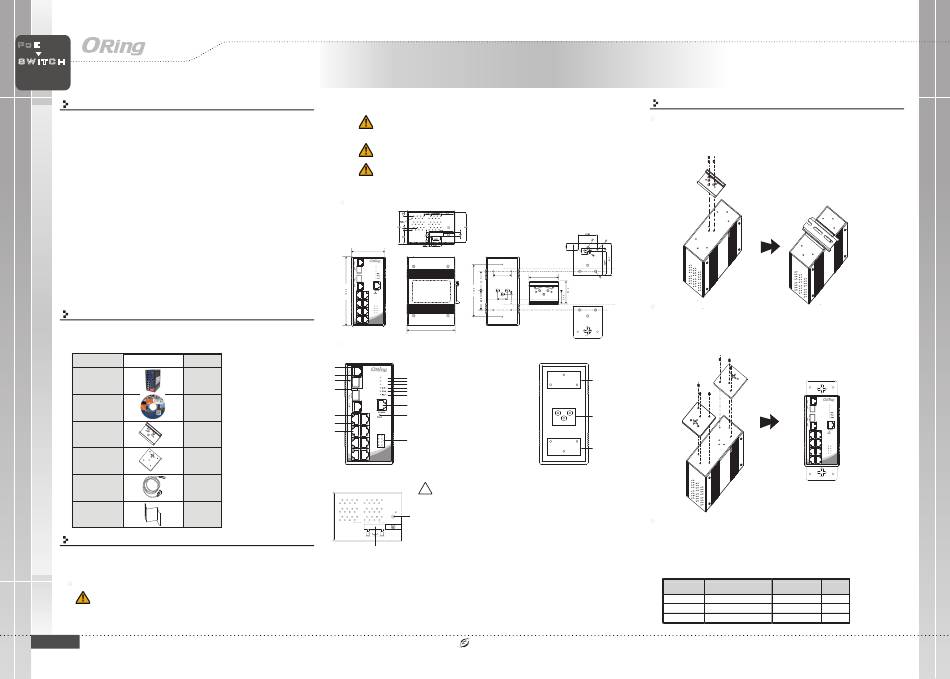

ORiNG IPS-3082GC-24V Quick Installation Manual

PoE
SWITCH
Q I
I N D U S T R I A L uick nstallation
Introduction

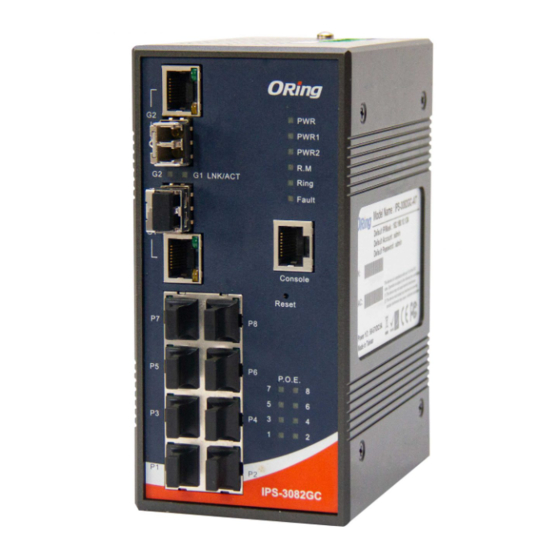

IPS-3082GC-24V is managed redundant ring Ethernet switch with 8x10/100Base-T(X)
ports with 15.4Watts PoE (P.S.E.) function and 2xGigabit combo ports. With completely
support of Ethernet redundancy protocol, O-Ring (recovery time < 10/30ms over 250
units of connection), O-Chain, MRP *NOTE and MSTP/RSTP/STP (IEEE 802.1s/w/D)
can protect your mission-critical applications from network interruptions or temporary
malfunctions with its fast recovery technology. Another O-Chain is the revolutionary
network redundancy technology that provides the add-on network redundancy topology
for any backbone network, O-Chain allows multiple redundant network rings of different
redundancy protocols to join and function together as a larger and more robust
compound network topology. O-Chain providing ease-of-use while maximizing fault-
recovery swiftness, flexibility, compatibility, and cost-effectiveness in one set of network
redundancy topology. IPS-3082GC-24V also supports Power over Ethernet, a system
to transmit electrical power, along with data, to remote devices over standard twisted-
pair cable in an Ethernet network. Each IPS-3082GC-24V
T(X) 15.4Watts P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or
hub for instance) that will provide power in a PoE setup.
DDM (Digital Diagnostic Monitoring) function, which can monitor instantly the status of
electronic voltage, current and temperature. All function of
managed centralized by a powerful windows utility — Open-Vision. In addition, the wide
operating temperature range from -40 to 70 C can satisfy most of operating
environment. Therefore, these switches are one of the most reliable choice for highly-
managed and Fiber Ethernet application with PoE function.
The product is open type, intended to be installed in and industrial control panel or an enclosure.
*NOTE : This function is available by request only.
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative for
assistance.
Contents Pictures Number
IPS-3082GC-24V
CD
DIN-rail Kit
Wall-mount Kit
Console Cable
QIG
Preparation
Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Q I G
IPS-3082GC-24V
IPS-3082GC-24V
G
uide
Dimension
switch had 8X10/100Base-
IPS-3082GC-24V supports
IPS-3082GC-24V can be
74.3
o
G2
PWR
PWR1
PWR2
G2 G1 LINK / ACT
G1
P7 P8
P5 P6
P.O.E.
7 8
5 6
P3 P3 P4 3 4
1 2
P1 P1 P2
IPS-3082GC
Panel Layouts
Front View
8
9
G2
10
X 1
11
G2 G1 LINK / ACT
G1
X 1
12
P7 P8
13
14
P5 P6
X 1
P.O.E.
7
5
P3 P3 P4 3
1
P1 P1 P2
X 2 IPS-3082GC
Bottom View
X 1
X 1
1
1. Terminal blocks: PWR1,
PWR2 (24 36V DC), Relay -
2. Ground wire.
1907-200-P3082GC242-FX011
Reduced Air Flow: Installation of the equipment in a rack should be such that the
amount of air flow required for safe operation of the equipment is not
compromised.
Mechanical Loading: Mounting of the equipment in the rack should be such that
a hazardous condition is not achieved due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the equipment
to the supply circuit and the effect that overloading of the circuits might have on
overcurrent protection and supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this concern.
Unit =mm (Tolerance ±0.5mm)
66.0
40.0
18.0
107.5
Rear View
1. Power LED
2. PWR1 LED
3. PWR2 LED
1
PWR
2
PWR1
4. R.M. status LED
PWR2 3
4
5 5. Ring status LED
6
6. Faulty relay indicator
7. Console port
7
8. Link/Act LED for Gigabit port
15
9. 100Mbps indicator for Gigabit port
10. Combo ports
11. Link/Act LED for SFP ports
8
12. Link/Act LED for Ethernet port
6 16
4
13. Duplex/Collision indicator
2
14. LAN ports
15. Reset button
16. PoE LED for LAN port
1. Din-rail screw holes
2. Wall-mount screw holes
Warning [AVERTISSEMENT]
！
Take into consideration the following guidelines before wiring the device
[Tenez compte des directrices suivantes avant de câbler l'appareil.]
1. Terminal block is mating with Plug and suitable for 12-24AWG.
Torque value 4.5 lb-in.
[Le bornier est compatible avec les connecteurs et convient pour 12-24AWG.
2
Valeur de couple 4,5 lb-in.]
2. The temperature rating of the input connection cable should higher than 105°C
[La température de service nominale du câble d'entrée doit être supérieure à 105 °C]
3. Use Copper Conductors Only.
[Utilisez uniquement des conducteurs en cuivre.]
* Indoor use and pollution degree II, it must be wiped with a dry cloth for clean up the
device and label.
* Utilisation en intérieur et degré de pollution II, il faut l'essuyer avec un chiffon sec
pour nettoyer l'appareil et son étiquette.
* Do not block air ventilation holes.
* Ne bouchez pas les orifices de ventilation.
* If the equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired."
* Si l'appareil est utilise d'une maniere non specifiee par le fabricant, la protection
qu'il apporte peut se voir diminuee."
* Shall be mounted in the Industrial Control Panel and ambient temperature is not
exceed 75 degree C
* doit être monté dans le panneau de commande industriel et la température ambiante
ne doit pas dépasser 75 degrés C
PRINTED ON RECYCLED PAPER
Industrial PoE Managed Ethernet Industrial PoE Managed Ethernet
Switch Switch
Installation
DIN-rail Installation
Step 1: Slant the switch and screw the Din-rail kit onto the back of the switch, right in
the middle of the back panel.
Step 2: Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch
clicks into the rail firmly.
Wall-mounting
Step 1: Screw the two pieces of wall-mount kits onto both ends of the rear panel of the
switch. A total of six screws are required, as shown below.
Step 2: Use the switch, with wall mount plates attached, as a guide to mark the
correct locations of the four screws.
Step 3: Insert a screw head through the large parts of the keyhole-shaped apertures,
and then slide the switch downwards. Tighten the screws for added stability.
2
1
2
Network Connection
The switch provides standard Ethernet ports. According to the link type, the switch uses
CAT 3,4,5,5e UTP cables to connect to any other network devices (PCs, servers,
switches, routers, or hubs). Please
specifications.
Cable Types and Specifications:
Cable Type
10BASE-T Cat. 3, 4, 5 100-ohm
100BASE-TX Cat. 5 100-ohm UTP
1000BASE-T Cat. 5 / Cat. 5e 100-ohm UTP
Version 2.1
G2 PWR
PWR1
PWR2
G2 G1 LINK / ACT
G1
P7 P8
P5 P6
P.O.E.
7 8
5 6
P3 P3 P4 3 4
1 2
P1 P1 P2
IPS-3082GC
refer to the following table for cable
Max. Length Connector
UTP 100 m (328 ft) RJ-45
UTP 100 m (328 ft) RJ-45
UTP 100 m (328 ft) RJ-45
Quick Installation Guide
