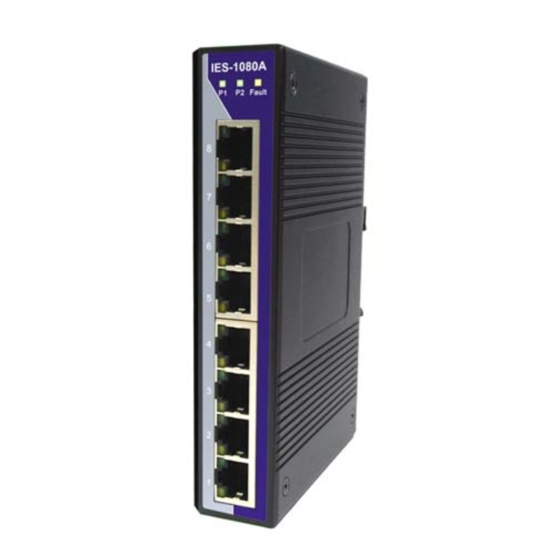

ORiNG IES-1050A Series User Manual

Industrial unmanaged ethernet switch
Hide thumbs Also See for IES-1050A Series:
Table of Contents

Advertisement

Quick Links

Download this manual

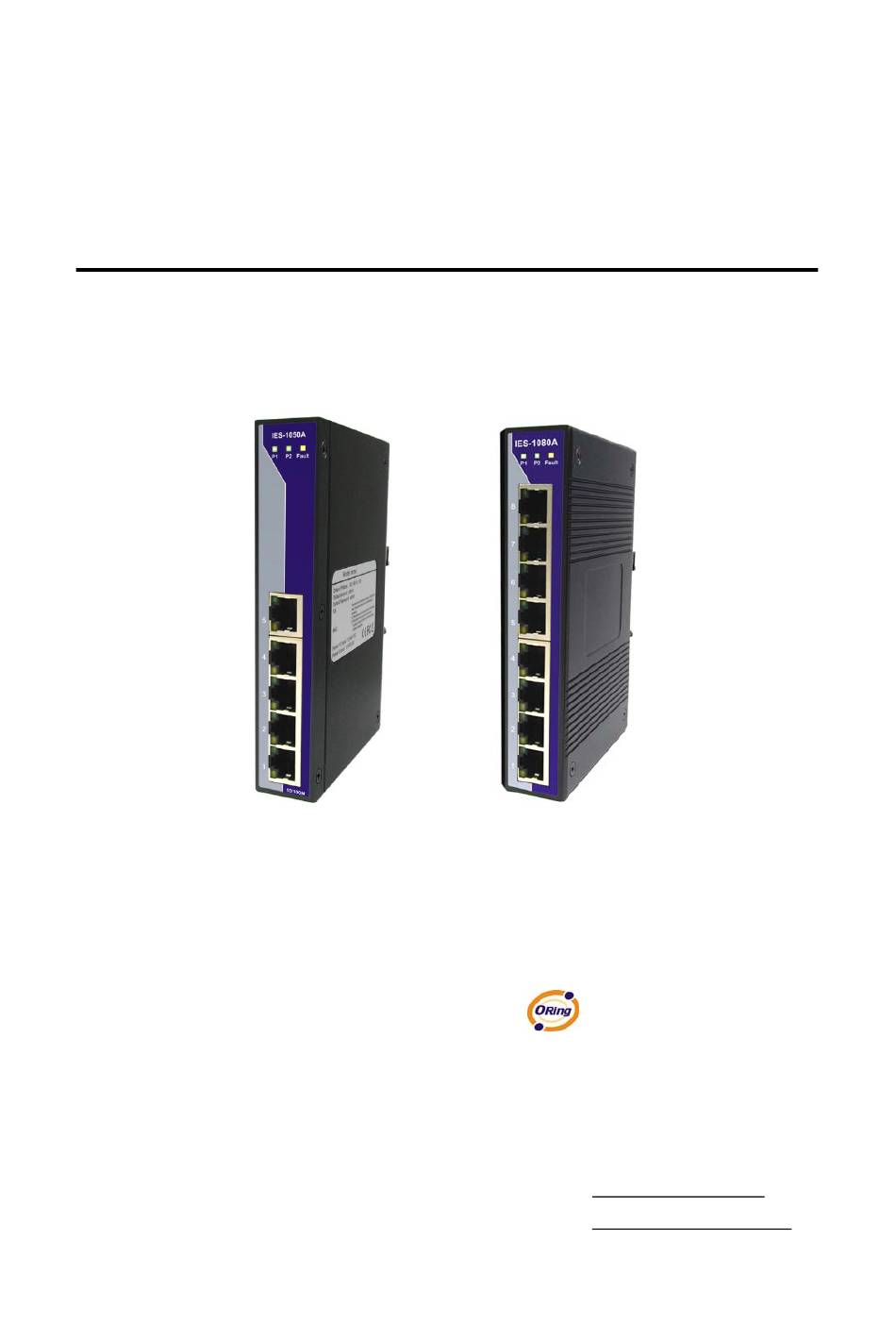

Industrial
Unmanaged Ethernet Switch
IES-1050A / 1080A Series User's Manual
Version 1.0
May, 2008.
ORing Industrial Networking Corp.
4F., NO.3, Lane235, Baociao Rd.Sindian City,
Taipei County 23145 Taiwan, R.O.C.
Tel: + 886 2 2918 3036
Fax: + 886 2 2918 3084
Website: www.oring-networking.com
E-mail:
support@oring-networking.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IES-1050A Series and is the answer not in the manual?

Questions and answers

Related Manuals for ORiNG IES-1050A Series

Summary of Contents for ORiNG IES-1050A Series

  • Page 1 Unmanaged Ethernet Switch IES-1050A / 1080A Series User’s Manual Version 1.0 May, 2008. ORing Industrial Networking Corp. 4F., NO.3, Lane235, Baociao Rd.Sindian City, Taipei County 23145 Taiwan, R.O.C. Tel: + 886 2 2918 3036 Fax: + 886 2 2918 3084 Website: www.oring-networking.com...

  • Page 2: Table Of Contents

    Mount IES-1050A / 1080A Series on the wall..............4 Hardware Overview..................6 Front Panel ..........................6 Front Panel LEDs .......................9 Bottom Panel ........................9 Rear Panel .........................10 Cables ......................11 Ethernet Cables ........................ 11 4.1.1 100BASE-TX/10BASE-T Pin Assignments..............11 Technical Specifications ................12 ORing Industrial Networking Corp...

  • Page 3: Getting To Know Your Switch

    Redundant three DC power inputs ( two on terminal block & one on power jack) Wide Operating Temperature: -40 to 70 Storage Temperature: -40 to 85 Operating Humidity: 5% to 95%, non-condensing Casing: IP-30 10/100Base-T(X) Ethernet port Dimensions(W x D x H) :33 mm(W)x 95 mm(D)x 144.3 mm(H) ORing Industrial Networking Corp...

  • Page 4: Hardware Installation

    2.1.1 Mount IES-1050A / 1080A Series on DIN-Rail Step 1: Slant the switch and mount the metal spring to DIN-Rail. Metal Spring Step 2: Push the switch toward the DIN-Rail until you heard a “click” sound. ORing Industrial Networking Corp...

  • Page 5: Wall Mounting Installation

    Mount IES-1050A / 1080A Series on the wall Step 1: Remove DIN-Rail kit. Step 2: Use 6 screws that can be found in the package to combine the wall mount panel. Just like the picture shows below: ORing Industrial Networking Corp...
  • Page 6 The screws specification shows in the following two pictures. In order to prevent switches from any damage, the screws should not larger than the size that used in IES-1050A / 1080A series switches. Pozidrive Step 3: Mount the combined switch on the wall. ORing Industrial Networking Corp...

  • Page 7: Hardware Overview

    The following table describes the labels that stick on the IES-1080 / 1062 series. Port Description 10/100 RJ-45 fast 10/100Base-T(X) RJ-45 fast Ethernet ports support Ethernet ports auto-negotiation. Default Setting : Speed: auto Duplex: auto Flow control : disable ORing Industrial Networking Corp...
  • Page 8 1. LED for PWR1&PW2. When the PWR1 links, the green led will be light on. 2. LED for Fault Relay. When the power fault occurs, the amber LED will be light on. 3. 10/100Base-T(X) Ethernet ports. 4. LED for Ethernet ports status. 5. Model name ORing Industrial Networking Corp...
  • Page 9 1. LED for PWR1&PW2. When the PWR1 links, the green led will be light on. 2. LED for Fault Relay. When the power fault occurs, the amber LED will be light on. 3. 10/100Base-T(X) Ethernet ports. 4. LED for Ethernet ports status. 5. Model name ORing Industrial Networking Corp...

  • Page 10: Front Panel Leds

    LNK / ACT Blinking Data transmitted. 3.3 Bottom Panel The bottom panel components of IES-1080 / 1062 Series are shown as below: 1. Terminal block includes: PWR1, PWR2 (12-48V DC) and Relay output (1A@24VDC). 2. Power Fault Check ORing Industrial Networking Corp...

  • Page 11: Rear Panel

    IES-1050A / 1080A Series User’s Manual 3.4 Rear Panel The components in the rare of IES-1080 / 1062 Series are shown as below: 1. Screw holes for wall mount kit. 2. DIN-Rail kit ORing Industrial Networking Corp...

  • Page 12: Cables

    The IES-1050A / 1080A Series switches support auto MDI/MDI-X operation. You can use a straight-through cable to connect PC to switch. The following table below shows the 10BASE-T/ 100BASE-TX MDI and MDI-X port pin outs. MDI/MDI-X pins assignment ORing Industrial Networking Corp...

  • Page 13: Technical Specifications

    Green : Power LED x 2 Fault indicator Yellow : Indicate PWR1 or PWR2 failure 10/100TX RJ45 port Green for port Link/Act. Yellow for Duplex/Collision indicator Fault contact Relay Relay output to carry capacity of 1A at 24VDC ORing Industrial Networking Corp...
  • Page 14 5% to 95% Non-condensing Regulatory approvals FCC Part 15, CISPR (EN55022) class A EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 Shock IEC60068-2-27 Free Fall IEC60068-2-32 Vibration IEC60068-2-6 Safety EN60950 Warranty 5 years ORing Industrial Networking Corp...
