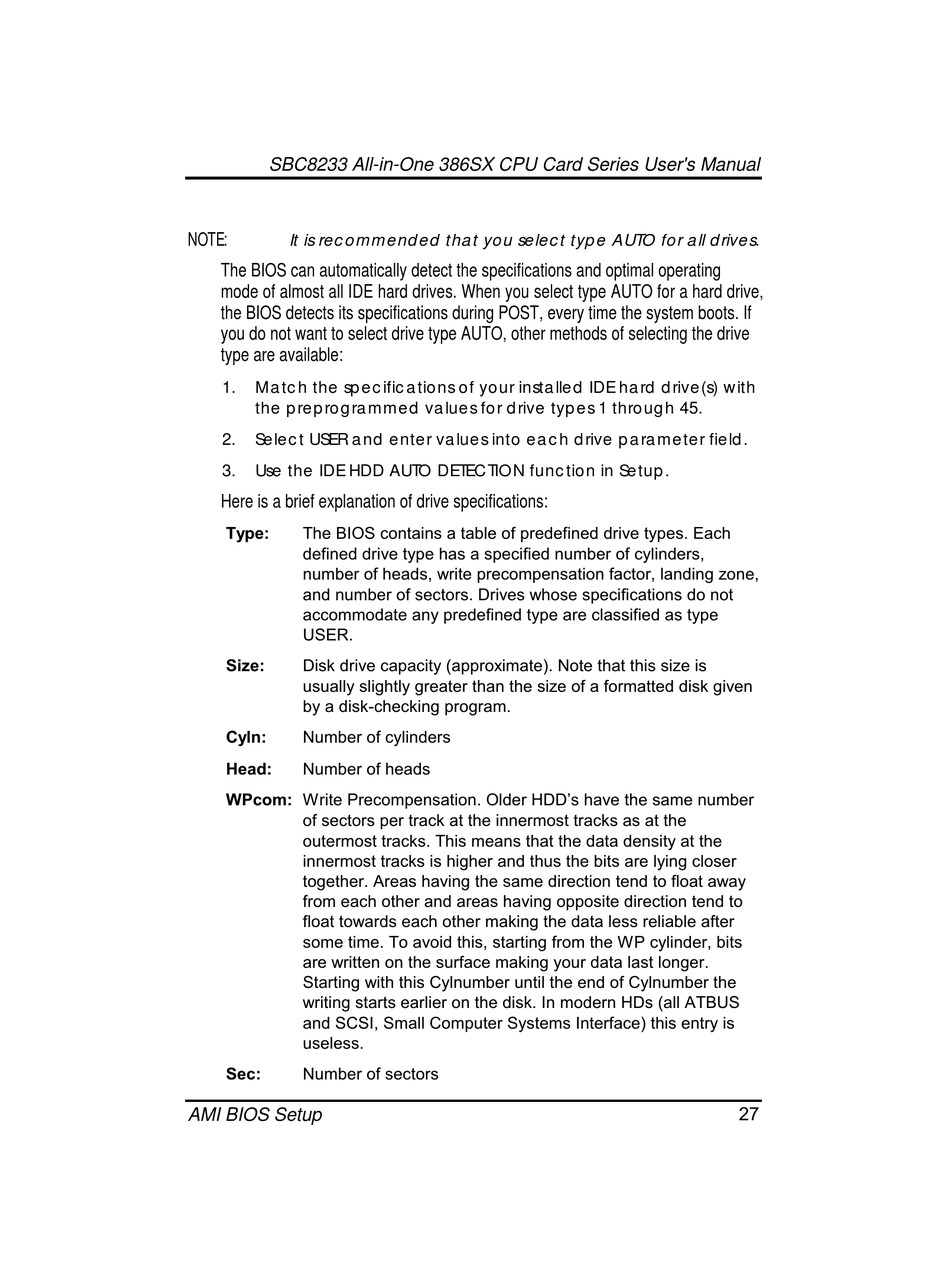

AXIOMTEK SBC8233 User Manual page 37

SBC8233 All-in-One 386SX CPU Card Series User's Manual
NOTE:
It is recommended that you select type AUTO for all drives.
The BIOS can automatically detect the specifications and optimal operating
mode of almost all IDE hard drives. When you select type AUTO for a hard drive,
the BIOS detects its specifications during POST, every time the system boots. If
you do not want to select drive type AUTO, other methods of selecting the drive
type are available:
1. Match the specifications of your installed IDE hard drive(s) with
the preprogrammed values for drive types 1 through 45.
2. Select USER and enter values into each drive parameter field.
3. Use the IDE HDD AUTO DETECTION function in Setup.
Here is a brief explanation of drive specifications:
 &





!"
'( & #   $  % &'
             #
 #(  #

!& '
) & '
*$+,& ) *    +
   #       #
     #

     #
 -

     #

         )*
       #
      .     .
       #   + $ -
!
.  .     &

' +& '
AMI BIOS Setup
,
15
