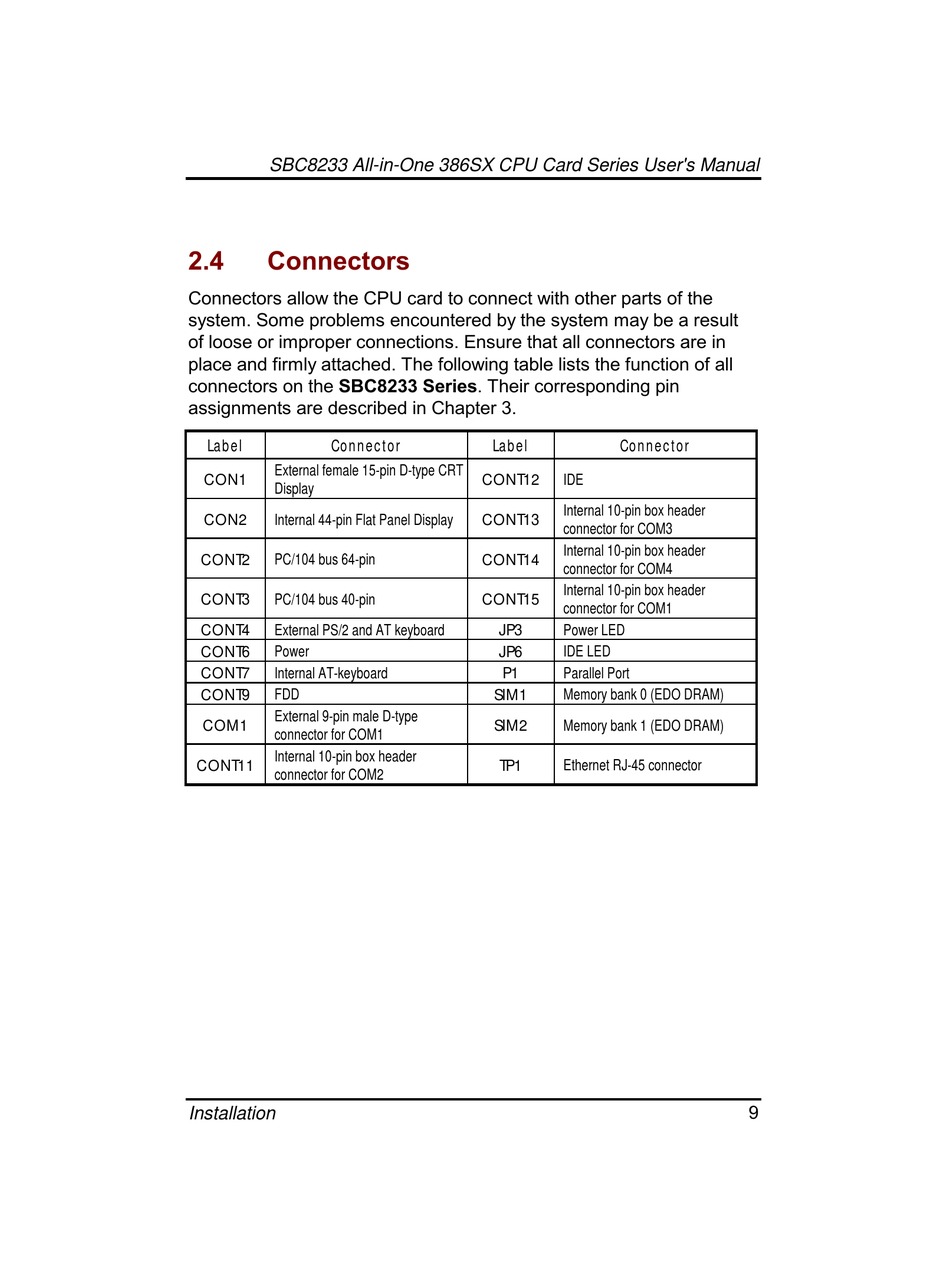

SBC8233 All-in-One 386SX CPU Card Series User's Manual
+(. & #&
*


*+,










&















/






















 /








*
#

Label Connector
External female 15-pin D-type CRT
CON1
Display
CON2
Internal 44-pin Flat Panel Display
CONT2
PC/104 bus 64-pin
CONT3 PC/104 bus 40-pin
CONT4 External PS/2 and AT keyboard
CONT6
Power
CONT7
Internal AT-keyboard
CONT9 FDD
External 9-pin male D-type
COM1
connector for COM1
Internal 10-pin box header
CONT11
connector for COM2
Installation
Label Connector
CONT12
IDE
Internal 10-pin box header
CONT13
connector for COM3
Internal 10-pin box header
CONT14
connector for COM4
Internal 10-pin box header
CONT15
connector for COM1
JP3 Power LED
JP6
IDE LED
P1
Parallel Port
SIM1 Memory bank 0 (EDO DRAM)
SIM2 Memory bank 1 (EDO DRAM)
TP1
Ethernet RJ-45 connector


8
