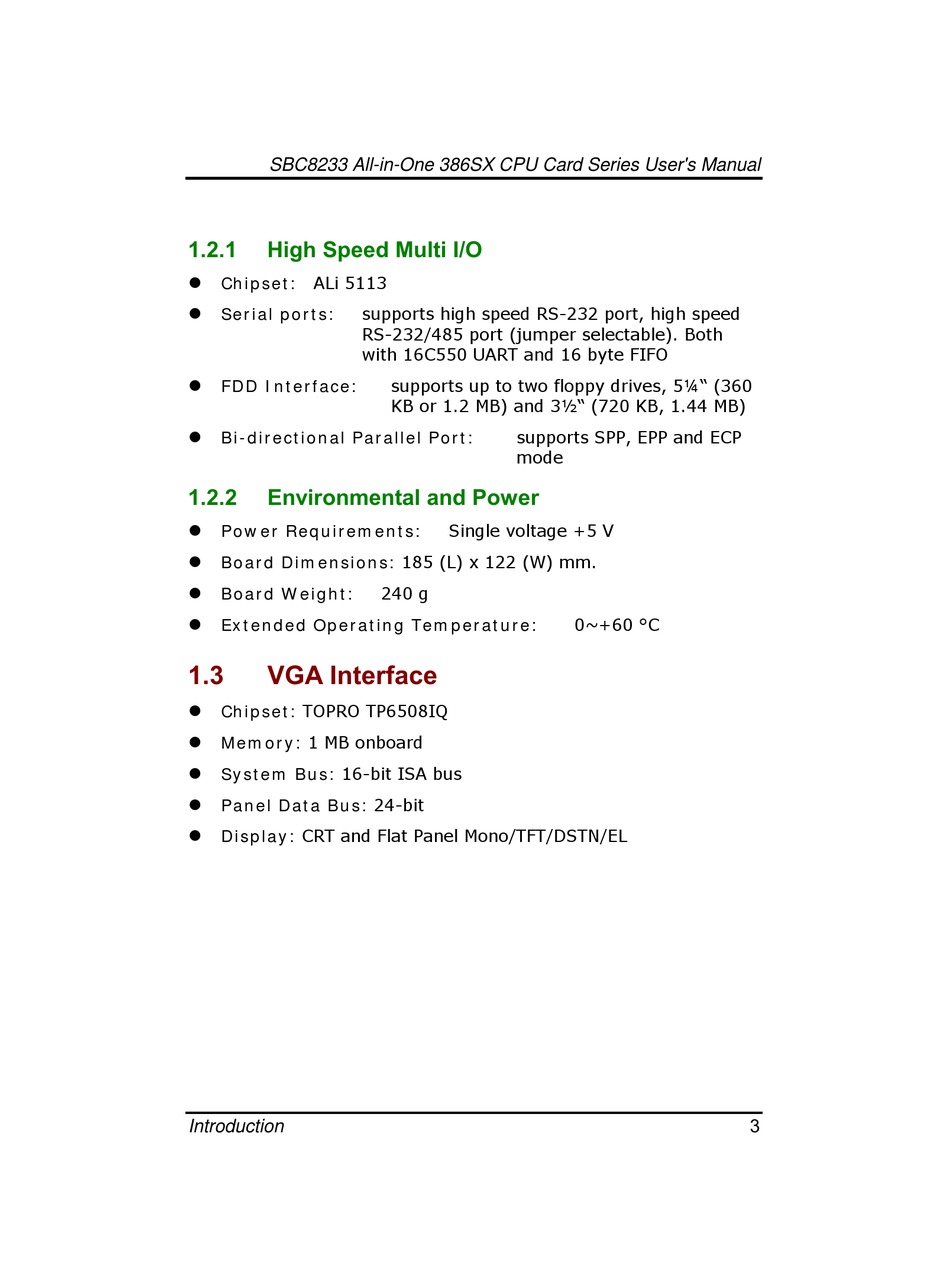

AXIOMTEK SBC8233 User Manual page 13

SBC8233 All-in-One 386SX CPU Card Series User's Manual



#" Chipset: ALi 5113
#" Serial ports: supports high speed RS-232 port, high speed
RS-232/485 port (jumper selectable). Both
with 16C550 UART and 16 byte FIFO
#" FDD Interface:
#" Bi-directional Parallel Port:


#" Power Requirements:
#" Board Dimensions: 185 (L) x 122 (W) mm.
#" Board Weight:
#" Extended Operating Temperature:
'(
 ,)-  #
#" Chipset: TOPRO TP6508IQ
#" Memory: 1 MB onboard
#" System Bus: 16-bit ISA bus
#" Panel Data Bus: 24-bit
Display: CRT and Flat Panel Mono/TFT/DSTN/EL
#"
Introduction
supports up to two floppy drives, 5¼" (360
KB or 1.2 MB) and 3½" (720 KB, 1.44 MB)
supports SPP, EPP and ECP
mode
Single voltage +5 V
240 g
0~+60 °C
#
