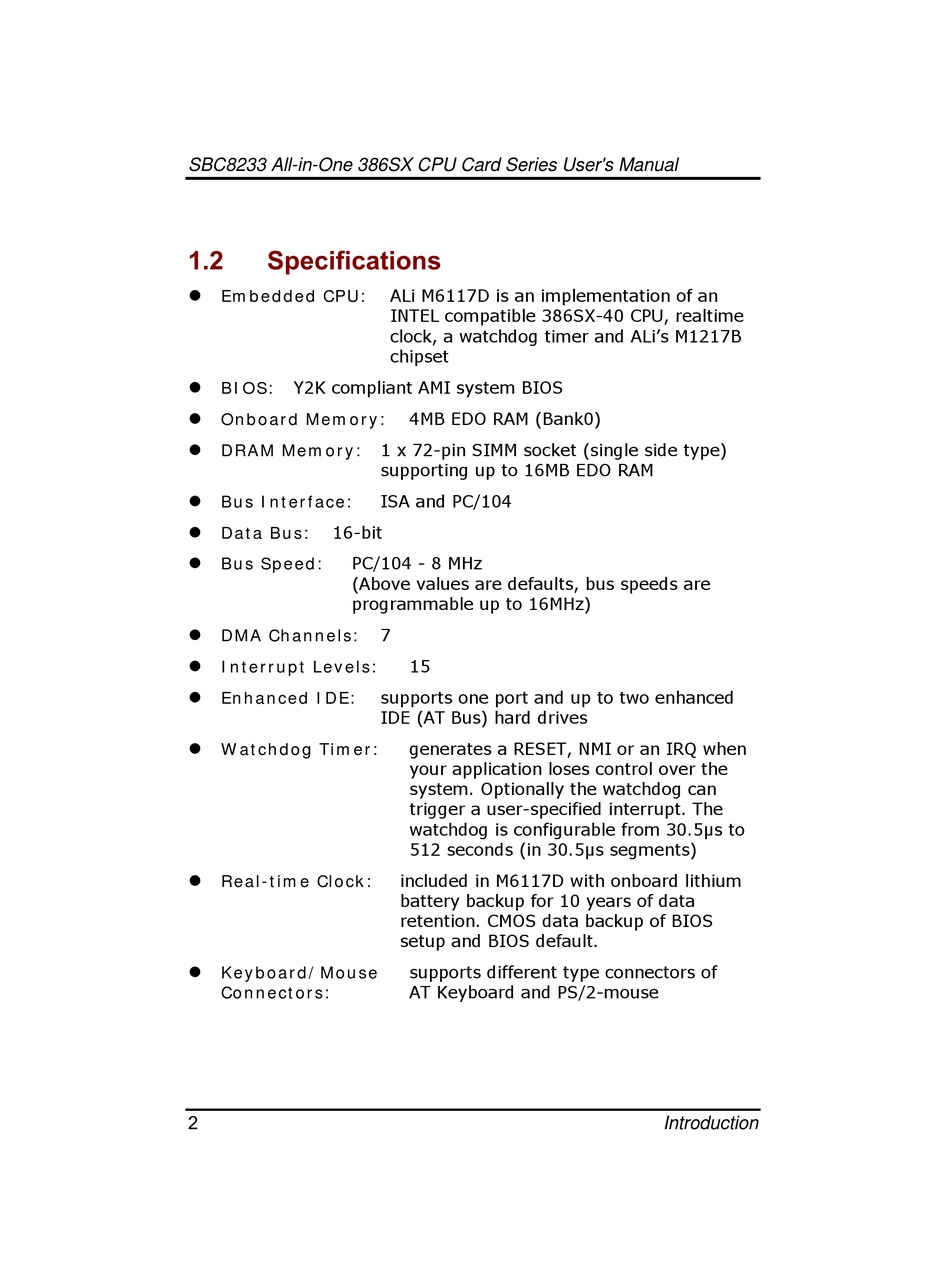

SBC8233 All-in-One 386SX CPU Card Series User's Manual


'(+ * #  # &
#" Embedded CPU:
BIOS: Y2K compliant AMI system BIOS
#"
#" Onboard Memory:
#" DRAM Memory:
#" Bus Interface:
Data Bus: 16-bit
#"
#" Bus Speed: PC/104 - 8 MHz
(Above values are defaults, bus speeds are
programmable up to 16MHz)
#" DMA Channels:
#" Interrupt Levels:
#" Enhanced IDE:
Watchdog Timer:
#"
#" Real-time Clock:
#" Keyboard/Mouse
Connectors:
1

ALi M6117D is an implementation of an
INTEL compatible 386SX-40 CPU, realtime
clock, a watchdog timer and ALi's M1217B

chipset

4MB EDO RAM (Bank0)
1 x 72-pin SIMM socket (single side type)
supporting up to 16MB EDO RAM
ISA and PC/104
7
15
supports one port and up to two enhanced
IDE (AT Bus) hard drives
generates a RESET, NMI or an IRQ when
your application loses control over the
system. Optionally the watchdog can
trigger a user-specified interrupt. The
watchdog is configurable from 30.5μs to
512 seconds (in 30.5μs segments)
included in M6117D with onboard lithium
battery backup for 10 years of data
retention. CMOS data backup of BIOS
setup and BIOS default.
supports different type connectors of
AT Keyboard and PS/2-mouse
Introduction
