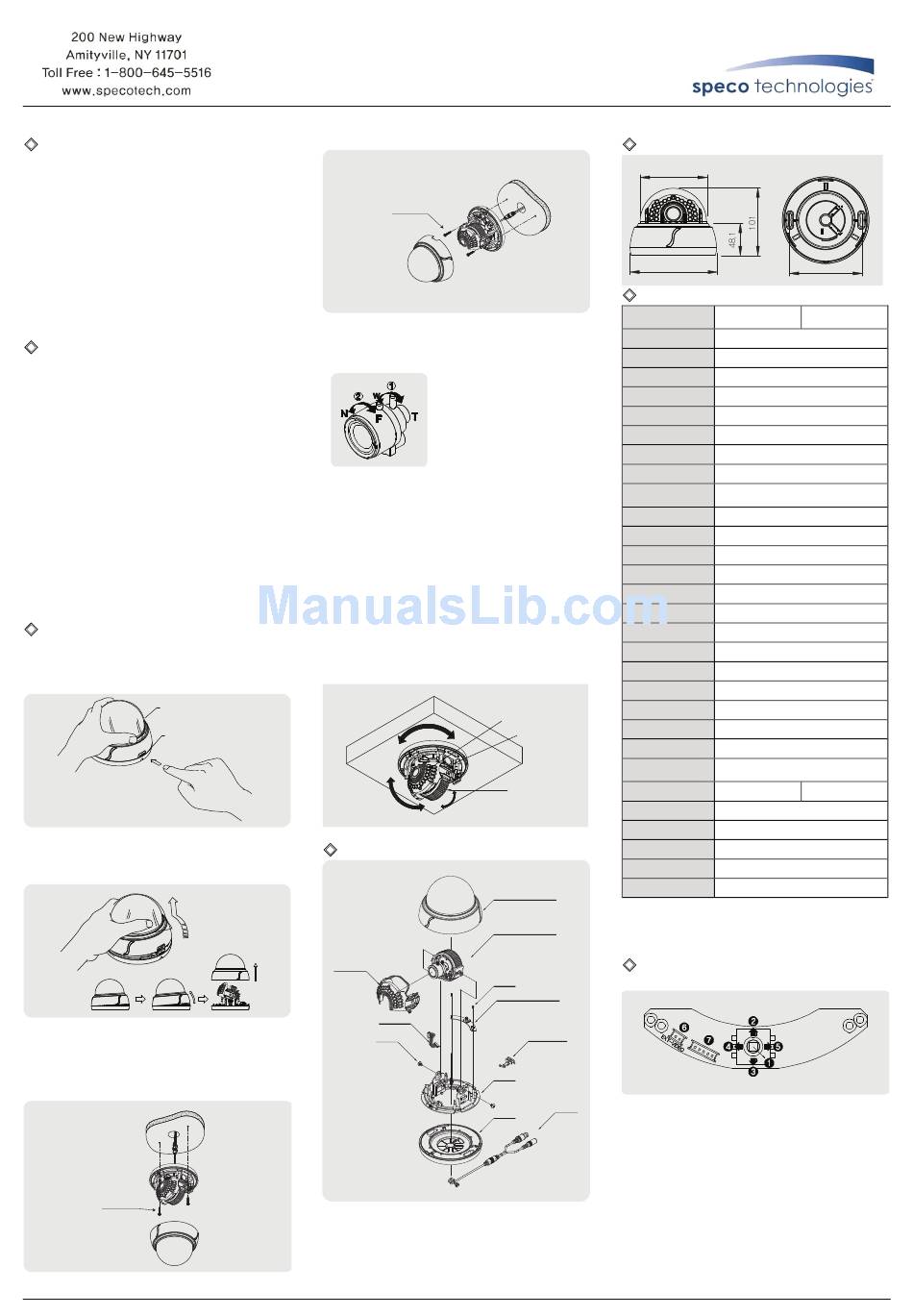

◈NOTES:
1. Do not install the camera outdoors.
2. Choose a location for the camera which is free of
moisture and vibration.
3. Be careful not to scratch the camera lens or dome
cover.
4. Do not operate camera beyond listed temperature
(-49°F~122°F)
5. Handle with care. Dropping it can cause serious
damage to the camera.
6. Avoid any direct sun light into the lens.
7. To avoid shorting or damaging the camera, use
only power supplies which meet the listed
specifications (12VDC / 24VAC Dual voltage, 1A)

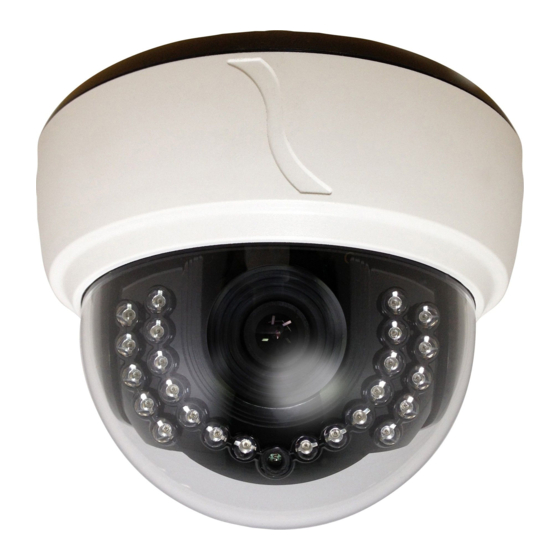

◈FEATURE
1. 650 TVL High Resolution Image
2. Smart DNR technology; reduces noise in low light.
3. 75' range visible in total darkness with 24pcs of IR
LEDs. (Indoor).
4. This camera is flexible to install with its 3- axis
camera construction, this allows for the camera to
be mounted to ceiling, wall or slope surfaces.
5. True Day/Night, camera changes function based
on illumination, IR illuminators in dark (option)
6. 8 individual privacy zones
7. DW DR (Digital W ide Dynamic Range)
8. Multi function: High Light Mask, Lens Shading
Compensation, Smart Motion Detection
9. Smart IR: Objects can be clearly identified due to
the function that decreases screen saturation of
objects within a short distance when the IRs are
active.
10. Multi- language OSD.
11. 12VDC / 24VAC Dual Voltage operation.

◈HOW TO INSTALL

1. Opening the dome
Push in the latch button and pull back dome.
(Remove the protection sheet after installation is
completed).
Protection sheet
LATCH BUTTON
2. Removing the dome
Lift the dome. W hen you push the latch button, it is
unlocked and you can lift the dome.
3. Camera installation
a. Mount the camera set with the supplied screws on
ceiling or wall.
It is recommended to utilize the supplied screws.
<Ceiling mount>
<Ceiling mount>
SCREW TP1
3.5X20 2EA
<Wall mount>
SCREW TP1
3.5X20 2EA
<Ceiling mount>
HLED31D1B, HLED31D1W
SCREW TP1
HLED31D7B, HLED31D7W
3.5X20 2EA
<Wall mount>
<Wall mount>
SCREW TP1
3.5X20 2EA
b. Please refer to Section 4 for details on Camera angle
adjustments
c. Lens adjustment (Vari- focal Lens only)
After opening the LED cover,
① By turning the "Tele-
Wide" knob, you
access a range of focal
lengths within specified
limits.
②Once the focal length is
determined,
"Near- Far" knob to set
the focus for the desired
scene.
d. Re- assemble the camera.
4. Camera angle adjustment
a. Pan adjustment: Turn the disk of camera and then
adjust direction to the right or left (- 180˚ to 180˚)
b. Tilt adjustment: Turn the camera holder (shown
below) to adjust the direction up or down (6˚ to
90˚)
c. Roll adjustment: Rotate the camera holder (- 178˚
to 178˚)
<Caution> If the camera is adjusted beyond the
angle limit, it may cause damage to the camera.
R
L
U
ROTATION
D
◈ASSEMBLY
LED COVER
ASS'Y
HARNESS
SCREW
◈DIMENSION
Ø100
Ø130.8
◈SPECIFICATION
Model No.
Image Sensor
Effective Pixel
Cell Size
Scanning System
can
Sync. Type
Resolution
S/N
turn
the
Video Output
Min. Illumination
Gamma
OSD
W hite Balance
Shutter Speed
Sense up
Backlight
AGC
DNR(3D)
Motion Detection
Privacy Zone
Mirror
LED COVER
Day & Night
DISK
LED Brightness
Blemish
Compensation
CAMERA
Lens
HOLDER
Power Supply
Current Consumption Max. 600mA (at 12V DC / 24VAC)
Operation Temp.
Dimension
Weight
DOME COVER ASS'Y
※The specification is subject to change without any prior
CAMERA
notice to improve the quality.
MODULE ASS'Y

◈FUNCTION SETTING

1. How to use the jog lever
SCREW
CONTROL PCB ASS'Y
PUSH BUTTON
DISK
①SET : Used to access the menu and confirm
CABLE
BASE
selection.
②UP, ③DOWN : Used to move the cursor to up or
down.
④LEFT, ⑤RIGHT : Used to move the cursor to left
or right and change the value.
⑥EXT- VIDEO : Additional video output terminal for
test monitor during installation.
⑦DEBUG PORT : It is used for upgrading the product
function and after- sales services.
Ø109
HLED31D7B
HLED31D1B
HLED31D7W
HLED31D1W
1/3" COLOR SONY SUPER HAD CCD II
768(H) x 494(V ) Pixel
6.35㎛(H) x 7.4㎛(V )
2 : 1 Interlace
Internal
650 TV-Line
52dB or More(AGC OFF)
1.0 V p-p(Sync. Negative) Termination 75Ω
0.01Lux(F/1.2)
0Lux (75' Range with 24pcs LED) - Indoor
γ = 0.45 typ.(0.2 ~ 1.0)
Yes(Multi Language)
ATW(2,500°K ~ 9,500°K)/MANUAL/AWC
1/60 ~ 1/100,000sec
Auto(Selectable limit 2X~1024X)/FIXED/OFF
OFF/BLC/HLC/DWDR
LOW/MIDDLE/HIGH/OFF
AUTO/LOW/MIDDLE/HIGH/OFF
ON/OFF(4 Zone)
ON/OFF(8 Zone)
ON/OFF
AUTO, COLOR, B/W
24pcs, Smart IR
AUTO/OFF
f = 3.6mm
f = 2.8 ~ 12mm
12V DC / 24VAC Dual Voltage
-49°F~122°F
Ø130.8(W) x 96(H) mm
14.5 oz
