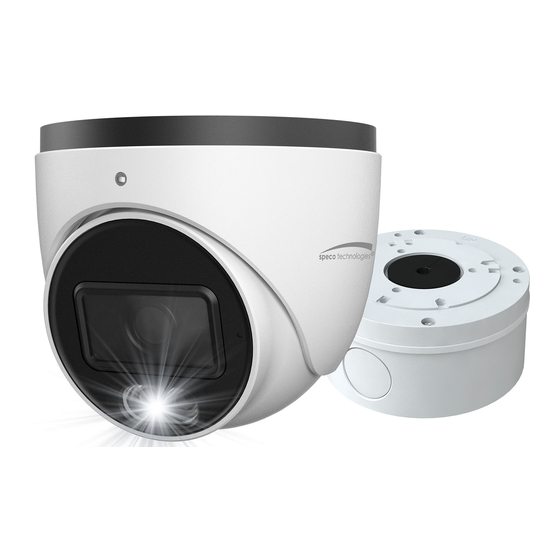

- Page 1 H2LT1/H2LB1 User Manual Thank you for purchasing our product. Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring any obligation.
- Page 2 ■ If the product does not work properly, please contact the dealer or where the product was purchased. Speco Technologies is not responsible for any problems caused by improper operation or repair. ■ Keep away from liquid while in use.
-
Page 3: Installation
Cables Video Output Video Switch Cable Power Cable Video Switch: Four video output modes can be optional--AHD, TVI, CVI and CVBS (a) remove the cover of the video switch cable; (b) hold and press the button in the video switch cable for 5 seconds to switch the current video output. Installation Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. - Page 4 Tilt 80° Pan 360° ►Mounting for H2LT1 Attach the drill template to the place where you want to fix the camera and then drill the screw holes and the cable hole on the wall according to the drill template. (mm) 44.2...
- Page 5 2. Loosen the fixed screw to disassemble the camera. Fixed Screw Mounting Base Enclosure Dome 3. Secure the mounting base to the ceiling or wall with the screws provided. 4. Install the dome and enclosure to the mounting base.
- Page 6 Then adjust the dome to obtain an optimum view angle. 0 ~360 ° ° 0 ~75 ° ° 0 ~360 ° ° 5. Finally, fix the camera with the fixed screw. Fixed screw...
-
Page 7: Specifications
Specifications Models H2LB1 H2LT1 Specifications Camera Image Sensor 1/2.8" CM S Resolution Image size 1920×1080 Video Output AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI) Image System PAL/NTSC Electronic Shutter Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC) IR Distance (feet) 65~98 Frame Rate 30fps(60Hz); 25fps(50Hz) Min. Illumination... - Page 8 Model: H2LT1/H2LB1 Federal Communications Commission (FCC) Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
