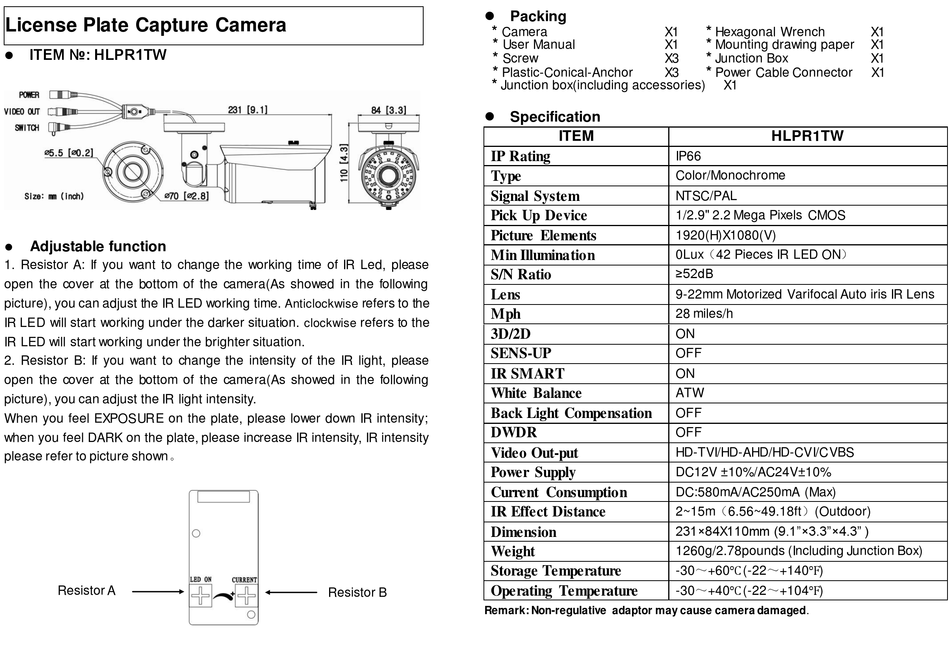

Speco HLPR1TW User Manual

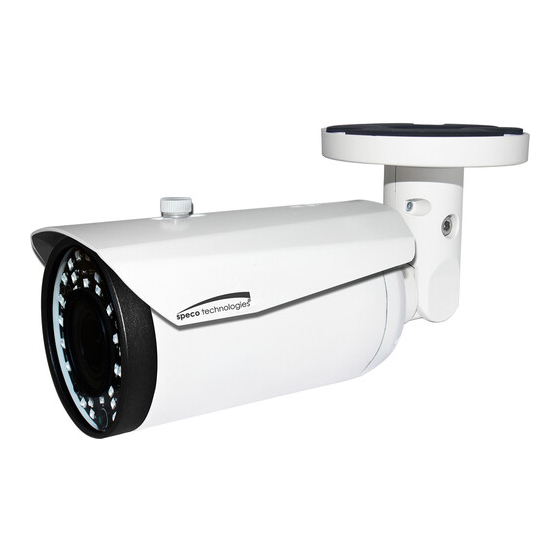

License Plate Capture Camera
ITEM №: HLPR1TW


Adjustable function
1. Resistor A: If you want to change the working time of IR Led, please
open the cover at the bottom of the camera(As showed in the following
picture), you can adjust the IR LED working time.
IR LED will start working under the darker situation.
IR LED will start working under the brighter situation.
2. Resistor B: If you want to change the intensity of the IR light, please
open the cover at the bottom of the camera(As showed in the following
picture), you can adjust the IR light intensity.
When you feel EXPOSURE on the plate, please lower down IR intensity;
when you feel DARK on the plate, please increase IR intensity, IR intensity
please refer to picture shown。
Resistor A
refers to the
Anticlockwise
refers to the
clockwise
Resistor B
 Packing
*
Camera
*
User Manual
*
Screw
*
Plastic-Conical-Anchor
*
Junction box(including accessories)
 Specification
ITEM
IP Rating
Type
Signal System
Pick Up Device
Picture Elements
Min Illumination
S/N Ratio
Lens
Mph
3D/2D
SENS-UP
IR SMART
White Balance
Back Light Compensation
DWDR
Video Out-put
Power Supply
Current Consumption
IR Effect Distance
Dimension
Weight
Storage Temperature
Operating Temperature
Remark: Non-regulative adaptor may cause camera damaged.
*
X1 Hexagonal Wrench
*
X1 Mounting drawing paper
*
X3 Junction Box
*
X3 Power Cable Connector
X1
HLPR1TW
IP66
Color/Monochrome
NTSC/PAL
1/2.9" 2.2 Mega Pixels CMOS
1920(H)X1080(V)
0Lux（42 Pieces IR LED ON）
≥52dB
9-22mm Motorized Varifocal Auto iris IR Lens
28 miles/h
ON
OFF
ON
ATW
OFF
OFF
HD-TVI/HD-AHD/HD-CVI/CVBS
DC12V ±10%/AC24V±10%
DC:580mA/AC250mA (Max)
2~15m（6.56~49.18ft）(Outdoor)
231×84X110mm (9.1"×3.3"×4.3" )
1260g/2.78pounds (Including Junction Box)
-30～+60℃ (-22～+140℉)
-30～+40℃ (-22～+104℉)
X1
X1
X1
X1
