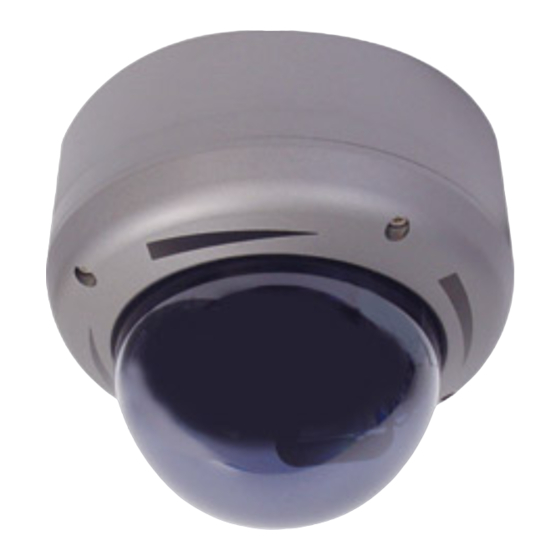

Speco Intensifier HTINTD4 Manual
  1. Manuals
  2. Brands
  3. Speco Manuals
  4. Security Camera
  5. HT-INTD4
  6. Manual

Speco Intensifier HTINTD4 Manual

Hide thumbs Also See for Intensifier HTINTD4:
Table of Contents

Advertisement

Quick Links

Download this manual
Intensifier Series
Please read this manual thoroughly before operation and keep
it handy for further reference.
Camera
HTINTD3
HTINTD4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Intensifier HTINTD4 and is the answer not in the manual?

Questions and answers

Related Manuals for Speco Intensifier HTINTD4

Summary of Contents for Speco Intensifier HTINTD4

  • Page 1 Intensifier Series Camera HTINTD3 HTINTD4 Please read this manual thoroughly before operation and keep it handy for further reference.
  • Page 3 WARNING & CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK D O N O T R E M O V E C O V E R ( O R B A C K ) . N O U S E R S E R V I C E A B L E P A R T S I N S I D E R E F E R S E R V I C I N G T O...

  • Page 4: Table Of Contents

    Contents Package Contents Precautions Camera Installation Internal Components Features...
  • Page 5 Operating Your Camera SET UP SET UP LENS SHUTTER SPEED CONTROL BACK LIGHT AUTO GAIN (AGC) WHITE BALANCE REDUCE NOISE INTENSIFIER CAMERA TITLE DAY/NIGHT/SYNC MOTION DETECTION PRIVACY REVERSE DETAIL DEFAULT/RETURN Troubleshooting Specifications / Dimensions Warranty...

  • Page 6: Package Contents

    PACKAGE CONTENTS • Please make sure that the following items are included in the package: 1 HTINTD Camera Remote Controller IR Receiver Mounting Screws Allen Wrench Allen Bit Power Cable Adaptor (for optional use) Please leave this manual with the end-user for future reference.

  • Page 7: Precautions

    PRECAUTIONS • HT-INTD CAMERAS SHOULD BE ONLY INSTALLED BY QUALIFIED PERSONNEL • TO PREVENT A FIRE OR ELECTRICAL HAZARD PLEASE USE PROER POWER CABLE. • DO NOT CELAN THE COVER WITH AN ABRAISIVE CLEANING MATERIAL - PLEASE USE A SOFT CLOTH OR TISSUE TO CLEAN THE DOME COVER •...

  • Page 8: Camera Installation

    CAMERA INSTALLATION CONNECT POWER CABLE 1. When using 12-Volts DC (constant voltage 600mA) -CONNECT POWER TO THE POWER JACK. POWER INPUT:RED connect CENTER:(+) 2. 2. When using 24-Volts AC (40 VA) -CONNECT ACCESSORY CABLE TO THE POWER JACK AND -CONNECT AC 24V TO THE LEAD. P O W E R IN P U T : R E D connect AC 24V...

  • Page 9: Internal Components

    INTERNAL COMPONENTS Structure DC Auto lris 2.8~11mm or 5~50mm (1) DC AUTO-IRIS LENS Adjust between TßàW (TELE ßà WIDE) to set the angle (focal length) Set the focus by adjusting ∞ßàN NOTE: BOTH OF THE ABOVE ADJUSTMENTS GET LOCKED INTO POSITION THROUGH THE USE OF "LOCKING HANDLES".

  • Page 10: Features

    Features When the image is in front of strong background lighting, your camera allows you to get the clear image. INTENSIFIER 1/3 inch density CCD and digital processor permit high quality pictures to be captured in very low light condition. High Resolution Horizontal resolution of 530 TV lines is achieved by using a SONY Double Speed CCD with...
  • Page 11 All camera functions are menu driven for easy use. Dynamic Noise Reduction The Intensifier camera has a DSP chip that can remove image noise efficiently showing clean images in low light conditions. ELECTRONIC DAY/NIGHT The Intensifier camera can show color pictures in all lighting conditions, or you can have it automatically switch to a B/W picture in low light conditions MANUAL / AUTO IRIS LENS...

  • Page 12: Operating Your Camera

    Operating your camera Function SETUP MENU LENS option ●DC ●MANUAL SHUTTER ●OFF ●F/L ●MANUAL WHITE BALANCE ●ATW ●AWC MANUAL● BACKLIGHT ●OFF ●LOW ●MIDDLE ●HIGH ●OFF ●LOW ●MIDDLE ●HIGH ●OFF ●LOW ●MIDDLE ●HIGH SENSE UP ●AUTO ●OFF SPECIAL ●CAMERA ID ●COLOR ●SYNC ●MOTION DET ●PRIVACY ●MIRROR ●SHARPNESS ●RESET ●RETURN EXIT...
  • Page 13 OSD Menu Setting LEFT RIGHT LEFT DOWN DOWN...
  • Page 14 Operating your camera 3. When you control by RS-485, Pelco-D protocol (Option), refer to the following. A. DIP Switch Setting on the Camera (Factory default : Camera Address = 01, Baud Rate = 2400bps) •Up to 15 Cameras can be controlled by 1 IR Remote Controller &...
  • Page 15 •Please Observe Polarity! C. System Integration 485(+) 485(-) Receiver IR Remote Controller Monitor Multiflexer CCD Camera D. IR Remote Controller -Can call and control each camera on the monitor by the following. UP button SET / Menu button LEFT button RIGHT button DOWN button...
  • Page 16 Operating your camera – SETUP 1. Press the SET button to access the SETUP mode. SET UP menu is displayed on the monitor screen. 2. Select the desired feature using the UP or DOWN button. Each time you press the UP or DOWN button, the arrow indicator moves up or down.
  • Page 17 Operating your camera – SETUP LENS 1) Setting up the LENS Select the lens pressing the RIGHT button. ① On the SETUP menu screen, move the arrow indicator to the lens using the UP or DOWN button. ② Select the desired feature using the LEFT or RIGHT button.
  • Page 18 Operating your camera – SETUP SPEED CONTROL. ① ▶When DC LENS selected, press SET button to control the BRIGHTNESS. Notes AUTO IRIS LENS (DC TYPE) is recommended.
  • Page 19 2) Shutter status and speed control You can control brightness of the screen by the shutter speed. ① Press the SET button to display the setup menu and move the arrow indicator to ‘SHUTTER’ using the UP or DOWN button. ②...
  • Page 20 Operating your camera – SETUP SPEED CONTROL. ② ▶MANUAL : When setting shutter speed manually. (Only for LENS mode) You can select speed from ‘1/60’ to ‘1/200,000’sec...
  • Page 21 ▶ESC : You can control the BRIGHTNESS. ③When completed, press ‘SET’ Notes Don’t make the camera exposed fluorescent lamp directly not to get unstable image in the internal synchronization modes. When the SHUTTER menu is set to FLK mode, SENS-UP can not work. Please control the menu.
  • Page 22 Operating your camera – BACKLIGHT 3) SLC (Speco Light Compensation) - BACKLIGHT A built-in SR chip provides intelligent light level control to overcome severe Backlight conditions. ① Press the SET button to display the SETUP menu and move the arrow indicator to ‘BACKLIGHT’...

  • Page 23: Auto Gain (Agc)

    4) AUTO GAIN CONTROL (AGC) AGC allows a brighter picture in low light conditions. Higher GAIN level will yield a brighter screen but you might notice an increase in noise. ① Press the SET button to display the SETUP menu and move the arrow indicator to ‘AGC’...

  • Page 24: White Balance

    Operating your camera – WHITE BALANCE 5) WHITE BALANCE (WHITE BAL.) When needs color control on the screen, use ‘WHITE BALANCE’ function. ① Press the SET button to display the SETUP menu and move the arrow indicator to ‘WHITE BALANCE’ using the UP or DOWN button. ②...
  • Page 25 ▶MANUAL : To fine adjust, select the Manual mode. You can increase or decrease the red or blue factor while monitoring the difference on the screen. Set to ‘MANUAL’ mode and press the SET button. Increase or decrease the value for RED(R-Gain) and BLUE(B-Gain), watching the color of the picture, and press the SET button when you obtain the best color.
  • Page 26 Operating your camera – DNR 6) Digital Noise Reduction (Dynamic Noise Reduction) DNR is to reduce the noise on the screen. ① Press the SET button to display the SETUP menu and move the arrow indicator to ‘DNR’ using the UP or DOWN button. ②...

  • Page 27: Intensifier

    Operating your camera – INTENSIFIER 7) INTENSIFIER Allows you to get clear images with this function under night or low light conditions ① Press the SET button to display the SETUP menu and move the arrow indicator to ‘SENCE UP’ using the UP or DOWN button. ②...

  • Page 28: Camera Title

    Operating your camera – CAMERA TITLE ① 8) NEXT PAGE ① Press the SET button to display the SETUP menu and move the arrow indicator to ‘SENCE UP’ using the UP or DOWN button. ② SET ‘NEXT PAGE’ to the desired mode using the LEFT or RIGHT button. (A) CAMERA TITLE ①...
  • Page 29 Operating your camera – CAMERA TITLE ② ③ Press SET button to access the SETUP mode. ④ You can enter up to 15 characters. a. Move the cursor to character-enter location by using the LEFT or RIGHT button. b. Select the desired character by using the UP or DOWN button. c.
  • Page 30 Operating your camera – COLOR / SYNC B) COLOR You can choose color and B/W mode electronically. (OPTION) ① Press the SET button to display the SETUP menu and move the arrow indicator to ‘SENCE UP’ using the UP or DOWN button. ②...
  • Page 31 C) SYNC Two SYNCHRONIZATION modes are available INTERNAL and EXTERNAL LINE-LOCK. ① Press the SET button to display the setup menu and move the arrow indicator to ‘SYNC’ using the UP and DOWN button. ② SET to the desired mode using the LEFT or RIGHT button. ▶...
  • Page 32 Operating your camera – MOTION DETECTION D) Whenever your camera detects motion, THE WORDS “motion detected’ will appear on the screen. ① Press the SET button to display the setup menu and move the arrow indicator to ‘MOTION DET’ using the UP and DOWN button. ②...
  • Page 33 Max. Min.
  • Page 34 Operating your camera – PRIVACY E) PRIVACY To mask an area that you want to be private. ① Press the SET button to display the setup menu and move the arrow indicator to ‘PRIVACY’ using the UP and DOWN button. ②...
  • Page 35 Operating your camera – REVERSE F) REVERSE ① Press the SET button to display the setup menu and move the arrow indicator to ‘REVERSE’ using the UP and DOWN button. ② SET ‘REVERSE’ to the desired mode using the LEFT or RIGHT button. ▶OFF : Deactivation ▶ON : Reverse the image RIGHT or LEFT.
  • Page 36 Operating your camera – DETAIL F) DETAIL ① Press the SET button to display the setup menu and move the arrow indicator to ‘DETAIL’ using the UP and DOWN button. ② SET ‘DETAIL’ to the desired mode using the LEFT or RIGHT button. ▶OFF : Deactivation ▶ON : DETAIL control mode (level 0~31) When the level is up, the sharpness will increase.
  • Page 37 Operating your camera – DEFAULT / PAGE 1 G) DEFAULT : Use to reset your camera to FACTORY DEFAULT SETTING. H) PAGE 1 : PAGE 1 : Save the setting of NEXT PAGE function, and then move to SET UP menu.

  • Page 38: Motion Detection

    Troubleshooting If you have trouble operating your camera, refer to the following table. If the guidelines do not enable you to solve the problem, contact an authorized technician. Problem Solution Nothing appears on ● Check that the power cord and line connection the screen.
  • Page 39 Problem Solution ● Check that you have properly set the ‘WHITE BAL’ The color of the picture is not menu matched. ● Is the camera facing to direct sunlight or fluorescent The image on the screen flickers. lighting? Change the camera option. L/L mode isn’t able ●...
  • Page 40 SPECIFICATIONS HTINTD3 ITEM HTINTD4 Power Source DC 12V & AC 24v ( Dual Voltage ) Power Consumption 280mA(DC) / 3.8W(AC) Image Sensor 1/3”, SONY SUPER HAD CCD, 410,000 pixels Total Pixels 811(H) x 508(V) , 1/3” CCD Effective Pixels 768(H) x 494(V) , 1/3” CCD HT –...
  • Page 41 DIMENSIONS * SIDE VIEW : HTINTD3 (HTINTD4) * TOP VIEW : HTINTD3 (HTINTD4)

  • Page 42: Warranty

    WARRANTY...
  • Page 43 MEMO...
  • Page 44 MEMO...
  • Page 45 200 New Highway Amityville, NY 11701 631-957-8700 www.specotech.com VER. 080501 This manual is based on the date as shown in the right and specifications are subject to Change without notice for quality improvement.
