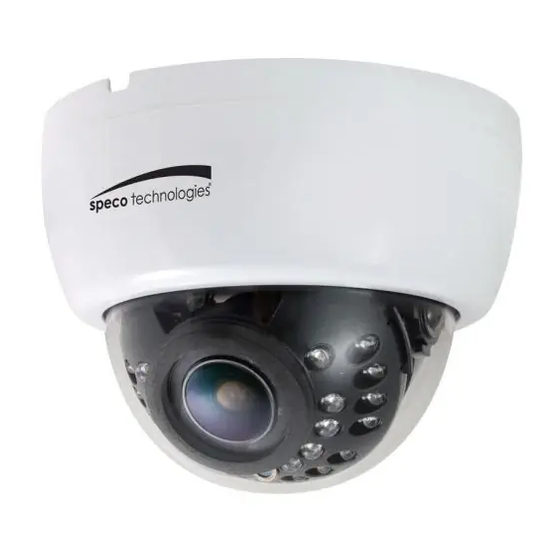

Speco 960H 700TVL User Manual

960H 700TVL Color Indoor Dome Camera with 24LEDs
HLED33D1B – 2.8~12mm auto iris lens, black housing
HLED33D1W – 2.8~12mm auto iris lens, white housing
HLED33D7B – 3.6mm lens, black housing
HLED33D7W – 3.6mm lens, white housing

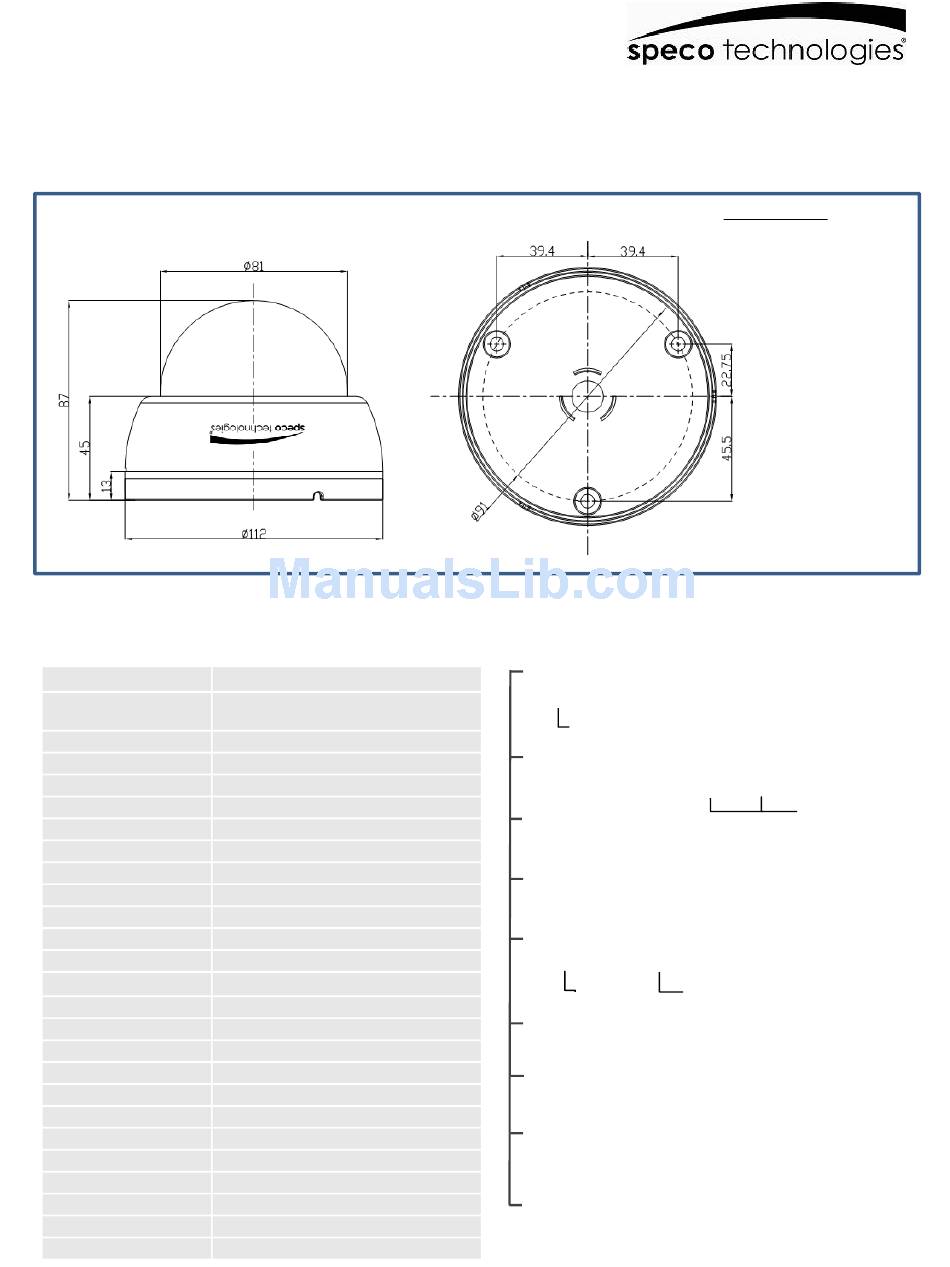

DIMENSIONS

Side View

SPECIFICATIONS

SPECIFICATIONS
ITEM
Lens
Image Sensor
Resolution
Total Pixels
Effective Pixels
Scanning System
Synchronization
Min. Illumination
Number of IR LEDs
IR Range
S/N (Y signal)
AGC
Shutter
Day / Night
White Balance
Dnr
Motion Detection
Privacy Masking
Power Consumption
Power Supply
Operational Temp.
Storing Temp.
Dimensions
Weight
960H 700TVL IR Indoor Dome Camera
HLED33D1B(W) – 2.8~12mm auto iris lens
HLED33D7B(W) - 3.6mm fixed lens
1/3" COLOR 960H CCD
700TV lines
1020(H) x 508(V) (NTSC)
976(H) x 494(V) (NTSC)
2 : 1 Interlace
Internal
0.00Lux (LED-On)
24LEDs
65' (depending on scene reflection)
50dB
Level Adjustable
1/60~1/120,000sec (NTSC)
AUTO / NIGHT / DAY
BLC / D-WDR / DEFOG
ATW / PUSH / MANUAL
LOW / MIDDLE / HIGH
ON | OFF (4 Programmable Zone)
ON | OFF (8 Programmable Zone)
350mA
12VDC / 24VAC Dual Voltage
14 F - 122 F
° °
-4 F - 140 F
° °
3.4" (H) x 4.4" (Dia.)
8oz.
