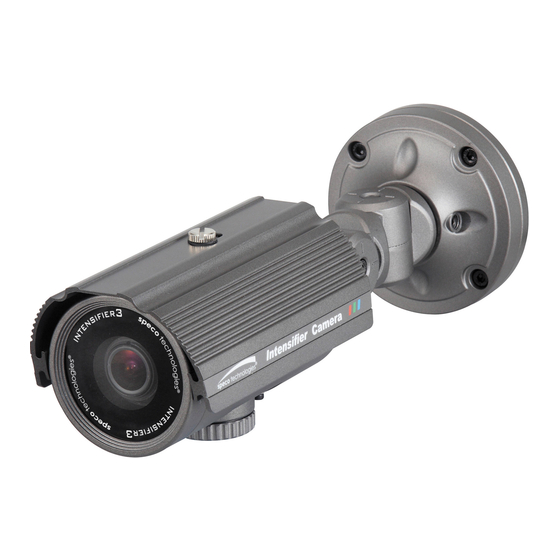

Speco HT-INTB10 Instruction Manual
580 line color bullet camera intensifier 2 series wall & ceiling mountable
Hide thumbs
Also See for HT-INTB10:
- Specification sheet (2 pages) ,
- User manual (41 pages) ,
- Instruction manual (32 pages)
Table of Contents
Related Manuals for Speco HT-INTB10
Summary of Contents for Speco HT-INTB10
- Page 1 HTINTB8 (2.8~12mm) HTINTB9 (5.0~50mm) HTINTB10 (9.0~22mm) 580 Line Color Bullet Camera Intensifier 2 Series Wall & Ceiling Mountable Please read this manual thoroughly before operation and keep it handy for further reference.
- Page 2 WARNING & CAUTION CAUTION The lighting flash with an arrowhead symbol, within an equilateral triangle is Intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to The exclamation point within an equilateral triangle is intended to alert the user to the...
-
Page 3: Table Of Contents
Package Contents Precautions Camera Installation Features OSD Menu Tree OSD Menu Details Troubleshooting Specifications Dimensions Warranty CONTENTS 10-11 13-16 17-18... -
Page 4: Package Contents
PACKAGE CONTENTS Please make sure that the following items are included in the package: 1 HTINTB Camera Series 4 Mounting Screws 1 Video test Connector 1 Extra Mount Plate 1 Wrench Please leave this manual with the end-user for future reference. -
Page 5: Precautions
• THIS CAMERA SHOULD BE ONLY INSTALLED BY QUALIFIED PERSONNEL • TO PREVENT A FIRE OR ELECTRICAL HAZARD PLEASE USE PROPER POWER CABLE • DO NOT CLEAN THE COVER WITH AN ABRAISIVE CLEANING MATERIAL - PLEASE USE A SOFT CLOTH OR TISSUE TO CLEAN THE COVER •... -
Page 6: Camera Installation
CAMERA INSTALLATION CONNECT POWER CABLE 1. WHEN USING 12 VOLTS DC (constant voltage 500 mA) Power Input :RED Center : (+) 2. WHEN USING 24 VOLTS AC (40 Volt Amps) RED(+) BLACK:(-) 3. CONNECT VIDEO CABLE -CONNECT BNC CABLE TO THE BNC JACK. 4. - Page 7 CAMERA INSTALLATION BUTTOM BOARD DETAILS Video Test Connector - Push the Joy stick for one second, and the OSD appears on the screen. Move the Joy Stick up, down, left & right to control the OSD functions. ZOOM & FOCUS ADJUSTMENT - Loosen the fixed screws in each ring of Focus &...
- Page 8 CAMERA INSTALLATION COMPATIBILITY “A” type Box “B” type Box CVCTPLATE ★Original Base part Should be taken away to use CVCTPLATE [CVCTPLATE Hole Description] Hole 1 : CVCTPEXT Hole 2 : Electrical Box “B” type Hole 3 : Electrical Box “A” type CVCTPEXT...
-
Page 9: Camera Installation
CAMERA INSTALLATION COMPATIBILITY ( USING 7246WMT CVCTPEXT CVCTPLATE BCP (Direct connection ) -
Page 10: Features
1/3 inch High-inch density CCD and digital processor permit high quality Pictures to be captured in very low light condition. SPECO DNR The Intensifier camera has a DSP chip that can remove image noise efficiently showing clean images in low light conditions. - Page 11 All camera functions are menu driven for easy use. When the image is in front of strong background lighting, your camera allows you to get a clear image. HLC (High Light Compensation) This function reverses bright spots in the picture (such as headlights).
-
Page 12: Osd Menu Tree
OSD MENU TREE ADJUST LENS DC IRIS INTENSIFIER E SHUTTER AUTO GAIN COLOR TEMP INDOOR WDR SET SPECO DNR DAY & NIGHT COLOR TWEAK VIDEO STILL PIX DIGI-ZOOM PAGE 2 CAM TITLE PRIVACY DEFAULTS EXIT INTENSIFY OUTDOOR AWC SET AUTO... -
Page 13: Osd Menu Details
OSD MENU DETAILS 1. INTENSIFIER [OPTION : E SHUTTER / AUTO GAIN / INTENSIFY / RETURN] - E SHUTTER * FLK - Flicker-less mode (FLK) reduces on-screen flickering. * ESC - Electronic Shutter Control (AUTO) adjusts brightness level on screen. - AUTO GAIN Adjusts value of AGC gain and increases the GAIN level to brighten the picture. - Page 14 OSD MENU DETAILS 3. WDR SET [OPTION : SLC / HLC / OFF] - SLC (Speco Light Compensation) Provides light level control to overcome severe back light conditions. - HLC (High Light Compensation) High Light Compensation removes the high light and makes it possible to view the image clearly.
- Page 15 OSD MENU DETAILS 7. CAM TITLE [OPTION : ON / OFF] - Display a name and/or number on the monitor. 8. SYNC TYPE [OPTION : INT / LL] - INTERNAL : When external line lock is not required. - LINELOCK : Adjust the vertical phase (V-P) from 000~ 359 (factory default is 0).
-
Page 16: Osd Menu Details
OSD MENU DETAILS 10. PRIVACY [OPTION : ON / OFF] - Mask up to 8 areas of the screen. - AREA SEL : Select up to 8 mask areas. - AREA mode : Activate or deactivate the selected area. - MASK COLOR : Select area color. - TRANSP : Adjust the transparency of selected area. -
Page 17: Troubleshooting
TROUBLESHOOTING If you have trouble operating your camera, refer to the following Problem Nothing appears on the screen. The image on the screen is dim. The image on the screen is dark. The camera is not working properly, the surface of the camera is hot. - Page 18 TROUBLESHOOTING Problem The color of the picture is not proper. The image on the screen flickers. L/L mode isn’t able to be selected. ● Check that you have properly set the ‘ WHITE BALANCE ’ menu ● Is the camera facing to direct sunlight or fluorescent lighting? Change the camera position.
-
Page 19: Specifications
Video Output Resolution Gain Control Electric Shutter Speed INTENSIFIER 2 COLOR TEMP (White Balance) Min. Illumination S/N ( Y signal) SPECO DNR Motion Detection On Screen Display ( O.S.D ) PRIVACY Function Operational Temperature Operational Humidity SPECIFICATIONS HTINTB8, 9, 10 Series 12VDC &... -
Page 20: Dimensions
HTINTB8 & 10 Front View HTINTB9 Front View DIMENSIONS Side View Side View... -
Page 21: Warranty
WARRANTY... - Page 22 MEMO...
- Page 23 MEMO...
- Page 24 200 New Highway Amityville, NY 11701 631-957-8700 www.specotech.com Rev. 100112 Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation.
