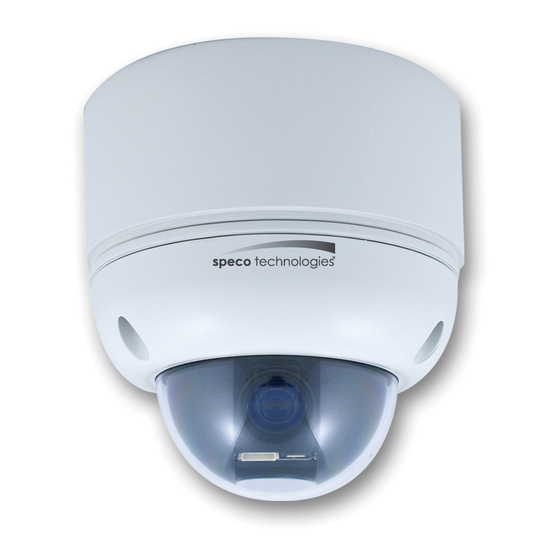

- Page 1 HTSD10X 10X Pan-Tilt Speed Dome Camera Please read this manual thoroughly before operation and keep it handy for further reference.
-
Page 2: Table Of Contents
CONTENTS Warning & Caution What’s in the Box? General Features Names of Each Part Installation A. Connection Methods B. Ceiling Mount Type C. Embedded Mount Type Quick Operating Keys Diagnostic OSD Menu Setting A. OSD Menu Table B. DOME SET C. -
Page 3: Warning & Caution
WARNING & CAUTION If you fail to read this information and handle the product incorrectly, serious injury may occur. This symbol is intended to alert the user to Never install the product in area exposed to the presence of un-insulated “dangerous voltage”... -
Page 4: General Features
GENERAL FEATURES 100X Zoom Mini Speed Dome Quick Operation Keys 10X Optical Zoom with 10X digital zoom This camera provides quick functional keys in order to be easily controlled by any controller or DVR. ±0.02° dome system accuracy With 0.1° technical accuracy, camera provides excellent Various Surveillance Functions sensitive and delicate controlling on preset mode by repeats pan and tilt between two preset... -
Page 5: Names Of Each Part
NAMES OF EACH PART 1. Surface Mount Adaptor 2. Cap Screw ( PT3/4 , 2EA ) 3. Dip Switch 4. Terminal Block 5. Main body... -
Page 6: Installation
INSTALLATION A. CONNECTION METHOD Loosen the screws on the domes cover and remove it from the base. (Screws will not come out) Loosen the screws which connect the mount cover and Main base and separate the dome cover from the main base. (Screws will not come out) Connect power (12 VDC 1.5 A ) to Power and GND. -
Page 7: Ceiling Mount Type
INSTALLATION B. MOUNT 1. Attach the surface mount adaptor with 4 screws at the installation site. (FIG.4) 2. When you use pipe, please note the standard size of pipe. (FIG.5) 3. Re-assemble the domes. -
Page 8: Quick Operating Keys
QUICK OPERATING KEYS 1-64 + preset and 101~200 + preset are used for preset and 65-100 + preset used for functions. For example, to enter OSD MENU, press the button 95 +PRESET. <Quick Operation Key Table 1, Pelco - D, P> Number Note Function... -
Page 9: Diagnostic
QUICK OPERATING KEYS DIAGNOSTIC When the Power is turned on a DIAGONOSTIC is operated. The following messages are displayed on the monitor. CAMERA ID : 001 BAUD RATE : 2400 BPS WAITING……… PAN ORIGIN CHECK OK TILT ORIGIN CHECK OK TX CONNECTION TEST OK CAMERA COMM... -
Page 10: Osd Menu Setting
OSD MENU SETTING A. OSD MENU TABLE... -
Page 11: Dome Set
OSD MENU SETTING To enter the OSD Menu, press the button 95 + PRESET. MAIN MENU DOME SETUP CAMERA SET AUTO SCAN TOUR PRAVACY PATTERN ALARM SECTOR EXIT * Use the joystick “up - down” to move the position and “left - right” to make selection B. - Page 12 OSD MENU SETTING B-2. DOME SET - RECOVER This feature allows the dome to work from the last setting before you use the dome manually (Auto scan, group tour, pattern or sectors) , after the set time, even power shut down and it turns on again.
- Page 13 OSD MENU SETTING B-8-2. DOME SET – [NEXT PAGE] – [PASSWORD] To enter this page to set a password, move the joystick to the right direction. The password must be set by preset number from 001 to 255 (Default 99) A.
- Page 14 OSD MENU SETTING OSD DISPLAY CAMERA ID : OFF DEFAULT SETTING PRESET ID : OFF SECTOR ID : OFF COORDINATE : ON [PREVIOUS PAGE] B-8-4. DOME SET – [NEXT PAGE] – [SYSTEM STATUS] This page shows the information of this camera. SYSTEM STATUS PROTOCOL : PELCO D, P...
- Page 15 OSD MENU SETTING To clear memorized data, move joystick to the right direction when cursor is on each item. TOUR CLEAR TOUR CLEAR ARE YOU SURE? YES NO Press FOCUS NEAR button when the cursor is at YES in order to clear memorized data. Then each item such as tour, preset, sector and so on is displayed on the monitor about 2~3 seconds.
-
Page 16: Camera Set
OSD MENU SETTING C. CAMERA SET CAMERA SET FLICKER : OFF MIRROR : OFF APERTURE : 10 D ZOOM : OFF WB MODE : AWB MODE PIC FLIP : OFF : OFF D/N MODE : AUTO DSS MODE : OFF EXIT C-1. - Page 17 OSD MENU SETTING C-6. CAMERA SET – PIC FLIP Picture flip feature turns ths picture upside down. Move the joystick to the right or left direction to select OFF/ON. The default setting is OFF. C-7. CAMERA SET – BLC (Back Light Compensation) The default setting is OFF and BLC modes can be OFF/ON.
-
Page 18: Preset
OSD MENU SETTING D. PRESET SET To enter PRESET SET, move the joystick to the right direction. PRESET SET PRESET NO :001 PRESET ID :PRESET001------- PAN :XXX.XX TILT : XXX.XX SAVE DEFAULT SETTING EXIT D-1. PRESET – PRESET NO. Up to 164 numbers of preset positions are available. Move joystick to the right or left direction to select a preset no. -
Page 19: Auto Scan
OSD MENU SETTING E. AUTO SCAN SET * 66 + preset button is working as AUTO SCAN after setting. AUTO SCAN SET START ANGLE : XXX.X.XX.X END ANGLE : XXX.X.XX.X DIRECTION : CW ENDLES : OFF DEFAULT SETTING SPEED : 10°/S DWELL TIME : 03 SAVE AND EXIT... -
Page 20: Tour Set
OSD MENU SETTING F. TOUR SET 8 Programmable tours can be set and each tour is available to set up to 64 preset steps. After setting the data to each tour group, 71~78 + preset buttons are working as group tour # 1~8 TOUR SET TOUR NO : 01... -
Page 21: Privacy Set
OSD MENU SETTING G. PRIVACY SET 4 Privacy masking zones are available to block out areas of the scene. PRIVACY SET PRIVACY NOMBER : 01 DISPLAY : OFF DEFAULT SETTING ACTION : MOVE SAVE EXIT G-1. PRIVACY SET – PRIVACY NUMBER. Up to 4 privacy masking zones are available. -
Page 22: Pattern Set
OSD MENU SETTING H. PATTERN SET 8 programmable patterns are available with 16 characters of title. After setting the data to each pattern # 1~8, 81~88+ preset buttons are working as Pattern # 1~8. PATTERN SET PATT NO : 01 PATT TITLE: PATTERN01□□□□□□□... -
Page 23: Alarm Set
OSD MENU SETTING I. ALARM SET 4 Alarm inputs are available and each alarm can activate presets, group tours or patterns. ALARM SET ALARM NO : 01 DEFAULT SETTING ALARM INPUT: OFF ALARM ACT : 001 SAVE EXIT I-1. ALARM SET – ALARM NO. Up to 4 alarms are selectable by using the joystick to the right when the cursor is on ALARM NO. -
Page 24: Sector Set
OSD MENU SETTING J. SECTOR SET Up to 8 programmable sectors are available with 16 characters. This feature is useful to memorize certain locations such as a parking zone, etc. When a camera goes through this area, it shows the letter you memorized. SECTOR SET Start Position SECTOR NO... -
Page 25: Dip Switch Setting
DIP SWITCH SETTING A-1. DIP SW SETTING This Speed Dome camera provides up to 63 camera ID’s, adjustable using the 1 Dip switch. Open the camera case to set ID using DIP SW1. * Factory default: Camera ID = 1, PELCO-D Termination Baud rate Protocol... -
Page 26: Protocol/ Baud Rate Setting (Dip Sw1-9~10)
DIP SWITCH SETTING A-3. PROTOCOL dip switches are used for Protocol Setting. Factory Default: Pelco-D or Pelco-P ( Auto detection) DIP SW1- 7 DIP SW1- 8 Pelco-D or Pelco-P A-4. BAUD RATE SETTING The 9 Dip Switch is used for BAUD RATE setting. DIP SW can be changeable to 2400bps, 9600bps. -
Page 27: Trouble Shooting
TROUBLE SHOOTING If you have trouble operating in your camera, refer to the following. PROBLEM SOLUTION Check if the power supply is 12 VDC. Check if RS-485 communication cable is connected correctly. Not operating Check camera ID setting. Check the termination. Check if all the cables are connected correctly. -
Page 28: Specification
SPECIFICATIONS MODEL HTSD10X Pan Rotation Angle 360˚ Endless Manual 10˚ ~ 200˚/sec Pan Speed Preset Max 200˚ /sec PAN /TILT Tilt Rotation Angle 0˚ ~ 90˚ Manual 10˚ ~ 200˚/sec Tilt Speed Preset Max 200˚ /sec System Accuracy 0.02˚ 164 positions with a 16-character label available for each position Presets with different speed steps Max. -
Page 29: Dimension
DIMENSIONS... - Page 30 MEMO...
- Page 32 Rev.100125 Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation.
