Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
TN-4500A Series
Moxa ToughNet Switch
Edition 2.0, April 2017
Technical Support Contact Information
www.moxa.com/support
2017 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802045000011
*1802045000011*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies TN-4516A non-PoE series
Summary of Contents for Moxa Technologies TN-4516A non-PoE series

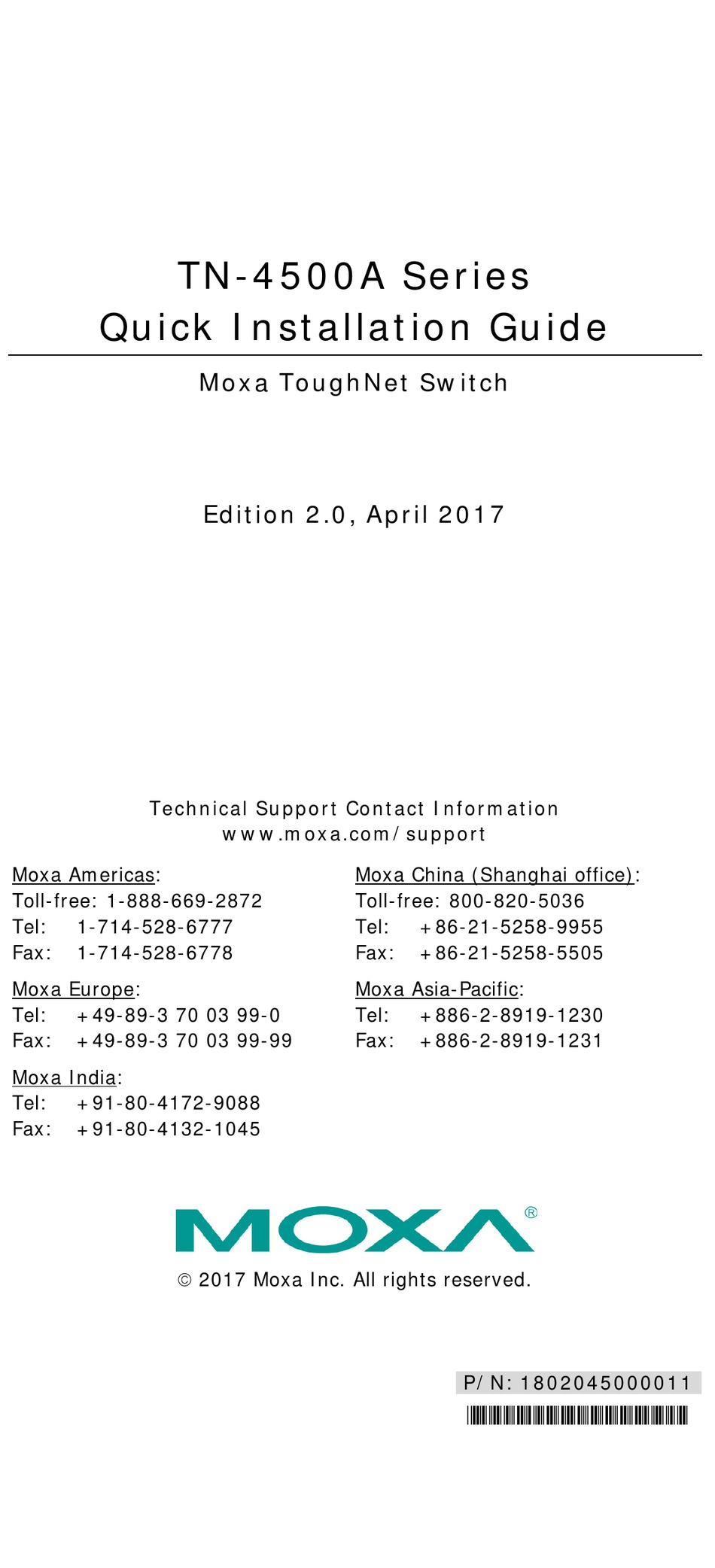

- Page 1 TN-4500A Series Quick Installation Guide Moxa ToughNet Switch Edition 2.0, April 2017 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230...
-
Page 2: Package Checklist
The wide 24 to 110 VDC dual power inputs increases the reliability of your communications. The TN-4500A series includes PoE, non-PoE, and fiber switches. • TN-4516A non-PoE series: 12 fast Ethernet M12 ports; 4 gigabit Ethernet ports. • TN-4516A PoE series: 12 fast Ethernet M12 ports with PoE functionality;... -
Page 3: Recommended Optional Accessories
Isolated Power Inputs • Supports 24 to 110 VDC (16.8 to 137.5 VDC) High Performance Network Switching Technology • IPv6 ready, certified by the IPv6 Logo Committee • IEEE 1588v2 PTP (Precision Time Protocol) for the precise time synchronization of networks •... - Page 4 A-CAP-M12F-M: Metal cap for M12 female connector • A-CAP-M12M-M: Metal cap for M12 male connector • A-PLG-WPM23-01: M23 cable connector, 6-pin female, crimp type TN-4516A non-PoE Series Panel Layouts 1. Model name 2. Screw holes for panel mounting kit 3. Console port 4.
- Page 5 TN-4516A PoE Series Panel Layouts 1. Model name 2. Screw holes for panel mounting kit 3. Console port 4. Grounding screw 5. Relay output port 6. Power input voltage range indicator 7. Power input port (male 5-pin shielded M23 connector) 8.
- Page 6 TN-4516A Fiber Series Panel Layouts 1. Model name 2. Screw holes for panel mounting kit 3. Console port 4. Grounding screw 5. Relay output port 6. Power input voltage range indicator 7. Power input port (male 5-pin shielded M23 connector) 8.
- Page 7 TN-4524A PoE Series Panel Layouts 1. Model name 2. Screw holes for panel mounting kit 3. Console port 4. Grounding screw 5. Relay output port 6. Power input voltage range indicator 7. Power input port (male 5-pin shielded M23 connector) 8.
- Page 8 TN-4528A PoE Series Panel Layouts 1. Model name 2. Screw holes for panel mounting kit 3. Console port 4. Grounding screw 5. Relay output port 6. Power input voltage range indicator 7. Power input port (male 5-pin shielded M23 connector) 8.
- Page 9 TN-4528A Fiber Series Panel Layouts 1. Model name 2. Screw holes for panel mounting kit 3. Console port 4. Grounding screw 5. Relay output port 6. Power input voltage range indicator 7. Power input port (male 5-pin shielded M23 connector) 8.
-
Page 10: Mounting Dimensions (Unit = Mm)
ATTENTION Exposed connectors when not in use must be tightly covered with protective caps (an optional accessory) to ensure IP42-rated protection. Mounting Dimensions (unit = mm) TN-4516A non-PoE Series/TN-4516A PoE Series - 10 -... - Page 11 TN-4516A Fiber Series - 11 -...
- Page 12 TN-4524A PoE Series TN-4528A PoE Series - 12 -...
-
Page 13: Panel/Wall Mounting
TN-4528A Fiber Series Panel/Wall Mounting STEP 1: Mounting the TN-4500A to a wall requires 4 screws. Use the ToughNet switch as a guide to mark the correct positions of the 4 screws. STEP 2: Use the 4 screws in the panel mounting kit. -
Page 14: Wiring Requirements
NOTE To provide greater protection from vibration and shock, use screws with shaft diameter between 6.0 mm and 7.0 mm, and fix the ToughNet switch onto the wall directly through the large opening of the keyhole-shaped apertures. NOTE TN-4500A series switches have passed IP42 certification. To achieve the IP42 protection, only use upright panel/wall mounting installation. -
Page 15: Grounding The Toughnet Switch
ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa switch. This device has UL 61010-2-201 approval. Use copper conductors only, 75°C, and tighten to 4.5 pound-inches. For use in pollution degree 2 environments. ATTENTION Safety First! Observe all electrical codes dictating the maximum current... -
Page 16: Connecting The Power Supplies
ATTENTION This product is intended to be mounted to a well-grounded mounting surface such as a metal panel. Connecting the Power Supplies ToughNet TN-4500A series switches support dual power inputs—power input 1 and power input 2. The M23 6-pin male connector on the TN-4500A series switches' front panel is used for the dual power inputs. -
Page 17: Connecting The Relay Outputs
Connecting the Relay Outputs Each TN-4500A series switch has two sets of relay outputs—relay output 1 and relay output 2. The M12 A-coded 5-pin male connector on the TN-4500A series’ front panel is used for the two relay outputs. Use a power cord with an M12 A-coded 5-pin female connector to connect the relay contacts. - Page 18 Pinouts for the 10/100/1000BaseT(X) M12 (8-pin) Port Pinouts for the 1000BaseLSX Q-ODC® Gigabit Fiber port Mating Sequence Push plug slightly into Rotate to find keying Unmated – push Mated – connector Pull coupling ring to connector socket position connector to mate snaps in and is fully unmate strain relieved...
- Page 19 M12 (4-pin, M) to RJ45 (8-pin) Cross-Over Cable Wiring M12 (4-pin, M) to RJ45 (8-pin) Straight-Trough Cable Wiring M12 (8-pin, M) to M12 (8-pin, M) Cross-Over Cable Wiring - 19 -...
- Page 20 M12 (8-pin, M) to M12 (8-pin, M) Straight-Trough Cable Wiring M12 (8-pin, M) to RJ45 (8-pin) Cross-Over Cable Wiring M12 (8-pin, M) to RJ45 (8-pin) Straight-Trough Cable Wiring - 20 -...
-
Page 21: Led Indicators
ATTENTION The protective cover must be fixed properly to ensure IP42 protection. Use a torque wrench set to a torque of 4 kgf-m when tightening the screws. Note that applying a larger torque may damage the plastic protective cover. LED Indicators Several LED indicators are located on the ToughNet switch’s front panel. -
Page 22: Specifications
Color State Description Power is being supplied to a Powered Device (PD) PoE Ports AMBER Power is not being supplied to a Powered Device (PD) TP port’s 10 or 100 Mbps link is active. Data is being transmitted at 10 or 100 G1 to G4 AMBER Blinking... -
Page 23: Power Requirements
Operating Voltage 16.8 to 137.5 VDC Input Current TN-4516A non-PoE series: Max. 0.7 A @ 24 VDC TN-4516A PoE series: Max. 7.0 A @ 24 VDC TN-4516A fiber series: Max. 7.0 A @ 24 VDC TN-4524A PoE series: Max. 6.5 A @ 24 VDC TN-4528A PoE series: Max. -
Page 24: Environmental Limits
Environmental Limits Operating -40 to 75°C (-40 to 167°F) Temperature Storage -40 to 85°C (-40 to 185°F) Temperature Operating Humidity 5 to 95% (non-condensing) Regulatory Approvals Safety UL 61010-2-201 (Pending), EN 60950-1 (LVD) EN 55032, EN 55024 CISPR 32, FCC Part 15B Class A IEC 61000-4-2 ESD: Contact: 6 kV;...
