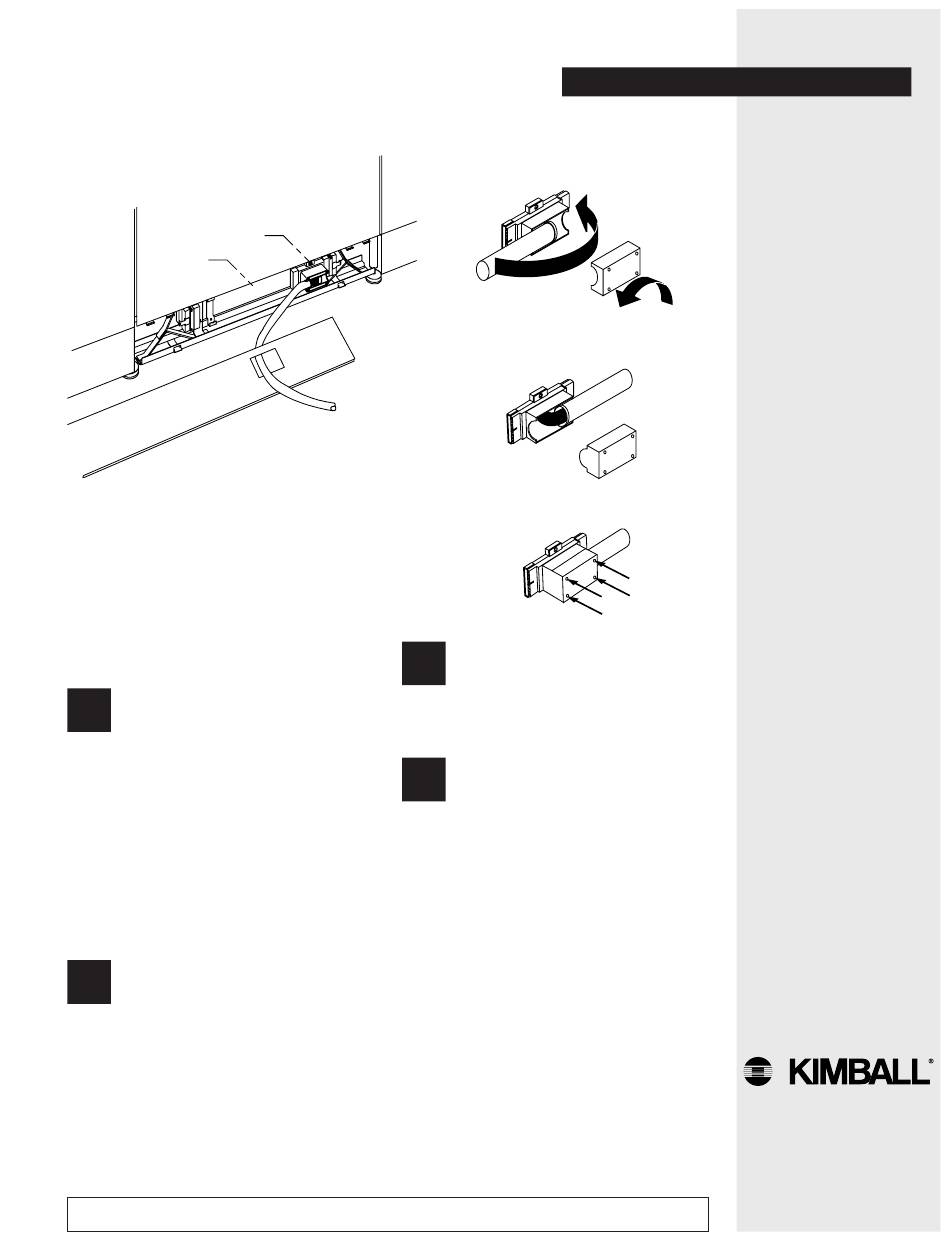

Figure A
Screw Location
AED
Note:
Power entry connections must be
made by a licensed electrician only.
Installation must be in accordance
with the National Electrical Code and
Local Codes. See the following pages
for eight-wire wiring schematic
instructions for circuit connection
options.
Locate floor power entry according
1
to electical plan. Insert floor power
entry (AEF1U) into receptable
location on either side of the power
distribution assembly (AED) and
secure with two #10 x
(Figure A).
Floor power entry will plug into
either side of the power distribution
assembly (AED). Cord direction can
be changed by rotating the cord
(Figure B).
Extend power cable through wireway
2
cover. This must be done before the
power connections are made to
building supply (Figure A).
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Customer Service.
3
4
" screws
5
/
8
Figure B
Figure C
Figure D
Secure wireway cover to panel.
Rotate floor power entry cord, if
necessary (Figure B). Install floor
power entry cover and four screws
(Figure C & D).
Connect power leads to building
branch circuit according to wiring
schematic installation sheets.
Warning:
Do not interconnect panels powered
from different feed units. This can
cause shock and fire hazard.
This panel system may be connected
to more than one source of supply. All
sources must be disconnected prior to
any servicing. No single circuit may
be powered by more than one source.
S Y S T E M S
Cetra
®
Assembly Instructions
Standard
8-Wire Floor
Power Entry
Installation
(AEF1U)
Recommended Tools
Phillips Screwdriver
Package
Contents
Floor Power Entry
Assembly (AEF1U)
Phillips Head #10 X
Thread Forming Screws
Power Entry Cover
Phillips Head #6 X 1
Shoulder Screws
Telephone 800.482.1818
Fax 812.482.8300
Form #AISYCE005B-96
#1133799
Printed in U.S.A.
© Kimball International, Inc. 1995
Qty.
1
"
2
5
/
8
1
"
4
1
/
4
