6. Target Board

The C8051F2xx Development Kit includes a target board with a C8051F206/26 device pre-installed for evaluation
and preliminary software development. Numerous input/output (I/O) connections are provided to facilitate
prototyping using the target board. Refer to Figure 2 for the locations of the various I/O connectors.
P1 Power connector (accepts input from 7 to 15 VDC unregulated power adapter)
J1 VDDMonEn, Ties MONEN to +3VD2 or GND to enable/disable the VDD monitor
J2 64-pin I/O connector providing access to all I/O signals
P2.5 Connects SW2 to port pin P2.5
LED Connects LED D2 to port pin P2.4
PWMIN Connects PWM low-pass filter to port pin P2.7
J4 JTAG connector for Debug Adapter interface
J5 Connects P3.0 to analog signal from J6
J6 Analog I/O configuration connector
J7 Connects P3.1 to analog signal from J6
X1 Analog I/O terminal block

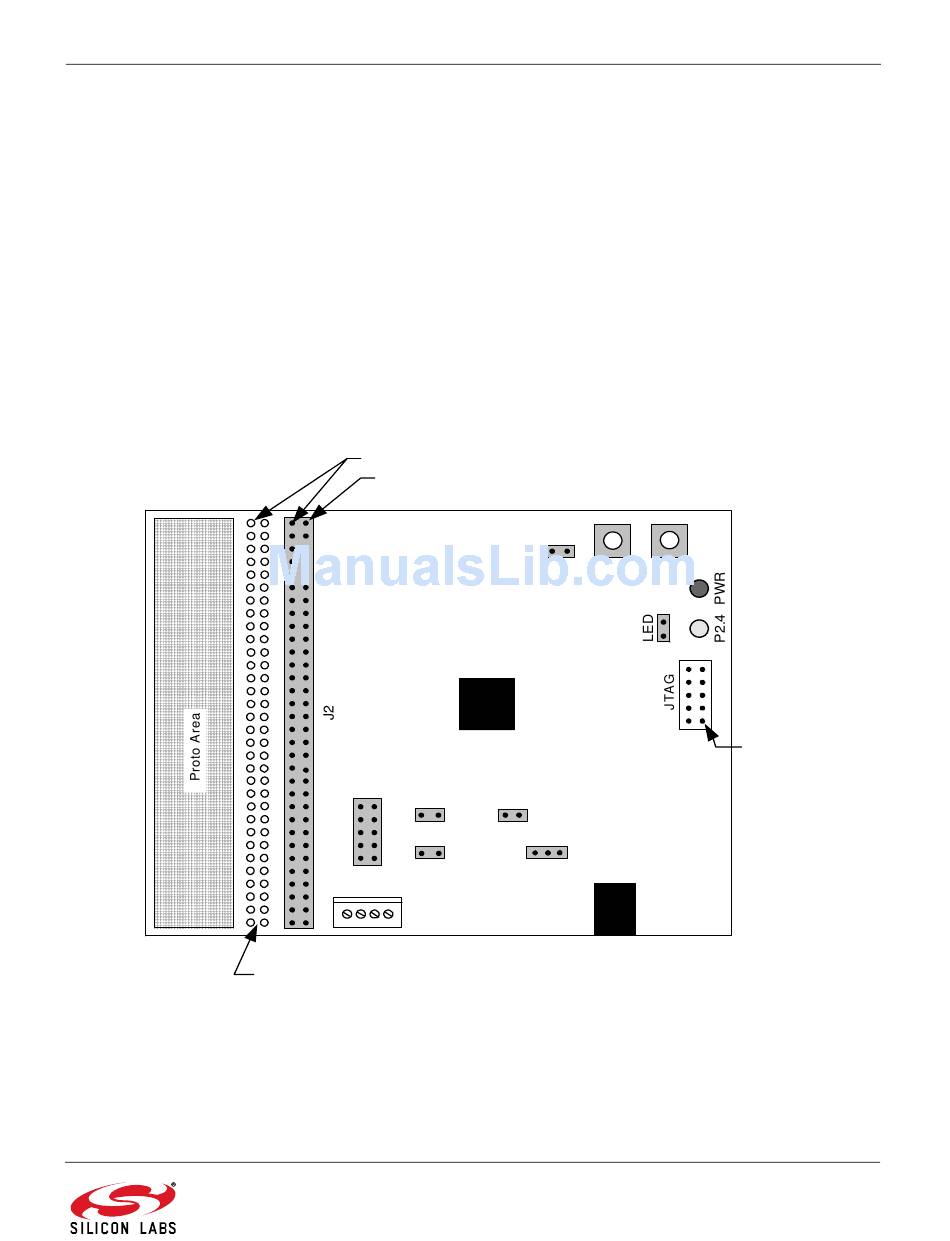

Figure 2. C8051F206 and C8051F226 Target Boards
Pin 1
Pin 2
J6
J7
J5
X1
Prototyping Area I/O Connection Points
P2.5
P2.5
SW2
C8051
F2xx
PWMIN
VDDMonEn
P1
Rev. 0.6
C8051F2xx-DK
RESET
SW1
J4
Pin 1
