Power-LOAD LED indicators, located on the side Power-LOAD control panel and at the head end of Power-LOAD,
display Power-LOAD battery and system status.

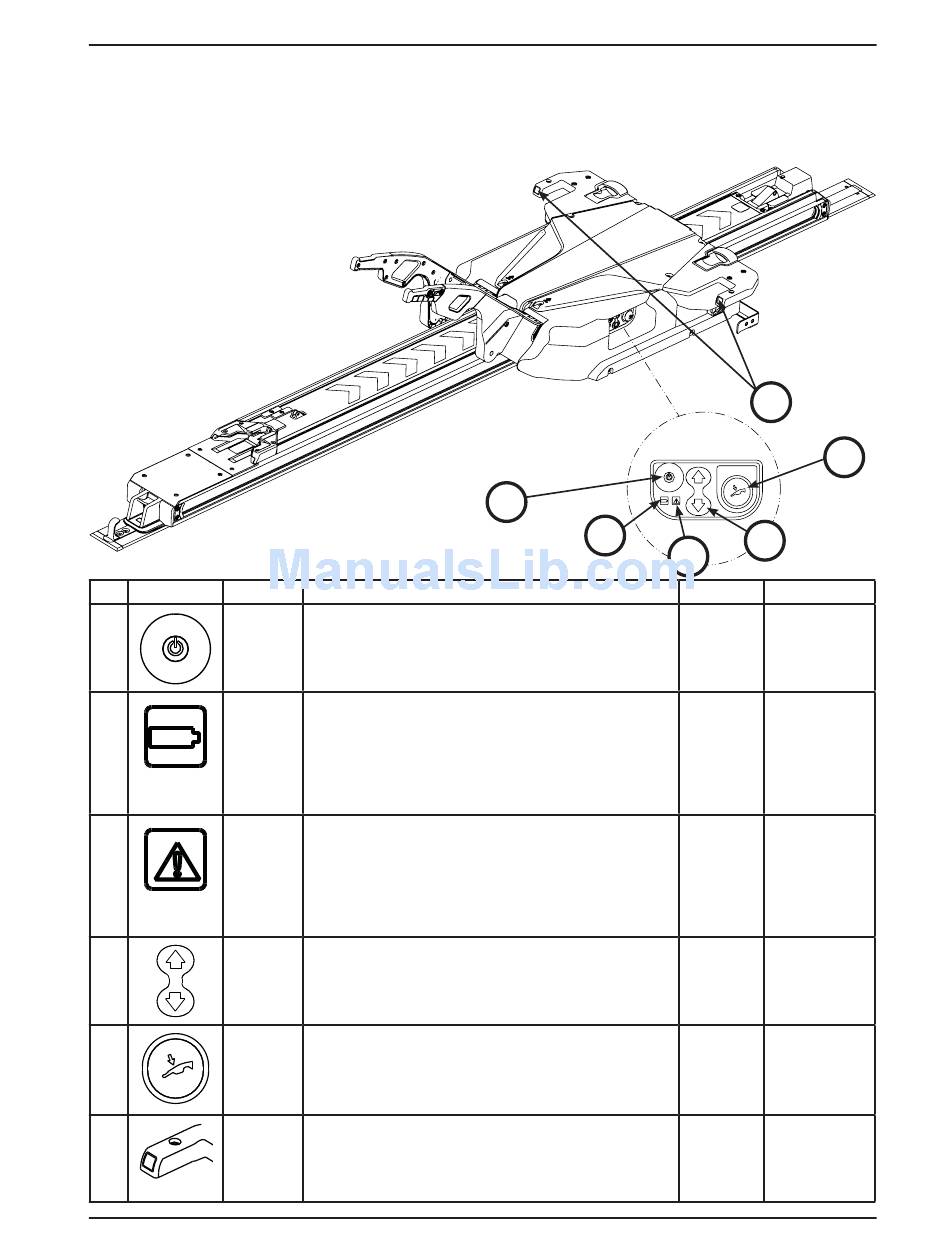

This figure and table highlight all Power-LOAD buttons and
LED indicators.
Note: If Power-LOAD will not be in
use for a week or more, press the
main power button (1) to turn the unit
off and avoid draining the battery.
Foot End
Ref Icon/Button Name
1 Main
Power
2 Battery
Power
3 Error
4 Up/Down
5 Manual
Release
6 Head
End Lock
Indicator
www.stryker.com

User Controls and LED Indicators

Description
Press to power the unit on or off.
Note: The battery power LED also illuminates to
indicate that the Power-LOAD system is on. If the
trolley battery is low, a flashing amber LED may appear.
If LED is solid green, the Power-LOAD system is on
and not charging.
If LED is flashing green, the battery is charging.
Note: The battery will only charge when the trolley
is locked at the head end of the vehicle patient
compartment.
If LED is solid amber, there is a Power-LOAD error.
Press the main power button twice to reset the unit.
If the LED remains solid amber, contact technical
support.
If LED is flashing amber, the Power-LOAD battery
power is low.
Press up (Ç) to raise the lifting arms to the highest
position.
Note: The cot legs do not retract.
Press down (È) to lower the lifting arms and cot.
Ensure that the cot base is extended before pressing.
Press to unload the cot in the event of a Power-LOAD
power failure. Continue holding the button until the
arms are clear of the cot.
If LEDs are solid green, the cot head end is locked into
Power-LOAD.
If LEDs are flashing red, the cot head end is not locked
into Power-LOAD.
6390-009-001 REV B
Power-LOAD Control Panel
1
2
Head End
6
5
4
3
Type Location
Button Power-LOAD
Control Panel
LED Power-LOAD
Control Panel
LED Power-LOAD
Control Panel
Button Power-LOAD
Control Panel
Button Power-LOAD
Control Panel
LED Trolley
Head End
