LOADING A PERFORMANCE-PRO COT INTO A VEHICLE (MODEL 6085/6086 WITH THE POWER-LOAD
OPTION)
WARNING
Loading and/or unloading an occupied cot into a vehicle requires a minimum of two (2) trained operators.
Make sure that all occupants enter the vehicle patient compartment after the Power-LOAD compatible cot has been
loaded into the vehicle patient compartment.
1. Lift the vehicle bumper to the raised position (if equipped).
2. Raise the lifting arms to guide and pull the trolley out of the vehicle patient compartment as shown in Figure 35.
3. Raise the cot to the load position.
4. Push the cot into Power-LOAD until the cot load wheel pins lock into position as shown in Figure 36. Ensure that
the cot is aligned with the lifting arms when loading.
CAUTION
To avoid the risk of equipment damage, do not slam the cot into the trolley when loading.

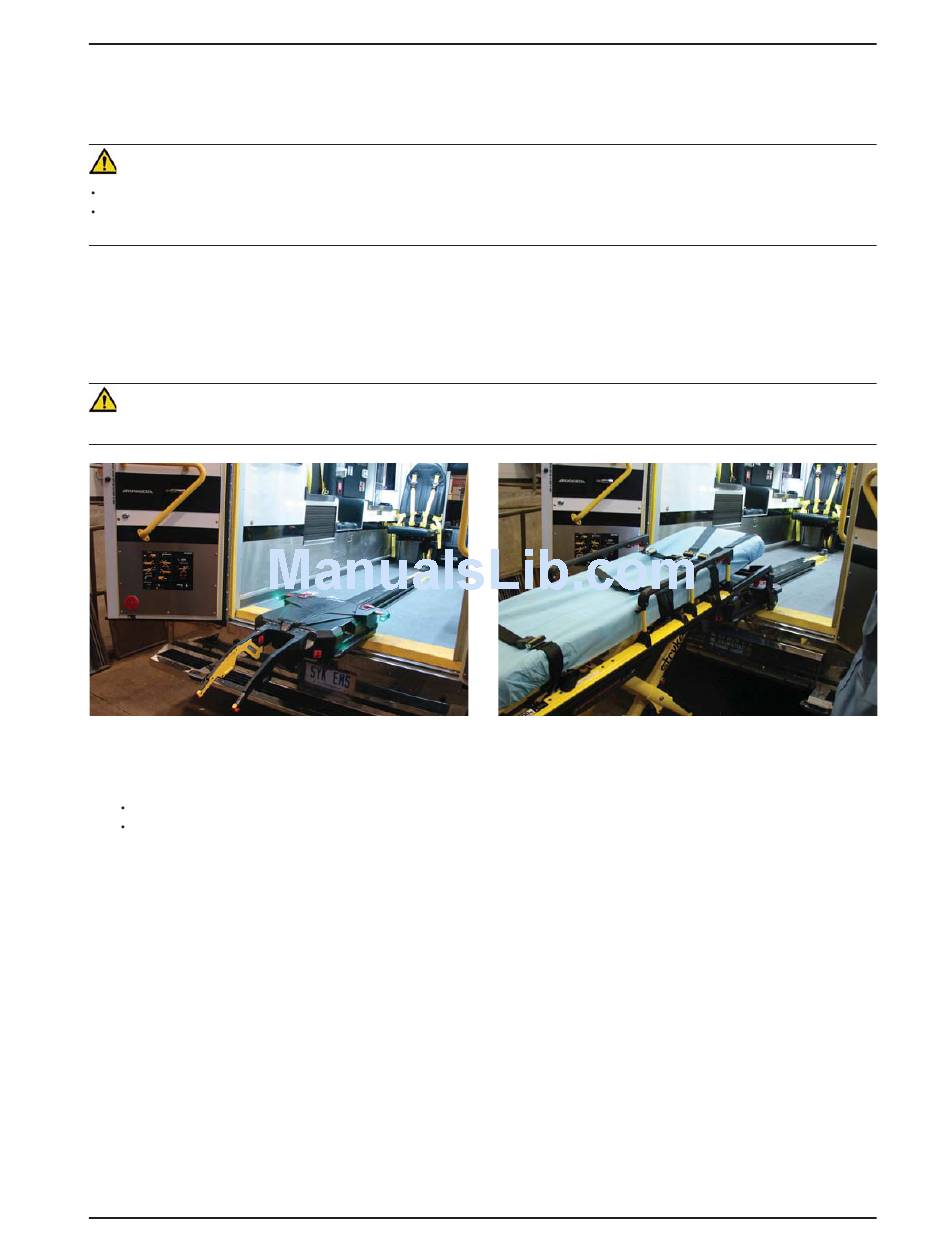

Figure 35
5. Check the head end lock LED indicators to ensure that the cot is locked into Power-LOAD.
If the LEDs are solid green, the cot head end is locked into Power-LOAD.
If the LEDs are flashing red, the cot head end is not locked into Power-LOAD.
www.stryker.com
Operation Guide
6390-009-001 REV B
Figure 36
