C O N F I G U R A T I O N
G U I D E

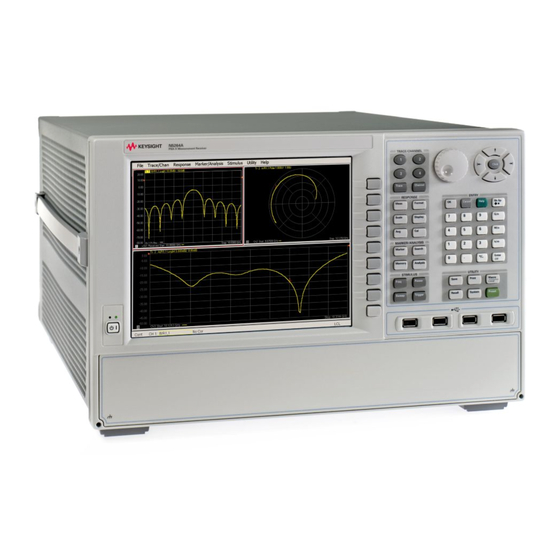

PNA Family Microwave
Network Analyzers
(N522x/3x/4xA)
The A-models of the PNA family (N522x/3x/4xA) will be discon-
tinued June 2019. Their B-model replacements are available now.
For more information about the B-models, please consult the PNA
"B" configuration guide or www.keysight.com/find/pna
Advertisement
Table of Contents
Related Manuals for Keysight Technologies N5249A
Summary of Contents for Keysight Technologies N5249A
-
Page 1: Network Analyzers
C O N F I G U R A T I O N G U I D E PNA Family Microwave Network Analyzers (N522x/3x/4xA) The A-models of the PNA family (N522x/3x/4xA) will be discon- tinued June 2019. Their B-model replacements are available now. For more information about the B-models, please consult the PNA “B”... -
Page 2: Table Of Contents
Table of Contents PNA Family Network Analyzer Configurations Test set and power configuration options Application options Accessories, calibration options PNA-X Series test set and power configuration options PNA Series test set and power configuration options PNA-L Series test set and power configuration options PNA Family Application Options Measurement applications Noise figure options... - Page 3 This configuration guide describes standard configurations, options, accessories, upgrade kits and compatible peripherals for the PNA Family microwave network analyzers. This guide should be used with the Keysight Technologies, Inc. PNA Family data sheets for a complete description of these analyzers. PNA-X Series...
- Page 4 Keysight offers the following options for all PNA Family network analyzers Certification options Documentation Commercial calibration certification with test data The PNA Series instruments are equipped with an Online Help system available within the instrument in English only. All PNA (Option UK6) documentation is available on the web: Complete set of measurements which tests unit to manufacturer’s...
-
Page 5: Pna Family Network Analyzer Configurations
PNA Family Network Analyzer Configurations PNA-X Series PNA Series PNA-L Series N5249A 10 MHz to 8.5 GHz N5221A 10 MHz to 13.5 GHz N5239A 300 kHz to 8.5 GHz N5241A 10 MHz to 13.5 GHz N5222A 10 MHz to 26.5 GHz N5231A 300 kHz to 13.5 GHz... -
Page 6: Application Options
PNA Family Network Analyzer Configurations (continued) PNA-X Series PNA Series PNA-L Series N5249A 10 MHz to 8.5 GHz N5221A 10 MHz to 13.5 GHz N5239A 300 kHz to 8.5 GHz N5241A 10 MHz to 13.5 GHz N5222A 10 MHz to 26.5 GHz N5231A 300 kHz to 13.5 GHz... -
Page 7: Accessories, Calibration Options
10 MHz tone-spacing applications). service test equipment. 2. X-parameters is a trademark and registered trademark of Keysight Technologies in 4. Pulse capability requires option 021 and 025 the US, EU, JP, and elsewhere. The X-parameters format and underlying equations 5. -
Page 8: Pna-X Series Test Set And Power Configuration Options
10.4” LCD touch screen display. The N5241A, N5242A, and 60 dB for N5244/45A, and 50 dB for N5247A source attenuator N5249A have 50 ohm, ruggedized 3.5 mm (m) test ports. The (set table in 5 dB increments for N5241/42/49A and 10 dB incre- N5244A and the N5245A have 50 ohm, ruggedized 2.4 mm (m) - Page 9 419 can not be ordered together. Option H85/485 is not available Test port 1 Test port 3 Test port 4 Test port 2 for the N5249A or the N5247A. When ordering, select N524xAS then add items N524xAS-H85, N524xAS-485 and N524xA-400. IF inputs Rear panel Source 1...
-
Page 10: Pna Series Test Set And Power Configuration Options
PNA Series test set and power configuration options 2-ports, single source, with extended power range The PNA is an integrated vector network analyzer featuring a built-in S-parameter test set, one or two synthesized sources (Option 217) used for device stimulus, a solid-state drive, USB interfaces, and a 10.4”... - Page 11 PNA Series test set and power configuration options (continued) 4-ports, dual source, with extended power range 4-ports, dual source, base configuration (Option 417) (Option 400/410) The 4-port with base configuration has no front-panel access The 4-port test set with extended power range comes with loops.
-
Page 12: Pna-L Series Test Set And Power Configuration Options
PNA-L Series test set and power configuration options 4 ports, single source, base configuration (Option The PNA-L is an integrated vector network analyzer featuring a built-in S-parameter test set, one synthesized source used for 400) device stimulus, a solid state drive, USB interfaces, and a 10.4” LCD touch screen display. -
Page 13: Pna Family Application Options
PNA Family Application Options Measurement applications Scalar-calibrated converter measurements (Option 082) Solid black series name indicates the feature is available on that PNA-X PNA-L series, while gray series name with strikethrough indicates the feature is not available on that series. For example; With a simple setup and calibration, this application delivers PNA: Available on PNA Series... - Page 14 Embedded LO measurements (Option 084) Source phase control (Option 088) PNA-X PNA-L PNA-X PNA-L This option tunes the analyzer’s receivers to the output frequency This option allows users to set calibrated, arbitrary phase of the converter under test without the need for access to internal differences between two signal sources.
- Page 15 PNA Family Application Options (continued) Measurement applications Active Hot Parameters (Option 110/111) (continued) PNA-X PNA-L Solid black series name indicates the feature is available on that series, while gray series name with strikethrough indicates Active Hot Parameters for PNA-X Series provides a more the feature is not available on that series.
-
Page 16: Noise Figure Options
PNA Family Application Options (continued) Noise figure options as an impedance tuner. For calibration of the noise receiver, Option 029 requires a power meter or a 346 series noise source Solid black series name indicates the feature is available (346C or 346C-K0 recommended). -
Page 17: Pna-X Block Diagrams With Noise Figure Option
PNA Family Application Options, continued PNA-X block diagrams with noise figure option IF inputs Rear panel +28 V Pulse generators Signal combiner Source 2 Noise receivers Source 1 OUT 1 OUT 2 OUT 1 OUT 2 10 MHz - 3-8.5/ Pulse To receivers 3 GHz... -
Page 18: Noise Figure Options Summary
PNA Family Application Options, continued Noise figure options summary Overview Option 028 Option 029 Description Noise figure application using standard receivers only, for Noise figure application using standard or low-noise all PNA / PNA-X models. receivers, for all PNA-X models. Required options 080, and 082 or 083 for measuring frequency converters. -
Page 19: Pulse, Antenna, Mm-Wave
PNA Family Application Options (continued) Add pulse modulator to internal second source Pulse, antenna, mm-wave (Option 022) PNA-X PNA-L Solid black series name indicates the feature is available on This option enables the internal pulse modulator on Source that series, while gray series name with strikethrough Out1. -
Page 20: Accessories
PNA Family Application Options (continued) Comb Generators Accessories U9391C 10 MHz to 26 5 GHz Solid black series name indicates the feature is available on that U9391F 10 MHz to 50 GHz series, while gray series name with strikethrough indicates the U9391G 10 MHz to 67 GHz feature is not available on that series. -
Page 21: Pna Family Network Analyzer Upgrade Kits
N524xA-419 or 423 N524xAU-H85 Frequency upgrade options from 8.5/13.5/20/26.5 GHz to 43.5/50 GHz and 43.5/50 GHz to 67 GHz are not available. Trade-in is recommended. Not available on N5227A. Not available on N5249A or N5247A Find us at www.keysight.com Page 21... -
Page 22: Application Options
PNA Family Network Analyzer Upgrade Kits (continued) Application options Upgrade kits are available to add options after initial purchase. To upgrade the PNA-X/PNA/PNA-L, order the corresponding item number. The model and serial numbers of the instrument to be retrofitted are required as part of the order. For PNA-X For PNA For PNA-L... - Page 23 PNA Family Network Analyzer Upgrade Kits (continued) Application options Upgrade kits are available to add options after initial purchase. To upgrade the PNA-X/PNA/PNA-L, order the corresponding item number. The model and serial numbers of the instrument to be retrofitted are required as part of the order. For PNA-X For PNA For PNA-L...
-
Page 24: Upgrade Paths
PNA Family Network Analyzer Upgrade Kits (continued) Upgrade paths PNA-X upgrade path Frequency 2-ports 4-ports 8 5 G z N5249AU-913 13.5 GHz 219/029 419/029 N5241AU-960 26.5 GHz N5249AU-960 224/029 423/029 43.5 GHz N5244AU-990 50 GHz High power configurable 67 GHz PNA upgrade path Frequency 2-ports... -
Page 25: Applications
Applications Multiport measurements Material measurements Multiport test sets are designed to work with the PNA family of 85070E High-Temperature Dielectric Probe Kit network analyzers to provide network analysis with a single set The 85070E enables measurements of the dielectric properties of connections for devices that have multiple ports. - Page 26 Test set options Millimeter-wave measurements One of the following test set options must be selected. Single sweep solution to 110 GHz Standard configuration (Option 700) The 67 GHz PNA and PNA-X network analyzers allow extending – The standard configuration is the basic test set configuration, the maximum frequency to 110 GHz with a 1.0 mm coaxial con- which does not include signal conditioning devices such as nector, enabling 10 MHz to 110 GHz single sweep measurements...
-
Page 27: Measurement Accessories
Measurement Accessories Calibration kits Coaxial measurements A complete list of RF and microwave test accessories is available on our Web site: Mechanical calibration kits include standards, such as opens, www.keysight.com/find/accessories shorts and loads, which are measured by the network analyzer for increased measurement accuracy. -
Page 28: For Devices With 1.0 Mm Connectors
For devices with 1.0 mm connectors For devices with 1.85 mm connectors Mechanical calibration/verification kit Mechanical calibration kit 85059A DC to 110 GHz precision calibration/verification kit. 85058B standard: DC to 67 GHz. Includes: Includes: – 85058-60101 1.85 mm (m) short 5.4 mm –... -
Page 29: For Devices With 2.4 Mm Connectors
Maury Microwave for service, repair, 2.4 mm (f) to PSC-2.4 mm (f), 81 cm, 32 inches or calibration issues and not to Keysight Technologies. For – 85133D set, semi-rigid: additional information go to www.maurymicrowave.com One 2.4 mm (f) to 2.4 mm (m), 53 cm, 21 inches,... -
Page 30: For Devices With 3.5 Mm, Sma, Or 2.92 Mm Connectors
For devices with K connectors (2.92 mm), For devices with 3.5 mm, SMA, or continued 2.92 mm connectors Mechanical calibration kits, continued CalPod calibration refresh modules Electronic calibration kits CalPod calibration refresh modules allow in-situ calibration N4692A Microwave ECal: 10 MHz to 40 GHz, 2-ports. refreshes to be performed at the push of a button without remov- Includes: ing the DUT or connecting calibration standards. -
Page 31: For Devices With 3.5 Mm Or Sma Connectors
For devices with 3.5 mm or SMA connectors 85093C-xxx mixed-connector options: Port A option Port B option Mechanical calibration kits Type Type Type 85052B standard: DC to 26.5 GHz. Includes: 3.5 mm Type-N 7-16 – 00902-60003 3.5 mm (m) fixed load 50 ohm –... - Page 32 Cables – 85131C single, semi-rigid: 3.5 mm (f) to PSC-3.5 mm (f), 81 cm, 32 inches – 85131D set, semi-rigid: – One 3.5 mm (f) to 3.5 mm (m), 53 cm, 21 inches, p/n 85131-60009 – One 3.5 mm (f) to PSC-3.5 mm (f), 53 cm, 21 inches, p/n 85131-60010 –...
-
Page 33: For Devices With Type-N Connectors
For devices with Type-N connectors N4431B-xxx mixed-connector options: Connector type Port A Port B Port C Port D Mechanical calibration kits option option option option 85054B standard: DC to 18 GHz. Includes: 3.5 mm (f) – 00909-60011 Type-N (m) fixed lowband load 3.5 mm (m) –... -
Page 34: For Devices With 7 Mm Connectors
For devices with 7 mm connectors For devices with waveguide Mechanical calibration kits Mechanical calibration kits 85050B standard: DC to 18 GHz. Includes: X Band – 00909-60008 7 mm coax termination X11644A standard, WR-90: 8.2 to 12.4 GHz. Includes: – 85050-60006 7 mm fixed broadband load –... -
Page 35: Verification Kits
General Accessories V Band V11644A standard, WR-15: 50 to 75 GHz. Includes: – 11644-60025 V-band termination Spare drive – 11644-20015 V/W-band short – 11644-20013 V-band shim – N5242-60133 spare drive with mounting cradle for all PNA with – 11644-60012 V-band standard section Windows 7 and 2.2 GHz CPU (version 7) –... -
Page 36: Probe
For more information on Keysight Technologies’ products, applications or services, please contact your local Keysight office. The complete list is available at: www.keysight.com/find/contactus Find us at www.keysight.com Page 36 This information is subject to change without notice. © Keysight Technologies, 2018, Published in USA, May 23, 2018, 5990-7745EN...
