- Page 1 ALGIZ 8 Manual www.handheld.se Algiz 8 www.handheldeurope.com Manual www.handheldfinland.com Version 1.0...
-
Page 2: Table Of Contents
Function buttons ....................5 Status indication LEDs ..................6 Audio ........................6 Using the Algiz 8 ....................7 Turning on the Algiz 8 ................... 7 Shutting down the Algiz 8 ..................7 Reset ........................7 Power Settings ......................7 Screen brightness ....................8 Touch screen ...................... -
Page 3: General
Please contact your supplier for further information. The Algiz 8 is a compact high performance, low weight rugged Tablet PC designed for fieldwork. The Algiz 8 can withstand severe environmental conditions including vibration, shock, moisture and temperature variations. -
Page 4: Features

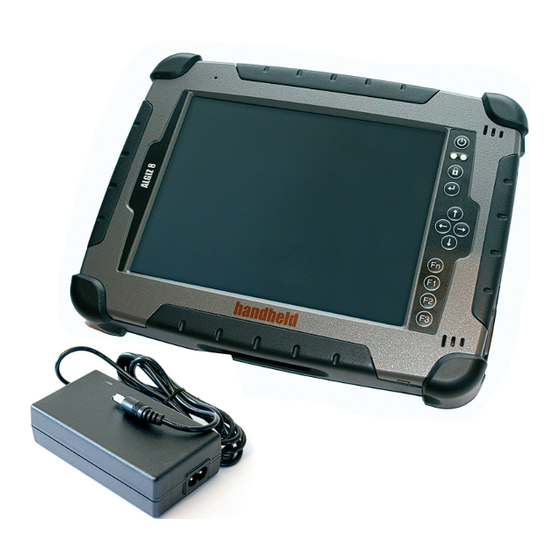

ALGIZ 8 Manual - General Features • USB • Docking Connector with Power and USB • Function buttons • Lithium/Ion Battery 5200 mAh, hotswap Accessories 1. Vehicle docking (not in picture) 2. AC/DC Adaptor 3. DC/DC Adaptor (not in picture) 4. -
Page 5: Function Buttons
ALGIZ 8 Manual - General Function buttons Function + Shift function Power on/off Ctrl-Alt-Delete Enter Escape Arrow up Increase brightness Arrow right Arrow left Shift+Tab Arrow down Decrease brightness Reset Fn Pre-set as Alt-Tab No pre-setting Pre-set as Internet Explorer... -
Page 6: Status Indication Leds
Battery is charging. Flashing Battery capacity is low. Off Th e battery is fully charged or no external power is available. Audio The Algiz 8 is equipped with a microphone (1) and two loudspeakers (2) integrated in the front panel. -
Page 7: Using The Algiz 8
ALGIZ 8 Manual - Using the Algiz 8 Using the Algiz 8 This chapter covers information about using the Algiz 8. The use of the Algiz 8 does not differ from normal PC use. Turning on the Algiz 8 To turn on the Algiz 8 press the power on button for one second, see chapter ”Function buttons”... -
Page 8: Screen Brightness
Battery life is dependent of screen brightness. To prolong battery life, lower the screen brightness as much as possible. Touch screen The Algiz 8 is equipped with a resistive 4-wire Touch Screen for easy integration, which allows the user to work with gloves. WARNING! Do not use sharp objects when operating the touch screen. -
Page 9: Battery Handling
While the battery is charging, the red LED on the front is lit. The first time, or after a long time in storage, the Algiz 8 takes up to 12 hours to be fully charged. Normaly the battery is charged in 6 hours. -
Page 10: Bridge Battery
ALGIZ 8 Manual - Using the Algiz 8 Bridge battery The Algiz 8 is equipped with a bridge battery, which is located inside the Algiz 8. The purpose of the bridge battery is to supply power when the battery pack is replaced and provide power to some components when the Algiz 8 is turned off. -
Page 11: External Device Connections
The Power connector and the Docking connector must not be used at the same time. Power connector The Power connector (1) is located under the lid on the left side of the Algiz 8. It is used to connect an external power source to the Algiz 8. Caution! The Power connector and the Docking connector must not be used at the same time. -
Page 12: Standby Mode
Suspend disk mode In the suspend to disk mode, the current data is saved to the disk and the Algiz 8 is powered off. When the Algiz 8 is in suspend to disk mode the battery consumption is the same as in the off state. -
Page 13: Maintenance
You must avoid oil on the Touch Screen because it can be difficult to remove. Keep the Algiz 8 clean and free from dust and dirt by using a soft, lint-free cloth regularly. If available, you can also use compressed air (maximum pressure 2 bar) but some caution is to be observed. -
Page 14: Technical Specification
ALGIZ 8 Manual - Technical specification Technical specification Base system Operating system: Microsoft Windows XP Pro or XP Embedded Display: 8.4” colour TFT SVGA 800x600, 320Nits Processor: Intel Celeron M ULV 373 1.0 GHz Chipset: Intel 855 Memory: Standard 256 MB (max 1 GB) Note: Up to 32 MB of graphic memory can be reserved for processor usage. - Page 15 Algiz 8 www.handheldeurope.com Manual www.handheldfinland.com Version 1.0...
