Summary of Contents for HandHeld ALGIZ 12XR

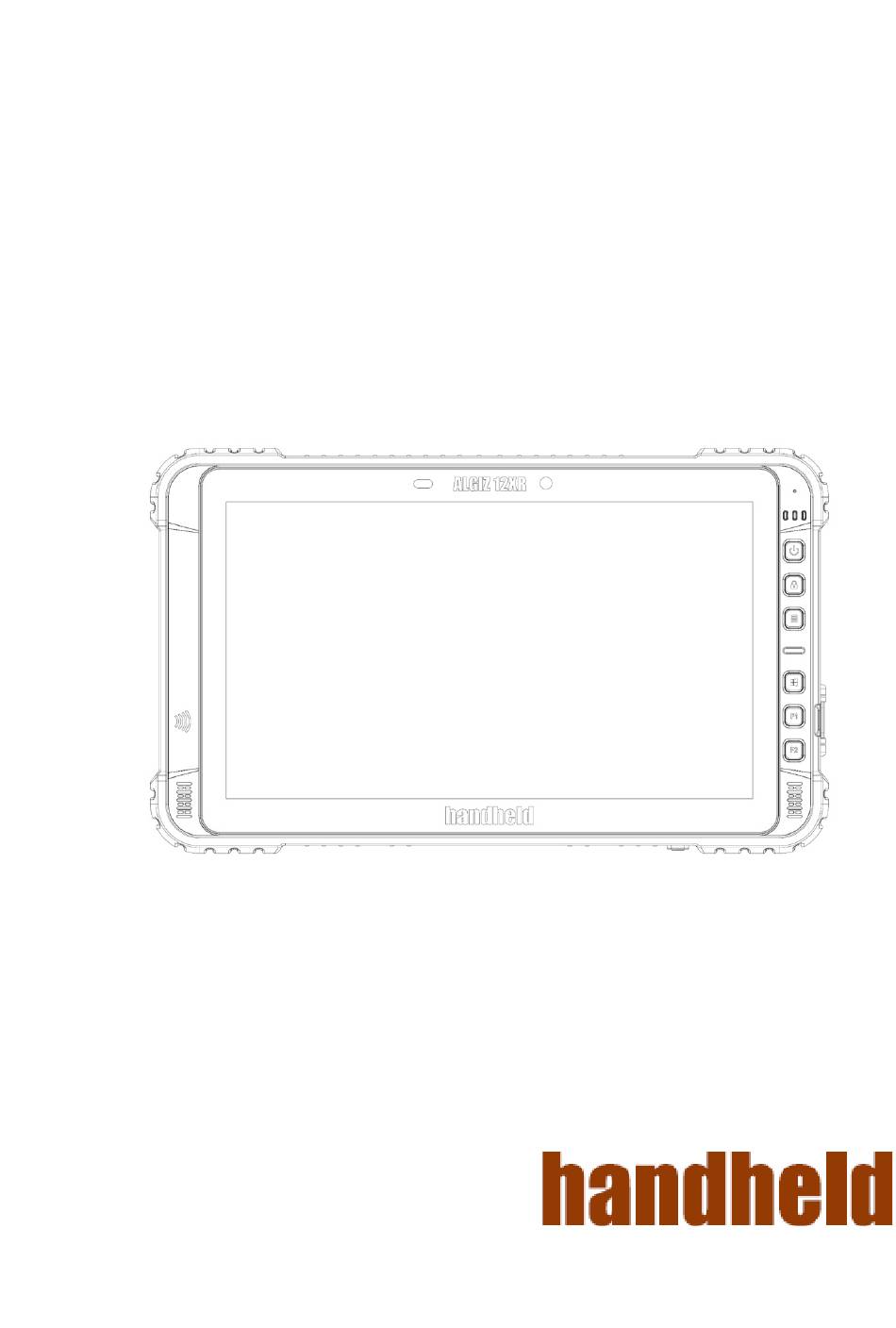

  • Page 1 ALGIZ 12XR Manual...
  • Page 2: Table Of Contents

    Insertion of the Battery Pack ..............13 Removal of the Battery Pack ..............13 Charging the Battery ................. 14 Installing, Micro SD Card ................15 Starting ALGIZ 12XR ................. 15 Hot-Tab ....................17 Auto-rotation .................... 17 Devices ....................18 (1) Bluetooth ..................18 (2) GPS ....................
  • Page 3 ISED Warning .................... 25 CE Compliance ..................25 UK Compliance ..................26 Copyright Notice ..................27 Trademark Acknowledgement ..............27 Disclaimer ....................27 Customer Service ..................27...
  • Page 4: What's In The Box

    What’s in the Box Item Description One 3 Cell Li-Ion Battery Pack 19V Adapter w/ standard power cord. Standard type, 1.8M ALGIZ 12XR Quick start guide...
  • Page 5: Specification

    IDENTIFYING ALGIZ 12XR Specification ALGIZ 12XR is a rugged tablet PC designed for use in various challenging environments, e.g., field work, outdoor activities and construction sites. With its rugged design, ALGIZ 12XR is able to withstand shocks, vibrations, high humidity as well as high/ low temperatures.
  • Page 6: Boot Options

    Boot Options Initiate factory reset Factory Reset The ALGIZ 12XR has a built- factory state. Press F1 during booting when BIOS logo screen appears. Follow the instructions on the screen to continue with the factory reset. CAUTTION: This procedure will erase all data on your disk.
  • Page 7: Front Side

    Front Side Light sensor 10. Front camera 11. Microphone Power button Touch mode/lock Menu Windows keys Function keys NFC Reader Speaker Speaker Ref. Item Description Power button* Hold down for a short period to turn the computer on Touch mode/lock Touch mode selection.
  • Page 8: Led Indicators

    LED Indicators LED Term Symbol Indicator Status Description Green: System is on Power Mode No light: System is off or LED indicators are off in Hot Tab Storage Status Flashing blue light: SSD is reading/writing data Green: Full battery, 100 Red: Low battery, 10 % Battery Status Orange: Charging Flashing...
  • Page 9: Rear Side

    Rear Side Ref. Item Description Rear Camera Rear camera with LED flash Service Window Expansion slots - Memory module Service Window Expansion slots Fingerprint Reader Fingerprint reader External Battery Exchangeable external battery Rear Pogo Connector Rear pogo connector for expansion DC Jack Cover Waterproof cover for DC jack I/O Connector Cover...
  • Page 10: Right Side

    Right Side Ref. Item Description Type C (Power Delivery and DisplayPort USB 3.0 Port Alternate Mode) USB 3.0 Port Type C USB 3.0 Port Type A Side expansion slot for below expansion module RS232 module  Side Expansion Slot CAN BUS module ...
  • Page 11 PART 2: USING ALGIZ 12XR Ver 3.1...
  • Page 12: Ac Adapter

    The ALGIZ 12XR power supply comprises the power adapter and the battery pack. The power adapter converts AC power from a wall outlet to the DC power required by the ALGIZ 12XR. Your ALGIZ 12XR comes with a universal AC-DC adapter. That means that you may connect the power cord to any 100V -120V as well as 220V-240V outlets without using power converters.
  • Page 13: Insertion Of The Battery Pack

    Insertion of the Battery Pack Removal of the Battery Pack Ver 3.1...
  • Page 14: Charging The Battery

    Charging the Battery When the power adapter is plugged in, the battery automatically recharges regardless of whether your tablet PC is in the ON or OFF mode. It takes a couple of hours for the battery to be fully charged when the power is OFF and twice as long when the tablet PC is in use.
  • Page 15: Installing Micro Sd Card

    Remove the battery on the rear side, Micro SD socket resident in the battery room. Insert the Micro SD card, according to the pictures below. Micro SD Slot Starting ALGIZ 12XR Press the power button for a while to power on the ALGIZ 12XR. Follow the Microsoft Windows on-screen instructions to get started with Windows. Ver 3.1...
  • Page 16 PART 3: SOFTWARE Ver 3.1...
  • Page 17: Hot-Tab

    Bluetooth, GPS, etc. You can press the menu button on the ALGIZ 12XR panel to open the program, and the interface will appear on the right side of the screen.
  • Page 18: Devices

    Click the icon to open the sub-page. (1) Bluetooth ALGIZ 12XR has Bluetooth connectivity. Turn it on to establish connection with your Bluetooth devices. Click the icon to turn Bluetooth on or off. ALGIZ 12XR has a GPS unit. Click the icon to set the GPS on or off.
  • Page 19: Battery Status

    Battery Status Click the icon to display the status of the primary and secondary batteries. The ALGIZ 12XR is equipped with a spare secondary battery, which can be replaced without shutting down. Ver 3.1...
  • Page 20: Keystrobe

    Click the icon to open the Keystrobe page. The ALGIZ 12XR panel provides two user-defined function keys. Users can set the physical keys of the panel to any one of F1 to F12 according to their needs. Adjusting the LCD Brightness There are two LCD brightness adjusting modes: automatic dimming mode and manual dimming mode.
  • Page 21: Touch Mode

    , and lock mode In locked mode, ALGIZ 12XR will not respond to any touch events on the screen. Reminder: You can also use the Touch mode/lock physical keys on the ALGIZ 12XR panel to change the touch mode. Ver 3.1...
  • Page 22: Camera

    ALGIZ 12XR is equipped with a 5-megapixel front lens and a 12-megapixel rear lens. Click the icon to turn on the camera. Barcode Scanner ALGIZ 12XR is equipped with a scanner for linear, 2D stake, 2D matrix and postal types of barcodes. Go to SimpleText. And Click Trigger button to start. Ver 3.1...
  • Page 23 PART4: REGULATORY INFORMATION Ver 3.1...
  • Page 24: Fcc Compliance Statement

    FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device must not cause harmful interference, and 2. This device must be able to withstand any interference received, including interference that may cause undesired operation.
  • Page 25 (Les antennes sont à plus de 0 mm du corps d'une personne) CE Compliance Hereby, Handheld Group AB declares that the radio equipment type ALGIZ 12XR is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: ALGIZ 12XR Manuals - Handheld (handheldgroup.com)
  • Page 26 UK Compliance Hereby, Handheld Group AB declares that the radio equipment type ALGIZ 12XR is in compliance with the Radio Equipment Regulations 2017 (SI 2017/1206). The full text of the UK declaration of conformity is available at the following internet address: ALGIZ 12XR Manuals - Handheld (handheldgroup.com)
  • Page 27 Handheld Group AB assumes no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright, or mask works rights to these products and makes no representations or warranties that these products are free from patent, copyright, or mask works rights infringement, unless otherwise specified.
