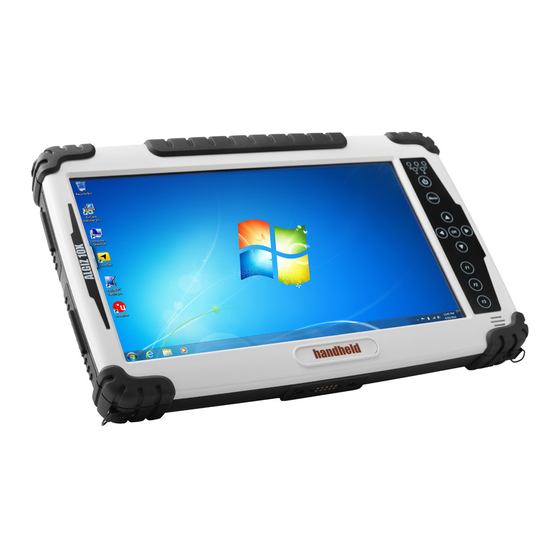

Rugged tablet pc
Hide thumbs Also See for ALGIZ 10X:
Table of Contents

Advertisement

Quick Links

See also: User Manual
ALGIZ 10X
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALGIZ 10X and is the answer not in the manual?

Questions and answers

Related Manuals for HandHeld ALGIZ 10X

Summary of Contents for HandHeld ALGIZ 10X

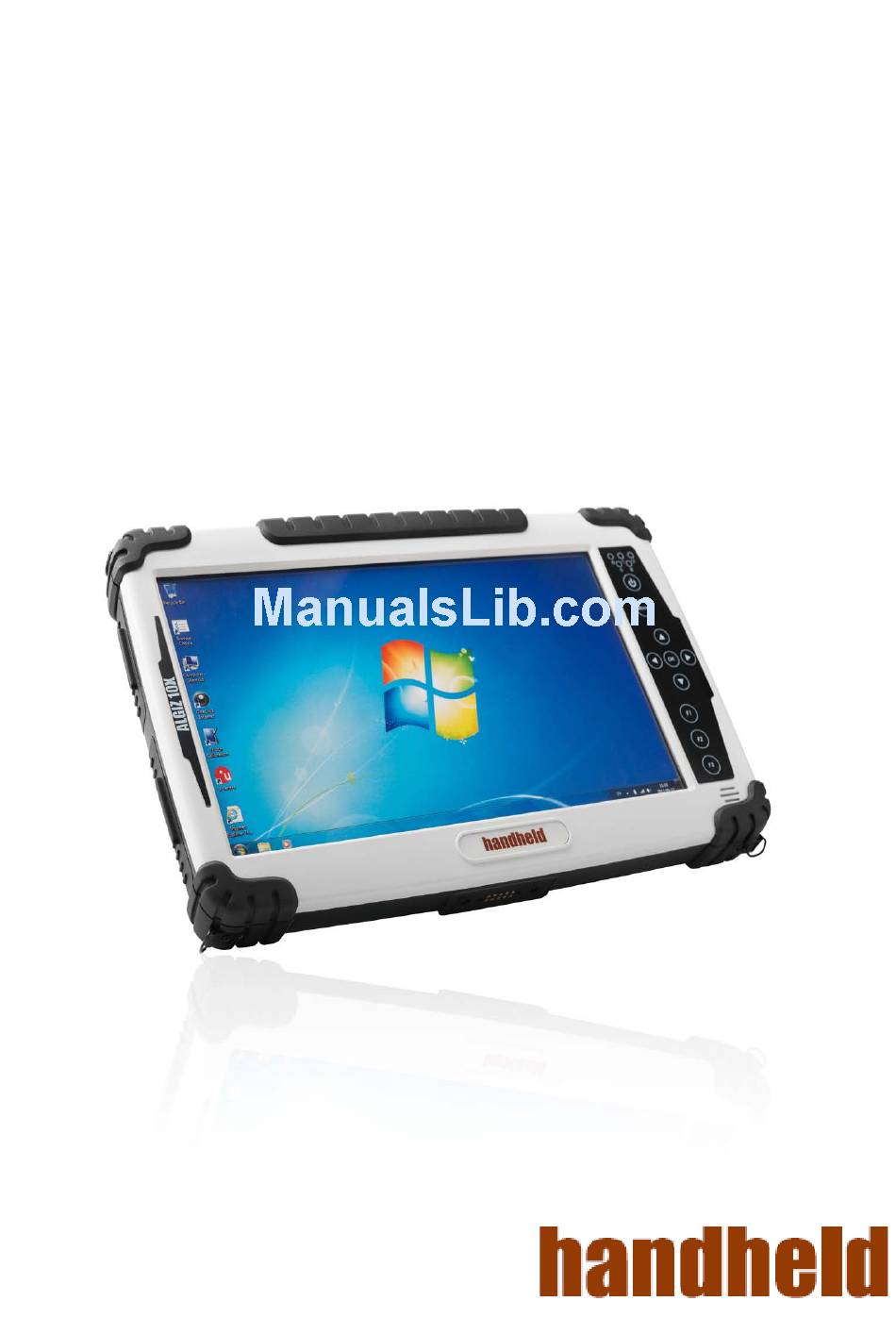

  • Page 1 ALGIZ 10X Manual...

  • Page 2: Safety Precautions

    Algiz 10X Manual Safety Precautions Warning Always completely disconnect the power cord from the device before you uncover the device and work on the hardware. Do not connect the electronic device with a power socket while the power is on. Sensitive electronic components can be damaged by sudden power surges.

  • Page 3: Table Of Contents

    Algiz 10X Manual Index Part 1: ..............................5 Identifying Algiz 10X .......................... 5 Getting Started ..........................5 What’s in the Box ..........................6 Specification ............................. 7 COM Port Assignment ........................8 Boot Options ............................. 8 Factory Reset ............................ 8 Front Side ............................9 Left and Right Side ..........................
  • Page 4 Caution: ............................31 FCC RF Radiation Exposure ......................31 CE Declaration of Conformity ......................32 Part: 5 .............................. 33 Algiz 10X Care ..........................33 Battery Protection Tips ........................34 Touchscreen Protection Tips ......................35 Algiz 10X Care ..........................35 Cleaning the Exterior ........................35 Connectors............................

  • Page 5: Part 1

    Algiz 10X Manual Part 1: Identifying Algiz 10X Getting Started handheld...

  • Page 6: What's In The Box

    Algiz 10X Manual What’s in the Box Item Description One 2 Cell Li-Ion Battery Pack 12V Adapter w/ standard power cord. Standard type, 1.8M Screen protector film Algiz 10X Quick start guide handheld...

  • Page 7: Specification

    Algiz 10X Manual Specification ALGIZ 10X is a rugged Tablet tablet PC designed for use in various challenging environments, e.g. field work, outdoor activities and construction sites. With its rugged design, ALGIZ 10X is able to withstand shocks, vibrations, high humidity as well as high/ low temperatures.

  • Page 8: Com Port Assignment

    Enter BIOS Factory Reset The Algiz 10X has a built-in recovery utility that can be used to reset your computer’s SSD disk to its factory state. Press F1 during booting when the Handheld logo screen appears. Follow the instructions on the screen to continue with the factory reset.

  • Page 9: Front Side

    Algiz 10X Manual Front Side Ref. Item Description Front Microphone Receives sound to make voice recordings. Light Sensor Senses the ambient light for automatic adjustment of the display backlight. The features can be enabled through the OSD Control Keypad. OSD Control Keypad...

  • Page 10: Left And Right Side

    Algiz 10X Manual Left and Right Side Ref. Item Description DC Power Jack DC plug for supplying power to the device For connection to external display devices such as monitors and projectors USB 2.0 Port Can be connected to USB-interface peripherals...

  • Page 11: Rear Side

    Algiz 10X Manual Rear Side Ref. Item Description Stylus Pen Service Window User-accessible compartment. Function Keys Components Description Power Button* Hold down for 4 seconds to turn the computer on. Menu Menu button to control: brightness, volume, battery, power to modules, and system information.

  • Page 12: Led Indicators

    Algiz 10X Manual LED Indicators LED Term Symbol Indicator Status Description Power mode Green: System is on No light: System is off or LED indicators are off in Hot-tab. Storage Status Flashing green light: SSD is reading/writing data Radio Status Green: Indicates that any transmitting radio is turned on.

  • Page 13: Part 2

    Algiz 10X Manual Part 2: Using Algiz 10X handheld...

  • Page 14: Ac Power

    The Algiz 10X power supply is comprised of two parts, the power adapter and the battery. The power adapter converts AC power from a wall outlet to the DC power required by the Algiz 10X. Your Algiz 10X comes with a universal AC-DC adapter. That means that you may connect the power cord to any 100V-120V as well as 220V-240V outlets without using power converters.

  • Page 15: Insertion Of The Battery Pack

    Removal of the Battery Pack Caution Please fully charge the battery in advance of operating ALGIZ 10X for the first time. New battery packs must be 100% charged before ALGIZ 10X is disconnected from the external power source. It takes a few hours to fully charge the battery when ALGIZ 10X is turned off.

  • Page 16: Charging The Battery

    CAN/CSA C22.2 No. 601.1. Power Supply The power for the Handheld rugged tablet PC is supplied by the power adapter and battery pack, the power rating and manufacturer information are listed as below. For safety reasons, the adapter must be connected to ground (earth).
  • Page 17 Algiz 10X Manual Manufacturer: EDAC Power Electronics Co Ltd Power Adapter Model: EA11001C-120 Input Rated: 100-240Vac, 1.8A, 50-60Hz. Output Rated: DC 12V, 6.66A. Manufacturer: T-Gee Electronic Co., Ltd Battery Pack Model: ALG10X-08A Rated: 5300mAh DC 7.4V Caution! Do not attempt to fix or replace the battery, as this may cause an explosion! Only use the specified battery and follow the instructions in the manufacturer's user manual.

  • Page 18: Starting Algiz 10X

    Note: you will be asked to enter the Microsoft Windows license number which can be found under the main battery. Press the power button for 4-6 seconds to power on the Algiz 10X. Follow the Microsoft Windows on-screen instructions to get started with Windows. The screen calibration may not be accurate the first time you start the computer.

  • Page 19: Installing Wwan Module

    Please read the safety precautions on page 3 before installing a WWAN module. Insert the WWAN module into the top mini PCIe slot. Install the antennas. The Algiz 10X has two WWAN antennas connected to the Gobi 3000 card. Install the antennas according to the picture.

  • Page 20: Installing Sim Card, Sd Card

    Algiz 10X Manual Installing SIM Card, SD Card Remove the SIM/SD card cover on the right side. This cover is secured with two screws. Insert the SIM card according to picture. handheld...

  • Page 21: Part 3

    Algiz 10X Manual Part 3: Software handheld...

  • Page 22: Hot-Tab

    The control application is accessed by pressing menu on the Algiz 10X. Press menu multiple times to navigate through Hot-tab. You can use the arrows on the control panel to navigate within the OSD menu.

  • Page 23: Adjusting The Speaker Volume

    The Battery status is accessed by pressing menu 3 times. Press the Menu button three times to view the battery status. The Algiz 10X has a replaceable Main battery as well as a second built-in hot-swap battery. The hot-swap battery will activate once the main battery is empty or unplugged.

  • Page 24: Wlan

    Algiz 10X Manual WLAN Algiz 10X can connect to IEEE 802.11 b/g/n networks operating on 2.5GHz. The Function Control is accessed by pressing menu 4 times. Check Wi-Fi to turn the Wi-Fi radio on. Uncheck Wi-Fi to turn it off.

  • Page 25: Wwan (3G) - Optional

    Wireless Control by pressing menu 4 times. Check 3G to switch WWAN radio on/off. Note: You must install a SIM card in order for the Algiz 10X to access a WWAN network. On the desktop, double-click the AirCard Watcher shortcut to install the program used to control WWAN operations.

  • Page 26: Gps

    Algiz 10X Manual Algiz 10X is equipped with a dedicated GPS receiver for optimum performance. The Function Control is accessed by pressing menu 4 times. Check GPS to turn the GPS receiver on. Uncheck GPS to turn it off. The GPS evaluation software, U-Center, is accessed by double-clicking the U-Center icon available on the desktop.
  • Page 27 Algiz 10X Manual Set Baudrate to 9600 GPS will now start looking for satellites to calculate its position. This procedure may take from a few seconds to a few minutes depending on satellite positions, interference, environmental factors and radio noise.

  • Page 28: Camera

    Algiz 10X Manual Camera The ALGIZ 10X has a built-in 5-megapixel camera. The Function Control is accessed by pressing menu 4 times. Check Camera to turn the Camera on. Uncheck Camera to turn it off. Press F1 and click the Camera icon to start the Camera.

  • Page 29: External Gps Antenna

    Alg10X-05A vehicle dock. Uncheck GPS Antenna (auto) to turn this feature off. System Information Press the Menu button five times to view system information. Please have this information ready if you are contacting Handheld support. handheld...

  • Page 30: Part 4

    Algiz 10X Manual Part 4: Regulatory Information handheld...

  • Page 31: Fcc Compliance Statement

    Algiz 10X Manual FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device must not cause harmful interference, and 2. This device must be able to withstand any interference received, including interference that may cause undesired operation.

  • Page 32: Ce Declaration Of Conformity

    EN61000-3-3: 2008 2006/A1: 2007/A2: and Flicker Electromagnetic Field 2010 Electrical Fast Transient/ 61000-4-4: Burst 2012 61000-4-5: Surge 2005 Product Name: Algiz 10X Warranty: 12 Months 61000-4-6: RF Common Mode 2008 Power Frequency 61000-4-8: Magnetic Field 2009 Safety of Information EN60950-1: 2006/A11:...

  • Page 33: Part: 5

    Algiz 10X Manual Part: 5 Algiz 10X Care handheld...

  • Page 34: Battery Protection Tips

    To maintain the battery pack’s operating efficiency, store it in a cool dark place removed from the tablet PC and with 30 % ~ 40 % charge remaining. Avoid installing or removing the battery pack when the Algiz 10X is in Standby mode. Charging time will be prolonged when the Algiz 10X is turned on.

  • Page 35: Touchscreen Protection Tips

    Protect your Handheld product from extreme temperature changes. When the temperature is high, do not leave the device on the dashboard of a vehicle and keep well away from any heat sources. Do not use or store your Handheld product in dirty, humid or wet conditions that are beyond the product specifications.

  • Page 36: Connectors

    (rubber), taking care not to leave any foreign bodies on the pins. Copyright Notice Copyright © 2010 Handheld Group AB, ALL RIGHTS RESERVED. No part of this document may be reproduced, copied, translated or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer.

  • Page 37: Customer Service

    Algiz 10X Manual Customer Service Support is provided by Handheld. Visit our website at www.handheldgroup.com to find updated information about the product. You can also contact your distributor, sales representative or our customer support center for further assistance. If you contact our customer support center please...
