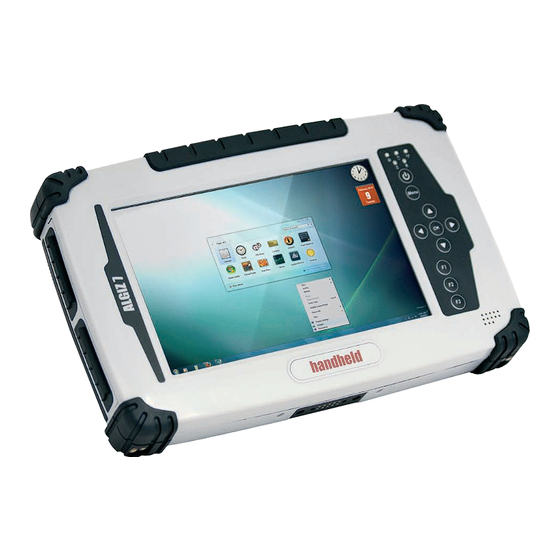

HandHeld algiz 7 Quick Start Manual

Hide thumbs Also See for algiz 7:
1
2
3
4

Advertisement

Quick Links

Download this manual See also: Quick Start Manual
ALGIZ 7
Quick Start Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the algiz 7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HandHeld algiz 7

Summary of Contents for HandHeld algiz 7

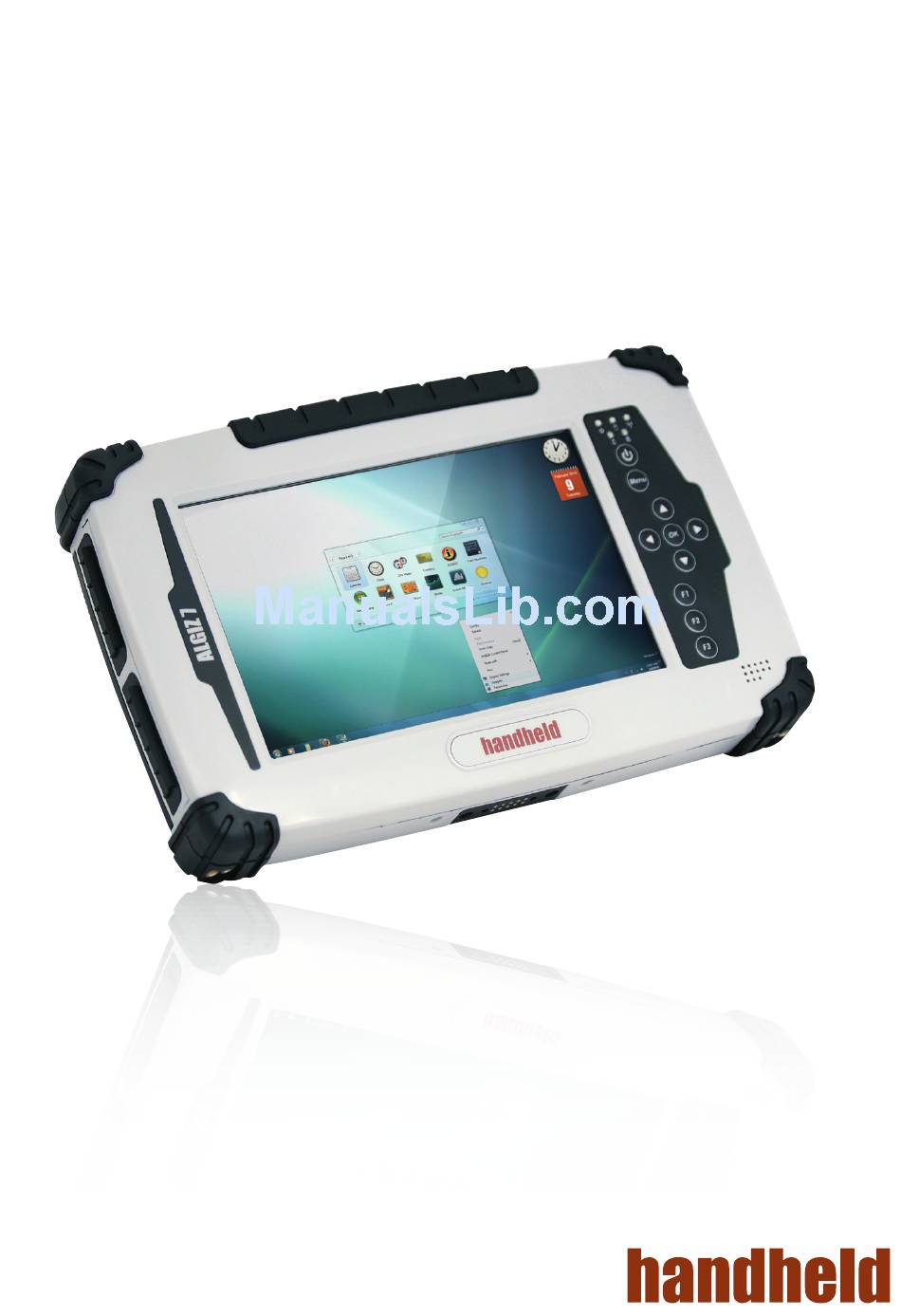

  • Page 1 ALGIZ 7 Quick Start Guide...
  • Page 2 Please follow these steps, before starting to use your Algiz 7 for the first time: 1. IMPORTANT: Write down the Microsoft Windows license Product Key: XXXXX-XXXXX-XXXXX-XXXXX-XXXXX. Located under the battery. You will need it when using the unit for the first time. 2. You will be forced to activate your Windows License Product Key during the installation process. This requires Internet connection. Insert an Ethernet cable. Or choose to activate your license by using the toll-free automatic phone activation (If you are unable to do either, choose to activate later and please download the guide on our FAQ’s page under www.handheldgroup.com). 3. Install and lock the batteries, attach the charger and start charging. 4. When starting the unit for the first time, press the power key and HOLD for 4-5 seconds (until the left LED turns green). 5. Choose your country or region. 6. Time, currency and keyboard layout are a setting which can be changed later on, in the control panel. 7. To type a username, click on the icon in the left bottom corner. 8. Check “Type without the keyboard” and press OK.
  • Page 3 How to activate Windows – Now 14. It is possible to activate Windows now or later. Via Ethernet • Requires an Internet connection • Connect Ethernet cable for access to local network and Internet • Chose to activate Windows now and online Via WiFi/WLAN • Requires an Internet connection • Choose to activate Windows now • Set up internet connection via WiFi network • Choose to activate Windows online Windows should automatically connect to internet and activate. It is also possible to activate Windows via toll-free automatic phone activation. Algiz 7 Windows Activation Guide 1. Make sure you have your Windows License Product Key code available. This will be needed when activating your license. 2. Establish a connection by connecting your unit using WiFi or by connecting an Ethernet cable. 3. Once you have established a connection, Click on the “Start/Windows” button. 4. Control Panel. 5. System and Security. 6. System. 7. Scroll down to the bottom of the screen and click on the text: “You must activate today, activate Windows now”. 8. Click on “Activate Windows online now”. 9. When it is finished you can close the window. If you are not able to establish an Ethernet or WiFi connection you can choose “See other ways to activate”. Choose “Use the automated phone system” and follow the instructions. 16. Continue the charging. First charge approximately 4 hours. The full product manual can be downloaded from www.handheldgroup.com (or www.ruggedalgiz.com).

  • Page 4: Led Indicators

    How to use the Tablet 1. Pwr On/Off 2. Pwr Wireless 3. Menu 4. F1 5. Up Down Left Right Components Function description Power On and Off Press 4 seconds to turn on the tablet pc. LED indicator Shows the power status. SSD status. Left and right battery status. Wireless status. Press Menu function to show brightness, volume, battery status, Menu wireless enable/disable and system status 6 Programmable hot key functions for user to define by application, F1 – F3 hotkey Use short or Long press on the keys for different functions. F1 short will start help menu. Up/Down/Left/Right/OK button Control the up, down, left, right and Enter function LED indicators LED Term Indicator status description Green: System ON Power mode...
