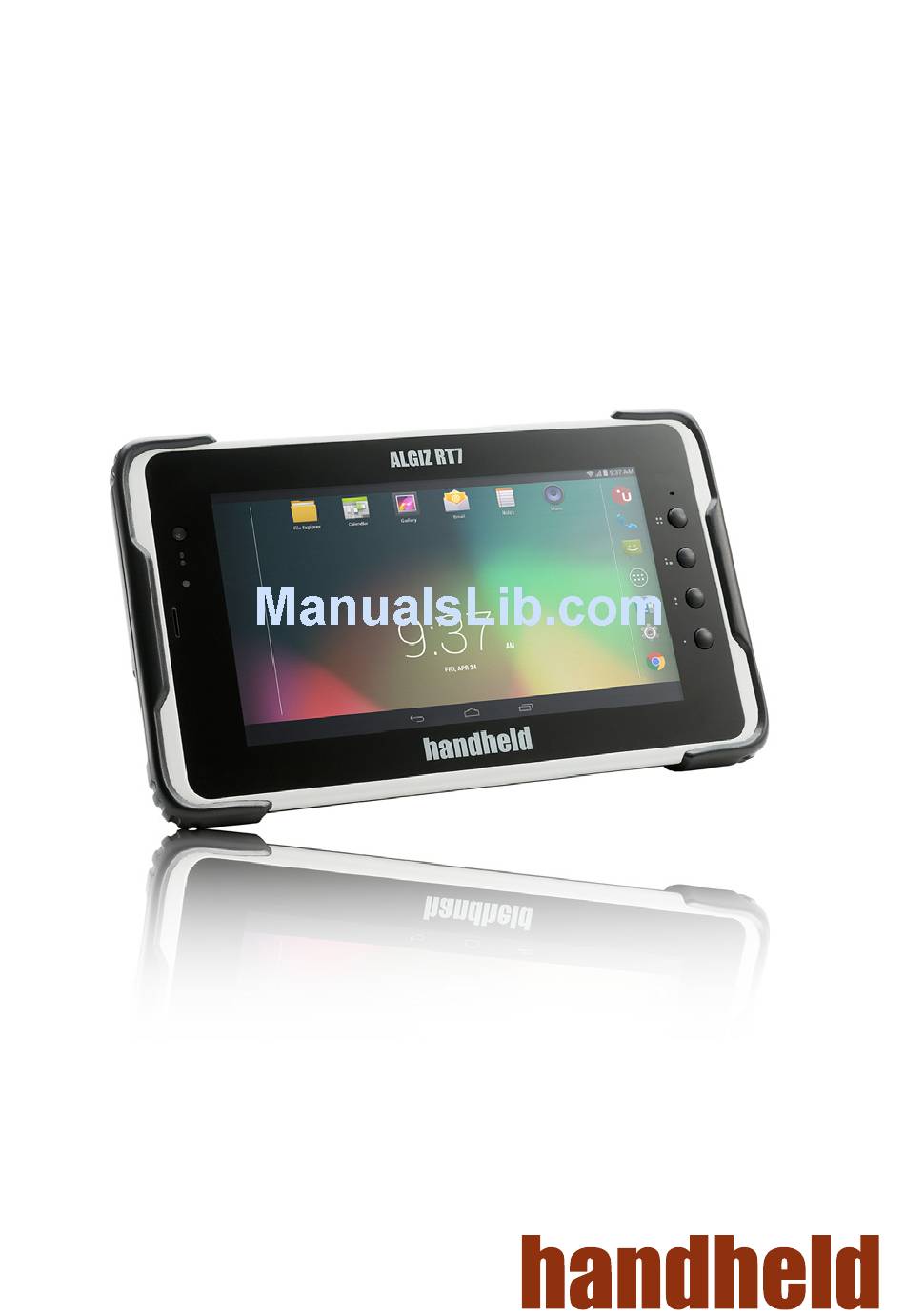

- Page 1 ALGIZ RT 7 QUICK START GUIDE...
-
Page 2: What's In The Box
WHAT’S IN THE BOX The pictures shown below may differ from the actual products. To purchase additional or optional products, contact our customer centre. Algiz RT7 Main Body x 9 pcs Battery Pack Battery Screws Charging Adaptor 3.5mm Barrel Micro USB... - Page 3 YOUR ALGIZ RT7 Barcode Reader Proximity Sensor Light Sensor Receiver Charging LED indicator Front Camera Docking Contact Pins Touch Screen Display Primary Mic Function keys 4pcs Ports Cover LED Flash Rear Camera Power Key Kensington Lock Volume Keys Speaker Secondary Mic...
- Page 4 INSERTING/EXTRACTING SIM/MICRO SD CARD This is how you insert and remove the SIM/ micro SD. SD Card Sim1 Sim2...
-
Page 5: Insert/Remove Battery
INSERT/REMOVE BATTERY To insert the battery 1. Place the battery pack on the back as shown. 2. Using the battery screws (M2 X 5mm) fasten them in position. To remove the battery 1. Power off the device. 2. Open the battery cover by unfastening the screws. -
Page 6: Powering On/Off
POWERING ON/OFF Press the [Power] button on the right side of the device to turn the Algiz RT7 unit on/off. Power Button BATTERY CHARGING Charge the unit for 3 hours before using the device for the rst time. - Page 7 I/0 COMPARTMENT LAYOUT DC Jack Ethernet RJ45 USB A Host 3.5mm Audio Jack (stereo & mic) USB micro Please go to www.handheldgroup.com/knowledgebase to download more information.
