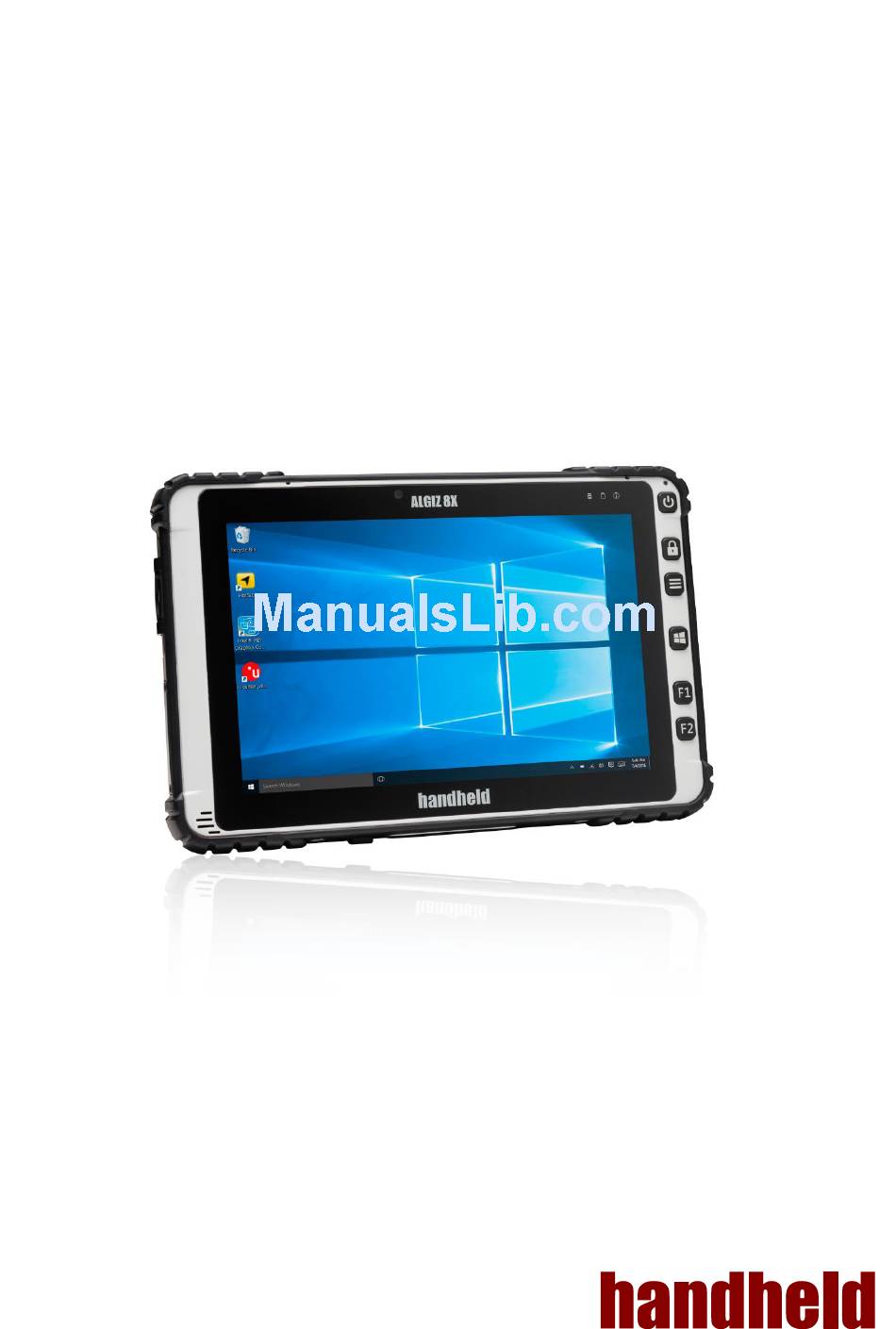

- Page 1 ALGIZ 8X MANUAL...
-
Page 2: Table Of Contents
CONTENT 1. Getting Started ............................... 5 1.1 System Specification ..........................5 1.2 Unpacking ..............................6 1.3 Description Of Parts ..........................7 1.4 Hot Key For Specific Functions ........................ 9 1.5 First-time Operation ..........................10 1.6 Powering On/Off ............................. 11 2. Quick Access through Hottab ........................12 2.1 Hottab Introduction.......................... - Page 3 Handheld Inc. guarantees that all Handheld products will be free including material and workmanship defects for one year from the invoice date. If the customer discovers any defects, Handheld will, at its option, repair or replace the defective product without any charge to customers, and ship the returned product with prepaid transportation charges during the warranty time of one year.
-
Page 4: Safety Precautions
UL-60950 and CAN/CSA C22.2 No. 601.1. Power Supply Announcement The Handheld Rugged Tablet PC Power is supplied by Power Adapter and Battery Pack, the power rating announcement and manufacturer information are listed as below. Power Notice! Please notice that the power code of adapter needs to be connected to the ground (earth). -
Page 5: Getting Started
1. GETTING STARTED 1.1 System Specification System ® ® Processor Intel Pentium Processor N3710 (2M Cache, up to 2.56 GHz) BIOS AMI System BIOS Memory 1 x SODIMM, DDR3L 1600 4GB Storage SATA III 6Gb/s M.2 SSD 128GB Audio Digital Microphone with noise canceling (Internal) 1.5W Speaker (Internal) Display Specification Size... -
Page 6: Unpacking
Unpacking Check and identify the supplied accessories: Tablet Computer Standard Battery Power Adapter Power Cord and Plugs Ver 1.0... -
Page 7: Description Of Parts
1.3 Description Of Parts Front: Left: Item Description Front Camera 2 Megapixel Webcam LED Indicators: Show the current status of the Tablet Computer Front LED Indicators Detail: Touch Screen Display and act as one of the inputs for the Tablet Computer Power Button Power on/off tablet Touch Lock... - Page 8 Rear: Bottom: Item Description Rear Camera 8MP with Autofocus Service Windows For WWAN Card Expansion Port Provide optional connectivity to custom modules for special application. Main Battery Slot For Main Battery pack. MicroSD & Micro Memory card & SIM card reader port SIM Card Port Power Jack DC-IN power input jack...
-
Page 9: Hot Key For Specific Functions
1.4 Hot Key For Specific Functions For the physical buttons on the ALGIZ 8X tablet computer, in addition to their dedicated functions detailed in the previous section, they can also be used to emulate commonly used keyboard key strokes. Under... -
Page 10: First-Time Operation
First-time Operation Inserting Battery Pack To insert the standard battery pack into the Tablet Computer: Disconnect AC adapter and power cord from the tablet computer. Turn the tablet computer over, back facing up. Insert the battery on the connector-pins side first, and then lower the battery into the battery compartment. -
Page 11: Powering On/Off
1.6 Powering On/Off Powering On Press and hold the power button for 3.5 seconds until the blue LED power indicator light up. _________________________________________________________________________________________________________________________________________________ NOTE Do not press the power button repeatedly. Do not perform the following operations until the Disk Activity Indicator off Connecting or disconnecting the AC adapter Pressing the power button Touching the tablet buttons, screen, or external keyboard/mouse... -
Page 12: Quick Access Through Hottab
2. QUICK ACCESS THROUGH HOTTAB 2.1 Hottab Introduction uts, using camera, powering on/off built-in devices, programming function key, and changing power management. As Windows starts up, Hottab starts and runs in the background. To display the Hottab control utility, press (Menu) Button located on the front panel, or launching the Hottab Utility application. -
Page 13: Device On/Off
2.2. Device ON/OFF This section provides a quick access to set-up built-in devices, including turning on/off RF modules, camera module and setting up touch mode. Using the Wireless LAN (Wi-Fi) feature To use the wireless LAN (Wi-Fi) feature to connect to the network, perform the following procedure: Open the Hottab utility by press the (Menu) Button located on the front panel, OR launching the Hottab Utility application. - Page 14 Using the Wireless WAN (3G/LTE) feature Insert SIM card (For Optional 3G/LTE equipped device) CAUTION - Please power off the tablet before installing the 3G/LTE module and Micro SIM card, or the tablet computer might be damaged by the incorrect installation behaviors. The Tablet Computer supports data connection with 3G/LTE modules and fits Micro-SIM card.
- Page 15 Use Wireless WAN Feature For tablets equipped with wireless WAN (3G or 4G/LTE) card, to use the wireless WAN feature to connect to the network, perform the following procedure: Open the Hottab utility by press the (Menu) Button located on the front panel, OR launching the Hottab Utility application.
- Page 16 Using the Bluetooth feature To enable the wireless Bluetooth feature, perform the following procedure: Open the Hottab utility by press the (Menu) Button located on the front panel, OR launching the Hottab Utility application. Tap on the Device button. Check the status color of the Bluetooth icon: Item Status Color Description...
- Page 17 Description of Camera User Interface Buttons: Item Description Review Preview the take picture. Settings Brings up Camera settings page. Available Settings: Photo format: modify/inspect saved location for pictures. Rear Video Resolution: Picture compression quality. File Location: Opens the location where pictures and videos are saved Switch Camera Switches the front or rear camera device.
- Page 18 Turn on/off the GPS Ext. Antenna CAUTION - The vehicle dock of ALGIZ 8X Tablet PC supports external GPS antenna through standard SMA connector. To work with external GPS antenna, please make sure the tablet PC is well installed to vehicle dock, and the vehicle dock has connected with external GPS antenna.
- Page 19 Switch Touch Modes -in operating modes, for users to choose under different usage scenarios: To switch between the different touchscreen modes via the HotTab utility, perform the following procedure: Open the Hottab utility by press the (Menu) Button located on the front panel, OR launching the Hottab Utility application.
- Page 20 Setting This Hottab menu option provides users information such as PC Information, Battery status, and also device settings such as power management setting, and function key mappings. Perform the following procedure to access the Hottab Setting menu: Open the Hottab utility by press the (Menu) Button located on the front panel, OR launching the Hottab Utility application.
- Page 21 Using the physical function keys (Hotkeys) The function key mapping menu option allows user to change the physical function buttons, F1 and F2. Users can change what application will be launched with short press or long press of keys. To configure function key mapping, perform the following: 1.
- Page 22 Adjust the Brightness Level The panel brightness can be adjusted from Hottab menu. To adjust the brightness, perform the following procedure: Open the Hottab utility by press the (Menu) Button located on the front panel, or launching the Hottab Utility application. Tap on the Setting button.
- Page 23 How to disable automatic brightness adjustments For computers with a light sensor, Windows 10 has the ability to automatically adjust the screen brightness depending on the ambient light levels. This feature can be more annoying than helpful, either leaving your screen too dark or frequently adjusting the brightness levels.
- Page 24 Adjust the Volume Level The volume level can be adjusted from Hottab menu. To perform volume adjustment. The adjustment slide bar will appear on screen transparently. Tap on the right side of the bar to increase the volume and Tap on the left side of the bar to decrease the volume .Open the Hottab utility by press the (Menu) Button located on the front panel, or launching the Hottab Utility application.
-
Page 25: Frequently Used Settings
3. FREQUENTLY USED SETTINGS Replacing Hot Swappable Battery The tablet computer supports hot-swa in order to replace the main battery. To support such mechanism, there is a backup battery inside the tablet that is charged up with the main battery. This backup battery cannot be removed, and needs to have adequate power for hot swapping of main battery to be done without issue. -
Page 26: Using Recovery Wizard To Restore Computer
3.2 Using Recovery Wizard to Restore Computer ALGIZ 8X tablet computer has a dedicate recovery partition stored on the hard drive of the tablet to enable quick one-key recovery process. This partition occupies about 11GB of the storage space, and comes built- in to each ALGIZ 8X tablet computer. -
Page 27: Docking Connector Pin Definition
DOCK_PWR DETECT- DOCK_PWR GND_GPS 3.4 Expansion Port Pin Definition ALGIZ 8X tablet computer supports one optional 19-pin expansion port at the rear side. The pin definition is listed as the following table. 19 Pin Docking Connector Pin No. Description Pin No. -
Page 28: Com Port Definition
3.5. COM Port Definition ALGIZ 8X tablet computer uses Hottab utility for built-in peripherals control. All the COM port numbers have been defined in the OS image coming with the package. COM Port Device COM 1 RS232 at I/O COM 2... - Page 29 Tap on "Port Setting" tab and click on "Advanced" button. Tap on the dropdown list and choose the correct COM Port Number (refer to the COM Port Definition Table), and click "OK". Double check "Device Manager" to make sure the COM Port number has been re-defined successfully, and then restart the system.
