NAUTIZ X2
MANUAL
BSR idware GmbH
Jakob-Haringer-Str.3
A-5020 Salzburg
Web: www.bsr.at

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NAUTIZ X2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HandHeld NAUTIZ X2

Summary of Contents for HandHeld NAUTIZ X2

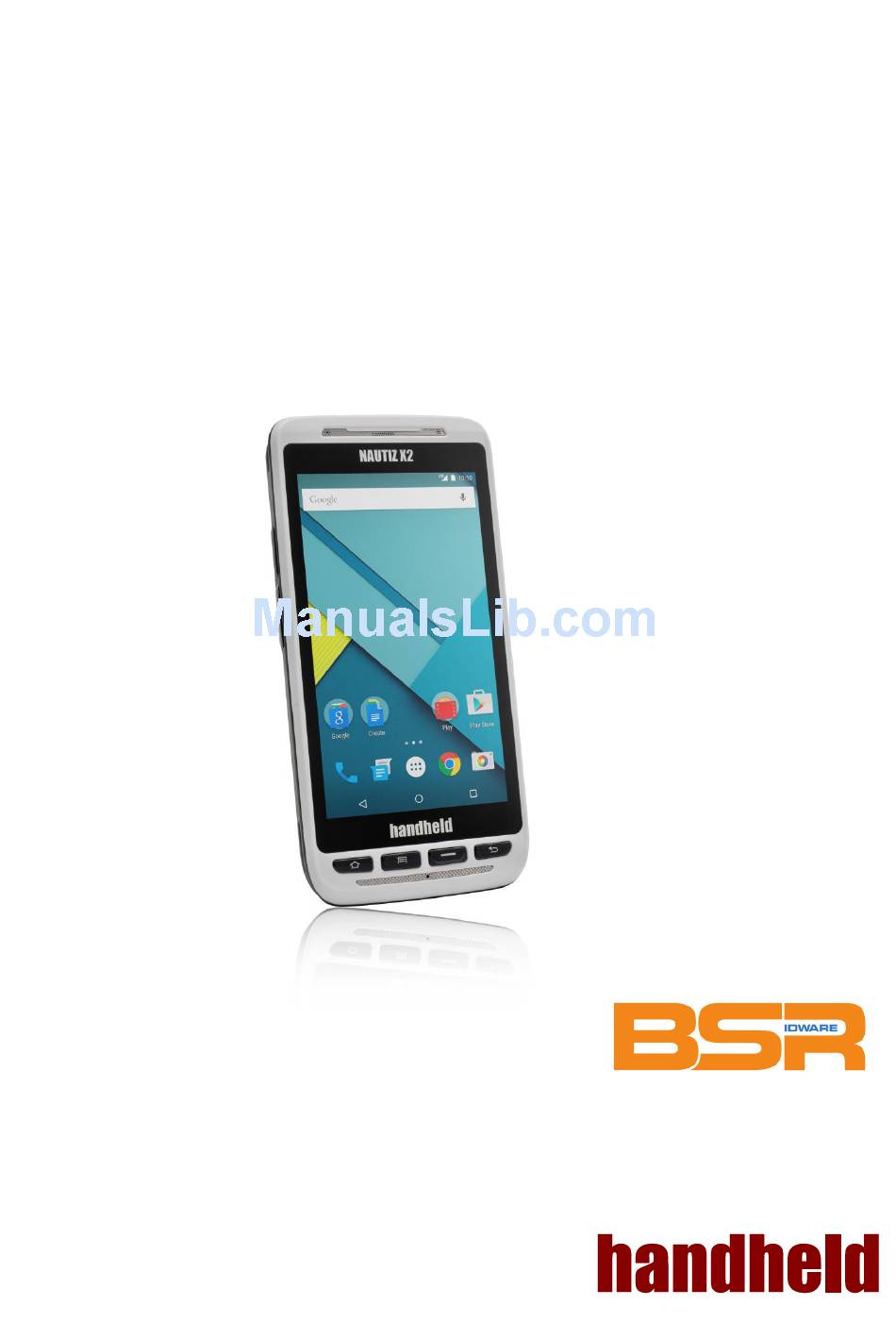

  • Page 1 NAUTIZ X2 MANUAL BSR idware GmbH Jakob-Haringer-Str.3 A-5020 Salzburg Web: www.bsr.at...

  • Page 2: Table Of Contents

    4.1 Wi-Fi Network Connection ............................20 4.2 Bluetooth ................................. 20 4.3 GPS ..................................22 4.4 Connecting the Nautiz X2 to a PC ........................... 22 4.5 Synchronization ............................... 23 5. Enabling the Scan Function ............................24 6. Enabling the NFC Function ............................25 7.
  • Page 3 8.2 Troubleshooting ............................... 29 Appendix ................................... 31 Ver 1.0...

  • Page 4: Introduction

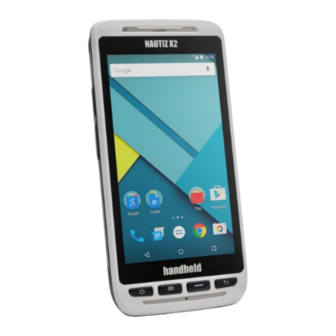

    1. INTRODUCTION 1.1 Appearance of Nautiz X2 FIGURE 1-1 FRONT VIEW OF NAUTIZ X2 FIGURE 1-2 REAR VIEW OF NAUTIZ X2 Ver 1.0...

  • Page 5: Installing The Battery

    1.3 Removing the Battery Push the battery cover lock to the left. Pull up the battery cover from the groove at the upper end of the battery cover. NOTE: The Nautiz X2 adapts integrated design for the battery and battery cover. Ver 1.0...

  • Page 6: Inserting A Sim Card

    1.4 Inserting a SIM Card Insert a SIM card by following the direction in the figure below. NOTE: Micro SIM cards are applicable to the Nautiz X2. After replacing a SIM card, restart the Nautiz X2. 1.5 Inserting a TF Card Push the card cover by following the OPEN direction marked on the card cover.

  • Page 7: Charging

    NOTE: TF cards, namely Micro SD cards, are applicable to the Nautiz X2. After replacing a TF card, restart the Nautiz X2. 1.6 Charging You can charge a battery in the following ways: 1. Bottom charging cable; 2. 1-slot charging & communication stand (to be purchased separately).

  • Page 8: Using The Nautiz X2

    The Nautiz X2 provides a physical keypad that consists of four keys, as shown in the figure below. On the physical keypad of the Nautiz X2, keys are respectively home key, multitask key, scan key, and back key from left to right.

  • Page 9: Home Screen

    2.4 Home Screen By default, the Nautiz X2 has one home screen. You can add home screens by placing applications to the home screen and slide to the left or right to switch to another home screen. On the home screen, click the icon of any application to open the application.

  • Page 10: Status Icons And Indicators

    Multiple notification icons, which are beyond the scope of display Application permission EDGE Connection between USB and PC pea pod NOTE: As software is upgraded continuously, status indicators may be different from those displayed on the Nautiz X2. The actual status indicators prevail. Ver 1.0...

  • Page 11: Basic Settings

    2.6 Basic Settings 2.6.1 Date and Time Settings To change the date and time in the Nautiz X2, do as follows: Find the following icon. Select Settings > Date & time > Set date or Set time. Ver 1.0...

  • Page 12: Display Settings

    2.6.2 Display Settings Find the following icon. 2. Select Settings > Display > Lock screen notification/Wallpaper/Brightness/Auto-rotate screen/Sleep/Interactive screensaver/Font size/Cast screen. Ver 1.0...

  • Page 13: Ringtone Settings

    2.6.3 Ringtone Settings Find the following icon. Select Settings > Audio profiles > General/Silent/Meeting/Outdoor. Click different modes and set the ringtone in the modes. Ver 1.0...

  • Page 14: Security Settings

    2.6.4 Security Settings Find the following icon. Select Settings > Backup & reset > Factory data reset. The Nautiz X2 starts to restore factory settings. If you perform the preceding operation, the following data will be cleared:  Account ...

  • Page 15: Shortcuts

    2.6.7 Widgets You can add widgets such as clock, music player and calendar on the home screen of the Nautiz X2. On the home screen, press and hold a blank space. The entry for setting wallpaper and widgets is displayed. Click a widget and drag it to a blank space.

  • Page 16: Call Function

    3. CALL FUNCTION 3.1 Making a Call Find the following icon. Enter a phone number. To make a call. To terminate the call. Call records Voice call Keypad for dialing Contacts Ver 1.0...

  • Page 17: Contacts

    3.2 Contacts Find the following icon. Click Contacts to open the list of contacts. To add a contact, click -> To import or export contacts, press the menu key and click Import/Export. To edit or delete a contact, select the contact, press the menu key and click Edit/Delete Ver 1.0...

  • Page 18: Sms And Mms

    3.3 SMS and MMS Find the following icon. Click enter a receiver and text to be sent. Click to send the message. On the message editing page, press the menu key, click Add subject to convert the message into a multimedia message.

  • Page 19: Email

    3.4 Email You can send or receive emails. Find the following icon. Enter an email address and password and click Next. Set Inbox checking frequency and click Next. Create a name for the account and click Next. The email receiving page is displayed. To synchronize or delete an account, do as follows: On the home screen, click Settings.

  • Page 20: Network Connection And Connection

    Click to connect the network 4.2 Bluetooth After you enable the Bluetooth function on the Nautiz X2, you can establish wireless connections with other Bluetooth devices such as computers and mobile phones. In the scope without solid obstacles, the effect of Bluetooth connections is good.
  • Page 21 In the dialog box that is displayed, confirm the PIN and click Pair to connect the device. Click to make other devices able to detect the device Click to enable Bluetooth and search for Bluetooth devices 6. Click on the right of a paired device. The Rename, Unpair and Internet access options are displayed. Perform operation as required Ver 1.0...

  • Page 22: Gps

    4.4 Connecting the Nautiz X2 to a PC Connect the Nautiz X2 to a PC by using a USB data cable so that you can transmit and process files such as photo, video and music files between the memory card of the Nautiz X2 and the PC.

  • Page 23: Synchronization

    4.5 Synchronization Find the following icon. Select Settings > Accounts & sync. Click Add account to set a new account. Select Company or Email, enter the email address and password, click Next and wait until the connection is Click Accounts. On the synchronization setting page, perform setting as required. Ver 1.0...

  • Page 24: Enabling The Scan Function

    5. ENABLING THE SCAN FUNCTION Click the iScan icon on the menu page. Click the blue slider on the right of Enable Barcode Scanning to enable the scanning function (if you click the slider again, the scanning function is disabled). Press the front or side scan keys to scan a barcode.

  • Page 25: Enabling The Nfc Function

    Click the slider on the right to enable NFC (if you click the slider again, NFC is disabled). Put an NFC card close to the back of the Nautiz X2. After a beep is heard, the card is read successfully.

  • Page 26: Managing The Nautiz X2

    Download software installation packages, store them on the SD cad and install the software through file manager. Connect the Nautiz X2 to a PC by using a USB data cable and install software for the Nautiz X2 on the PC. 7.2 Uninstalling Applications If too many programs are installed or some programs are unnecessary, uninstall programs to improve the running speed of the Nautiz X2.

  • Page 27: Managing Applications

    7.3 Managing Applications Select Settings > App. On the application management screen, you can view application status in the options such as Downloaded, SD Card and Running, click an application, access the application information screen, and perform operations such as forcibly stopping, uninstalling and stopping an application. Ver 1.0...

  • Page 28: Precautions And Troubleshooting

    Do not try to disassemble the Nautiz X2. Otherwise, the Nautiz X2 may be damaged.  Do not touch the screen surface of the Nautiz X2 by using a pen, a pencil or other sharp articles in case the screen may be scratched.

  • Page 29: Troubleshooting

    Too many applications are Remove applications installed on the Nautiz X2. installed on the Nautiz X2. The scan application is not Load the scan application in the Nautiz X2. loaded. The Nautiz X2 cannot Reading a barcode fails. Check that the barcode is indefective.
  • Page 30 TABLE 8-2 BLUETOOTH TROUBLESHOOTING Fault Cause Solution The Nautiz X2 system is too far Move the Nautiz X2 close to other Bluetooth away from other Bluetooth devices, making the distance between them devices. within 10 meters. The Nautiz X2 cannot...
  • Page 31 Standard battery Power adapter Used to charge the battery. Bottom charging cable USB data cable Used to communicate with the Nautiz X2 or charge the Nautiz X2. Instructions TABLE 2 TECHNICAL SPECIFICATIONS OF THE NAUTIZ X2 Item Nautiz X2 System configuration High-performance quad-core 1.3 GHz processor...
  • Page 32 Item Nautiz X2 Dimensions 150 mm x 73.5 mm x 16 mm (24 mm thick at the head) (L x W x D) Weight 230g (including battery) Communication and transmission Wireless (Network frequency) Wireless 4G: GPRS/ EVDO /WCDMA/ TD-LTE/LTE FDD/CDMA 1X...
  • Page 33 Item Nautiz X2 Scan depth 3.81 cm to 60.98 cm of field Scanning 473 (standard) angle Scanning 10212 times per second (two-way) speed 1D/2D image scanning engine Optical  3 mil resolution Scanning Omni-directional angle Scanning 300 times per second...
  • Page 34 Power Adapter: Manufacturer: SHENZHEN FUJIA APPLIANCE CO.,LTD. Model: FJ-SW1260502000UE Input: AC 100-240V; 50/60Hz;0.4Amax Output: DC5.0V;2000mA Battery: Model: 1ICP9/65/85 Capacity:3300 mAh 12.2Wh Nominal Voltage:DC 3.7V Maximum Charge Voltage:DC 2.4V CE marking: CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
  • Page 35 BSR idware GmbH Jakob-Haringer-Str.3 A-5020 Salzburg Web: www.bsr.at...
