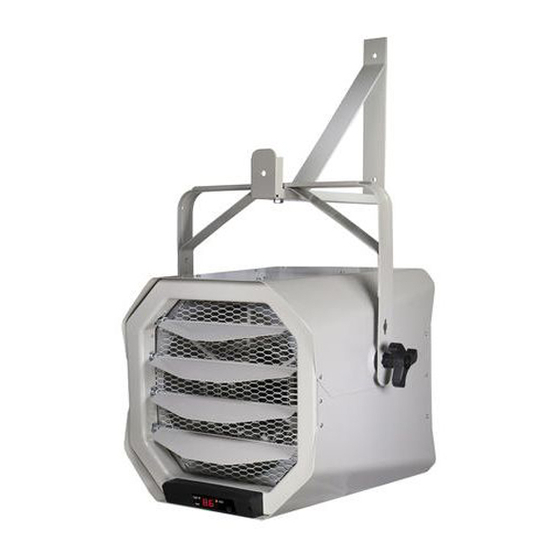

ProFusion PH-9100WRN Owner's Manual

10,000w / 240v wall / ceiling mounted garage heater with electronic controller and remote

Hide thumbs

Table Of Contents

Quick Links

10,000W/240V WALL / CEILING MOUNTED GARAGE HEATER

WITH ELECTRONIC CONTROLLER AND REMOTE

OWNER'S MANUAL

Model No.: PH-9100WRN

10000W 240V60Hz

IMPORTANT INSTRUCTIONS

READ & SAVE

PET OWNERS WARNING:

The health of some small pets including birds are extremely

sensitive to the fumes produced during the first-time use of many

appliances. These fumes are not harmful to humans but we

recommended that you do not use your heater around birds and

small pets during its initial use until the manufacturing corrosion

coatings burn off.

Technical support: 1-866-206-0888

Service email: info@mecanair.net

Table of Contents

Need help?

Do you have a question about the PH-9100WRN and is the answer not in the manual?

Questions and answers

Summary of Contents for ProFusion PH-9100WRN

Page 1: Important Instructions
10,000W/240V WALL / CEILING MOUNTED GARAGE HEATER WITH ELECTRONIC CONTROLLER AND REMOTE OWNER’S MANUAL Model No.: PH-9100WRN 10000W 240V60Hz IMPORTANT INSTRUCTIONS READ & SAVE PET OWNERS WARNING: The health of some small pets including birds are extremely sensitive to the fumes produced during the first-time use of many appliances.
Page 2: Table Of Contents
TABLE OF CONTENTS Important Instructions………………………………………3 Installing Instructions………………………. ………………5 Specifications and Wiring Diagram ……………………….9 Parts of the heater……………………….…………..………10 Operating Instructions……………………….………..…..11 Maintenance and Cleaning………………………………..14 Troubleshooting……………………………………………..15...
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS HEATER NOTE: There may be a trace of smoke or odor when unit is first operated. Don’t be alarmed. This indicates that a drop of oil fell on the heating coil during the manufacturing process. It will quickly evaporate and should not re-occur.
Page 4 8) Do not install less than 6 feet(1.8 m in U.S.A) / 8 feet (2.4 m in Canada) high from the floor and closer than 1 foot (0.3m) to any adjacent vertical surfaces or walls. Keep at least 4.5 inches (11.5cm) from the back wall (with or without using the wall hanging mounting bracket).
Page 5: Installing Instructions
INSTALLING INSTRUCTIONS WARNING: All wiring must be installed by a certified electrician according to the electrical safety. The ceiling heater must be grounded in accordance with all national and local building codes. All wiring procedures and connections shall be in accordance with the national and local codes having jurisdiction.
Page 6 without using the wall hanging mounting bracket). 4. Mark the drill-hole positions on the wall or ceiling for the mounting bracket. 5. Drill the required holes with diameter fit for the anchor provided for positioning the mounting bracket. 6. Insert the anchors. Ceiling Mount Wall Mount 7.
Page 7 12. Insert the bolt provided through the mounting bracket and the heater handle; tighten with the nut and washer. Ceiling Mount Wall Mount 13. Loosen the screw to remove the inspection window cover in the rear of the heater. 14.Run the electrical power supply cable in flexible conduit and connect to the wiring compartment via the knock-out at back side of the unit.
Page 8 thermostat wire to the Terminal A inside the heater, make sure to tighten the screws in the Terminal A. 18. Replace the wiring compartment/connection cover and lock in place with the screw.
Page 9: Specifications And Wiring Diagram
SPECIFICATIONS 10,000W/240V WALL / CEILING MOUNTED GARAGE HEATER WITH ELECTRONIC CONTROLLER AND REMOTE Model: PH-9100WRN Voltage: 240 V Watts: 10000 W Frequency: 60 Hz Recommended Heating Capacity: 1.25watts / ft³ (0.03m³) Wiring diagram: PH-9100WRN Digital Circuit Diagram...
Page 10: Parts Of The Heater
PARTS OF THE HEATER Wall Mount Bracket Inside/Wall Ceiling Bracket Thermostat Switch C. Upper Housing Control panel D. Louver for air direction Alarm LED Tilt adjustable knob Power LED Lower Housing M. Timer LED G. Front Exhaust Grill N. Heat LED H.
Page 11: Operating Instructions
OPERATING INSTRUCTIONS WARNING - The heater must be properly installed before it is used. HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH:  Apply appropriate personal protective equipment (PPE) and follow safe electrical work practices. See NFPA 70.  A circuit breaker must be installed and serviced only by a qualified electrical personnel.
Page 12 DO NOT MIX OLD AND NEW BATTERIES! DO NOT MIX ALKALINE, STANDARD (CARBON-ZINC) OR RECHARGEABLE (NICKEL-CADMIUM) BATTERIES!  TURNING THE HEATER ON To turn the heater ON, press the ON/OFF rock switch to ON position, the power LED will turn on and display the room temperature.
Page 13  SETTING THE TIMER Press the TIMER button until Set Time starts flashing. The default value is 3 hours. Press the“+”button to increase the set time or the “–” button to decrease the set time. The timer can be set from 1 to 12 hours. The timer will set and execute after the LED display stops flashing.
Page 14: Maintenance And Cleaning
MAINTENCE AND CLEANING There is no user maintenance part except regular cleaning as following description. All other servicing or maintenance should be performed by qualified service personnel. Before any cleaning, make sure that: 1. Disconnect power supply at source. Switch off the circuit breaker.
Page 15: Troubleshooting
TROUBLESHOOTING If your heater fails to operate, please follow these procedures: This heater is intended to be a ceiling-mounted heater. It has a thermal cut-off protection. If the thermal cut-off protection trips, then, switch off the power. Switch off the circuit breaker. The unit should reset automatically after 10 minutes.
Page 16 PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE HEATER YOURSELF. DOING SO COULD CAUSE DAMAGE OR PERSONAL INJURY.
