Page 1: Important Instructions

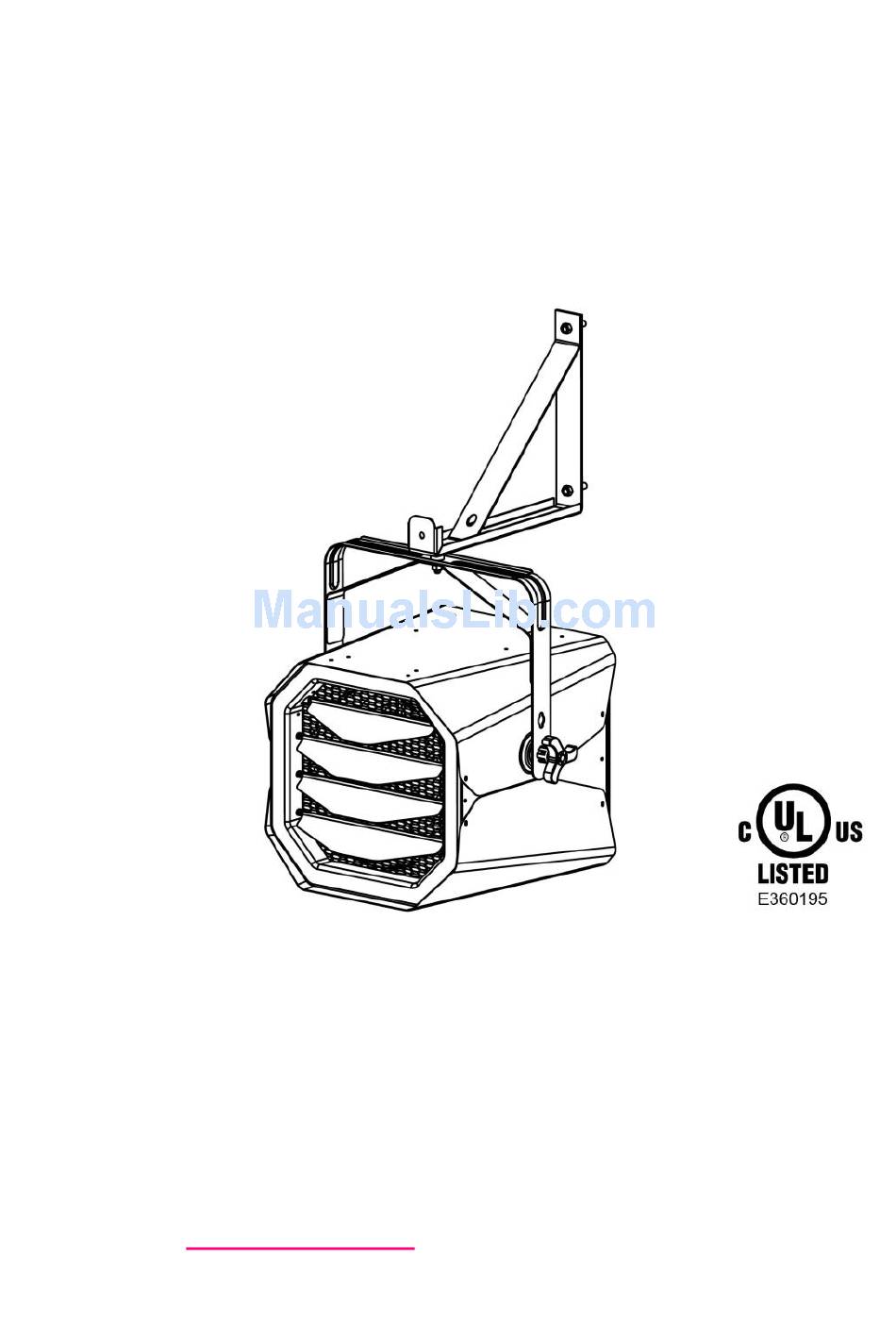

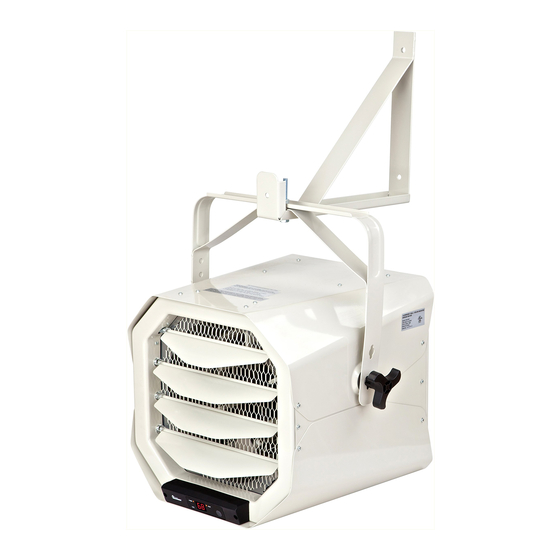

10,000W 240V Ceiling/Wall Garage Heater OWNER’S MANUAL Model No.: PH-9100WN 10000W 240V 60Hz 7500W 208V 60Hz IMPORTANT INSTRUCTIONS READ & SAVE Technical support: 1-866-206-0888 Service email: info@mecanair.net... -
Page 2: Table Of Contents
TABLE OF CONTENTS Important Instructions……………………………………… Specifications and Wiring Diagram………………………. 5 Parts of the heater ……………………….………………… 6 Installing Instructions……………………….……………… 7-10 Operating Instructions……………………….…………..Maintenance and Cleaning………………………………. Troubleshooting……………………………………………. -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS HEATER NOTE: There may be a trace of smoke or odor when unit is first operated. Don’t be alarmed. This indicates that a drop of oil fell on the heating coil during the manufacturing process. It will quickly evaporate and should not re-occur. -
Page 4: Save These Instructions
11) A heater has hot and arcing or sparking parts inside. To reduce the risk of fire, do not use it in areas where gasoline, paint, or flammable vapors and liquids are used or stored. 12) Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. -
Page 5: Specifications And Wiring Diagram
SPECIFICATIONS 10,000W 240V Ceiling/Wall Garage Heater Model : PH-9100WN Voltage : 1-Phase 208 / 240 V Watts: 7500 / 10000 W Frequency: 60 Hz Recommended Heating Capacity: 1.25 watts / ft3 (0.03m3) Wiring diagram:... -
Page 6: Parts Of The Heater
PARTS OF THE HEATER Wall Mount Bracket Ceiling Bracket C. Upper Housing D. Louver for air direction Tilt adjustable knob Down Housing G. Front Exhaust Grill H. ON/OFF Switch... -
Page 7: Installing Instructions
INSTALLING INSTRUCTIONS WARNING: All wiring must be installed by a certified electrician according to the electrical safety. The ceiling heater must be grounded in accordance with all national and local building codes. All Wiring procedures and connections shall be in accordance with the national and local codes having jurisdiction. - Page 8 5. Drill the required holes with diameter fit for the anchor provided for positioning the mounting bracket. 6. Insert the anchors. Wall Mount Ceiling Mount 7. Attach the mounting bracket to the wall and secure with mounting screws. 8. Loose the tilt adjustment knobs, remove the cart. 9.
- Page 9 Wall Mount Ceiling Mount 13. Loosen the screw to remove the small cover in the rear of the heater. 14. Run the electrical power supply cable in conduit. 15. Secure the conduit to the back plate via the knock-out hole. 16.
- Page 10 plastic electrical tape. The grounding conductor is spliced in the same manner. 17. And after making the connections, arrange the pigtail leads of unit and power supply wires in the wiring compartment. 18. Replace the wiring cover and lock in place with the screw. 19.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS WARNING - The heater must be properly installed before it is used. HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH : Apply appropriate personal protective equipment (PPE) and follow safe electrical workpractices. See NFPA 70E. A circuit breaker must be installed and serviced only by qualified electrical personnel. -
Page 12: Maintenance And Cleaning
MAINTENCE AND CLEANING INSTRUCTIONS(separate page) There is no user maintenance part except regular cleaning as following description. All other servicing or maintenance should be performed by qualified service personnel. Before any cleaning, make sure that: 1. Disconnect power supply at source. Switch off the circuit breaker. -
Page 13: Troubleshooting
TROUBLESHOOTING If your heater fails to operate, please follow these procedures: This heater is intended to be a ceiling-mounted heater. It has a thermal cut-off protection. If the thermal cut-off protection trips, then, switch off the power. Switch off the circuit breaker.The unit should reset automatically after 10 minutes.
