Summary of Contents for ProFusion PS-10241

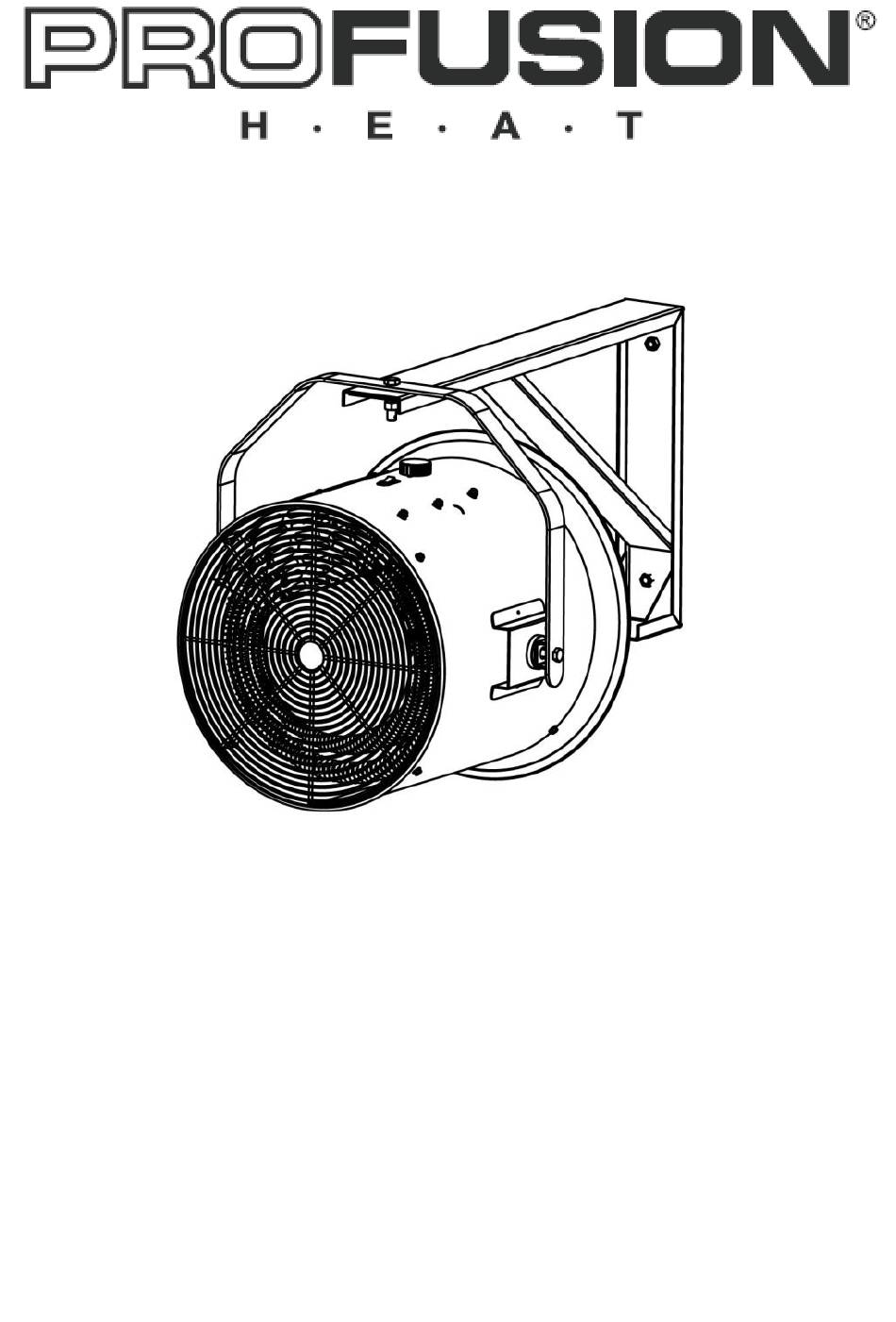

- Page 1 Wall-Mounted Salamander Heater OWNER’S MANUAL PS-10241WP 10KW 240V 60Hz 1P PS-30483W 30KW 480V 60Hz 3P IMPORTANT INSTRUCTIONS READ & SAVE Technical support: 1-866-206-0888 Service email: info@mecanair.net...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Instructions………………………………………3-4 Specifications and Wiring Diagram………………………5-7 Parts of the heater ……………………….………………….8 Installing Instructions……………………….…………..….9-11 Operating Instructions……………………….………..…..12 Maintenance and Cleaning…………………………………13 Warranty Information ……………………………………….13... -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS HEATER NOTE: There may be a trace of smoke or odor when unit is first operated. Don’t be alarmed. This indicates that a drop of oil fell on the heating coil during the manufacturing process. It will quickly evaporate and should not re-occur. - Page 4 any adjacent vertical surface. Keep at least 4.5 inches (11.5cm) from the back wall (with or without using the wall hanging mounting bracket). 9) Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
-
Page 5: Specifications And Wiring Diagram
SPECIFICATIONS Wall-Mounted Salamander Heater Model: PS-10241 MANUFACTURER No.: PS-10241WP Volt: 240 V, 1P Watts: 10KW Frequency: 60 Hz Wiring diagram:... - Page 6 Model: PS-30483 MANUFACTURER No.: PS-30483W Volt: 480 V, 3P Watts: 30KW Frequency: 60 Hz Wiring diagram:...
- Page 7 Wiring Instruction For 3 Phase Model: PS-30483 Open the cover. After connection. L1 (Live Wire1 White) L2 (Live Wire2 Black) L3 (Live Wire3 Red) Earth Wire...
-
Page 8: Parts Of The Heater
PARTS OF THE HEATER Wall Mount Bracket Hanger C. Heater Housing D. Front Exhaust Grill ON/OFF Switch Temperature Setting Knob... -
Page 9: Installing Instructions
INSTALLING INSTRUCTIONS WARNING: All wiring must be installed by a certified electrician according to the electrical safety. The heater must be grounded in accordance with all national and local building codes. All Wiring procedures and connections shall be in accordance with the national and local codes having jurisdiction. - Page 10 8. Hook the heater to the hanger with two hexagon head screws and rubber pads, tighten the screws. 9. Insert the hexagon head screw through the hanger and the mounting bracket, tighten the nut.
- Page 11 10. Run the electrical power supply cable in flexible conduit and connect to the wiring compartment 12. Make the connections properly with connectors which are suitable for the conductor size, including grounding wirings. And after making the connections, arrange the pigtail leads of unit and power supply wires in the wiring compartment.
-
Page 12: Operating Instructions
OPERATING INSTRUCTIONS WARNING - The heater must be properly installed before it is used. HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH : Apply appropriate personal protective equipment (PPE) and follow safe electrical work practices. See NFPA 70E. A circuit breaker must be installed and serviced only by qualified electrical personnel. -
Page 13: Maintenance And Cleaning
WARRANTY INFORMATION This product carries a one (1) year warranty against defects in workmanship and materials. Profusion Heat agrees to replace a defective product, within the stated warranty period, when returned to the place of purchase with proof of purchase. This product is not...
