6000W 240V CEILING-MOUT/WALL-MOUNT GARAGE HEATER OWNER’S MANUAL Model: PH-960 IMPORTANT INSTRUCTIONS READ & SAVE Technical Support: 1-866-206-0888...
Page 2
TABLE OF CONTENTS Important Instructions………………………………………. 3 Specifications and Wiring Diagram………………………. 4 Parts of the heater ……………………….………………… 5 Installing Instructions……………………….…………..… 5-6 Operating Instructions……………………….………..…… 7 Maintenance and Cleaning………………………………. Troubleshooting…………………………………………….
IMPORTANT INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS HEATER NOTE: There may be a trace of smoke or odor when unit is first operated. Don’t be alarmed. This indicates that a drop of oil fell on the heating coil during the manufacturing process. It will quickly evaporate and should not re-occur.
Page 4
SPECIFICATIONS Wall / Ceiling Mount Heater Model : PH-960 Volt: 240 V Watts: 6000 W Frequency: 60 Hz BTU/h: 20472 Recommended Heating Capacity: 1.25 watts / ft³ (0.03m³) Wiring diagram: PH-960...
Page 5

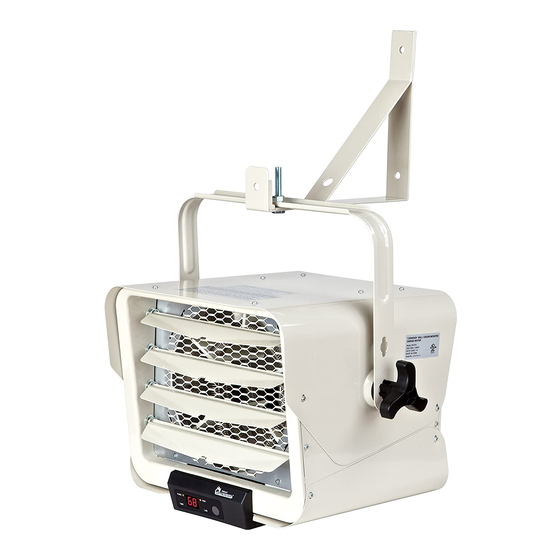

PARTS OF THE HEATER Upper Enclosure Tilt adjustable knob C. Front Exhaust Grill D. Louver for air direction Control panel Power Indicator G. Alarm LED H. Rocker Switch (High/Low select) Temperature Setting Knob INSTALLING INSTRUCTIONS WARNING: All wiring must be installed by a certified electrician according to the electrical safety. The ceiling heater must be grounded in accordance with all national and local building codes.
Page 6
CAUTION : High temperature, risk of fire, keep electrical cords, drapery, furnishings, and other combustibles at least 3 feet (0.9 m) from the front of the heater and away from the side and rear. WARNING: To reduce the risk of fire, do not store or use gasoline or other flammable vapors and liquids in the vicinity of the heater.
Page 7
11. Run the electrical power supply cable in flexible conduit and connect to the wiring compartment via the knock-out at back side of the unit. 12. Make the connections properly with connectors which are suitable for the conductor size, in cluding grounding wirings.
Page 8
MAINTENCE AND CLEANING INSTRUCTIONS(separate page) There is no user maintenance part except regular cleaning as following description. All other servicing or maintenance should be performed by qualified service personnel. Before any cleaning, make sure that: 1. Disconnect power supply at source. Switch off the circuit breaker. 2.
