3.2.2

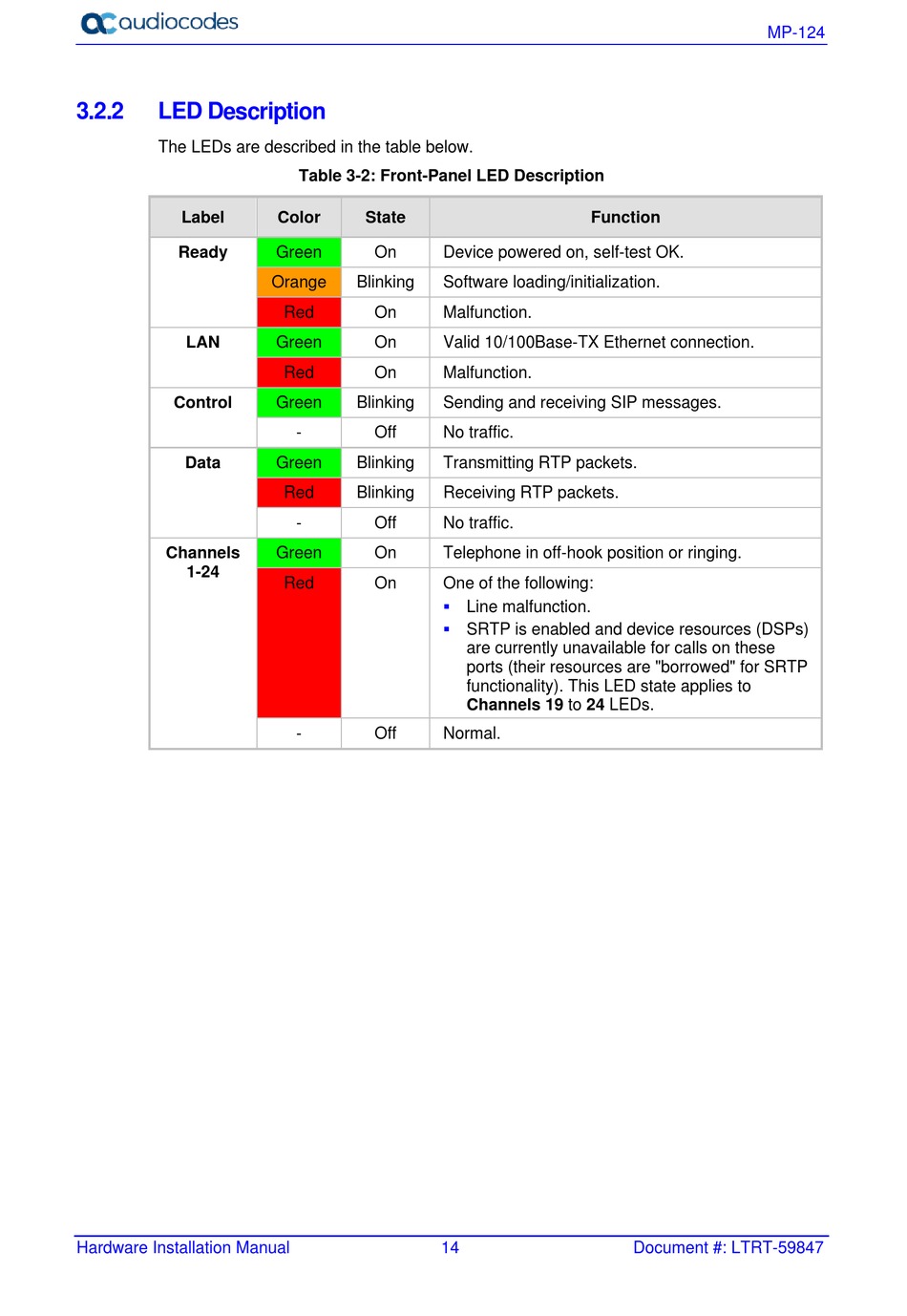

LED Description

The LEDs are described in the table below.
Label
Ready
LAN
Control
Data
Channels
1-24
Hardware Installation Manual

Table 3-2: Front-Panel LED Description

Color State
Green On
Orange Blinking
Red On
Green On
Red On
Green Blinking
- Off
Green Blinking
Red Blinking
- Off
Green On
Red On
- Off
14
Function
Device powered on, self-test OK.
Software loading/initialization.
Malfunction.
Valid 10/100Base-TX Ethernet connection.
Malfunction.
Sending and receiving SIP messages.
No traffic.
Transmitting RTP packets.
Receiving RTP packets.
No traffic.
Telephone in off-hook position or ringing.
One of the following:

Line malfunction.

SRTP is enabled and device resources (DSPs)
are currently unavailable for calls on these
ports (their resources are "borrowed" for SRTP
functionality). This LED state applies to
Channels 19 to 24 LEDs.
Normal.
MP-124
