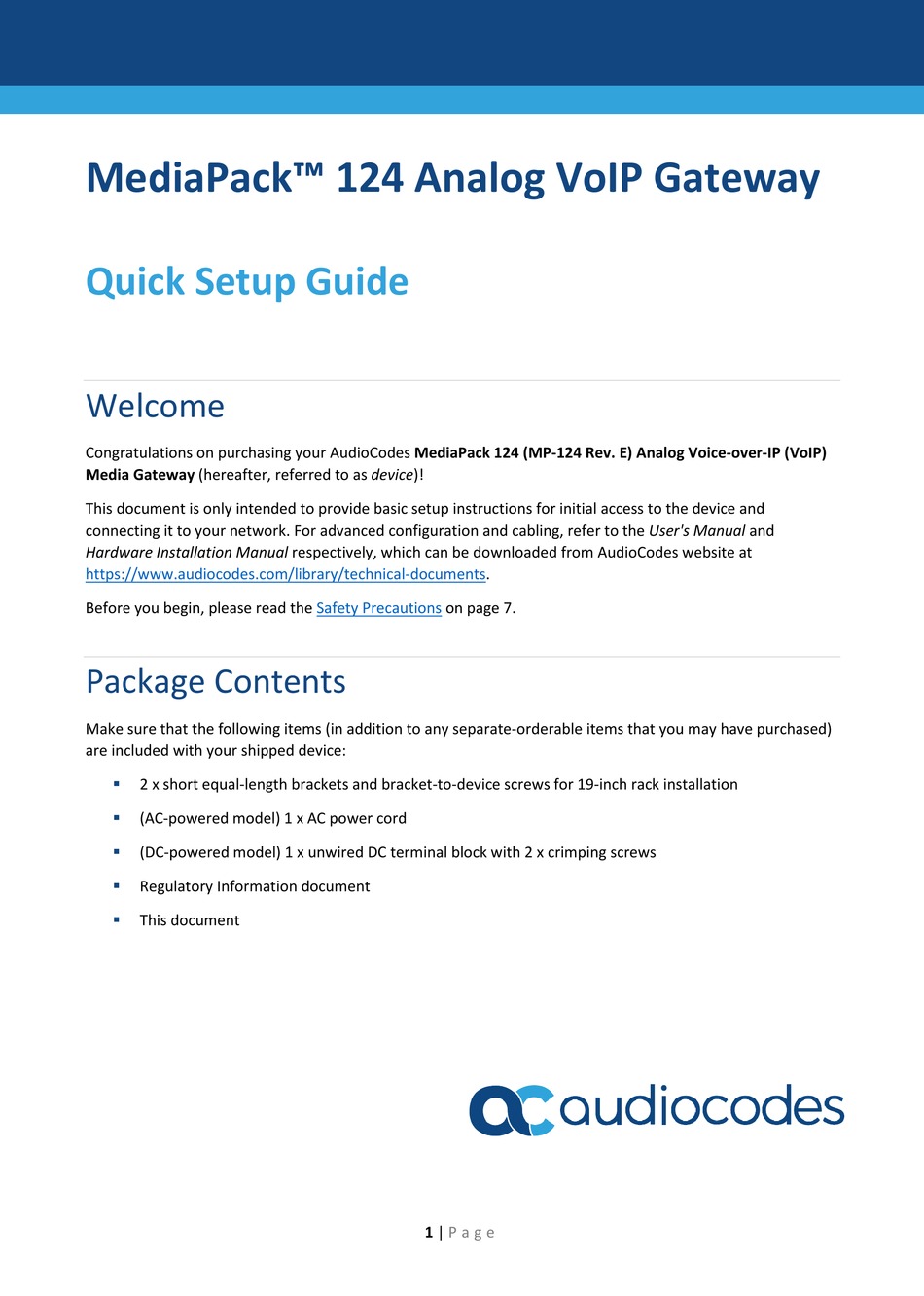

MediaPack™ 124 Analog VoIP Gateway
Quick Setup Guide

Welcome

Congratulations on purchasing your AudioCodes MediaPack 124 (MP-124 Rev. E) Analog Voice-over-IP (VoIP)
Media Gateway (hereafter, referred to as device)!
This document is only intended to provide basic setup instructions for initial access to the device and
connecting it to your network. For advanced configuration and cabling, refer to the User's Manual and
Hardware Installation Manual respectively, which can be downloaded from AudioCodes website at
https://www.audiocodes.com/library/technical-documents.
Before you begin, please read the

Package Contents

Make sure that the following items (in addition to any separate-orderable items that you may have purchased)
are included with your shipped device:
2 x short equal-length brackets and bracket-to-device screws for 19-inch rack installation
(AC-powered model) 1 x AC power cord
(DC-powered model) 1 x unwired DC terminal block with 2 x crimping screws
Regulatory Information document
This document
Safety Precautions
on page 7.
1 |
P a g e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MediaPack 124 and is the answer not in the manual?

Questions and answers

Related Manuals for AudioCodes MediaPack 124

Summary of Contents for AudioCodes MediaPack 124

  • Page 1: Package Contents

    Quick Setup Guide Welcome Congratulations on purchasing your AudioCodes MediaPack 124 (MP-124 Rev. E) Analog Voice-over-IP (VoIP) Media Gateway (hereafter, referred to as device)! This document is only intended to provide basic setup instructions for initial access to the device and connecting it to your network.

  • Page 2: Physical Description

    Physical Description MP-124 with AC Power MP-124 with DC Power Protective earthing screw (mandatory for all installations). Accepts a 6-32 UNC screw. (AC) AC power plug entry or DC inlet for terminal block (depending on ordered model). 100-240V Ready LED (located on front panel): 50 –...

  • Page 3: Mounting The Device

    The Reset pinhole button, located on the front panel, resets the device or restores it to factory defaults. To restore the device to factory defaults: Disconnect the Ethernet cable and then with a paper clip or any other similar pointed object, press and hold down the button for at least 12 seconds, but no more than 25 seconds. Mounting the Device You can mount the device in a standard 19-inch rack, using the two mounting brackets (supplied) which you first need to attach to the sides of the chassis.
  • Page 4 Cabling the Device for Power Depending on ordered model, your device can be powered either from a standard alternating current (AC) electrical wall outlet or a -48V DC power source. Warning: • The device must always be grounded. If the FXS wires exit the building, they must be surge protected using gas discharge arrestors. For more •...
  • Page 5 Assigning an IP Address to the Device Use the device's factory default IP address (10.1.10.10/16 and Default Gateway 0.0.0.0) to initially access the device's Web-based management interface and then change the IP address to suit your network's addressing scheme for subsequent connectivity. Using a crossover RJ-45 Ethernet cable, connect the device's Ethernet port that is located on the rear panel and labeled ETHERNET, to the LAN port of your computer.
  • Page 6 Open the IP Settings table (Configuration tab > VoIP menu > Network > IP Interfaces Table). Modify the IP address to suit your network addressing scheme: In the 'IP Address' field, enter the new IPv4 IP address in dotted-decimal notation. ...

  • Page 7: Safety Precautions

    Safety Precautions This device is an indoor unit and therefore, must not be installed outdoors.  Ethernet cabling must be routed only indoors and must not exit the building.  The device must be installed and serviced only by qualified service personnel. ...
  • Page 8 Website: https://www.audiocodes.com/ ©2019 AudioCodes Ltd. All rights reserved. AudioCodes, AC, HD VoIP, HD VoIP Sounds Better, IPmedia, Mediant, MediaPack, What’s Inside Matters, OSN, SmartTAP, User Management Pack, VMAS, VoIPerfect, VoIPerfectHD, Your Gateway To VoIP, 3GX, VocaNom, AudioCodes One Voice and CloudBond are trademarks or registered trademarks of AudioCodes Limited. All other products or trademarks are property of their respective owners.
