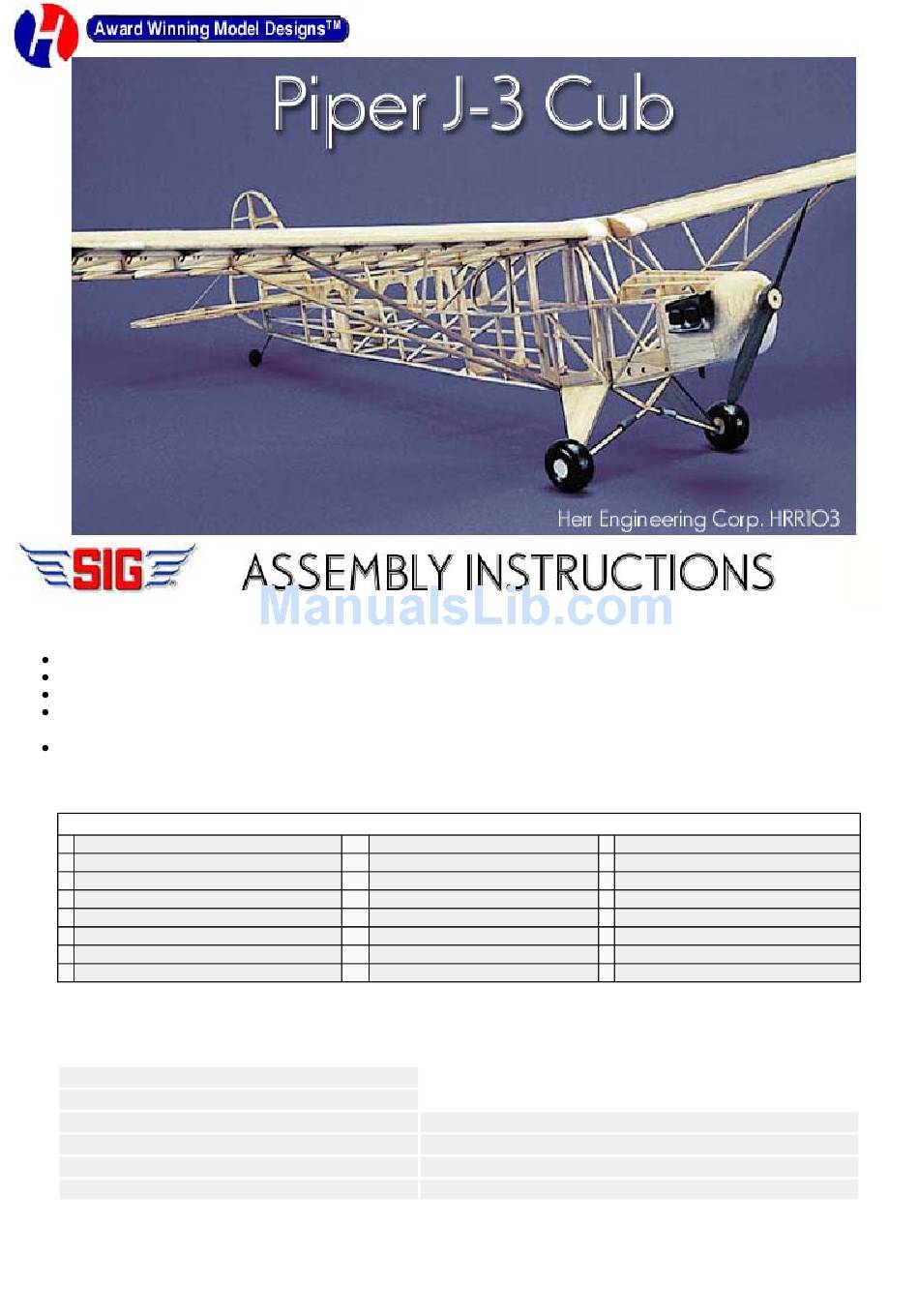

GENERAL INFORMATION
All of the parts on the plan are identified by a number or a letter.
Parts identified by a number are laser cut parts.
Parts identified by a letter are stripwood pieces that you cut and fit on assembly.
The slight discoloration of the edges of the laser cut parts may be removed by lightly sanding them with 400 grit
sandpaper.
The assembly of this model begins by building the fuselage side frames and then parts are added or assembled in
numerical order.
Your kit contains the following parts. Please check your kit for any missing or damaged parts before starting construction.
1 Plan Sheet #1
3 Yellow Tissue
1 15" Thread
8 1/16"sq.x18" Balsa Strip
1 3/16"x1 3/4" Dowel
1 Propeller Shaft
2 1/4"x1/2" Black Rubber Tube
1 3/16"x60" Rubber Strip
Tools and Building Supplies
You will need the following items to assemble this model. You must read and follow all of the manufactures
instructions provided with these items!
-Glue
-Cutting Tools
-Clear Dope, Thinner & paint brush
-Straight Pins
-Needle nose pliers
-1/4" Drill Bit
COMPLETE KIT PARTS LIST
1
Plan Sheet #2
1
1/16"x12" Music Wire
2
1/ 8"x4" Solder
12 3/32"sq.x18" Balsa Strip
1
Instruction Manual
2
Brass Thrust Washers
2
1/16"x1/16" Plastic Tube
15 Laser Cut Sheets
CA, White Glue, Sigment or Ambroid all work well.
A single edge razor blade can be used for all of the cutting.
-200, 320 and 400 sandpaper
-Wax Paper
-Crayon or Candle
-Building Board
1 Decal Sheet
1 Tail Wheel Assembly
3 3 1/4"x6" Window Material
2 1/8"sq.x18" Balsa Strip
1 9" Plastic Propeller
1 Plastic Propeller Bearing
1 6" Copper Wire
