Santec SNC-637ID User Manual

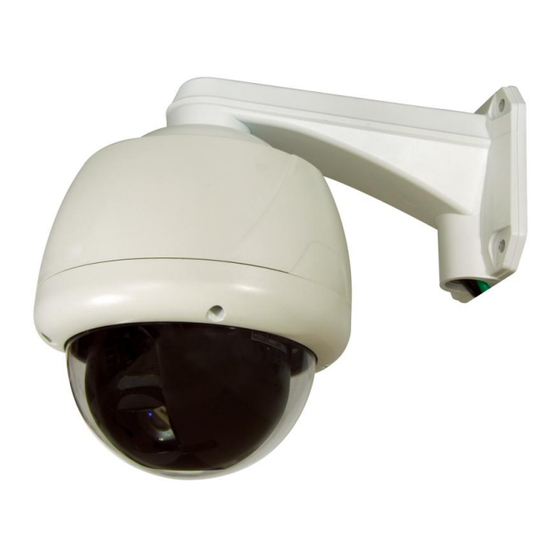

Ip day/night ptz camera in weather-proof housing
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
IP day/night PTZ camera
in weather-proof housing
Model:
SNC-637ID
Version 1.0sfi/0511/engl/A6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNC-637ID and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Santec SNC-637ID

Summary of Contents for Santec SNC-637ID

  • Page 1 USER MANUAL IP day/night PTZ camera in weather-proof housing Model: SNC-637ID Version 1.0sfi/0511/engl/A6...

  • Page 2: Dear Customer

    Please follow all instructions and observe the warnings contained in this manual. Please contact your local dealer or use the SANTEC Service Hotline if you have any questions or if you wish to claim for a service or warranty.
  • Page 3 User manual SNC-637ID Safety precautions Caution Description of symbols Danger: This symbol is intended to alert the user to the presence of un-insulated "dangerous voltage" within the product‟s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to a person.

  • Page 4: Safety Instructions

    User manual SNC-637ID Safety instructions Before operating the appliance, please read this manual carefully and retain it for further reference. Before cleaning the appliance, it has to be switched off and unplugged from the power outlet. Wipe the appliance with a soft damp cloth.
  • Page 5 About this user manual This manual aims at assisting the user on how to operate camera SNC-637ID. This manual is subject to rigid quality control. However, no guarantee can be given that mistakes are not present. We reserve the right to make changes to the manual without prior notice.
  • Page 6 User manual SNC-637ID 1. FEATURE Package 1x camera SNC-637ID 1x SanView Lite software 1x audio cable 1x I/O cable 1x user manual Dimension and Connector Description 1.2.1 Dimensions 118.6 4- 8 All dimensions in mm. _________________________________________________________________________________ - 6 -...
  • Page 7 User manual SNC-637ID 1.2.2 Connector Description Sensor I/O Port (No Network support) DC 12V Power Input : The SNC-637ID Camera has a port that can output DC12V for the analog camera module. Digital Output Digital Input Video Output : The SNC-637ID Camera supports one analog video out of composite signal with BNC connector.
  • Page 8 2. INSTALLATION 2.1 Installation It explains under the condition of using Static IP between User s PC and the SNC-637ID. To install, the SNC-637ID should connect to the PC directly or to Local Network. 1) Connect the SNC-637ID to the PC by LAN cable (Cross Cable)
  • Page 9 User Password Rights guest guest Monitor only admin 9999 All Function Above [Table 2-1] is the value basically set in SNC-637ID. Change the User Information in General Setting of 4. Expert Setting after installation of SNC-637ID. _________________________________________________________________________________ - 9 -...
  • Page 10 User manual SNC-637ID Click (1) after input ID:root, Password:root in [2-4]. Message Window [2-4] appear soon, click Yes . If click No , Web Viewer doesn t work. . Upon installation, Web Viewer [Pic. 2-5] appear and image of Camera is to be seen.
  • Page 11 User manual SNC-637ID DIP Switch Setup Before installing the camera, set up the DIP switch to configure the camera ID and the communication protocol.  Camera ID Setup  ID numbers of cameras are set up with binary numbers. See the examples shown below.
  • Page 12 User manual SNC-637ID  Communication Protocol Setup  Select an appropriate Protocol with the DIP switch combination. Switch Mode Protocol (Pin 1) (Pin 2) (Pin 3) PELCO-D, 2400 bps PELCO-D, 9600 bps PELCO-P, 4800 bps PELCO-P, 9600 bps Others Reserved ...

  • Page 13: Basic Setting

    SNC-637ID without IP sharing Device under Cable Modem or Leased Line, the other one is to install SNC-637ID under IP sharing Device , which is required necessarily under PPPoE environment, and even under Leased Line or Cable Modem. The default IP Address of SNC-637ID is preset to 192.168.1.168 and Subnet Mask to...
  • Page 14 Pic. 3 1 Main Page of SNC-637ID Network Camera 5) Put admin in ID and Password line, click Login , then [3-1] Administrator's Page will be shown. (ID, Password of SNC-637ID is presetas admin/9999 in Administrator s Page. Change Administrator s ID and Password in General Setting of 4.
  • Page 15 Pic. 3 3 WAN Setting In WAN Setting of [3-4], and input IP Address, Subnet Mask, Gateway, HTTP Port according to Network environment to connected SNC-637ID to. For setting of DNS , input DNS Address to fit with Network Environment to set. Use DNS value normally set in PC.
  • Page 16 Set up IP Address, Subnet Mask and Gate way of PC according to Network environment. Check  Run WebBrowser on PC, input IP address set in SNC-637ID onto URLand click Enter ,  Check if IP Setting is correct or not, referring to Video Check ...

  • Page 17: Installation With Ip Sharing Device (Router)

    3.3 Installation with IP Sharing Device (Router) 1) After checking Video in 2. Installand Video Check , then go to the next step. 2) Connect SNC-637ID and PC with LAN Cable (Cross Cable). 3) Cable Connection and Network Setting should be done same as per Install and Video Check .
  • Page 18 Pic. 3 6 IP Change It is connected to IP newly set up, in 20 seconds after window. 10) Check Video of SNC-637ID referring to 2. Install and Video Check as soon as it is connected to IP newly set up.

  • Page 19: Expert Setting

    User manual SNC-637ID 4. Expert Setting After registration of SNC-637ID in Service Server (refer to Use of Service Server of 5. Basic Use ,connect to SNC-637ID by Domain Name (Server Name) allocated to SNC-637ID. (For example, run Web Browser and input Domain Name allocated to SNC-637ID in URL. In http://speco4u.net, SNC-637ID is to be Name of Server registered in Service Server by...
  • Page 20 User manual SNC-637ID Pic. 4 3 Administrator s Page _________________________________________________________________________________ - 20 -...

  • Page 21: System Setting

    User manual SNC-637ID 4.1 System Setting 4.1.1. Date and Time Setting Pic. 4―3 Date and Time Setting 1) The Local Time: Shows time in the Network Camera. 2) The Desired Time: You can change the time in the Network camera in one of the following ways: ...

  • Page 22: Time Stamp

    User manual SNC-637ID 4.1.2. Time Stamp Pic. 4―4 Timestamp Select Enable Date and Time stamp check box to activate the function. From the Date and Time stamp format drop-down list, select one of the following modes to specify the date format: ...

  • Page 23: User Setting

    User manual SNC-637ID 4.1.3. User Setting ※ Cautions : Change Administrator s ID and Password and do not disclose the information to others. Remember Administrator s ID and Password. In case of forgetting Administrator s ID and Password, click reset button of to return to initial value, and change Administrator s ID and Password.

  • Page 24: Language Setting

    4.1.4 Language Setting This is to select language to be displayed in all Web Pages such as Administrator‟s Page and Main Page of SNC-637ID. Pic. 4―6 Language Setting Click „Submit‟ Button to save the set value after select the Language.

  • Page 25: Ptz Setting

    User manual SNC-637ID 4.1.5 PTZ Setting Pic. 4―7 PTZ Setting 1) Enter the following:  Using direction button, move the point what you would like to set Preset.  Choose Preset No. and click „SET‟ button to save the preset.
  • Page 26 User manual SNC-637ID 4.1.6 Device Name Pic. 4―8 Device Name 3) Enter the following:  You can change camera name.  Please input new camera name 4) Click Submit to submit the new Device Name. 4.1.7 Update Firmware Pic. 4―9 Update Firmware 1) Click Browse icon next to the text box, select ramdisk_xxx.gz or uImage_xxx files that...

  • Page 27: Network Setting

    User manual SNC-637ID 4.2 Network Setting This is to set Network to use SNC-637ID. Set Network to fit user‟s network environment in „3. Basic Setting ‟. Change Network information to fit environment for SNC-637ID to be installed in. 4.2.1 Setting SNTP Pic.
  • Page 28 User manual SNC-637ID 4.2.2. FTP Setting Pic. 4―11 FTP Setting 1) Enter the following:  FTP Server: Type the required FTP server domain name.  Port: Type the FTP network port number.  User Name: Type the required FTP login user name. A warning message is displayed, if the data is not provided.
  • Page 29 User manual SNC-637ID 4.2.3 SMTP Setting Pic. 4―12 SMTP Setting 1) Enter the following:  Select My Server Requires Authentication check box to activate the function.  Account Name: Type the required account name.  Password: Type the password. ...
  • Page 30 User manual SNC-637ID 4.2.4 DDNS Setting Pic. 4―13 DDNS Setting 1) Enter the following:  Select Enable DDNS Function check box to activate the function.  DDNS Host Name: Type the required host name.(support „dyndns.org‟)  DDNS Account: Type the required Account name.
  • Page 31 User manual SNC-637ID 4.2.5 Event Log Pic. 4―14 Event Log 1) You can select the following options:  First Page: Displays the first page.  Previous 20: Displays the previous 20 pages.  Next 20: Displays the next 20 pages.
  • Page 32 User manual SNC-637ID 4.3. Video Setting 4.3.1. Video Setting Pic. 4―15 Video Setting 1) Enter the following image settings:  Camera Name: Type the camera title.  Video Codec: Select the required codec. The options available are:  JPEG+MPEG4  MPEG4+MPEG4 ...
  • Page 33 User manual SNC-637ID 4.3.2. Camera Setting Pic. 4―16 Camera Setting 1) Enter the following details of the device:  Brightness: Select the required brightness level that ranges from 0 to 255. A brighter scene appears, if you choose higher level of brightness.
  • Page 34 User manual SNC-637ID 4.5 Advanced Setting 4.5.1 Motion detection Pic. 4―17 Motion Detection 1) Drag the left mouse button on the targeted image to draw a red rectangle 2) Right-click to see a popup-menu. Select Save setting. 3) Enter the following motion detection option: ...
  • Page 35 User manual SNC-637ID 4.5.2 Alarm Setting Pic. 4―18 Digital I/O Setting 1) For Digital Input, select one of the following options:  ON: Corresponds to the ALM-IN connector.  OFF: Corresponds to the ALM-IN connector is shut down. 2) For Digital Output, select one of the following options: ...
  • Page 36 User manual SNC-637ID 4.5.3 Enable record Pic. 4―19 Enable Record You can select the following:  Schedeul Record – Upload via FTP: Activates or deactivates the recording to the FTP server.  Alarm Record – Upload via FTP: Activates or deactivates the recording to the FTP server.
  • Page 37 User manual SNC-637ID 4.5.4. Schedule Setting Pic. 4―20 Schedule Setting 1) You can select any/all of the seven checkboxes boxes set vertically in to enable/disable the programmed recording function, and vary the day and time of the targeted item while it is enabled.
  • Page 38 User manual SNC-637ID 4.6.4. Video File Pic. 4―21 Video File Enter the following:  Duration: From the drop-down list, select the length of an AVI file.  AVI Format: From the drop-down list, select the record file format. The following options are available: ...
  • Page 39 User manual SNC-637ID 5. Basic Use 5.1. Use of web viewer Pic. 0 4 Web Viewer _________________________________________________________________________________ - 39 -...
  • Page 40 User manual SNC-637ID Table. 0-1 Definition of Web Viewer Button Function Display Screen Size to be reduced by 50%. Display Screen 100%. Double-clicking mouse on enlarged screen has the same function. Control P/T/Z Control speed of P/T/Z „S‟ is slow. „F‟ is fast...
  • Page 41 Click IP Find Button to find IP of SNC-637ID on local Network. Pic. 0 6 Display IP The following window shows list of IP along with Web Server Port Number and Model Name of SNC-637ID. Click IP Find Button to find IP of SNC-637ID on local Network. _________________________________________________________________________________ - 41 -...
  • Page 42 Input new IP Address, Default Gateway, Subnet Mask, and then input Password of SNC- 637ID Administrator and click IP Change , to set up new IP of SNC-637ID. Upon completion of setting, find new IP and click Ping to check whether setting is done, and close the program by clicking End button.
  • Page 43 User manual SNC-637ID OSD Setting SETUP MENU LENS option ●DC ●MANUAL SHUTTER ●OFF ●F/L ●MANUAL WHITE BALANCE ●ATW ●AWC MANUAL● BACKLIGHT ●OFF ●LOW ●MIDDLE ●HIGH ●OFF ●ON ●OFF ●LOW ●MIDDLE ●HIGH SENSE UP ●AUTO ●OFF SPECIAL ●CAMERA ID ●COLOR ●SYNC ●MOTION DET ●PRIVACY ●MIRROR...
  • Page 44 User manual SNC-637ID 5.4.1 OSD Menu Setting 1. OSD Display Action Title Preset Label LABEL12345 PRESET1 Alarm Information I:-2- O:1 Camera ID CAM 1 15/4/x1/N P/T/Z Information  P/T/Z Information Displays the amount of pan from zero degree vertical, the amount of tilt from zero degree horizontal and current compass direction.
  • Page 45 User manual SNC-637ID 2. Quick Programming Guide  The menu items with < > always have sub-menus.  To go to submenus or make the cursor move to the right, press NEAR key.  To go to the previous-upper level menus, press FAR key.
  • Page 46 User manual SNC-637ID 4. Display Setup DISPLAY SETUP Display setup allows you to program how labels are displayed ------------------------ on the monitor. In case of AUTO, the labels are displayed on the CAMERA ID monitor when there are any changes in...
  • Page 47 User manual SNC-637ID  Compass Direction Setup Move the camera to a target position and press NEAR button SET NORTH DIRECTION ------------------------ to save the direction as North. The direction is the reference direction to assign other compass directions. MOVE TO TARGET POSITION...
  • Page 48 User manual SNC-637ID  Privacy Zone Mask Area Setup Move your camera to an area to mask. Then a mask and the EDIT MASK 1 ------------------------ menu to adjust the mask size will be displayed. MOVE TO TARGET POSITION [NEAR:SELECT/FAR:CANCEL] ...
  • Page 49 User manual SNC-637ID 6. Camera Setup Sets the general functions of zoom camera module. ZOOM CAMERA SETUP ------------------------ FOCUS MODE SEMIAUTO  Focus Mode [AUTO/MANUAL/SEMIAUTO] DIGITAL ZOOM IMAGE FLIP Sets camera Focus mode. SHARPNESS  SEMIAUTO Mode STABILIZATION <WHITE BALANCE SETUP>...
  • Page 50 User manual SNC-637ID  White Balance Setup  WB Mode [AUTO/MANUAL]  Stabilization [ON/OFF] WB SETUP - GLOBAL Retains color balance over color ------------------------ 10 model does not support this function. temperature range. In auto mode, this feature WB MODE...
  • Page 51 User manual SNC-637ID  Auto Exposure Setup  Backlight [OFF/WDR/BLC/HLC] or [OFF/BLC/HLC] AE SETUP - GLOBAL ------------------------ or [ON/OFF] BACKLIGHT DAY/NIGHT AUTO Sets Backlight Compensation. If a bright BRIGHTNESS backlight is present, the subjects in the IRIS AUTO picture may appear dark or as a silhouette.
  • Page 52 User manual SNC-637ID  IRIS [AUTO/MANUAL(F1.6~F28)] or [AUTO/MANUAL(0~100)] Sets Iris to operate automatically or at a user- defined level. If Iris is set to Auto, Iris has higher priority in adjusting AE and Shutter Speed is fixed. Auto iris is the lens function that automatically opens closes the iris in response to changing light conditions.
  • Page 53 User manual SNC-637ID  WDR (Wide Dynamic Range) Setup 10 model does not support this function. ------------------------ LIMIT MIDDLE  Limit [LOW/MIDDLE/HIGH] LEVEL  Level [0~100] BACK EXIT  HLC (High Light Compensation) Setup 10 model does not support this function.
  • Page 54 User manual SNC-637ID 6. Motion Setup Sets the general functions of Pan/Tilt motions. MOTION SETUP ------------------------  Motion MOTION LOCK [ON/OFF] PWR UP ACTION Lock If Motion Lock is set to ON, it is impossibletoset AUTO FLIP JOG MAX SPEED...
  • Page 55 User manual SNC-637ID  Parking Action Setup This feature allows the camera to begin a specified action after a PARKING ACTION SETUP ------------------------ programmed time of inactivity. PARK ENABLE WAIT TIME 00:10:00 PARK ACTION HOME  Park Enable [ON/OFF] If Park Enable is set to ON, the camera runs an assigned function automatically if there is no PTZ command during the programmed "Wait Time".
  • Page 56 User manual SNC-637ID  Alarm Input Setup Defines Alarm Function. When an alarm is receive, an input ALARM INPUT SETUP ------------------------ signal to the camera triggers the user-defined action programmed ALARM NO. for the alarm. TYPE N.OPEN  Alarm No...
  • Page 57 User manual SNC-637ID 7. Preset Setup  Preset [1~128] PRESET SETUP ------------------------ Number Selects a preset number to set up. If a PRESET NO. selected preset is already defined, the CLR PRESET CANCEL <EDIT SCENE> camera moves to the pre-defined position <EDIT LABEL>...
  • Page 58 User manual SNC-637ID  Preset Scene Setup Use the Joystick to move the camera to a desired EDIT SCENE - PRESET 1 ------------------------ position. Save the preset position by pressing NEAR key. Press FAR key to cancel targeting the preset position.
  • Page 59 User manual SNC-637ID 8. Swing Setup  Swing [1~8] SWING SETUP ------------------------ Number Selects a Swing number to edit. If the selected SWING NO. 1ST POS. NOT USED Swing is not defined, "NOT USED" is displayed in 2ND POS. NOT USED the 1st Position and the 2nd Position.
  • Page 60 User manual SNC-637ID 9. Pattern Setup  Pattern Number [1~4 ] PATTERN SETUP ------------------------ Selects a Pattern number to edit. PATTERN NO. UNDEFINED If the selected pattern number is not CLR PATTERN CANCEL RUN PATTERN defined, "UNDEFINED" will be displayed <EDIT PATTERN>...
  • Page 61 User manual SNC-637ID 10. Group Setup  Group Number [1~8] GROUP SETUP ------------------------ Selects a Group number to edit. GROUP NO. UNDEFINED If the selected Group number is not CLEAR GROUP CANCEL defined, "UNDEFINED" will be displayed RUN GROUP <EDIT GROUP>...
  • Page 62 User manual SNC-637ID EDIT GROUP 1 ------------------------ NO ACTION ### DWELL OPT ------------------------ 1 PRESET 1 00:03 360 2 NONE 3 NONE 4 NONE 5 NONE ------------------------ SAVE [NEAR:EDIT ACT] CANCEL [FAR :EDIT END] ⑥ After finishing setting up, press FAR key to exit. Then the EDIT GROUP 1 cursor will move to “SAVE”.
  • Page 63 User manual SNC-637ID 11. System Initialization  Clear All Data Deletes all configuration data and the system is SYSTEM INITIALIZE ------------------------ set to the factory default. CLEAR ALL DATA CLR DISPLAY SET  Clear Display Set Initializes all the configuration data for Display.
  • Page 64 User manual SNC-637ID APPENDIX Specification Network Spec. Video Compression Compression MPEG4 / MJPEG Full D1 (720x480 in NTSC, 720x576 in PAL) Resolution Half D1 (720x240 inNTSC, 720x288 in PAL) CIF (352 x 240 in NTSC, 352x288 in PAL) Bit Rate...
  • Page 65 User manual SNC-637ID * Camera Spec. 360 (Endless) Movement Range Tilt Preset 360 /sec. 0.05 ~ 360 /sec. (Proportional to Zoom) Speed Swing 1~ 180 /sec. Preset 127 Presets (Label, Independent Camera Parameter Setting) Pattern 4 Patterns [1200 Commands(Approx. 5 Minute) / Pattern]...
  • Page 66 User manual SNC-637ID _________________________________________________________________________________ - 66 -...
  • Page 67 User manual SNC-637ID Your local distributor: __________________________________________________________________________ www.santec-video.com _________________________________________________________________________________ - 67 -...
