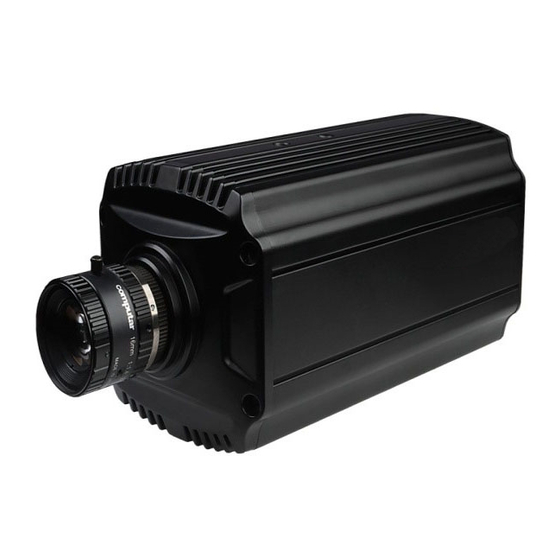

Santec ip camera for car plate recognition
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
SANTEC IP CAMERA FOR
CAR PLATE RECOGNITION
Model:
SNC-CPR-01
Version 1.0cko/0117/engl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNC-CPR-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Santec SNC-CPR-01

Summary of Contents for Santec SNC-CPR-01

  • Page 1 User Manual SANTEC IP CAMERA FOR CAR PLATE RECOGNITION Model: SNC-CPR-01 Version 1.0cko/0117/engl...
  • Page 2 Please follow all instructions and observe the warnings contained in this manual. Please contact your local dealer or SANTEC directly if you have any questions or if you wish to claim for a service or warranty. You will find further information on our website: www.santec-video.com...

  • Page 3: Table Of Contents

    Table of Contents Safety precautions ......................iii Caution ......................iii Description of symbols ..................iii 1.2.1 CE compliance ................... iii 1.2.2 Important: Legal note .................. iii Safety instructions ..................... iv About this user manual ....................vii Main Device Instructions ..................... viii Technical Drawing ..................
  • Page 4 Camera ......................27 7.2.1 Attribute ....................27 7.2.2 Video ......................30 Network ......................34 7.3.1 TCP/IP ...................... 34 7.3.2 ONVIF ....................... 35 7.3.3 IP Filter ..................... 36 Event ....................... 38 7.4.1 Alarm ......................38 7.4.2 Abnormity ....................38 Storage ......................41 7.5.1 Point ......................

  • Page 5: Safety Precautions

    This appliance complies with the CE guidelines. If you require an EC Declaration of Conformity for this device, please send a request to: support@santec-video.com Attention: Any changes or modifications to this appliance, which have not been explicitly approved of by the respective regulatory authority, may lead to a prohibition of usage of this appliance.

  • Page 6: Safety Instructions

    1.3 Safety instructions Before operating the appliance, please read this manual carefully and retain it for further reference. Before cleaning the appliance, it has to be switched off and unplugged from the power outlet. Wipe the appliance with a soft damp cloth. Do not use harsh cleansers or aerosols for cleaning.
  • Page 7 Route power cords and cables in a manner to protect them from damage by being walked on or pinched by items places upon or against them. For protection of the appliance during a lightning storm or when it is left unattended and unused for a longer period, unplug the appliance from the wall outlet.
  • Page 8 Please respect the local legal regulations on waste if you need to dispose of discarded appliances. This symbol means that electrical appliances need to be disposed of properly and not simply with unsorted household refuse. Please respect local regulations on waste disposal.

  • Page 9: About This User Manual

    2 About this user manual This manual aims at assisting the user on how to operate the described cameras. This manual is subject to rigid quality control. However, no guarantee can be given that mistakes are not present. We reserve the right to make changes to the manual without prior notice. Before operating the appliance, please read this manual carefully and retain it for further reference.

  • Page 10: Main Device Instructions

    3 Main Device Instructions 3.1 Technical Drawing All dimensions in mm. Figure 1 Front / Lens mount Figure 2 Side view viii...

  • Page 11: Rear Panel

    3.2 Rear Panel Figure 3 Rear Panel...

  • Page 12: Rear Panel Port Description

    3.2.1 Rear Panel Port description Port Name Port Function It’s used for the installation of SD card. SD card instructions: When installing SD card, please make sure that SD card is in write protection status and then insert it into the SD card port. SD card port When removing the SD card, please make sure that SD card is not in the read-write status,...
  • Page 13 Port Name Port Function default settings. DC 12V Power supply interface, input 12V DC. F1+、 F1-、 F2+、 F2-、 F3+、 F3-、 Switching value. It can separately configure flash F4+、 F4-、 7-ch output port output signals and strobes flash output signal. F5+、 F5-、 F6+、...

  • Page 14: Web

    4 Web The device supports device access and management via WEB on PC. Note: Interface and settings here are for reference only. 4.1 First Time Log in Open IE and input HD intelligent traffic camera IP address in the address column. For example, if your IP is 192.168.1.108, then please input http:// 192.168.1.108 in IE address column.
  • Page 15 After installation, the interface is shown as below. See Figure 4-3. 1) Please input your user name and password. Default factory name is admin and password is admin. 2) Follow system instructions to change password, and click OK. Note: For security reasons, please modify your password after you first login. You can go to Setup >System >Account >User Name to change password of default users.

  • Page 16: Non-First Time Login

    4.2 Non-first Time Login 1. Open IE and input HD intelligent traffic camera IP address in the address column. 2. Please input your user name and password. 3. Click “Login”. 4.3 System Menu System menu is shown as in Figure 4-5. Figure 4-5 System Menu Function Installation debugging, adjust video and image window, record video and image,...

  • Page 17: Preview

    5 Preview Click Live tab, system will show Live page. Here you can view live video, image, snapshot, record and etc. See Figure 5-1. Figure 5-1 Live There are five sections:  Section 1: Video bit stream bar  Section 2: Preview window switch ...

  • Page 18: Video Bit Stream Bar

    5.1 Video Bit Stream Bar The video bit stream bar interface is shown as in Figure 5-2. Figure 5-2 Video Bit Stream Bar Please refer to the following sheet for detailed information. Parameter Function You can use main stream to record video record, network Main stream monitor function under normal network environment.
  • Page 19 Figure 5-4 Large Window Icon Name Note Original size Original size and best-bit size switch. Click switch to original size. Image adjustment Display image adjustment window. Click then off image adjustment. Chart 5-1 Click on the right. See Figure 5-5 Adjusting Window. Figure 5-5 Adjusting Window...

  • Page 20: Common Function Bar

    Note:  All the operations here apply to WEB end only. Please go to “Setup->Camera->Attributes” to set.  Please refer to the following sheet for detailed information. Parameter Function It is to adjust monitor video brightness. Video setup It is to adjust monitor video contrast. It is to adjust monitor video hue.

  • Page 21: Monitor Window Switch

    Icon Name Note Partial Zoon Click this key, in video window, drag mouse to any area, the area will be zoomed in. Right click select exit or left click to exit. Snapshot Click it, snapshot picture from video stream, and save to set path.

  • Page 22: Query

    6 Query 6.1 Picture Query 6.1.1 SD Picture Click query button, you can see an interface is shown as in Figure 6-1 SD Picture Query. Click Open Local, select picture you want to verify and click Water Verify, then you can view the result.

  • Page 23: Picture Attribute

    Step 1. Enter parameter of query picture, click Search. In file list it shows all matched picture files. Step 2. Select picture you want, click Download. Step 3. In pop-up box, set picture storage path and the system starts to download picture to local PC.

  • Page 24: Pc Picture

    6.1.3 PC Picture Select Query >Picture Query >PC Picture, check whether picture has been modified via watermark. Figure 6-3 Step 1. Click Open Local, select folder of picture you want to verify. Step 2. Select picture. Step 3. Click Water Verify, see results in list. You can click Open or double click picture to preview.

  • Page 25: Record Query

    6.2 Record Query 6.2.1 Record Click Query >Record Query >Record, you can see an interface is shown as in Figure 6-4 Record Query. Figure 6-4 Record Query Click Open Record, select record path, click Open to view record. Icon Name Note When it shows , means pause or play record.

  • Page 26: Water Mark

    Chart 6-3 6.2.2 Water Mark Note: Before user can use this function, he/she must enable water mark in Setup>Camera>Video, and set watermark content. Default watermark is :DigitalCCTV. Select Query >Record Query >Water Mark, system shows progress of verifying and normal watermark.

  • Page 27: Configure

    7 Configure 7.1 ITC 7.1.1 Lane Property Figure 6 7.1.2 Traffic Flow You can setup the expected period of traffic, to optimize the algorithm. The sum of vehicles in period should be set for the numbers of lanes you selected. Figure 7...

  • Page 28: Snapshot

    7.1.3 Snapshot 7.1.3.1 Snapshot The snapshot interface is shown as in Figure 7-8 Snapshot. Figure 7-8 Snapshot Please refer to the following sheet for detailed information. Parameter Note Work mode Mix/Video Auto Coil(Radar)/Video Coil：force to coil snapshot  Manual Video：force to video snapshot ...

  • Page 30: Intelligence

    7.1.4 Intelligence 7.1.4.1 RS485/IO The intelligence default interface is shown as in Figure 3-4. Figure 7-9 RS485/IO Step 1. Check Start Coil IO. Step 2. Select coil 1 trigger mode.  No trigger: not trigger snapshot.  Rise edge: trigger snapshot when vehicle exits coil. ...
  • Page 31 7.1.4.2 Radar Enable Radar and configureate the COM SET, based on Radar-Types setup. Figure 10: Intelligent – Radar...
  • Page 32 7.1.4.3 Video Analysis 7.1.4.3.1 Video Analysis – Scene Setup Figure 11: Intelligent – Video Analyse – Scene Setup Step 1. Add Lane to table Step 2. Add Region for recognition Step 3. Add Lane line – Lane should be fit to devices you want to recognize, not to street. Step 4.
  • Page 33 7.1.4.3.2 Video Analysis – Speed Measuring Figure 12: Intelligent – Video Analyse – Speed Measuring Set distances and height as exactly as possible to get a good result.
  • Page 34 7.1.4.3.3 Video Analysis - Recognition The video analyse interface is shown as in Figure 7-13 . Figure 7-13 Recognition  Set pixel range for plate recognition.  Enable image enhance. Please refer to the following sheet for log parameter information. Parameter Function Vehicle Sign...
  • Page 35 Non-Motor Select this parameter to snapshot non-motorized devices. Category Unlicensed motor Select this parameter to snapshot unlicensed motors. category Head Mode Analyse Mode Tail Mode Head Prior Mode Tail Prior Mode 7.1.4.3.4 Intelligent Analyse – Video Analyse - Advance Config Figure 7-14 Parameter Note...

  • Page 36: Osd Config

    7.1.5 OSD Config 7.1.5.1 Video OSD Step 1. Select Setup >ITC >OSD Config >Video OSD. Figure 7-15 Step 2. Select font size and solution. Set OSD font. Step 3. Set channel title and location. a) Select channel title. b) Check Turn on. c) Input channel name.
  • Page 37 d) Use the mouse to drag the yellow box or change the regional point coordinates, select the time the title of the position. e) Click Save. Step 5. You can click to add customized region, define OSD info. The system supports up to 3 customized regions. Step 6.
  • Page 38  Set OSD info font size and font plan. At the lower right corner, you can set snapshot OSD info font color.  Click More, to pop up new line and OSD separator. According to actual need, check new line, and set OSD info separator.

  • Page 39: Extra Device

    7.1.6 Extra Device Light (485) Config Set external light work parameter. See Figure 7-18. Figure 7-18 Parameter Note Select work mode, include： Off：NO light off  Work Mode Always：NO light on  Auto：auto enable NO light according to time or brightness. ...

  • Page 40: Intelligence Default

    7.1.7 Intelligence Default The intelligence default interface is shown as in Figure 7-19 Intelligence Default. Click on default to restore default settings. Note: You cannot restore IP address and other network info. Figure 7-19 Intelligence Default 7.2 Camera 7.2.1 Attribute 7.2.1.1 General The general interface is shown as in Figure 7-20.
  • Page 41 Please refer to the following sheet for log parameter information. Parameter Function The value adjusts brightness of full image. Default value is 50. The higher the Brightness value, the brighter the image. When image is too bright or too dark, you may adjust this value.
  • Page 42 7.2.1.2 Shutter The shutter interface is shown as in Figure 7-21 Shutter. Figure 7-21 Shutter There are two shutter modes: Video Shutter Snap Shutter Please refer to the following sheet for log parameter information. Parameter Function Shutter mode Select: single shutter. Video Tridim (3D) Check Enable to enable 3D NR.

  • Page 43: Video

    Reduces the brightness of highlighted areas, increases the brightness of low-light areas, and makes areas of highlights and low-light areas clearer. The larger the value, the higher the wide dynamic level. Exposure mode Select exposure mode: auto and manual. You can set manual exposure mode as 1/50～1/10000.
  • Page 44 Please refer to the following sheet for log parameter information. Parameter Function Code-stream Support general type. type Encode mode  It supports H.264B, H.264M, H.264H, MJPEG. Resolution Display resolution. Frame rate Select fps (FPS) Bit rate type It includes: CBR and VBR. Under VBR, you can set image quality. ...
  • Page 45 7.2.2.2 Snapshot The snapshot interface is shown as in Figure 7-23 Snapshot. Figure 7-23 Snapshot Please refer to the following sheet for log parameter information. Parameter Function Snapshot It includes general snap and trigger snap. General snap works within type predetermined time period.
  • Page 46 7.2.2.3 Interest Area The interest area interface is shown as in Figure 7-24 Interest Area. Figure 7-24 Interest Area In the video, drag mouse left key, to set interest area, which is shown as yellow box. Note: You can set up to 3 interest areas at the same time. Please refer to the following sheet for log parameter information.

  • Page 47: Network

    7.3 Network 7.3.1 TCP/IP The TCP/IP interface is shown as in Figure 3-22. Note: Some models support dual Ethernet ports, so do not set the two ports in the same segment! Figure 7-25 TCP/IP Please refer to the following sheet for log parameter information. Parameter Function Host name...

  • Page 48: Onvif

    Parameter Function You can select from static and DHCP mode. In DHCP mode, it automatically search IP while you cannot set IP/subnet mask/gateway. Plus IP/subnet Mode mask/gateway display values from DHCP. In static mode, you shall manually set IP/subnet mask/gateway. To switch from DHCP to static, you must set IP parameters again.

  • Page 49: Ip Filter

    7.3.3 IP Filter By setting the trusted and banned lists, you can enable or disable some users log in to the device. Devices allow trusted list the IP address of the user to log in, and ban the IP address blacklist users log device.
  • Page 50 Figure 7-29 Step 4. Click Save in Trusted List tab. Step 5. System informs you it has been successfully saved. In Trusted list tab, you can:  Click to modify existing IP address or IP segment.  Click to delete existing IP address or IP segment. ...

  • Page 51: Event

    7.4 Event 7.4.1 Alarm The relay-out interface is shown as in Figure 7-30 Relay-out. Figure 7-30 Relay-out Step 1. Click “1” or “2” to set 1-ch alarm channel output. Step 2. Click Trigger to output alarm output signal. Step 3. Click Refresh to search alarm output status. 7.4.2 Abnormity Figure 7-31 No Storage Card...
  • Page 52 Figure 7-32 SC Space Lack Figure 7-33 SC Error Figure 7-34 Disconnection...
  • Page 53 Figure 7-35 Please refer to the following sheet for log parameter information. Parameter Function Enable Check box to enable this function. Relay-out When alarm occurs, set corresponding relay out. You must enable this function first. Relay-out delay Alarm will continue for X seconds after motion detect ends. You can set X within 10 s～300 s.

  • Page 54: Storage

    7.5 Storage 7.5.1 Point Set snapshot storage position. Figure 7-36 Point 7.5.2 Local Figure 7-37 Local...

  • Page 55: Ftp

    7.5.3 FTP Note:  When you select FTP as storage method, FTP is enabled.  Set picture name and path, click Help to view naming rule. Figure 7-38 FTP Parameter Note When the network is disconnected or failed, you can save the image to Offline Transfer the local memory card, to be automatically restored after the network upload to the FTP server or platform.

  • Page 56: Client

    7.5.4 Client Figure 7-39 Client It supports upload by IP address or MAC address. Max support two clients. 7.5.5 Path Figure 7-40 Path...

  • Page 57: System

    7.6 System 7.6.1 General 7.6.1.1 General Please refer to the following sheet for log parameter information. Parameter Function Device name Set device name. Language Select language and then close IE. When you log in again, system language will change. Video standard Display device video standard, such as PAL. Machine Input device group.

  • Page 58: Account

    Parameter Function Date format Select date format. Time format Select time format. Current time Set current system time. Setup becomes effective immediately. Sync PC Sync system time with PC time. Click on save to refresh system time. DST enable Set DST, may by date or week. Setup becomes effective immediately. Synchronize Check to sync with NTP.
  • Page 59 Anonymous login: Enable anonymous login as input IP without username and password to log in device. This type of account only have preview right. You may switch to other account by clicking on logout. 7.6.2.2 Add user: Add user within group and set user right By default there are three users: admin, 888888 and 666666.
  • Page 60 7.6.2.3 Modify user: Modify existing user’s group, password, right and note. See Figure 7-44 Modify User. Figure 7-44 Modify User Modify password: Modify password of existing user. Check box in front of modify password. Input current password and then input new password. Click on save. Password supports 0~15 characters, including letter and number only.
  • Page 61 7.6.2.4 Group The group interface is shown as in Figure 7-45 Group. Here you can add and delete group, and modify group password. The system supports up to 8 user groups. Figure 7-45 Group Add group: Add user within group and set group right. Enter add group interface, and input group name, select right among given list.

  • Page 62: Default

    Figure 7-46 Add Group Modify group: Click on modify, you may edit group in prompt box. The modify group interface is shown as in Figure 7-47 Modify Group. Figure 7-47 Modify Group Note:  You cannot delete admin and user groups. ...

  • Page 63: Import/Export

    7.6.4 Import/Export The import/export interface is shown as in Figure 7-49 Import/Export. Figure 7-49 Import/Export Please refer to the following sheet for log parameter information. Parameter Function Export Export system config to local. Import Import local config to system. Step 1. Click Import/Export. Step 2.

  • Page 64: Auto Maintain

    7.6.5 Auto Maintain The auto maintains interface is shown as in Figure 7-50 Auto Maintain. Figure 7-50 Auto Maintain User can automatically reboot system and delete old files. You shall set auto reboot schedule and set file time period for auto delete old file to delete file within certain time periods. Click on save to make setup effective.

  • Page 65: Information

    7.7 Information 7.7.1 Version The version interface is shown as in Figure 7-52 Version. Figure 7-52 Version Here displays device type, software version and soft build time. All info here subject to actual condition.

  • Page 66: Log

    7.7.2 Log The log interface is shown as in Figure 7-53 Log. Note: Once number of log reaches 1024, it starts to overwrite the earliest log. Figure 7-53 Log Please refer to the following sheet for log parameter information. Parameter Function Start time Set start time of log to search.

  • Page 67: Online User

    7.7.3 Online User The online user interface is shown as in Figure 7-54 Online User. Here displays online user and their group, IP address and login time. Figure 7-54 Online User...

  • Page 68: Alarm

    8 Alarm Click Alarm tab, the system shows Alarm tab. Here you can select alarm type, operation and sound to view existing alarm time, type and channel. Figure 8-1 Alarm Type Parameter Note Disk Full When disk is full, it triggers alarm. Alarm Type Disk Error When disk has error, it triggers alarm.

  • Page 69: Logout

    9 Logout Click on logout to exit WEB interface. You will see Figure 9-1 Logout. To return web interface, you have to log in again. Figure 9-1 Logout Note:  This manual is for reference only. Slight difference may be found in the user interface. ...
  • Page 70 Local distributor: __________________________________________________________________________ www.santec-video.com...
