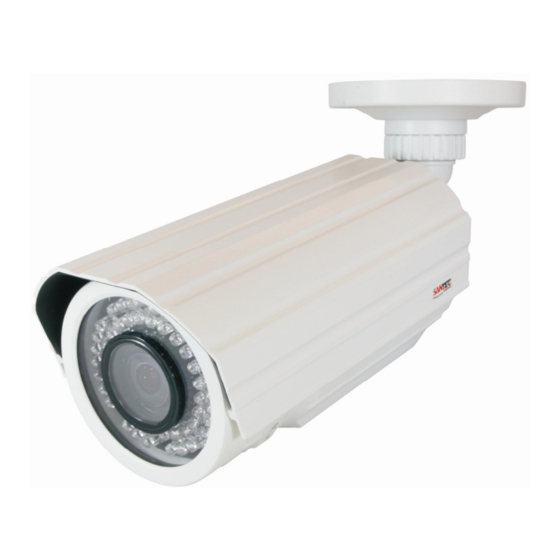

- Page 1 USER MANUAL IP day/night camera in weather-proof housing Model SNC-521IR/W Version 1.2 /0610/engl/A6...
- Page 2 Please follow all instructions and observe the warnings contained in this manual. Please contact your local dealer or use the SANTEC Service Hotline if you have any questions or if you wish to claim for a service or warranty.
-
Page 3: Table Of Contents
User manual SNC-521IR/W Table of contents Safety precautions Safety instructions About this user manual Items included in the delivery 1. Installation 1.1 Lens 1.2 Camera installation 1.3 Power supply 1.4 Camera housing 1.5 Adjustment of the analogue camera module 1.6 Sun shield installation 1.7 Safety note for IR-LEDs... - Page 4 User manual SNC-521IR/W 4.5 Network 4.5.1 IP-address 4.5.2 SNTP (time server for time synchronization) 4.5.3 FTP 4.5.4 SMTP 4.5.5 DDNS (dynamic domain name system) 4.5.6 Event protocol 4.6 Video settings 4.6.1 Encoding 4.6.2 Camera settings 4.7 Audio settings 4.8 Extended settings 4.8.1 Motion detection...
-
Page 5: Safety Precautions
User manual SNC-521IR/W Safety precautions Caution Description of symbols Danger: This symbol is intended to alert the user to the presence of un-insulated "dangerous voltage" within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to a person. -
Page 6: Safety Instructions
User manual SNC-521IR/W Safety instructions Before operating the appliance, please read this manual carefully and retain it for further reference. Before cleaning the appliance, it has to be switched off and unplugged from the power outlet. Wipe the appliance with a soft damp cloth. -
Page 7: About This User Manual
About this user manual This manual aims at assisting the user on how to operate camera SNC-521IR/W. This manual is subject to rigid quality control. However, no guarantee can be given that mistakes are not present. We reserve the right to make changes to the manual without prior notice. -
Page 8: Installation
User manual SNC-521IR/W 1. Installation (also see the pictures on the following pages) This camera is a day/night IP colour camera. You will find the technical data at the end of the manual. 1.1. Lens To achieve the correct angle of view, turn the zoom ring until you get from a wide angle to a near angle or vice versa. -
Page 9: Sun Shield Installation
User manual SNC-521IR/W In order to navigate through the OSD menu, please use the arrow buttons. To confirm your selection, press the button. The SanView software also enables access to the camera OSD menu via the network. To call up the OSD menu, press the OSD button on the PTZ tab. - Page 10 User manual SNC-521IR/W Picture 2: Adjustments for service purposes joystick for OSD control video test connector reset button adjustment of IR-LED level Picture 3: Attaching the sun shield sun shield _________________________________________________________________________________ - 10 -...
- Page 11 User manual SNC-521IR/W Picture 4: Connections Ethernet connection Voltage 12 V DC Audio input/output Alarm input/output _________________________________________________________________________________ - 11 -...
-
Page 12: Osd Menu
User manual SNC-521IR/W 2. OSD menu 2.1. General All camera adjustments are done via an OSD menu. On the camera there is a mini-joystick. Press onto the joystick and a menu pops up in the video picture. You can now move the joystick left/right/up/down in order to get to the desired menu item. -
Page 13: Lens Option
User manual SNC-521IR/W 2.3. Lens option The lens control is pre-set to DC. By pressing the joystick, a menu pops up. You can then adjust the brightness (0–70). Press the joystick again to save your settings. 2.4. Exposure Shutter: The flickerless mode (FLK) reduces picture flickering. -
Page 14: Day/Night
User manual SNC-521IR/W 2.8. Day/Night Colour: colour mode BW: black/white mode Auto: automatic switching to colour or black/white mode (default setting) External: not used 2.9. Image Adj Freeze V-Rev: vertically reversed display of the picture (ON/OFF) ... -
Page 15: Sync
User manual SNC-521IR/W 2.10.2. Sync INT: Internal camera synchronisation. This mode is fix. 2.10.3. Motion detection With the analogue camera module, you can detect motions in eight different areas. The note „Motion Detection“ is displayed in the video picture if the event occurs. -
Page 16: Privacy
User manual SNC-521IR/W 2.10.4. Privacy Privacy zones are not displayed on the screen. Area Sel: Up to eight privacy zones can be selected. Area Mode: Activation or deactivation of the selected area. Mask Colour: Select the colour for the privacy zone. -
Page 17: Ip Settings
User manual SNC-521IR/W 3. IP settings The SANTEC IP cameras come with the following default settings: IP-address 192.168.1.168 Subnet mask : 255.255.255.0 Gateway 0.0.0.0 DNS-server 0.0.0.0 User ID admin Password 9999 To retain the default settings, press the reset button. - Page 18 User manual SNC-521IR/W c. SanView software Every SANTEC IP camera comes with the SanView-Lite software. In order to change the network settings, open the device adjustment page via the context menu (also see brief instructions on SanView software). You will find the respective control elements on the network parameter tab. To copy the parameters, click on Apply.
-
Page 19: Web Interface
User manual SNC-521IR/W 4. Web interface 4.1. Calling-up the camera web interface Open the Microsoft Internet Explorer and start the connection of the network camera as follows: Click on the URL field. Type in the URL address of the network camera and press the ENTER key. You will then access the web interface of the camera. -
Page 20: Live-View
User manual SNC-521IR/W 4.2. Live-View Page for camera adjustments Page for Live-View Live-View with 50% resolution Live-View with defined resolution PTZ-control: tilt confirmation/ OSD menu PTZ speed: S = slow, F = fast Zoom in Zoom out... - Page 21 User manual SNC-521IR/W Start autoscan Digital output (relay) on Digital output (relay) off Audio on (camera -> web interface) Audio off (camera -> web interface) Audio on (web interface -> camera) Audio off (web interface -> camera) Storage location for snapshots and video sequences...
-
Page 22: Setting Overview
User manual SNC-521IR/W 4.3. Setting overview _________________________________________________________________________________ - 22 -... -
Page 23: System Settings
User manual SNC-521IR/W 4.4. System settings 4.4.1. Time / date Local time: The local time is the one as set in the camera. Desired time: You can change the time which is set in the camera as follows: o Set manually: Select the desired time and date from the drop-down list. -
Page 24: Time Stamp
User manual SNC-521IR/W 4.4.2. Time stamp Enable time stamp: The time stamp is displayed. Time stamp position: o UPPER LEFT o UPPER RIGHT o BOTTOM LEFT o BOTTOM RIGHT Time stamp format: o YY/MM/DD o MM/DD/YY o DD/MM/YY... -
Page 25: Language
User manual SNC-521IR/W User list: This list displays the user(s) and their respective authorisations. Delete user: Select a user from the list to be deleted and click this button. User name: Enter the user name here which is to be added or modified. -
Page 26: Update Firmware
User manual SNC-521IR/W 4.4.6. Update firmware This page displays information on the installed firmware version and the ActiveX components. Search: Select the firmware file from your PC. Update: Start the update process. Restart: Restart the camera. _________________________________________________________________________________... -
Page 27: Network
User manual SNC-521IR/W 4.5 Network 4.5.1 IP-address IP-address: Enter the 4-Byte IP-address (value from 0 to 255). Every network camera has to have its own IP-address which can be identified in the network. Netmask: Enter the 4-Byte subnet-mask (value from 0 to 255). By this, the netmask can be identified in which the network camera is located. -
Page 28: Sntp (Time Server For Time Synchronization)
User manual SNC-521IR/W 4.5.2. SNTP (time server for time synchronisation) SNTP server: IP-address of the SNTP server. Can be entered as 4-Byte IP-address or as domain name. Submit: Click here to apply the new network settings to the network camera. -
Page 29: Smtp
User manual SNC-521IR/W 4.5.4. SMTP If necessary, enable the option „My server requires authentication”. Account name: Account on e-mail server. Password: Password of account on e-mail server. Sender: This information is displayed as e-mail sender. SMTP server: IP-address of SMTP server. Can be entered as 4-Byte IP-address or as domain name. -
Page 30: Ddns (Dynamic Domain Name System)
User manual SNC-521IR/W 4.5.5. DDNS (dynamic domain name system) DDNS host name: IP-address of DDNS server. Can be entered as 4-Byte IP-address or as domain name. DDNS account: Account on DDNS server. DDNS password: Password of account on e-mail server. -
Page 31: Video Settings
User manual SNC-521IR/W 4.6 Video settings 4.6.1 Encoding Compression: Setting of the video streaming mode o Single MPEG4 o MPEG4 Half D1 o MPEG4 + MPEG4 o MPEG4 + JPEG: Pre-set mode. This mode is used in the SanView software. -
Page 32: Camera Settings
User manual SNC-521IR/W MPEG4_1 setting o Bit rate: 200 - 4000 Kbit/sec o Bild rate: 25 / 13 / 6 / 3 fps MPEG4_2 setting o Bitrate: 200 - 4000 Kbit/sec o Bildrate: 25 / 13 / 6 / 3 fps ... -
Page 33: Audio Settings
User manual SNC-521IR/W 4.7. Audio settings Audio: Set the audio mode to: o OFF: audio is turned off o one-way: audio only from camera to PC o two-way: audio in both directions Audio out volume: 0 - 4 ... -
Page 34: Extended Settings
User manual SNC-521IR/W 4.8. Extended settings 4.8.1. Motion detection Motion detection: Activation/deactivation of motion detection Sensitivity: Set the sensitivity level of the motion detection o Lowest o Low o Medium o High o Highest CCD reference: CCD reference (20 - 50) ... -
Page 35: Alarm Settings
User manual SNC-521IR/W 4.8.2. Alarm settings Alarm in (sensor): Activate/deactivate the alarm input o Active type “low”: This means 0 V. The camera will trigger an alarm if the alarm input has 0 V. To achieve 0 V at the alarm input, the contacts are closed. -
Page 36: Sd-Card
User manual SNC-521IR/W 4.8.3. SD-card 4.8.3.1 SD-card settings SD-card enable: Activate/deactivate the SD-card. SD-card rewrite: Activate/deactivate the rewriting of the SD-card. Format: The SD-card is being formatted. Submit: Click here to save the new SD-card settings. -
Page 37: Recording
User manual SNC-521IR/W 4.8.4. Recording 4.8.4.1 Recording settings On this page you can set the recording modes: o Schedule record – upload via FTP o Schedule record – save into SD-card o Alarm record – upload via FTP o Alarm record – save into SD-card o Alarm record –... -
Page 38: Recording Schedules
User manual SNC-521IR/W 4.8.4.2 Recording schedules You can set up to 7 schedules in the camera. Submit: Click here to save the new schedule settings. Remove all schedules: All existing schedules are deleted. _________________________________________________________________________________ - 38 -... -
Page 39: Technical Specifications
User manual SNC-521IR/W 5. Technical specifications Camera SNC-521IR/W Camera type Day/night IP compact camera Housing Weather-proof,IP-66 IR-LEDs 48x, range: up to 40 m * Split-glass technology Sensor 1/3" Sony Super HAD CCD 580/700 TVL Day/night mode adjustment Auto, colour, black/white... - Page 40 Your local distributor: __________________________________________________________________________ www.santec-video.com...
