KINESIS STATION
R
. 4.2
EV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KINESIS STATION and is the answer not in the manual?

Questions and answers

mj
July 10, 2025

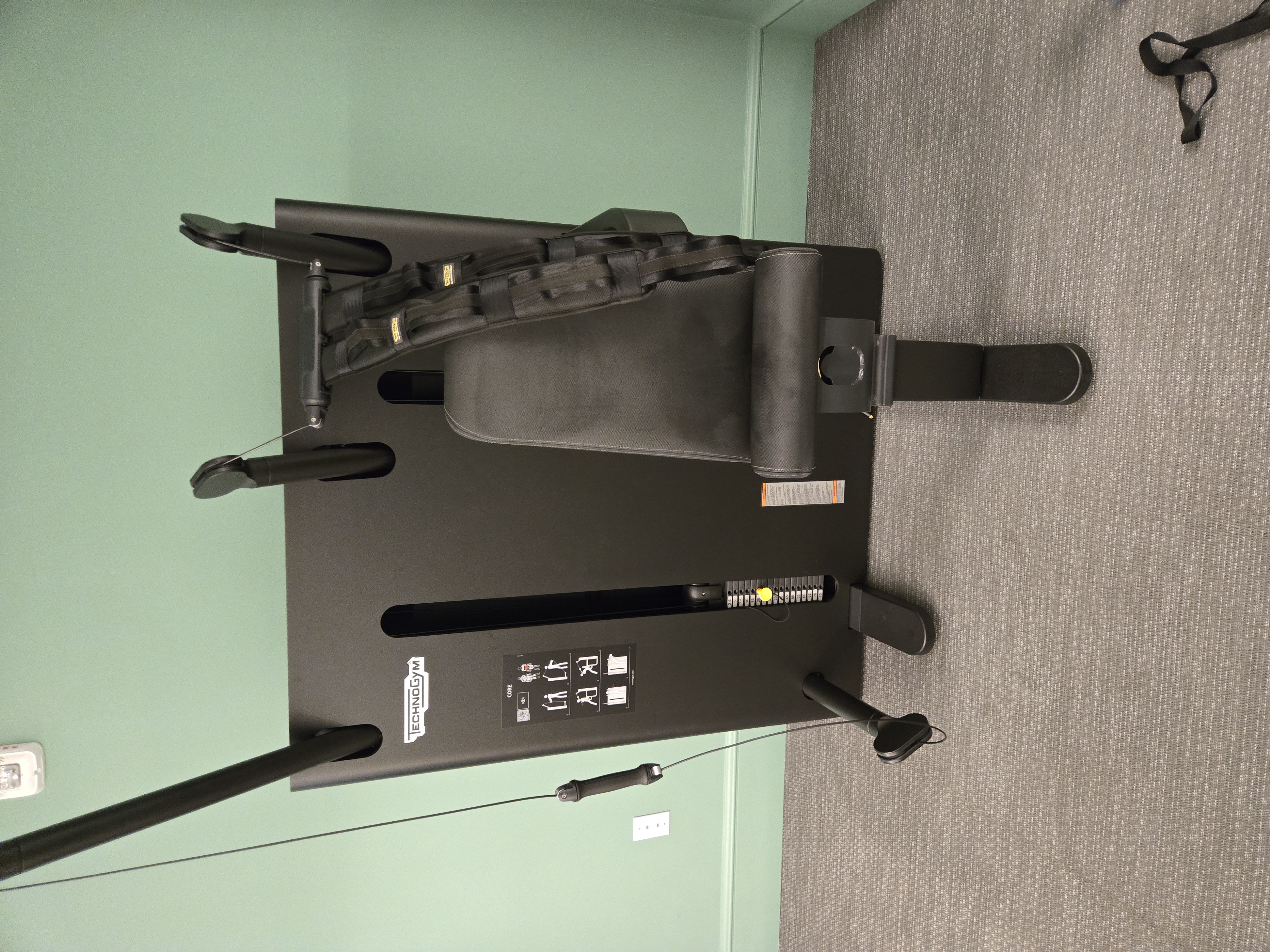

How do yoy adjust the seat? it appears to be locked in place.

User image 686ffa1607ebf
0

Subscribe to Our Youtube Channel

Related Manuals for Technogym KINESIS STATION

Summary of Contents for Technogym KINESIS STATION

  • Page 1 KINESIS STATION . 4.2...
  • Page 3 The information contained in this document is subject to change without notice. Technogym does not guarantee this documentation in any way. Technogym shall not be held responsible for any errors contained in this manual and declines all liability for accidents or damages resulting from the supply, characteristics or use of this manual.

  • Page 5: Table Of Contents

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 Contents 1. GENERAL NOTICES ............................. 1.1 1.1. I ..............................1.1 NTRODUCTION 1.2. R ............................1.1 ECOMMENDATIONS 1.3. G ......................1.2 ENERAL RULES FOR REPAIR PROCEDURES 2. TECHNICAL CHARACTERISTICS ........................2.1 2.1. P ..............................
  • Page 6 KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.4.1. Disassembling the arms ........................5.20 5.5. HIGH PULL ..............................5.21 5.5.1. Disassembling the knee upholstery rest group .................. 5.21 5.5.2. Disassembling the rollers adjusting system ..................5.22 5.5.3. Disassembling the seat ........................5.25 5.6.

  • Page 7: General Notices

    1. GENERAL NOTICES 1.1. INTRODUCTION This document is reserved for Technogym Service technicians, and is intended to provide authorized personnel with the necessary information to correctly carry out repairs and maintenance. A thorough knowledge of the technical information contained in this manual is essential for completing the professional training of the operator.

  • Page 8: General Rules For Repair Procedures

    1. Always mark any parts or positions which may be confused with each other at the time of reassembly. 2. Use original Technogym spare parts and lubricants of the recommended brands. 3. Use special tools where specified. 4. Consult the Technical Newsletters, which may contain more up-to-date information on adjustments and maintenance than those contained in this manual.

  • Page 9: Technical Characteristics

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 2. TECHNICAL CHARACTERISTICS 2.1. PRODUCT CODES The Kinesis Station, machine code is a sequence of 15 alphanumeric characters arranged as follows: Characters Description Key to values 1,2, Line, MH = Kinesis Station...

  • Page 10: Serial Number Structure

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 For example, a possible product code would be: MH150E-AC1AGGBGK GG BG Packaging: Europe Packaging - Kg Guard colour: Darck Grey Plastics colour: Grey Upholstery colour: Darck with contrast stitching Frame colour: Brilliant Alluminium...

  • Page 11: Ambient Specifications

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 2.3. AMBIENT SPECIFICATIONS Operating to 5° a 35° C Temperature Storage to -20 a 55° C Operating to 30% a 80% non-condensing Humidity Storage to 5% a 85% non-condensing 2.4. CONFORMITY TO REGULATIONS...
  • Page 12 KINESIS STATION: Service & Maintenance manual - rev. 4.2 ARTIS CONFIGURATION: Standard Frame Guard Plastic Upholstery BW: Carbon Grey CW: Carbon Grey GZ: Dark Grey 9A: Mocha Page 2.4...

  • Page 13: Mechanical Characteristics

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 2.6. MECHANICAL CHARACTERISTICS 2.6.1. MH15 - O VERHEAD RESS MH15 - OVERHEAD PRESS 1400mm x 1190mm x 1450mm Dimensions (L x W x H) 55,2” x 46,8” x 57” 260Kg – 572lb...

  • Page 14: Mh20 - Press

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 2.6.2. MH20 - P RESS MH20 - PRESS 1280mm x 1190mm x 1520mm Dimensions (L x W x H) 47,3” x 46,8” x 59,9” 290Kg – 638lb Equipment overall weight Standard weight stack 70Kg –...

  • Page 15: Mh30 - High Pull

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 2.6.3. MH30 – H MH30 – HIGH PULL 1280mm x 1650mm x 1870mm Dimensions (L x W x H) 47,3” x 65” x 73,6” Equipment overall weight 320Kg – 704lb Standard weight stack 70Kg –...

  • Page 16: Mh65 - Core

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 2.6.4. MH65 – C MH65 - CORE 1280mm x 1180mm x 2000mm Dimensions (L x W x H) 50” x 46,5” x 79” 315Kg – 693lb Equipment overall weight (Crunch Side)

  • Page 17: Mh67 - Step

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 2.6.5. MH67 – S MH67 - STEP 1280mm x 1700mm x 1450mm Dimensions (L x W x H) 50” x 67” x 57” 320kg – 705lb Equipment overall weight 60Kg – 132lb (for each weight stack)

  • Page 18: Mh95 - Low Pull

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 2.6.6. MH95 - L MH95 - LOW PULL 1280mm x 1650mm x 1450mm Dimensions (L x W x H) 47,3” x 65” x 57” 310Kg – 682lb Equipment overall weight Standard weight stack 70Kg –...

  • Page 19: Packing Dimensions Europe And Overseas

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 2.7. PACKING DIMENSIONS EUROPE AND OVERSEAS Outside box Outside box Outside box Equipment Model dimensions dimensions dimensions Weight (kg) Cod. 1750mm 1370mm 790mm Press MH200E 298Kg Overhead Press MH150E 1750mm 1370mm...
  • Page 20 KINESIS STATION: Service & Maintenance manual - rev. 4.2 Page intentionally left blank. Page 2.12...

  • Page 21: Moving And Installing The Machines

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 3. MOVING AND INSTALLING THE MACHINES 3.1. SPECIFICATIONS AND REQUIREMENTS For proper installation of the equipment, make sure that: 1. The equipment is installed on a level, vibration-free surface with a sufficient capacity to support its weight plus that of the user.

  • Page 22: Lifting And Moving

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 3.3. LIFTING AND MOVING To move the equipment use the standard lifting and transport devices. Lift and move the equipment as shown below. CAUTION: Considering the weight of equipment, we suggest the involvement of more people to lift-up the machine.

  • Page 23: Securing The Equipment

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 3.4. SECURING THE EQUIPMENT WARNING: All the equipment of the line must be mandatory fixed to the floor, wall or ceiling according to the fixing kit provided with each machine. Page 3.3...
  • Page 24 KINESIS STATION: Service & Maintenance manual - rev. 4.2 Page intentionally left blank. Page 3.4...

  • Page 25: Accessories

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 4. ACCESSORIES The following accessories are available for the these machines: 4.1. NFC CONNECTIVITY If the relevant logo is present on the exercise placard, the NFC technology is available to connect with your mobile device.

  • Page 26: A0000526: Power Mode

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 4.2. A0000526: POWER MODE Power Mode This accessory consists in an elastic system, that if activated adds to the weight stack an elastic resistance which exclude the inertia effect during the exercise and allows to do exercises for explosive power and strength.

  • Page 27: A0000551: Back To Back Connection

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 4.3. A0000551: BACK TO BACK CONNECTION Back to back connection This accessory, allows to connect two equipment, on the back side. Page 4.3...

  • Page 28: A0000564: Floor Fixing Kit

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 4.4. A0000564: FLOOR FIXING KIT Floor fixing kit This accessory, allows to fix the equipment to the floor. Page 4.4...

  • Page 29: A0000661: Back Securing Set

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 4.5. A0000661: BACK SECURING SET Back securing set “Back to back” layout options are made totally secure thanks to the set of 4 brackets and 2 U-shaped connectors. 4.6. A0000662: IN LINE SECURING SET In line securing set Stations set upwith an “in line”...

  • Page 30: What To Order To Augment The Weight Stack

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 4.7. WHAT TO ORDER TO AUGMENT THE WEIGHT STACK Equipment Weight Stack Weight Stack Model Group Code Code STANDARD ENHANCED 40Kg 60Kg Overhead Press MH15 R0006743AA 88lb 132lb 70Kg 95Kg MH20...

  • Page 31: How To Disassemble The

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5. HOW TO DISASSEMBLE THE… 5.1. FOR ALL EQUIPMENT… 5.1.1. ISASSEMBLING THE REAR HANDLES For each handle: 1. Back off the 2 screws (a) using a 4mm hexagonal wrench and remove the plate inside the handle.
  • Page 32 KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.1.2. ISASSEMBLING THE REAR GUARD Carry out the procedure detailed in paragraph: 5.1.1. “Disassembling the rear handles”. For each guard: 1. Back off the 5 screws (a) using a 4mm hexagonal wrench and remove them and their washer (b).
  • Page 33 KINESIS STATION: Service & Maintenance manual - rev. 4.2 3. Once detached the guard (c) from the Velcro straps (d) it is possible to remove it. To reassemble the rear guard, carry out the above steps in reverse order, considering the notes below: Figure 5.1-4...

  • Page 34: Disassembling The Rear Guard

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.1.3. ISASSEMBLING THE FRONT GUARD Carry out the procedure detailed in paragraph: 5.1.2. “Disassembling the rear guard”. OVERHEAD PRESS PRESS equipment: to remove the front guard it is necessary to remove only the Figure 5.1-6...

  • Page 35: Disassembling The Central Guard

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.1.4. ISASSEMBLING THE CENTRAL GUARD Carry out the procedure detailed in paragraph: 5.1.2. “Disassembling the rear guard”. 1. Back off the 2 screws (a) using a 4mm hexagonal wrench. Figure 5.1-8 2.

  • Page 36: Disassembling The Rear Foot

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.1.5. ISASSEMBLING THE REAR FOOT Carry out the procedure detailed in paragraph: 5.1.2. “Disassembling the rear guard”. 1. Back off the screw (a) using a 8mm hexagonal wrench, locking down the counter- nut on the opposite side using a 17mm wrench.

  • Page 37: Disassembling The Weight Stack

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.1.6. ISASSEMBLING THE EIGHT STACK Carry out the procedure detailed at paragraph: 5.1.2. “Disassembling the rear guard”. 1. Loosen the screw (x) and the counter-nut (y) using two 17mm wrenches. 2. Rotate the lever (a) in the direction of the yellow arrow, to loosen the cable tension.
  • Page 38 KINESIS STATION: Service & Maintenance manual - rev. 4.2 5. Back off the screw (e) using a medium Phillips screwdriver. 6. Remove the guard (f). Figure 5.1-13 7. Back off the ring-nut (g) using a socket wrench, as indicated in the figure at the side.
  • Page 39 KINESIS STATION: Service & Maintenance manual - rev. 4.2 For each weight stack bar: 9. Take note of the “X” measure of weight stack stopper position. This dimension will be used to position the bars stopper again during the reassembly.
  • Page 40 KINESIS STATION: Service & Maintenance manual - rev. 4.2 13. Incline both the bars in the direction of yellow arrows, as indicated in the figure. 14. Pull out the first plate (n), in the direction of the orange arrow, as shown in the figure at the side.

  • Page 41: Disassembling The Handle And The Cable

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.1.7. ISASSEMBLING THE HANDLE AND THE CABLE On both ends of handle: 1. Lock down the cable-retainer using a wrench or a screwdriver, through the hole (a). 2. Back off the screw (b) using a 4mm hexagonal wrench.

  • Page 42: Disassembling Arms And Rotating Pulley

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.1.8. ISASSEMBLING ARMS AND ROTATING PULLEY Carry out the procedure detailed at paragraph: 5.1.7. “Disassembling the handle and the cable”. 1. Using a Phillips screwdriver press on the unlocking tab through the hole (a).
  • Page 43 KINESIS STATION: Service & Maintenance manual - rev. 4.2 For each arm: 6. Back off the 2 screws (f) using a 6mm hexagonal wrench. 7. Remove the arm (g) slipping it off in the direction of the yellow arrow. To reassemble the components, carry out the above steps in reverse order.

  • Page 44: Disassembling The Pulleys

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.1.9. ISASSEMBLING THE PULLEYS Carry out the procedure detailed at paragraph: 5.1.2. “Disassembling the rear guard”. 1. Back off the screw (a) using a 6mm hexagonal wrench, locking down the counter- nut on the opposite side using a 17mm wrench, as shown in the figure at the side.

  • Page 45: Press

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.2. PRESS 5.2.1. ISASSEMBLING THE SEAT 1. Back off the 4 screw (a) using a 4mm hexagonal wrench. 2. Remove the seat (b). To reassemble the seat carry out the above steps in reverse order.
  • Page 46 KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.2.2. ISASSEMBLING THE BACK REST For each plug: 1. Using a flat Phillips screwdriver lift up the cover plug (a). Figure 5.2-2 2. Back off the screw (b) using the 8mm hexagonal wrench.

  • Page 47: Overhead Press - Core

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.3. OVERHEAD PRESS - CORE 5.3.1. ISASSEMBLING THE ADJUSTABLE SEAT To remove the seat: 1. Back off the 4 screws (a) using a 4mm hexagonal wrench. 2. Remove the seat (b) and replace if it is necessary.
  • Page 48 KINESIS STATION: Service & Maintenance manual - rev. 4.2 3. Remove the guard (b) from the slot highlighted in the figure, in the direction of the yellow arrow. 4. Lightly force outward the guard and remove the pin (c) from its housing, releasing the spring.
  • Page 49 KINESIS STATION: Service & Maintenance manual - rev. 4.2 For each bearing: 8. Back off the screw (f) using a 4mm hexagonal wrench. Figure 5.3-5 9. Remove the seat group (g), slipping it off from the bottom, as shown in the figure at the side.

  • Page 50: Low Pull

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.4. LOW PULL 5.4.1. ISASSEMBLING THE ARMS Figure 5.4-1 Figure 5.4-2 Carry out the procedure detailed at paragraph: 5.1.2. “Disassembling the rear guard”. 1. Back off the 2 screws (a) using a 6mm hexagonal wrench, locking down the counter-nut (b) on the opposite side using a 17mm wrench.

  • Page 51: High Pull

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.5. HIGH PULL 5.5.1. ISASSEMBLING THE KNEE UPHOLSTERY REST GROUP For each roller: 1. Back off the screw (a) using a 5mm hexagonal wrench. 2. Remove the cover plug (b). 3. Now it is possible to remove the roller (c).

  • Page 52: Disassembling The Rollers Adjusting System

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.5.2. ISASSEMBLING THE ROLLERS ADJUSTING SYSTEM Carry out the procedure detailed at paragraph: 5.5.1. “Disassembling the knee upholstery rest group”. 1. Back off the screw (a) using a medium Phillips screwdriver.
  • Page 53 KINESIS STATION: Service & Maintenance manual - rev. 4.2 Figure 5.5-7 7. Remove the spacer (h) and the pin (i). 8. Remove the group (j). 9. Remove the frame (k). During the reassembly, respect the position of its components, as detailed below.
  • Page 54 KINESIS STATION: Service & Maintenance manual - rev. 4.2 10. Detach the adhesive label (l). 11. Back off the 4 screws (m) using a 8mm hexagonal wrench. 12. Remove the plate (n). Figure 5.5-9 To remove the knob: Place the group on a work bench: 1.

  • Page 55: Disassembling The Seat

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.5.3. ISASSEMBLING THE SEAT 1. Back off the screws (a) using a 8mm hexagonal wrench. 2. Remove the seat (b). To reassemble the components, carry out the above steps in reverse order.

  • Page 56: Core

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.6. CORE 5.6.1. ISASSEMBLING HOULDER REST To remove the Shoulder-rest Belt group: Carry out the procedure detailed at paragraph: 5.1.7. “Disassembling the handle and the cable”. 1. Remove the Shoulder-rest Belt group (a).
  • Page 57 KINESIS STATION: Service & Maintenance manual - rev. 4.2 For each belt: 4. Remove the 4 screws (c) using a 10mm wrench. 5. Remove the plate (d) and the belt (e). Figure 5.6-4 During the reassembling be sure to position the two plates (f), with the slots outward, as shown in the figure.

  • Page 58: Step

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.7. STEP 5.7.1. ISASSEMBLING THE MOBILE FOOTBOARD Raise the footboard completely up: 1. Back off the screws (a) using a 4mm hexagonal wrench. 2. Remove the stopper (b) and the guard (c).

  • Page 59: Disassembling The Handles And Its Cable

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.7.2. ISASSEMBLING THE HANDLES AND ITS CABLE Carry out the procedure detailed at paragraph: 5.7.1. “Disassembling the mobile footboard”. 1. Back off the 2 screws (a) using a 4mm hexagonal wrench.

  • Page 60: Disassembling The Handle And The Cable

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.7.3. ISASSEMBLING THE HANDLE AND THE CABLE Carry out the procedure detailed at paragraph: 5.1.7. “Disassembling the handle and the cable” up to the step (4). Figure 5.7-7 1. Connect the new cable to the cable you have to replace, as shown at left.

  • Page 61: Disassembling The Rotating Pulley Group

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.7.4. ISASSEMBLING THE ROTATING PULLEY GROUP Carry out the procedure detailed at paragraph: 5.7.3. “Disassembling the handle and the cable”. 1. Press on the looking pin using a Phillip screwdriver (a).

  • Page 62: Disassembling The Footboard Front Column

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.7.5. ISASSEMBLING THE FOOTBOARD FRONT COLUMN Carry out the procedure detailed at paragraph: 5.1.2. “Disassembling the rear guard” and 5.1.5. “Disassembling the rear foot”. 1. Loosen the 2 screws (a) using a 8mm hexagonal wrench.
  • Page 63 KINESIS STATION: Service & Maintenance manual - rev. 4.2 3. Back off the 2 screws (b) using a 8mm wrench. 4. Remove the column and place it on the floor, taking care to protect the floor. Figure 5.7-15 Before to reassembly the column, take...

  • Page 64: Disassembling The Footboard Column Components

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.7.6. ISASSEMBLING THE FOOTBOARD COLUMN COMPONENTS 5.7.6.1. Disassembling the footboard group Carry out the procedure detailed at paragraph: 5.7.5. “Disassembling the footboard front column”. 1. Back off the 4 screws (a) using a 4mm hexagonal wrench.
  • Page 65 KINESIS STATION: Service & Maintenance manual - rev. 4.2 6. On both sides, back off the 8 screws (e) using a 5mm hexagonal wrench. 7. Remove the footboard (f) from the column and place it on the floor with careful.
  • Page 66 KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.7.6.2. Disassembling the selection pin Carry out the procedure detailed at paragraph: 5.7.6.1 “Disassembling the footboard group”. Figure 5.7-21 To remove the pin: 1. Loosen the 2 grub screws (a) using a 4mm hexagonal wrench.
  • Page 67 KINESIS STATION: Service & Maintenance manual - rev. 4.2 3. Remove the cable (b), the spring (c) and the pin (d). To reassemble the rear guard, carry out the above steps in reverse order, considering the below notes: Figure 5.7-23...
  • Page 68 KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.7.6.3. Disassembling the gas spring Carry out the procedure detailed at paragraph: 5.7.6.1 “Disassembling the footboard group”. 1. Protect the floor and the column using a soft sponge or cloth. Figure 5.7-26 2.
  • Page 69 KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.7.6.4. Disassembling the guide bars system Carry out the procedure detailed at paragraph: 5.7.6.3 “Disassembling the gas spring”. On both side: 1. Loosen the screw (a) using a 4mm hexagonal wrench, using a wrench of the same size on the opposite side to block the rotation of the bar.
  • Page 70 KINESIS STATION: Service & Maintenance manual - rev. 4.2 4. Once carried out step (3) on both side of the guide bars system, remove the bars support from its two spiral pin using a lever. Be careful not to damage the paint of the frame, protecting it with a cloth.

  • Page 71: Disassembling Lower Footboard Guard And Cable Pulley

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 5.7.7. ISASSEMBLING LOWER FOOTBOARD GUARD AND CABLE PULLEY Raise the footboard completely up. 1. Loosen the 4 screws (a) using a 4mm hexagonal wrench. 2. Remove the guard (b). Figure 5.7-35 3.
  • Page 72 KINESIS STATION: Service & Maintenance manual - rev. 4.2 Page intentionally left blank. Page 5.42...

  • Page 73: What If

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 6. WHAT IF … 6.1. THE WEIGHT STACK DOES NOT SLIDE SMOOTHLY This problem is due to insufficient lubrication of the bars or grime build-up from a mixture of dust and oil. Clean and lubricate as illustrated below:...

  • Page 74: The Weight Stack Cable Is Not In Tensioned

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 6.2. THE WEIGHT STACK CABLE IS NOT IN TENSIONED This problem is due to lengthening of the weight stack cable. Therefore, to solve the problem you must use the cable tension adjustment system.

  • Page 75: The Machine Is Not Flat

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 6.3. THE MACHINE IS NOT FLAT This problem may be due to the positioning of the machines on a not flat surface To level the machine, you may adjust the height of the levelling foot as illustrated below: Figure 6.3-1...

  • Page 76: Adjusting The Footboard

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 6.4. ADJUSTING THE FOOTBOARD 6.4.1. DJUSTING THE FOOTBOARD SLIDING Simultaneously press both the yellow handles and check the footboard smoothly and easily moves. Check that the pin select all the holes in the adjusting plate.

  • Page 77: Adjusting The Footboard Sliding

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 6.4.2. DJUSTING THE FOOTBOARD SLIDING Figure 6.4-3 Figure 6.4-4 2. Press slightly on the footboard (b) until the 1. Press the handles (a). release of the pin. Figure 6.4-5 Figure 6.4-6...

  • Page 78: Adjust The Footboard Feet

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 6.4.3. DJUST THE FOOTBOARD FEET The following procedure allow to adjust the height of the footboard feet so that the footboard is flat on the floor. Figura 6.4-7 1. Loosen the counter-nut (a) and screw, or unscrew the foot (b) until the footboard is laying horizontal on the floor.

  • Page 79: Cables

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 7. CABLES 7.1. WEIGHT STACK CABLE LENGTH (FOR EACH WEIGH STACK) Weigh stack cable Equipment Code Length (mm) Standard Enhanced Overhead Press MH15 6555mm 6295mm 7140mm 6800mm Press MH20 High Pull...

  • Page 80: Routing Of The Cables

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 7.2. ROUTING OF THE CABLES The following pages illustrate the routing of the weight stack cables through the pulleys for each machine, for use as reference when replacing the machine cables.

  • Page 81: Mh20 - Press

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 7.2.2. MH20 – PRESS MH20 – PRESS Page 7.3...

  • Page 82: Mh30 - High Pull

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 7.2.3. MH30 – HIGH PULL MH15 – HIGH PULL Page 7.4...

  • Page 83: Mh65 - Core

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 7.2.4. MH65 – C MH95 – CORE Rotation: Rear side: Crunch: Rear side: Page 7.5...

  • Page 84: Mh67 - Step/Squat

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 7.2.5. MH67 – S QUAT MH67 – STEP Page 7.6...

  • Page 85: Mh95 - Low Pull

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 7.2.6. MH95 – LOW PULL MH95 – LOW PULL Page 7.7...
  • Page 86 KINESIS STATION: Service & Maintenance manual - rev. 4.2 Page intentionally left blank. Page 7.8...

  • Page 87: Scheduled Maintenance

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 8. SCHEDULED MAINTENANCE To keep the machine in perfect working order and forestall possible problems, it is necessary to carry out the planned maintenance operations described below. These operations are essentially grouped according to the type of action and...
  • Page 88 KINESIS STATION: Service & Maintenance manual - rev. 4.2 Page intentionally left blank. Page 8.2...

  • Page 89: Tools To Use

    KINESIS STATION: Service & Maintenance manual - rev. 4.2 9. TOOLS TO USE The following tools are necessary to carry out all disassembly, adjustment and maintenance operations on the machines: • Small Flat Screwdriver; • Medium Philips screwdriver; • 13mm wrench;...
  • Page 90 KINESIS STATION: Service & Maintenance manual - rev. 4.2 Page intentionally left blank. Page 9.2...
  • Page 92 TECHNOGYM S.p.A. Via G. Perticari, 20 47035 Gambettola (FC) ITALIA Tel.: +39-0547-650638 Fax: +39-0547-650150 e-mail: service@technogym.com 0SM00707AA-UK...
