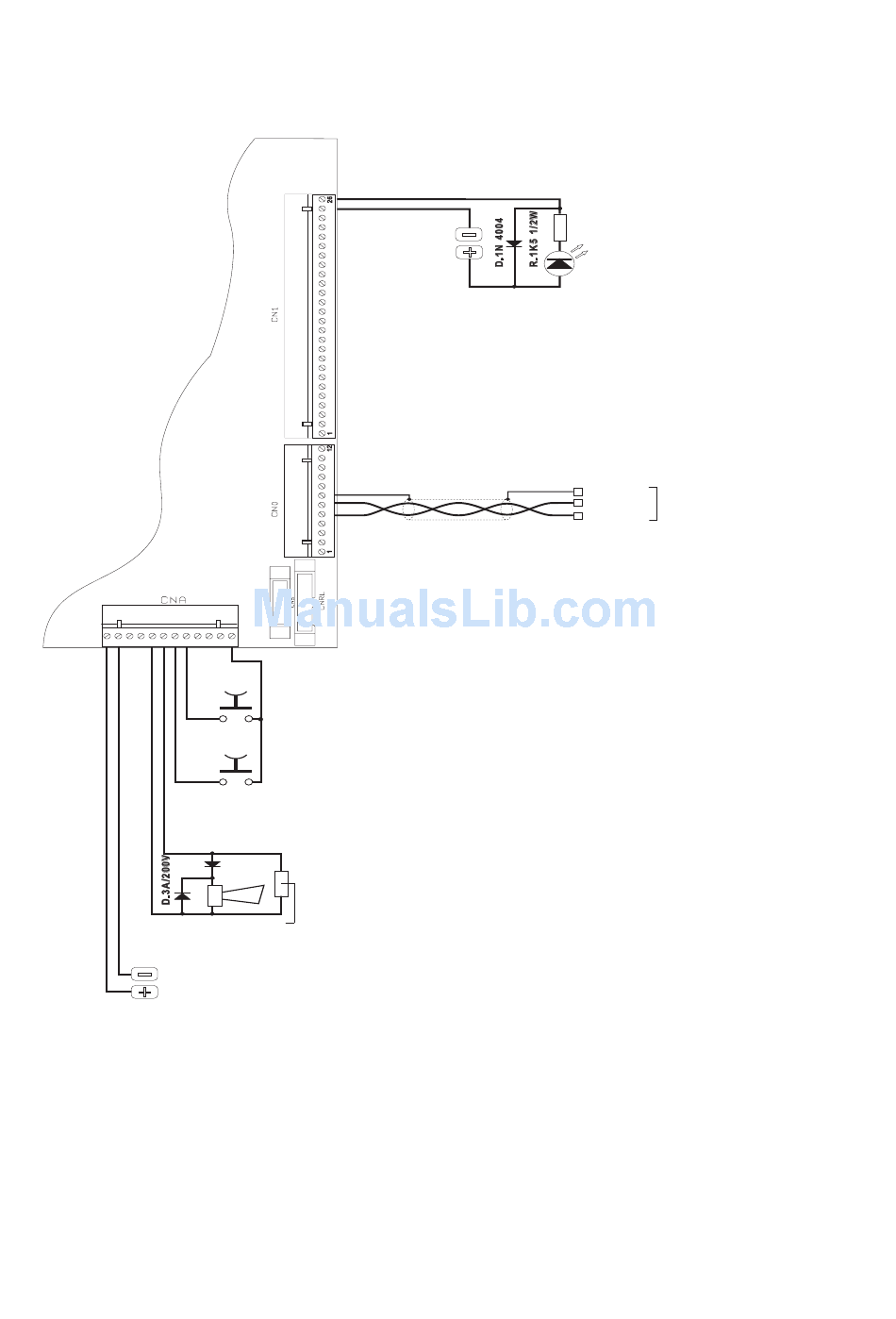

WIRING THE "BE-600 A" MAIN BOARD EXTERNAL DEVICES

1
SIREN
47 K End-of-line resistor
+ 24 V USER
Page 9
NOTIFIER ITALIA
12
Reset Push-button N.O.
Signal Silence Push-button N.O.
Installation Manual
General Trouble Signal
N.B. :
Any external device powered by the
control panel or by supervised line
must be connected to a diode, as
showed in the diagram.
Rev. B.1
Serial Line: RS 232
G N D I S
R S 2 3 2 R X R S 2 3 2 R X
CRT/PC or
R S 2 3 2 T X R S 2 3 2 T X
LCD-6000 Repeaters
